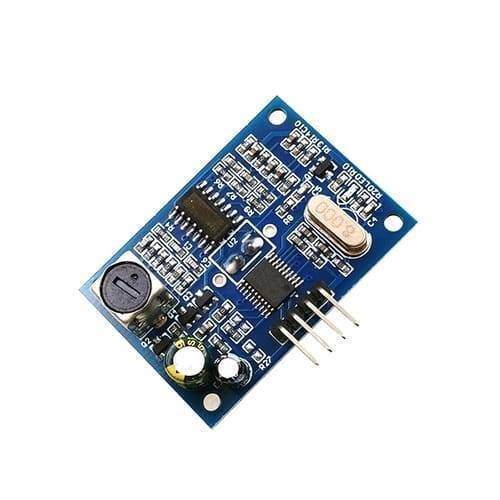

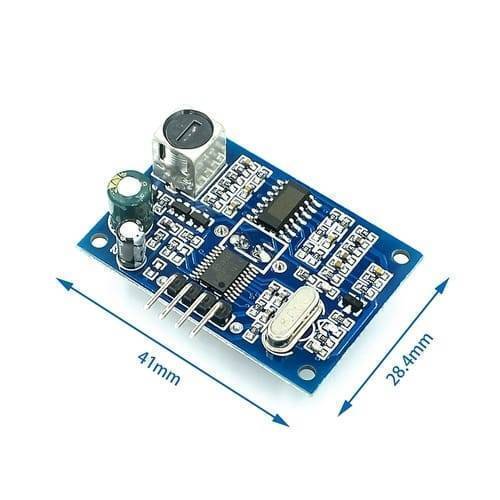

Waterproof Ultrasonic Sensor Jsn-sr04t Distance Measuring Transducer Sensor For Arduino

Interface Of JSN-SR04T With Arduino

/* This code works with JSN SR04 T ultrasound module
 * It measures the distance and shows it on the Serial monitor
 * Refer to www.SurtrTech. com or SurtrTech YT channel for more informations
 */

#define TRIG 11 //Module pins
#define ECHO 12

void setup() {

  Serial.begin(9600); // Serial monitoring
  pinMode(TRIG, OUTPUT); // Initializing Trigger Output and Echo Input
  pinMode(ECHO, INPUT_PULLUP);
  }

  void loop() {

    digitalWrite(TRIG, LOW); // Set the trigger pin to low for 2uS
    delayMicroseconds(2);

    digitalWrite(TRIG, HIGH); // Send a 10uS high to trigger ranging
    delayMicroseconds(20);

    digitalWrite(TRIG, LOW); // Send pin low again
    int distance = pulseIn(ECHO, HIGH,26000); // Read in times pulse

    distance= distance/58; //Convert the pulse duration to distance
                           //You can add other math functions to calibrate it well

    Serial.print("Distance ");
    Serial.print(distance);
    Serial.println("cm");

    delay(50);

}

Package Include:

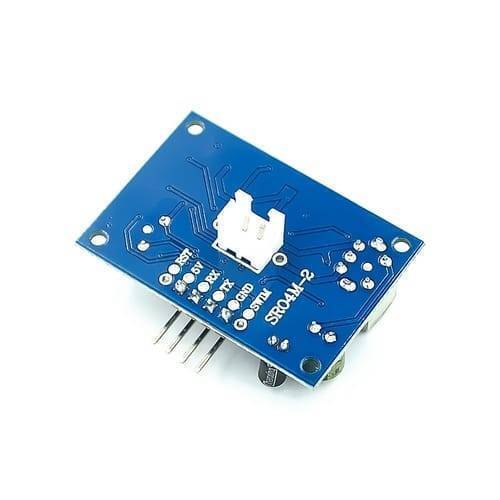

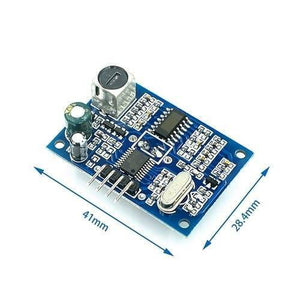

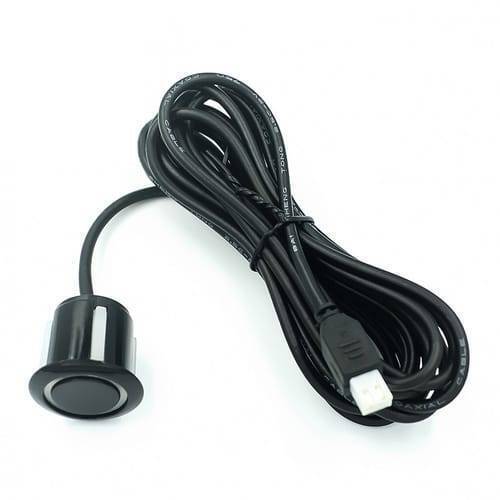

• 1 x  JSN-SR04T waterproof ultrasonic rangefinder module

Best Online shopping website for Waterproof Ultrasonic Sensor JSN-SR04T 2.0 Distance Measuring Transducer Sensor for Arduino at cheap price in Lahore, Islamabad, Karachi, Faislabad, Multan, Quetta, Sukkur, Peshawar, Rawalpindi and all over Pakistan
