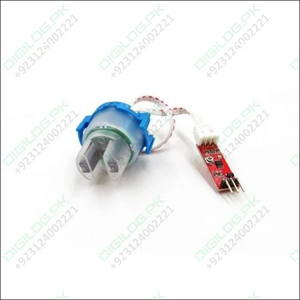

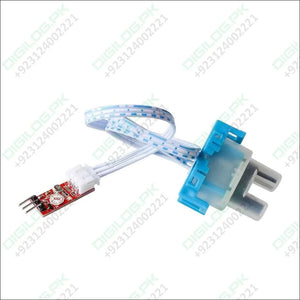

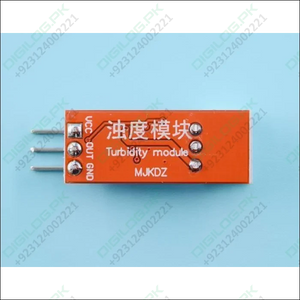

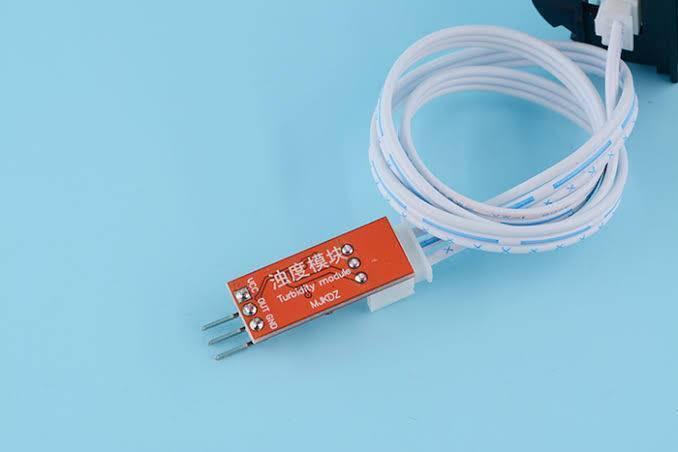

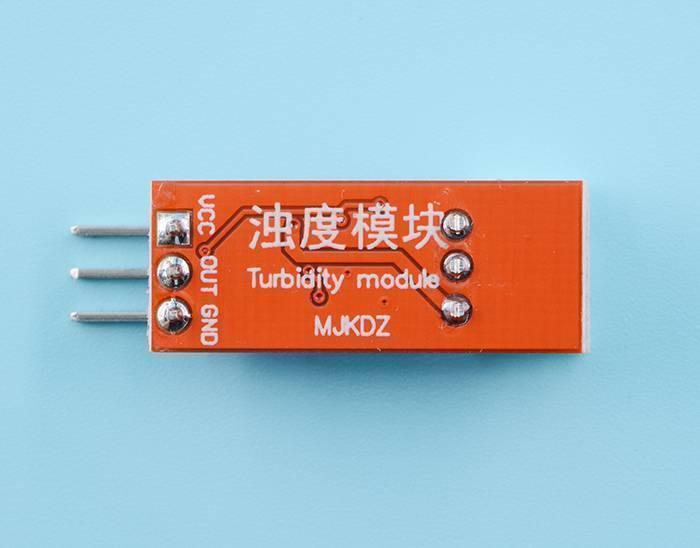

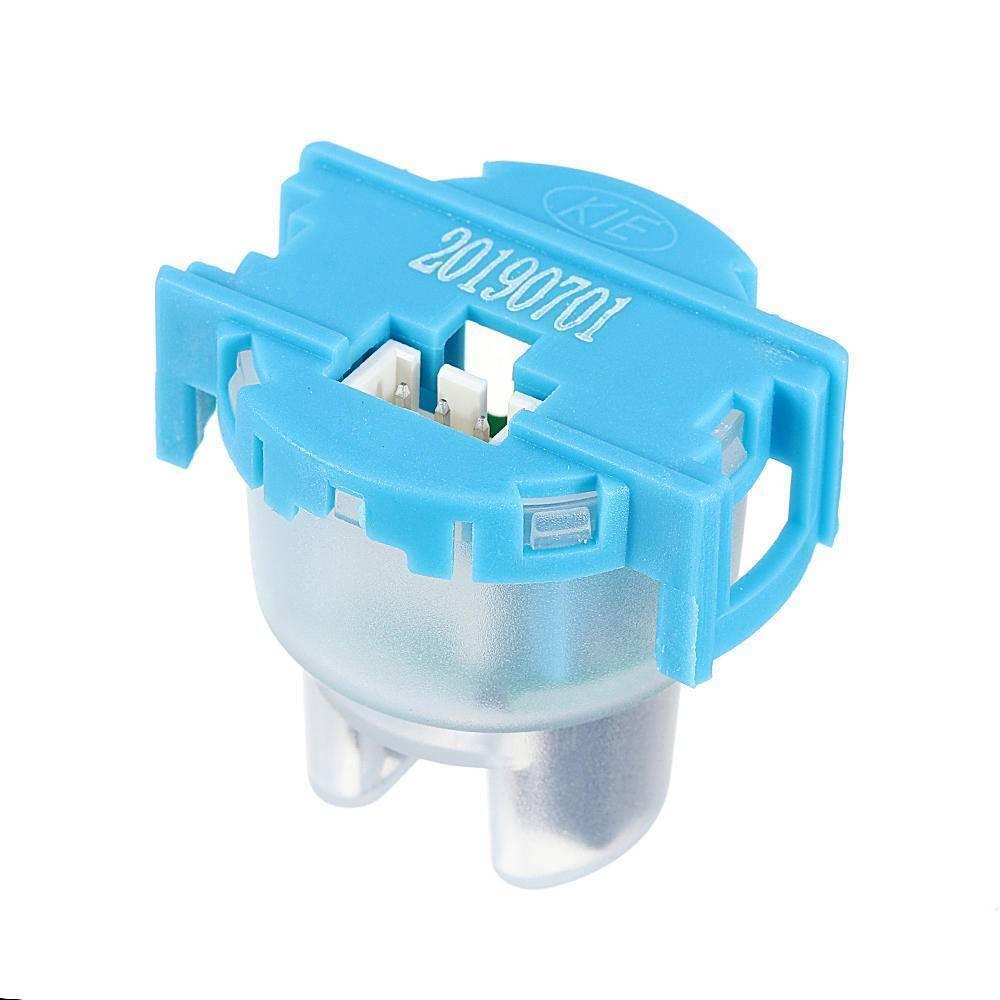

Water Turbidity Sensor

Accurately measure and monitor water turbidity with our reliable turbidity sensor module. This versatile device is compatible with popular microcontrollers and offers precise readings for various applications.

Key Features:

• Compatible with Arduino, Raspberry Pi, AVR, PIC, etc.
• Measures turbidity of water in rivers, streams, lakes, and more
• Detects suspended particles in water
• Digital and analog output

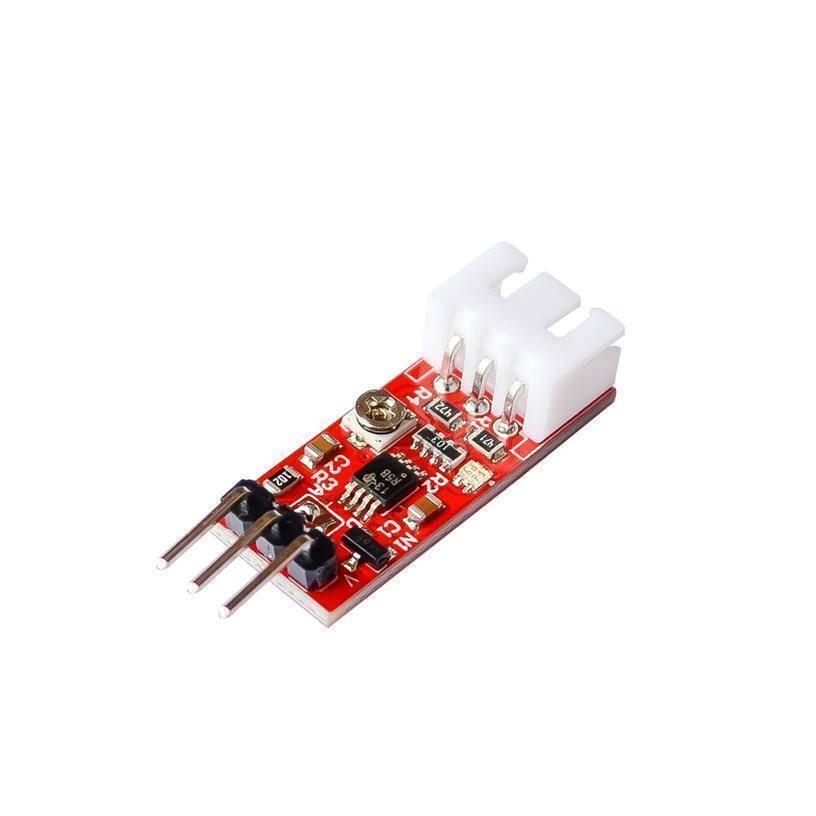

• Trimpot for sensitivity adjustment
• Wide operating temperature range

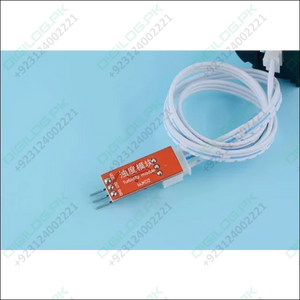

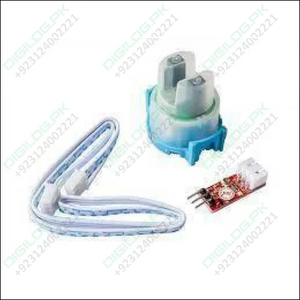

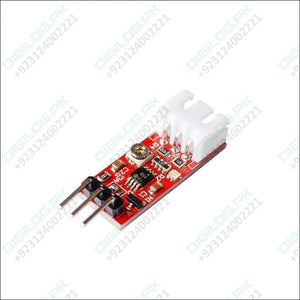

• Comes with module and jumpers

Specifications:

• Operating Voltage: 5V DC
• Operating Current: 40mA (MAX)
• Wavelength: 910 nm
• Response Time: <500ms
• Insulation Resistance: 100M (Min)
• Analog output: 0-4.5V
• Operating Temperature: -30 ℃~80 ℃
• Storage Temperature: -10℃~80℃
• Weight: 30g
• Adapter Dimensions: 38mm28mm10mm

Applications:

• River and stream gaging

• Wastewater and effluent measurements

• Control instrumentation for settling ponds

• Sediment transport research

Example Code:

void setup() {
Serial.begin(9600); //Baud rate: 9600
}
void loop() {
int sensorValue = analogRead(A0);// read the input on analog pin 0:
float voltage = sensorValue * (5.0 / 1024.0); // Convert the analog reading (which goes from 0 - 1023) to a voltage (0 - 5V):
Serial.println(voltage); // print out the value you read:
Delay(500);
}

Buy Water Turbidity Sensor at pakistan's Best Online Shopping store in low price.Here you get best and wide range of turbidity transducer mixed water detection module. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta , Faisalabad and all over Pakistan.

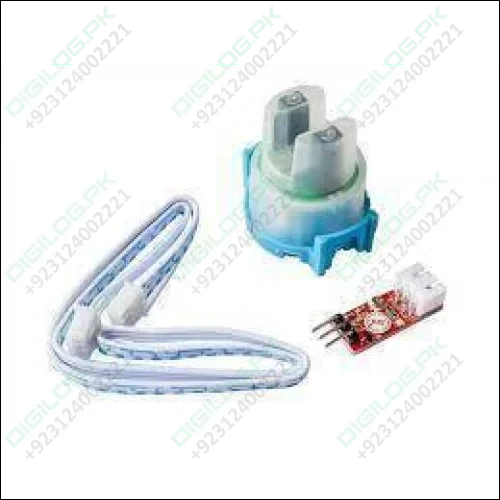

Package Include:

1x Water Turbidity Sensor
