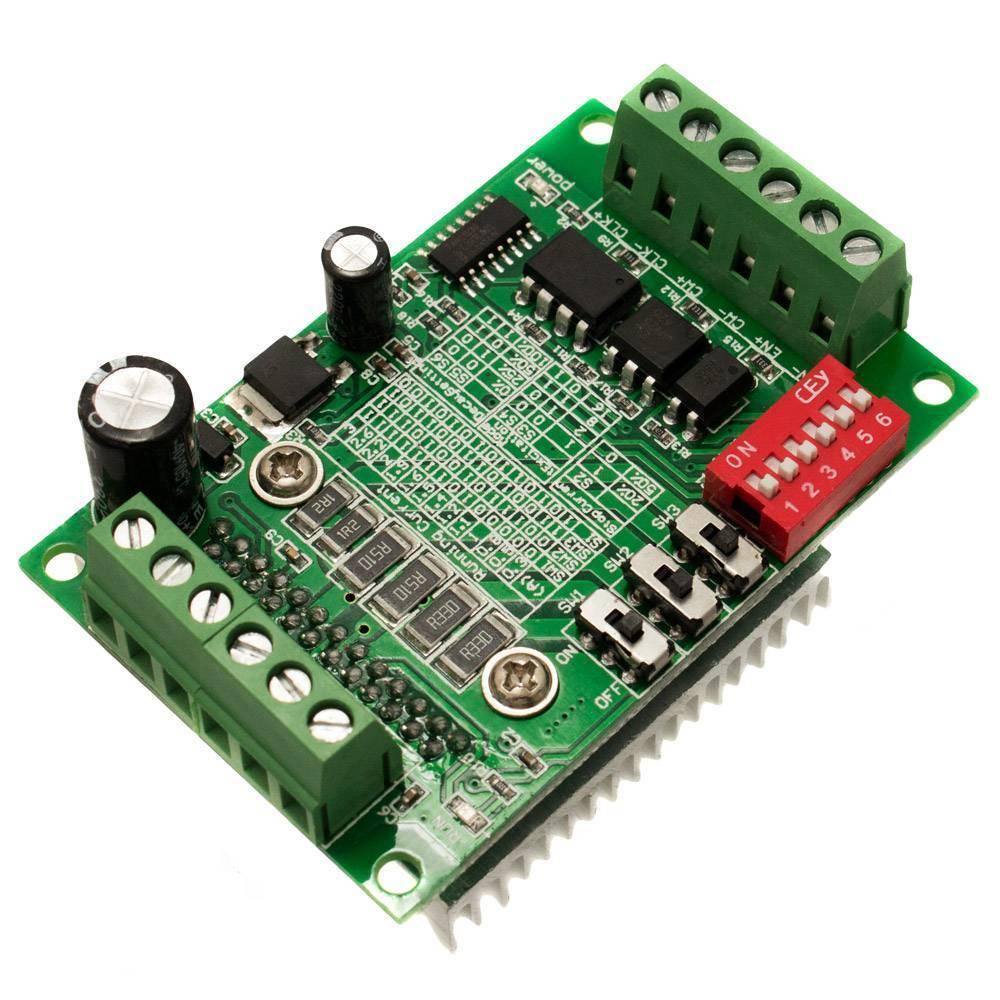

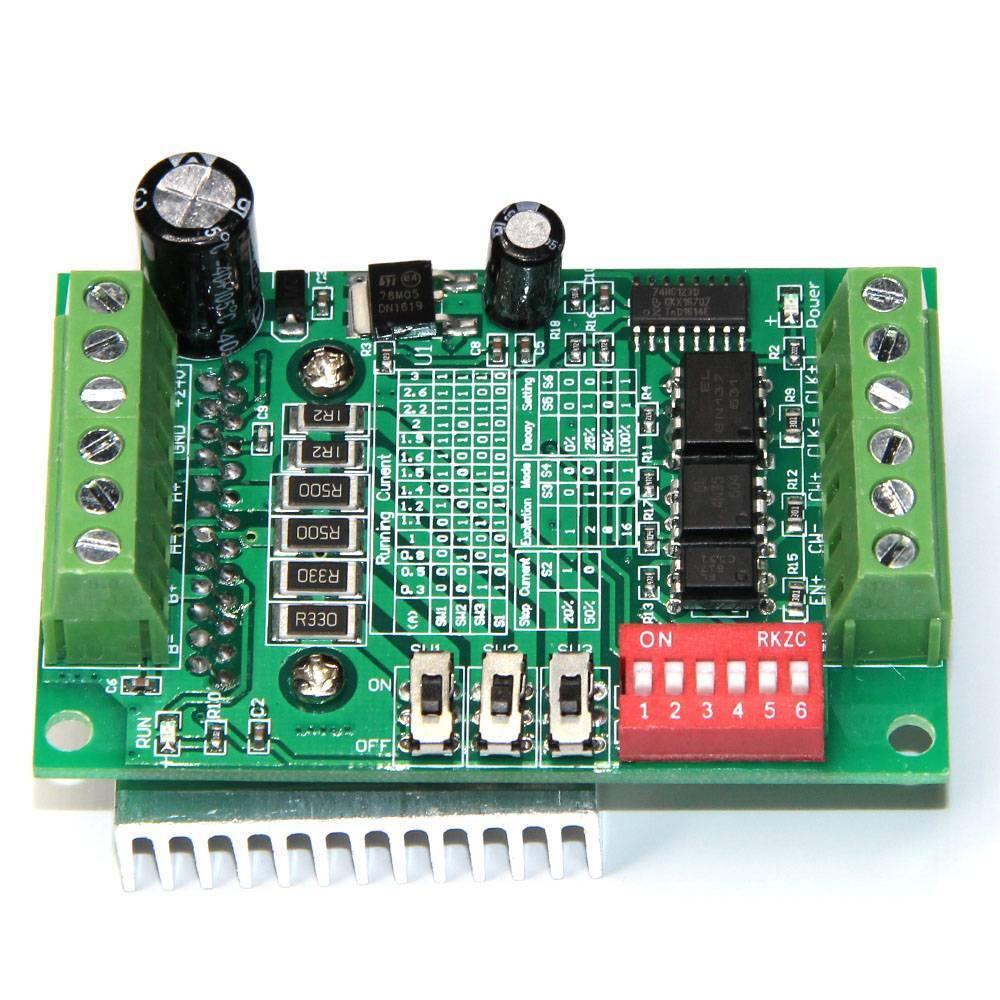

Tb6560 Single Axis 3a Stepper Motor Driver

Tb6560 Single Axis 3a Stepper Motor Driver

Regular price Rs 1,500
Regular price Sale price Rs 1,500
Sale Sold out
Shipping calculated at checkout.

SKU:B793.

NOTIFY ME WHEN IN STOCK

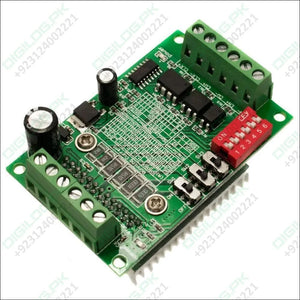

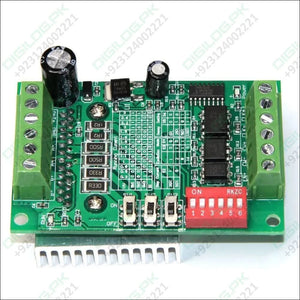

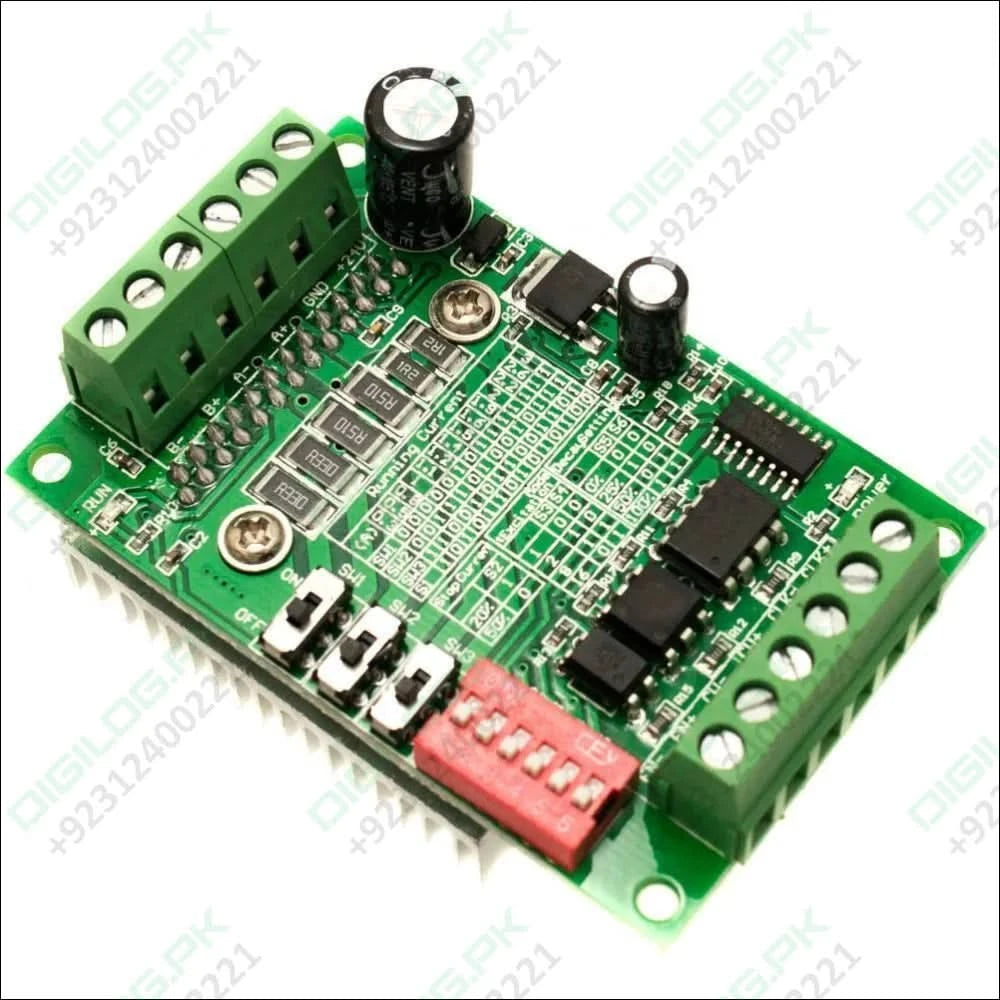

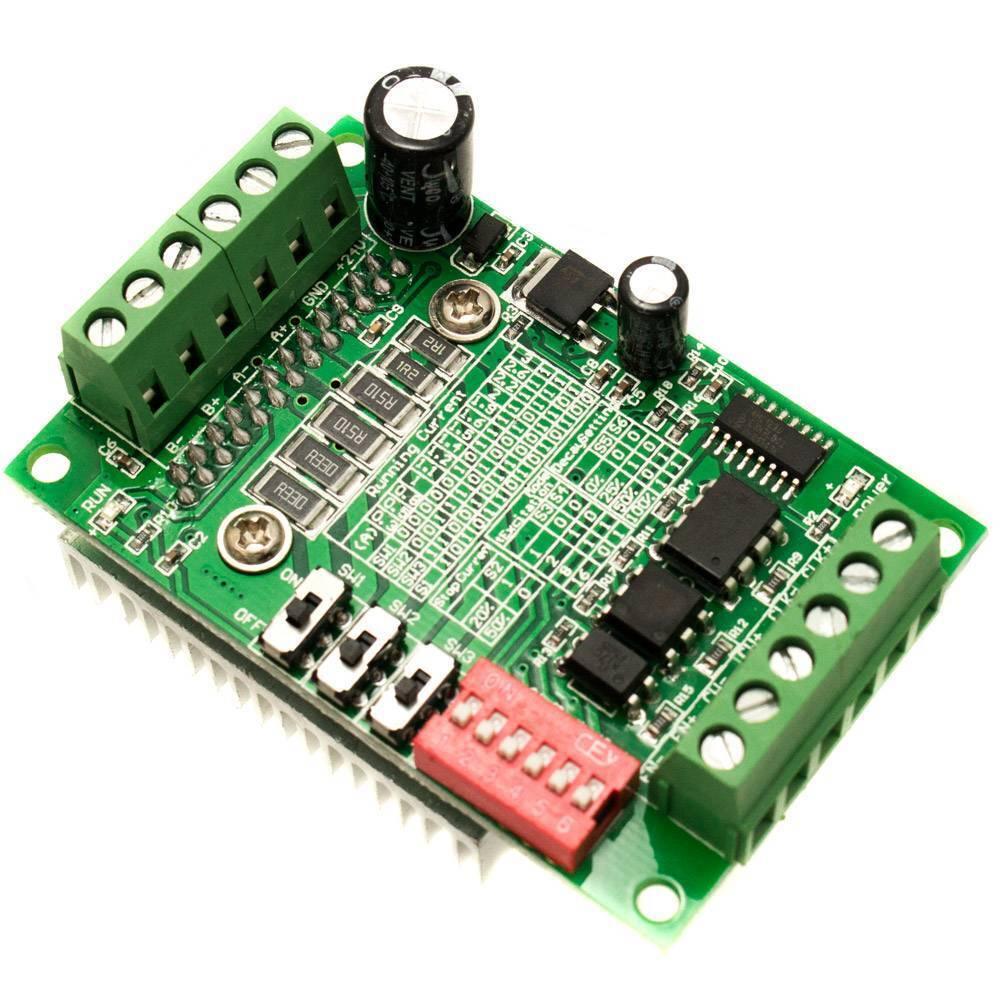

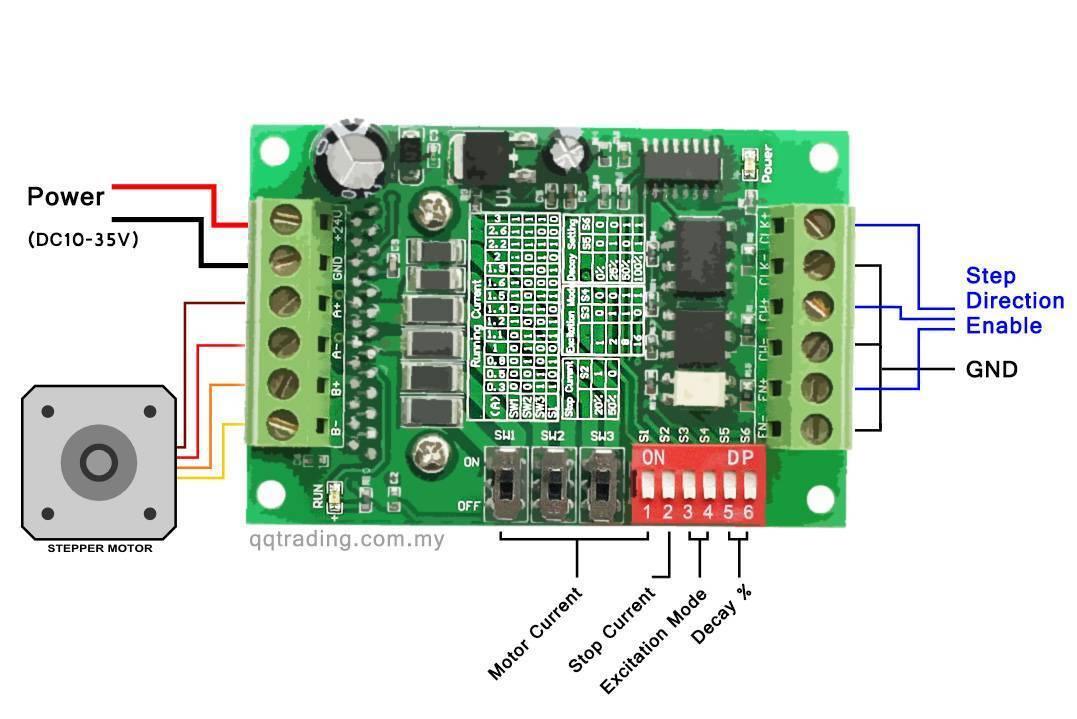

New CNC Router Single Axis 3A TB6560 Stepper Motor Drivers Board For axis control. Very easy to use, no instructions, all of use are marked on the board. With large heat sink to ensure good heat dissipation. Input signal high-speed optocoupler isolation, guarantee not losing steps. Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function .Attenuation model adjusted for all the motors can be locked when no noise.

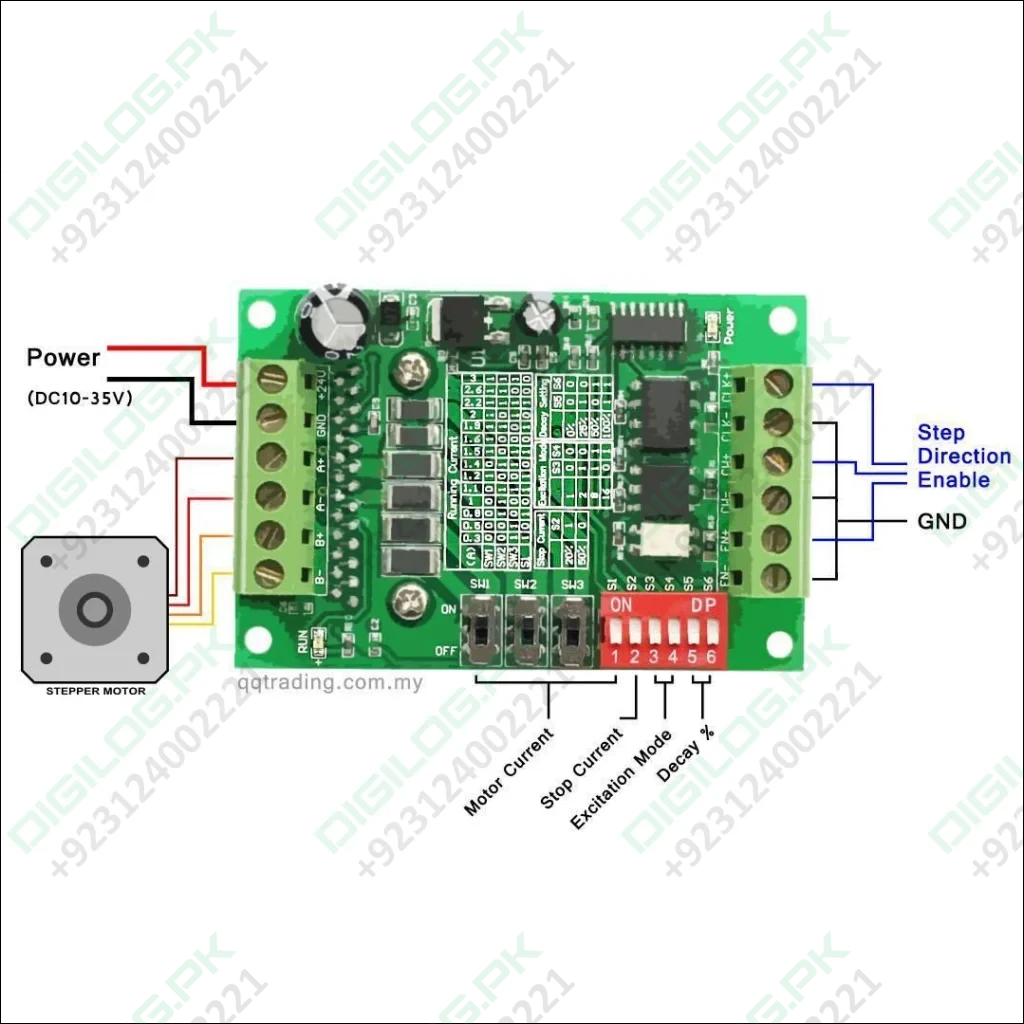

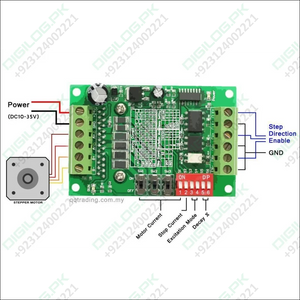

Working voltage :DC 10V-35V.Recommend Switching Power Supply DC24V

  •  6N137 high-speed OptoCoupler , to ensure a high speed without step out.
  •  New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
  •  Rated output: ± 3A  ,peak 3.5A.
  •  For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  •  Automatic half-decay.
  •  Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  •  Volume: 50 x 75 x 35 ( MM)

Characteristics :

  •  the current level adjustable to meet your various application needs.
  •  the Automatic half-decay adjustable.
  •  6N137 high-speed optical coupling, to ensure a high speed not step out.

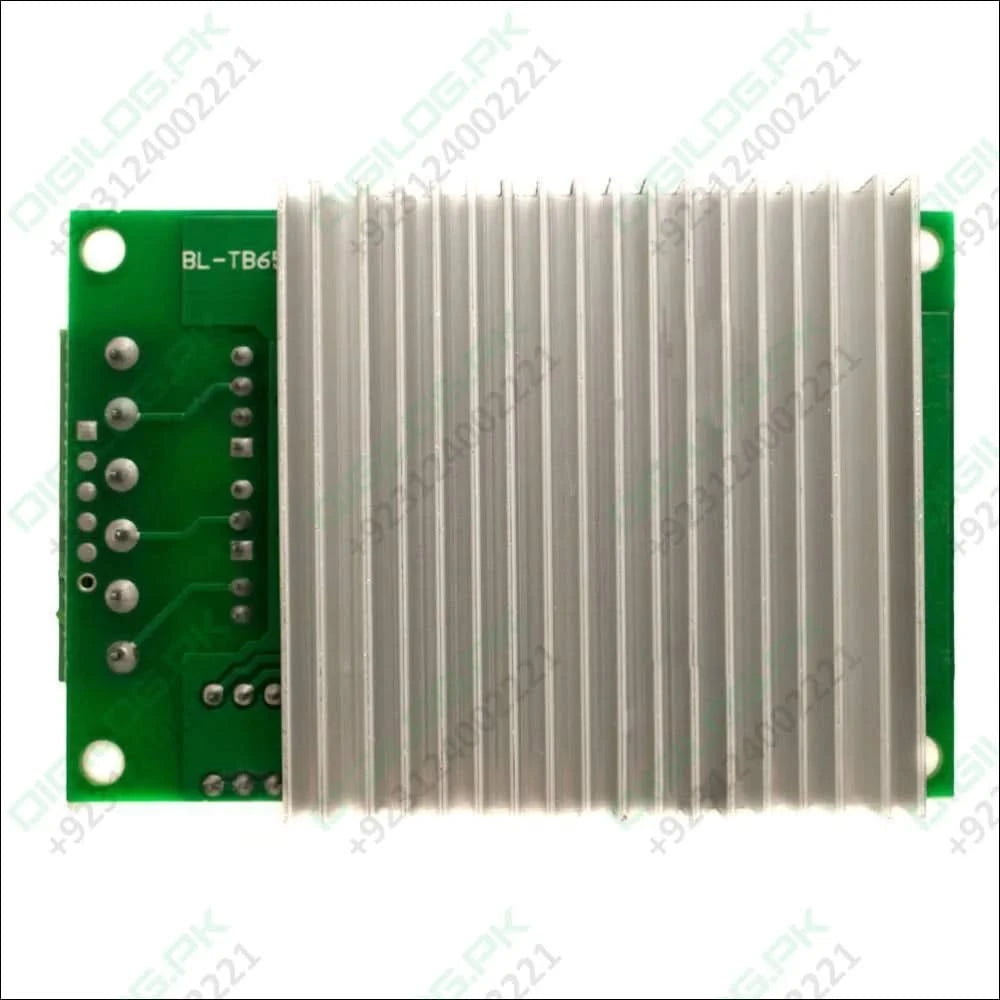

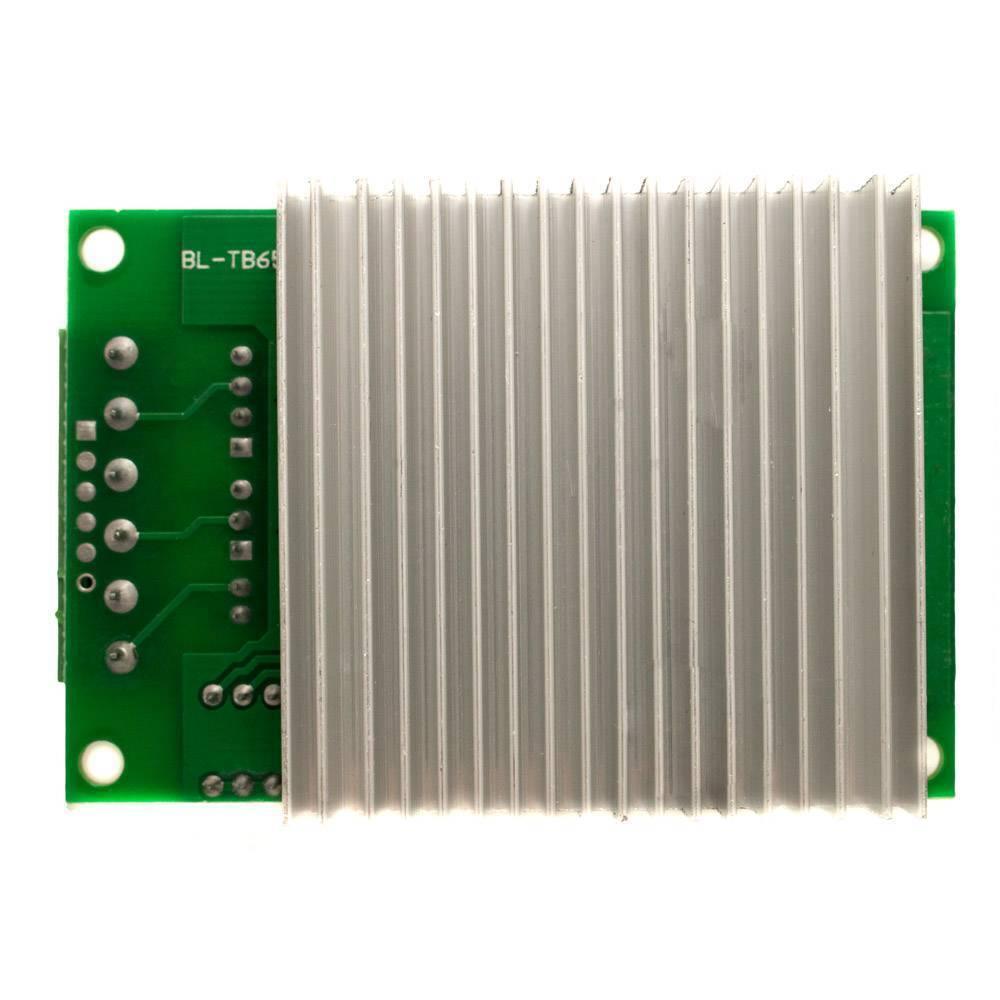

  •  thick tooth radiators, good heat dissipation.

 Tb6560 Single Axis 3a Stepper Motor Driver

Tb6560 Single Axis 3a Stepper Motor Driver

View full details

Description

New CNC Router Single Axis 3A TB6560 Stepper Motor Drivers Board For axis control. Very easy to use, no instructions, all of use are marked on the board. With large heat sink to ensure good heat dissipation. Input signal high-speed optocoupler isolation, guarantee not losing steps. Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function .Attenuation model adjusted for all the motors can be locked when no noise.


Working voltage :DC 10V-35V.Recommend Switching Power Supply DC24V

  •  6N137 high-speed OptoCoupler , to ensure a high speed without step out.
  •  New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
  •  Rated output: ± 3A  ,peak 3.5A.
  •  For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  •  Automatic half-decay.
  •  Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  •  Volume: 50 x 75 x 35 ( MM)

Characteristics :

  •  the current level adjustable to meet your various application needs.
  •  the Automatic half-decay adjustable.
  •  6N137 high-speed optical coupling, to ensure a high speed not step out.
  •  thick tooth radiators, good heat dissipation.
