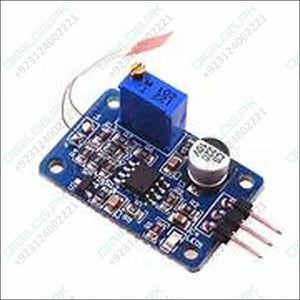

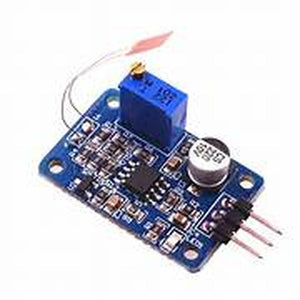

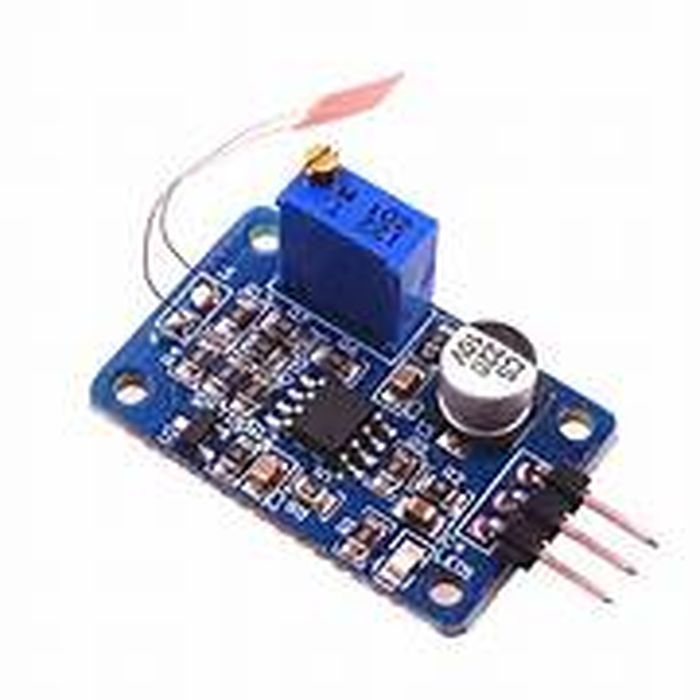

BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a capacitor, a small chip, and a three-pin connector.

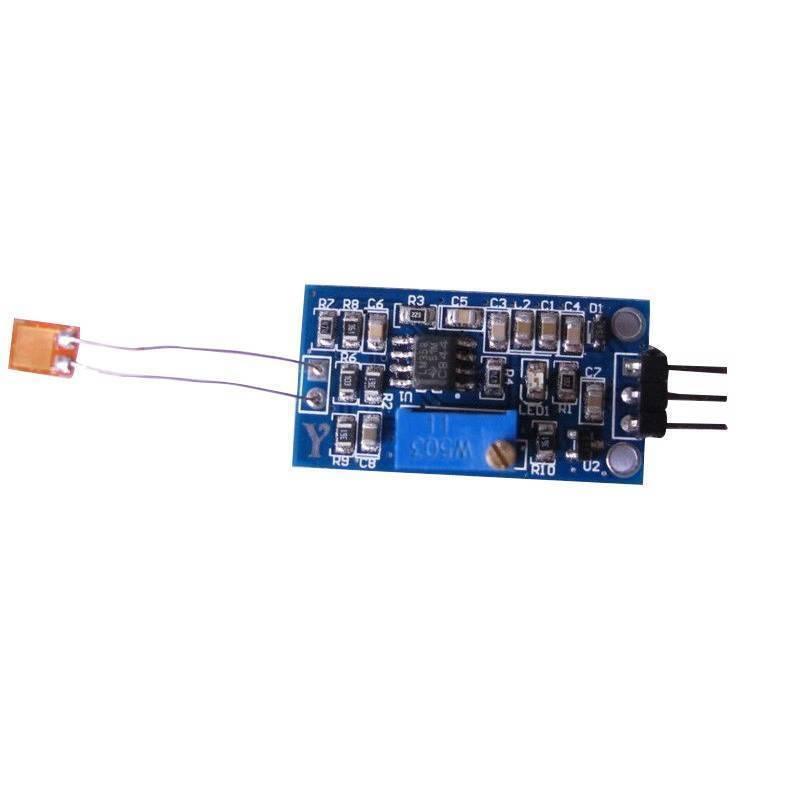

BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a three-pin connector, and an attached orange sensor element.

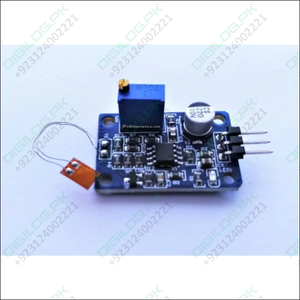

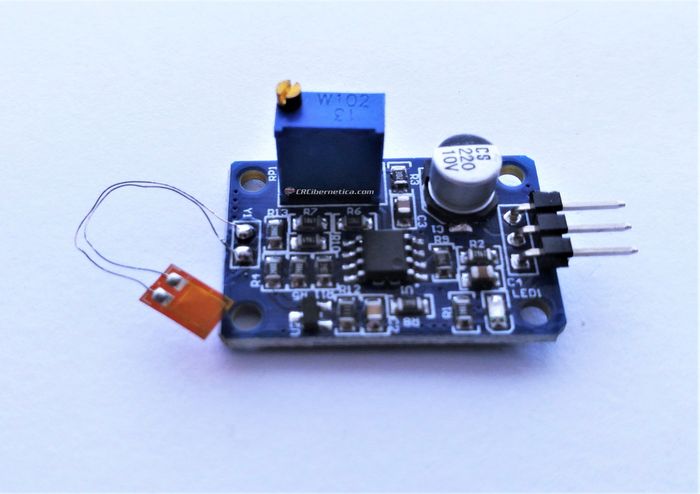

BF350 Strain Gauge Sensor Module - a blue circuit board with a three-pin header, a potentiometer, and a small rectangular sensor attached by wires.
BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a capacitor, a three-pin connector, and an attached strain gauge.
BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a capacitor, a small chip, and a three-pin connector.
BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a three-pin connector, and an attached orange sensor element.
BF350 Strain Gauge Sensor Module - a blue circuit board with a three-pin header, a potentiometer, and a small rectangular sensor attached by wires.

BF350 Strain Gauge Sensor Module

Sale price Rs 860
SKU: B425,IMP10,Th5,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a capacitor, a three-pin connector, and an attached strain gauge.
+
HW29 Hw 29 HX711 Weighing Sensor Load Cell Amplifier Module Analog To Digital Converter Pressure Sensor - a green rectangular circuit board with a black chip and a separate 10-pin header strip.
+
ADXL345 Tripple Axis Accelerometer Module - a blue rectangular circuit board with labeled pin headers and a separate strip of eight metal pins.
+
GY521 MPU6050 3 Axis Digital Gyroscope Accelerometer Sensor Module - a blue rectangular circuit board with labeled pins and dimension markings.
GY521 MPU6050 3 Axis Digital Gyroscope Accelerometer Sensor Module - a blue rectangular circuit board with labeled pins and dimension markings.
This item: BF350 Strain Gauge Sensor Module -
Sale price Rs 860
HW29 Hw 29 HX711 Weighing Sensor Load Cell Amplifier Module Analog To Digital Converter Pressure Sensor - a green rectangular circuit board with a black chip and a separate 10-pin header strip.
HW29 Hw 29 HX711 Weighing Sensor Load Cell Amplifier Module Analog To Digital Converter Pressure Sensor -
Sale price Rs 160
ADXL345 Tripple Axis Accelerometer Module - a blue rectangular circuit board with labeled pin headers and a separate strip of eight metal pins.
ADXL345 Tripple Axis Accelerometer Module -
Sale price Rs 360
GY521 MPU6050 3 Axis Digital Gyroscope Accelerometer Sensor Module - a blue rectangular circuit board with labeled pins and dimension markings.
GY521 MPU6050 3 Axis Digital Gyroscope Accelerometer Sensor Module -
Sale price Rs 390
Price for all:
Sale total price Rs 1,770

Pickup available at Digilog Electronics

Usually ready in 2 hours

BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a capacitor, a three-pin connector, and an attached strain gauge.

BF350 Strain Gauge Sensor Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
BF350 Strain Gauge Sensor Module - a blue circuit board with a potentiometer, a capacitor, a three-pin connector, and an attached strain gauge.
BF350 Strain Gauge Sensor Module
Sale priceRs 860

This BF350 strain gauge sensor module uses a BF350 sensor to measure mechanical stresses in solid materials. This BF350 strain gauge sensor module includes an adjustable amplifier circuit to make it suitable for interfacing directly to a microcontroller ADC input and requires only a single 5V power supply.

Specification of BF350:

  1. Model: BF350-3AA / 1.5AA
  2. Sensitivity coefficient: 2.0
  3. Strain limit: 2%
  4. Gate wire: length x width 2×3.5mm
  5. Base dimensions: length x width 5×4.5mm
  6. Base material: modified phenolic substrates.
  7. Gate wire material: constantan
  8. Resistance: 350 Ohm
  9. Fatigue Life:> 10 million times
  10. Flux: ordinary solder rosin
  11. Reverse protection diode ~ (to prevent power reversed)
  12. Board with a blue LED power indicator
  13. Analog Output: The higher the curvature, the greater the output voltage.
  14. Output analog voltage: 0-3.5V
  15. Board size: 32 X 17mm
  16. Behind the printed board pin definitions (Bending strain gauge, you can change the output voltage)
