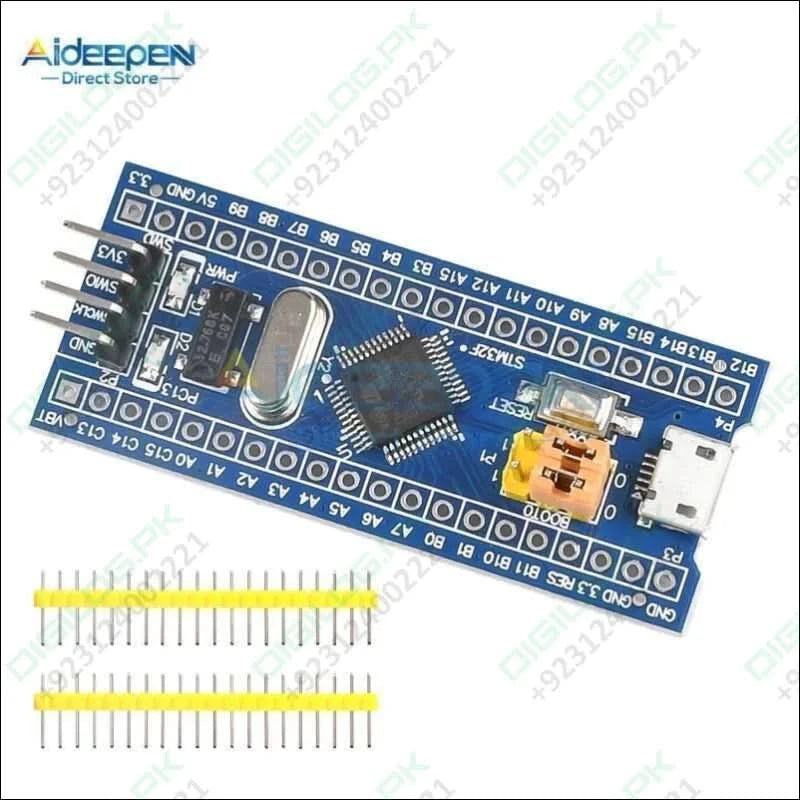

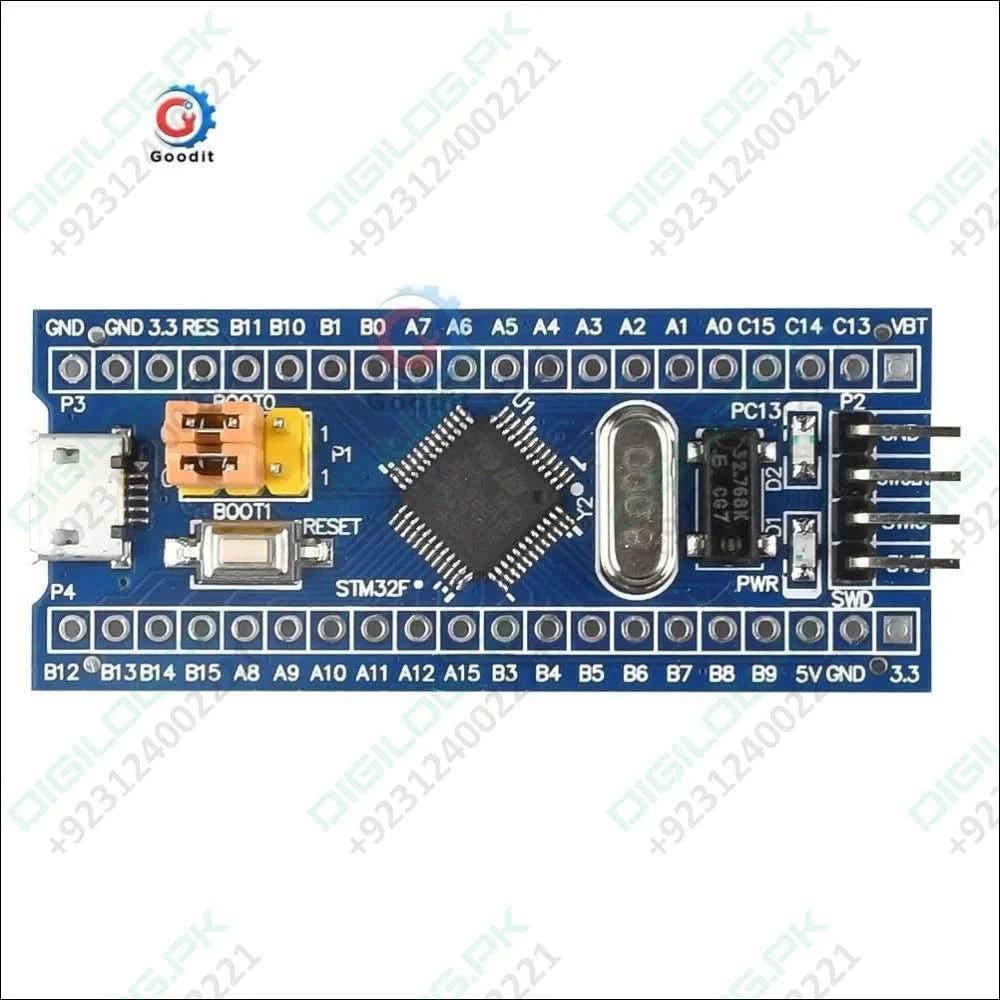

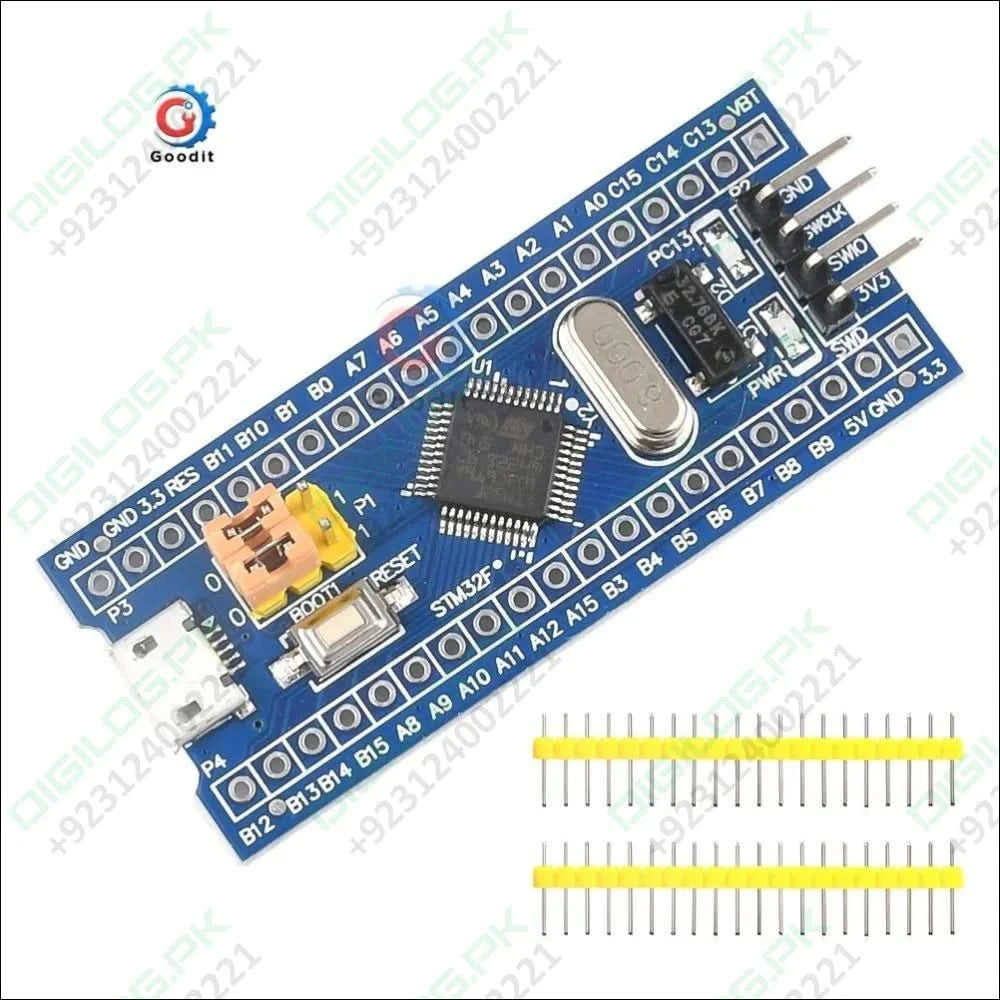

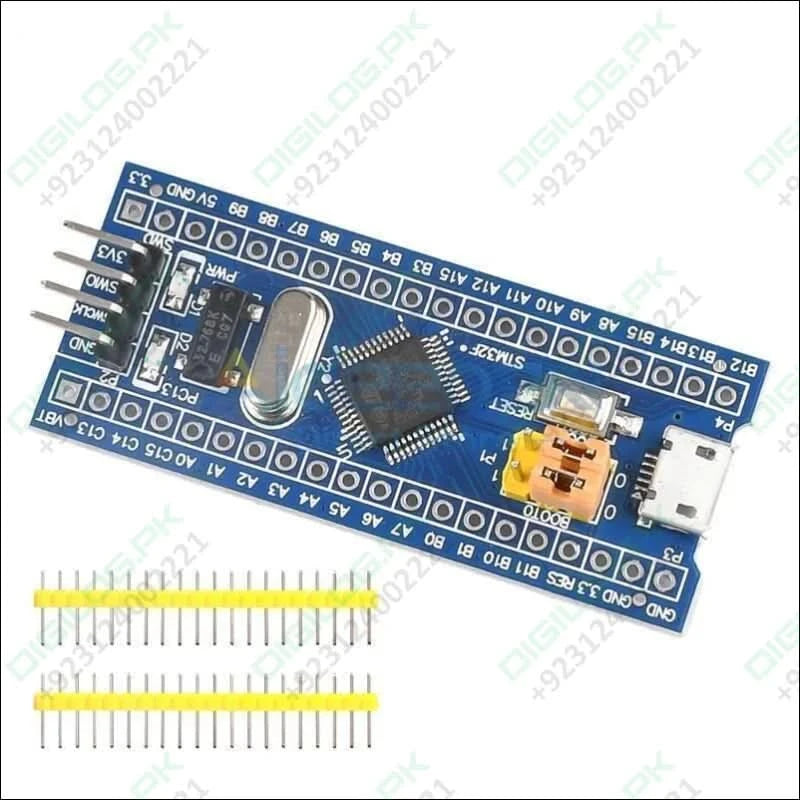

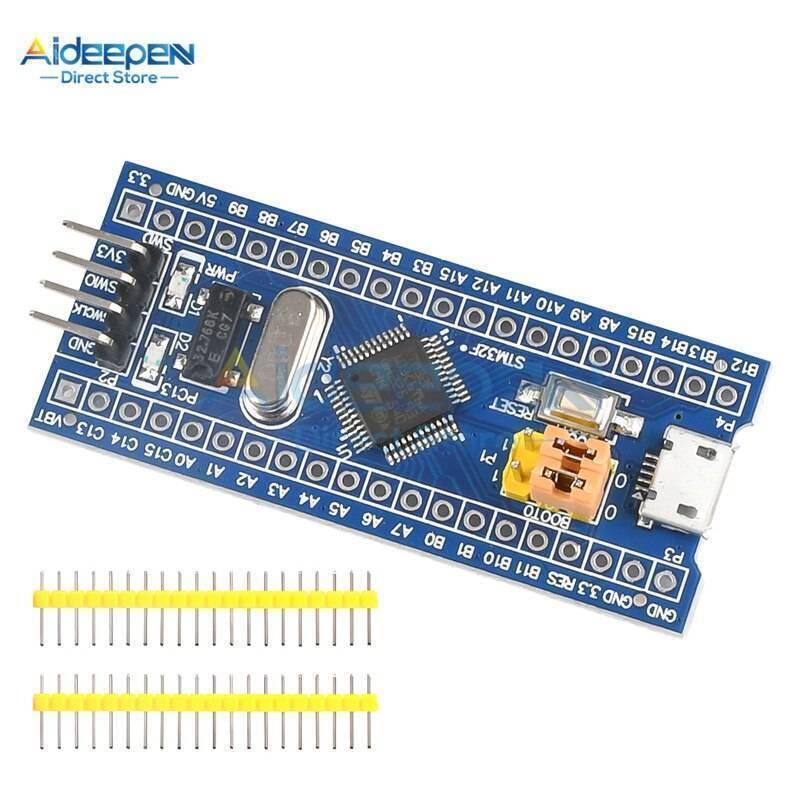

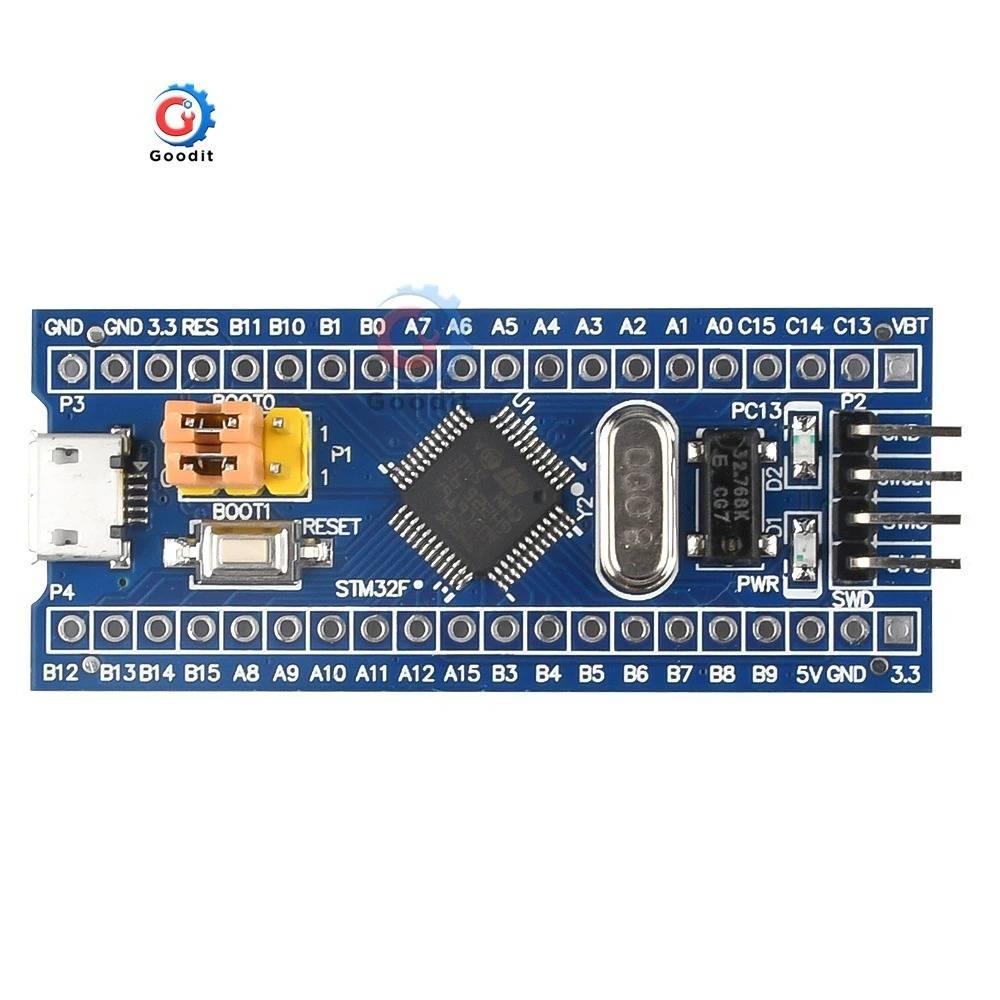

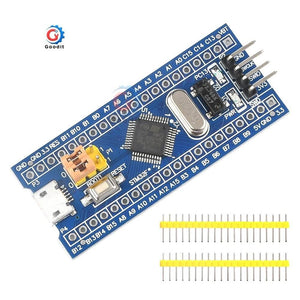

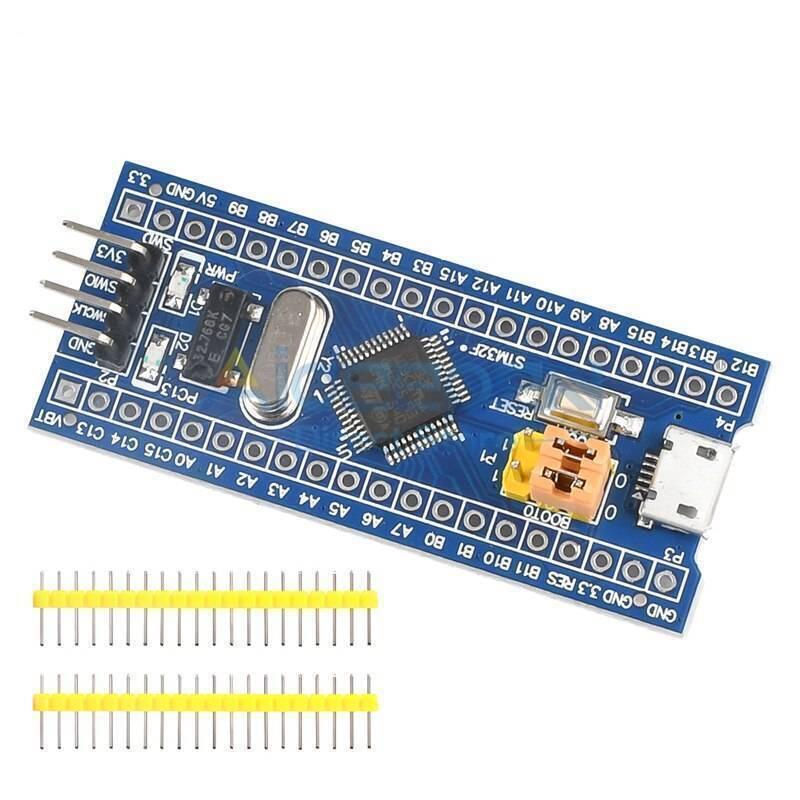

Original Blue Pill STM32f103C8T6 STM32F103 ARM Cortex-M3 Minimum System Development Board In Pakistan

STM32F103C8T6 or STM32F103 is  ARM-based STM32 Cortex-M3 Minimum System Development Board In Pakistan is devices use the Cortex-M3 core, with a maximum CPU speed of 72 MHz. The portfolio covers from 16 Kbytes to 1 Mbyte of Flash with motor control peripherals, USB full-speed interface and CAN Microcontrollers/STM32 32-bit Arm Cortex MCUs/STM32 Mainstream MCUs/STM32F1 Series.  This is STM32F103C8T6 Minimum System Board STM32 ARM Core Module. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6. Board is suitable for learners that want to learn STM32 microcontroller with ARM Cortex-M3 32-bit core.

Specifications and Features:-

1. 100% Brand new and high-quality STM32 Board
2. 72MHz work frequency.
3. 64K flash memory, 20K SRAM.
4. 2.0-3.6V power, I/O.
5. Reset(POR/PDR).
6. 4-16MHz crystal.
7. Onboard Mini USB interface, you can give the board power supply and USB communication.

Package Include:

1 x  Original Blue Pill STM32F103C8T6 / STM32F103 ARM Cortex-M3 Minimum System Development Board In Pakistan

To Program stm32 with Arduino IDE:

 Visit Blog
