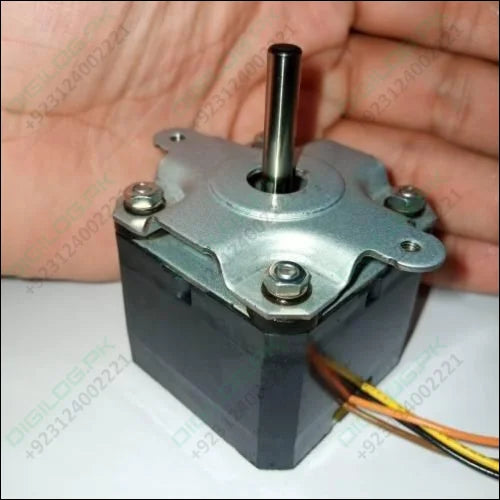

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.

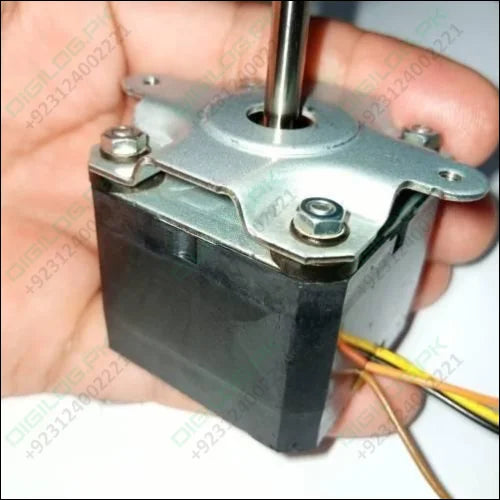

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up of the black motor body, metal mounting bracket, shaft, and colored wires.

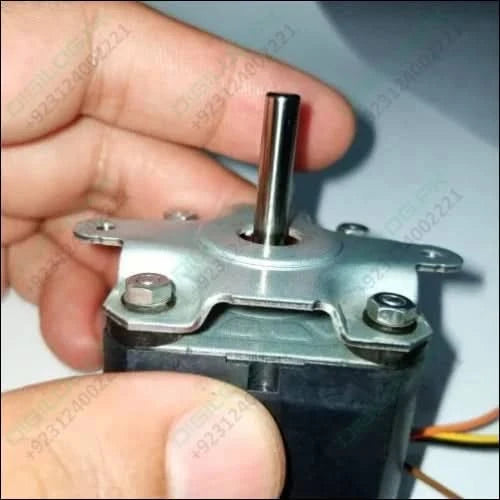

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a black square motor with a silver shaft and attached wires, held in a hand.

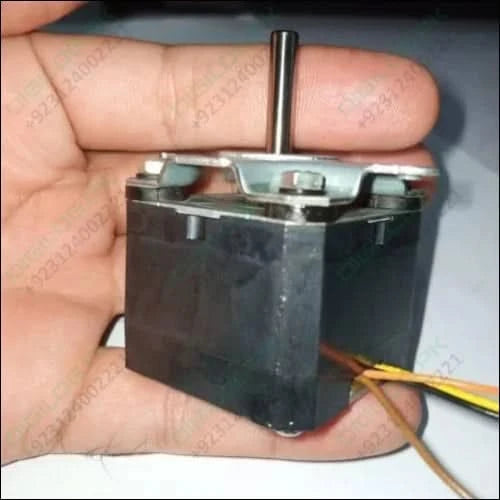

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up view showing the metallic shaft and the attached shock absorber held by a hand.
-20%
ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.
ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up of the black motor body, metal mounting bracket, shaft, and colored wires.
ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a black square motor with a silver shaft and attached wires, held in a hand.
ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up view showing the metallic shaft and the attached shock absorber held by a hand.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber

Regular price Rs 510 Sale price Rs 408
SKU: b638,KRT98,L5,Th3
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.
+
A4988 Stepper Motor Driver - module on a red PCB with a silver heatsink, featuring a small adjustment potentiometer and multiple pin headers.
+
Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver and black square-bodied motor with a central metal shaft and multi-colored wires held in a hand.
Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver and black square-bodied motor with a central metal shaft and multi-colored wires held in a hand.
This item: ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber -
Regular price Rs 510 Sale price Rs 408
A4988 Stepper Motor Driver - module on a red PCB with a silver heatsink, featuring a small adjustment potentiometer and multiple pin headers.
A4988 Stepper Motor Driver -
Sale price Rs 310
Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver and black square-bodied motor with a central metal shaft and multi-colored wires held in a hand.
Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor -
Sale price Rs 1,210
Price for all:
Regular total price Rs 2,030 Sale total price Rs 1,928

Pickup available at Digilog Electronics

Usually ready in 2 hours

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.
ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber
Regular price Rs 510 Sale priceRs 408

Nema17 4 wire Bipolar Stepper Motor us very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor

Features of nema17 stepper motor:

  • Builtin shock absorber to reduce resentencing vibration.

  • This is a high-quality motor that can be used for a long time without stuck.
  • It has a quite stable performance during work and will not lose a step.
  • Low noise and big torque, this is a great choice if you need a stepper motor.
  • Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications of ML17A3 BIpolar Nema17 Stepper Motor With Shock Absorber :

  1. Step Angle: 1.8°
  2. Phase Current: 1A
  3. Phase Resistance: 1.5Ohm
  4. Phase Inductance: 2.8mH
  5. Holding Torque: 10N.cm
  6. Braking Torque: 2.2N.cm
  7. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
  8. Operating Temperature: -20℃~+70℃
  9. Insulation Resistance: 100 MΩ Min. , 500VDC

Ml17a3 Bipolar Nema17 Stepper Motor With Shock Absorber
