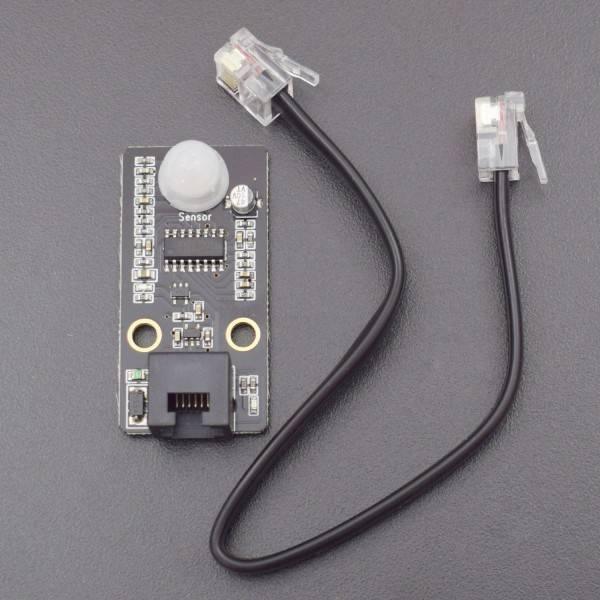

The PIR motion sensor is a sensor for detecting infrared radiation emitted by a human or animal body, and can be used for a variety of human or animal mobile triggering scenes.

Specification

• Operating voltage: DC 5V
• Power on warm-up: 30s
• Hold time: 2s
• Detection angle: 120 degrees
• Detection distance: 4 meters
• Module size: 50 x 24 x 15 mm (length x width x height)

Features:

• Onboard LED feedback trigger status.
• The use of the RD624 Human Sensing Probe is more sensitive.
• Support Arduino IDE programming, and provide runtime to simplify programming.
• Support Robobloq graphical programming for all ages.
• It is convenient to connect using the RJ11 interface.

How to use it?

• Assembly: With two mounting holes, be careful not to damage the components on the circuit board or cause a short circuit during installation.
• Wiring: It can be connected to the black ports of Qmind or Qmind plus board.
• Programming blocks

Package Includes:

• 1 x Robobloq PIR Motion Sensor

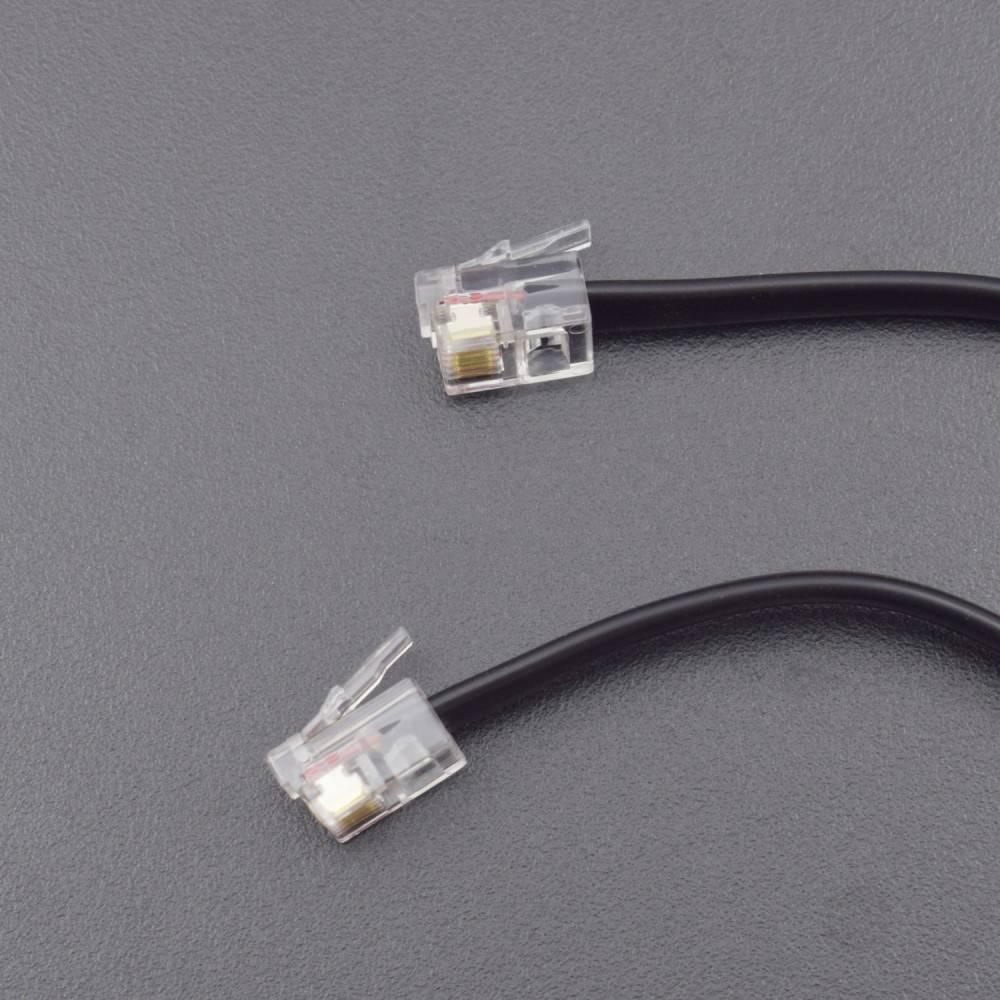

• 1 x Connecting wire
