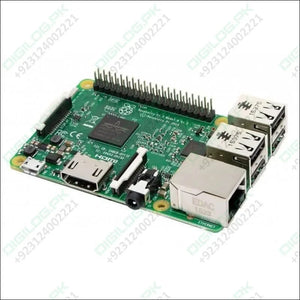

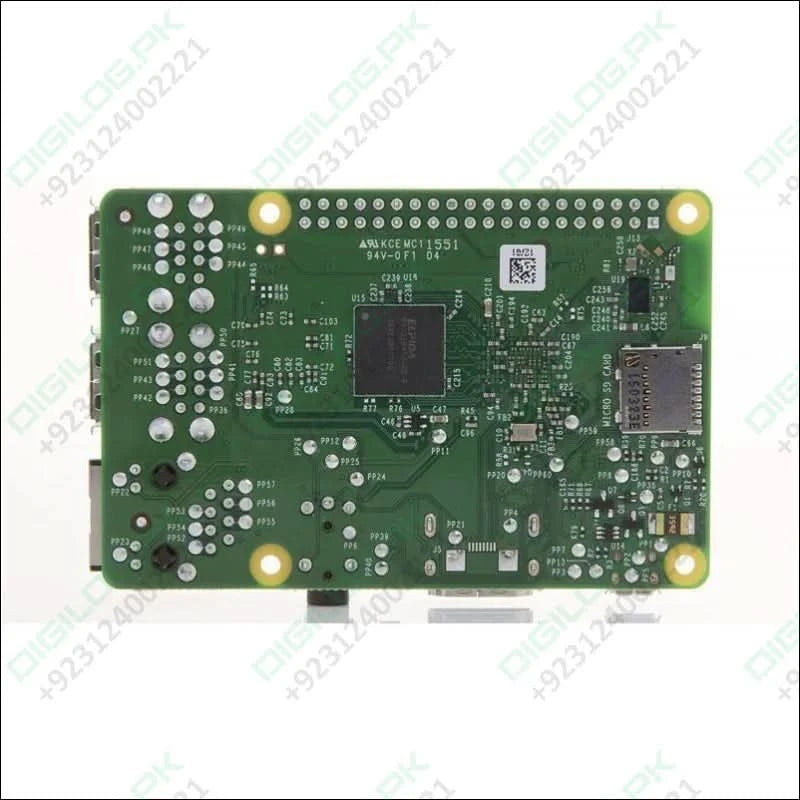

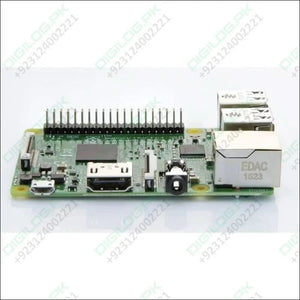

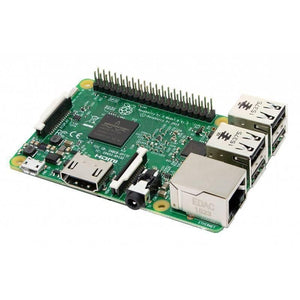

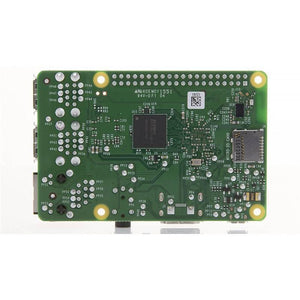

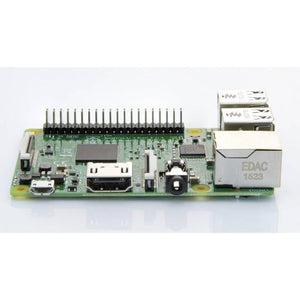

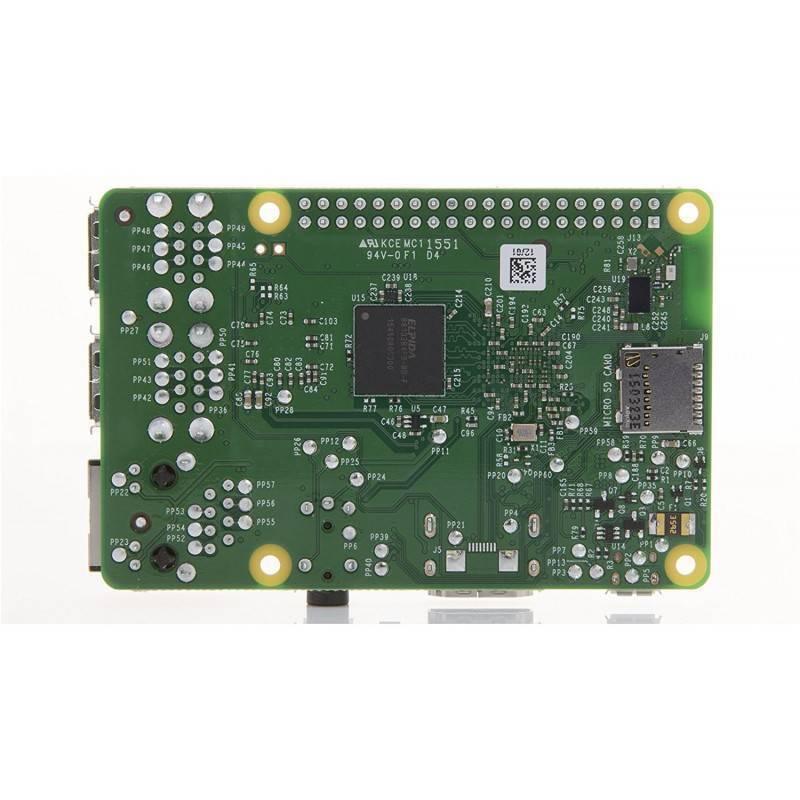

Raspberry Pi 3 Model b With Casinig

Raspberry Pi 3 Model b With Casinig

Regular price Rs 30,000
Regular price Sale price Rs 30,000
Sale Sold out
Shipping calculated at checkout.

SKU:B121

NOTIFY ME WHEN IN STOCK

The Raspberry Pi 3 Model B is the third generation Raspberry Pi. Built on the latest Broadcom 2837 ARMv8 64bit processor the new generation Raspberry Pi 3 Model B is faster and more powerful than its predecessors.

This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B. Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processor, 10x faster than the first generation Raspberry Pi. It has improved power management to support more powerful external USB devices and further to customer feedback based development the new Raspberry Pi 3 now comes with built-in wireless LAN and Bluetooth connectivity making it the ideal solution for powerful connected designs.

Specifications

Processor
Broadcom BCM2837 chipset
1.2GHz Quad-Core ARM Cortex-A53
802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
GPU
Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
Memory
1GB LPDDR2
Operating System
Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
Dimensions
85 x 56 x 17mm
Power
Micro USB socket 5V1, 2.5A
Connectors
Ethernet
10/100 BaseT Ethernet socket
Video
Output HDMI (rev 1.3 & 1.4 Composite RCA (PAL and NTSC)
Audio Output
Audio Output 3.5mm jack, HDMI,
USB
4 x USB 2.0 Connector
GPIO Connector
40-pin 2.54 mm (100 mil) expansion header: 2x20 strip providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
Camera Connector
15-pin MIPI Camera Serial Interface (CSI-2)
Display Connector
Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
Memory Card Slot
Push/pull Micro SDIO


Key Benefits:

  • Low cost
  • Consistent board format
  • 10x faster processing
  • Added connectivity

Key Applications

  • Low cost PC/tablet/laptop
  • IoT applications
  • Media center
  • Robotics
  • Industrial/Home automation
  • Server/cloud server
  • Print server
  • Security monitoring
  • Web camera
  • Gaming
  • Wireless access point
  • Environmental sensing/monitoring (e.g. weather station)

Package Includes:

  • 1x Raspberry Pi 3 Model B
View full details

Description

The Raspberry Pi 3 Model B is the third generation Raspberry Pi. Built on the latest Broadcom 2837 ARMv8 64bit processor the new generation Raspberry Pi 3 Model B is faster and more powerful than its predecessors.

This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B. Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processor, 10x faster than the first generation Raspberry Pi. It has improved power management to support more powerful external USB devices and further to customer feedback based development the new Raspberry Pi 3 now comes with built-in wireless LAN and Bluetooth connectivity making it the ideal solution for powerful connected designs.

Specifications

Processor
Broadcom BCM2837 chipset
1.2GHz Quad-Core ARM Cortex-A53
802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
GPU
Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
Memory
1GB LPDDR2
Operating System
Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
Dimensions
85 x 56 x 17mm
Power
Micro USB socket 5V1, 2.5A
Connectors
Ethernet
10/100 BaseT Ethernet socket
Video
Output HDMI (rev 1.3 & 1.4 Composite RCA (PAL and NTSC)
Audio Output
Audio Output 3.5mm jack, HDMI,
USB
4 x USB 2.0 Connector
GPIO Connector
40-pin 2.54 mm (100 mil) expansion header: 2x20 strip providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
Camera Connector
15-pin MIPI Camera Serial Interface (CSI-2)
Display Connector
Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
Memory Card Slot
Push/pull Micro SDIO


Key Benefits:

  • Low cost
  • Consistent board format
  • 10x faster processing
  • Added connectivity

Key Applications

  • Low cost PC/tablet/laptop
  • IoT applications
  • Media center
  • Robotics
  • Industrial/Home automation
  • Server/cloud server
  • Print server
  • Security monitoring
  • Web camera
  • Gaming
  • Wireless access point
  • Environmental sensing/monitoring (e.g. weather station)

Package Includes:

  • 1x Raspberry Pi 3 Model B
