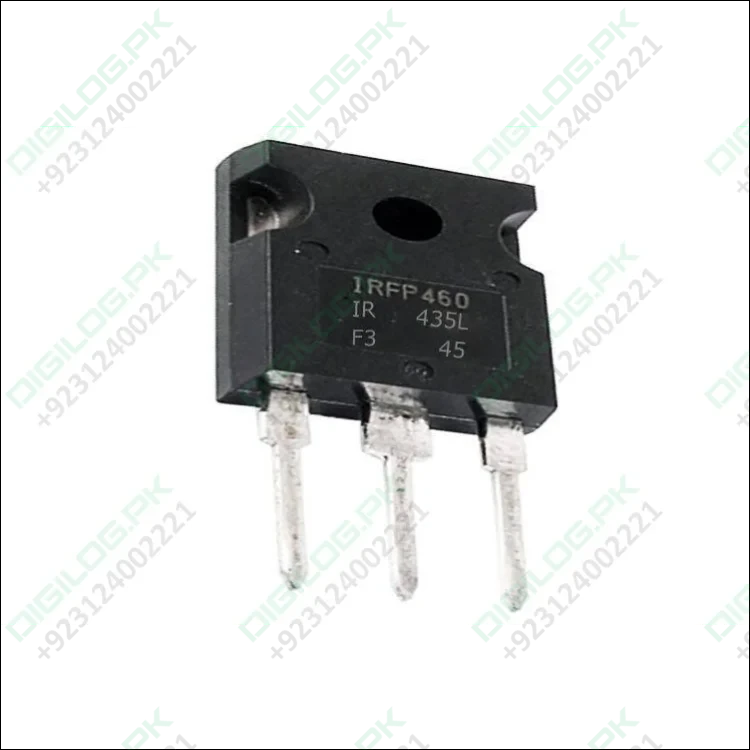

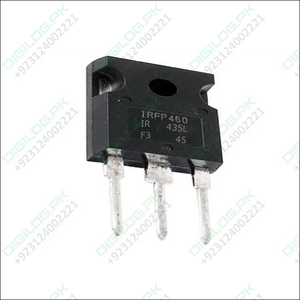

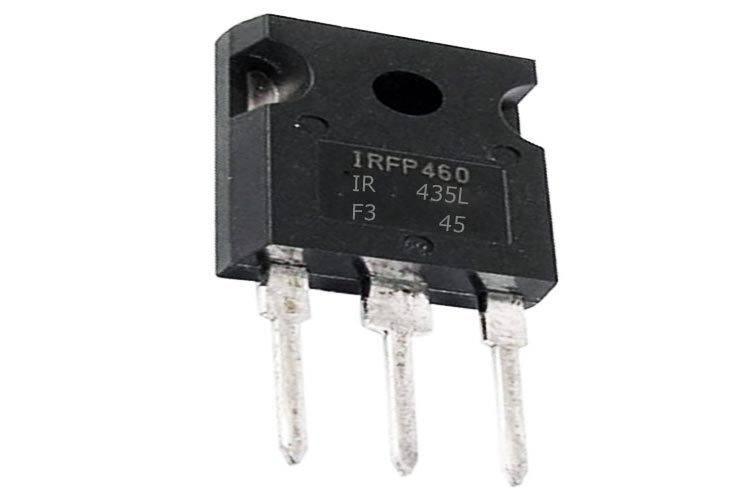

Pull Out Irfp460 Power Mosfet
The IRFP460 is an N-channel power MOSFET from Vishay, designed to provide the best combination of low on-resistance and fast switching. This is a high voltage device with a drain-source breakdown of 500V that comes in a TO-247 package.

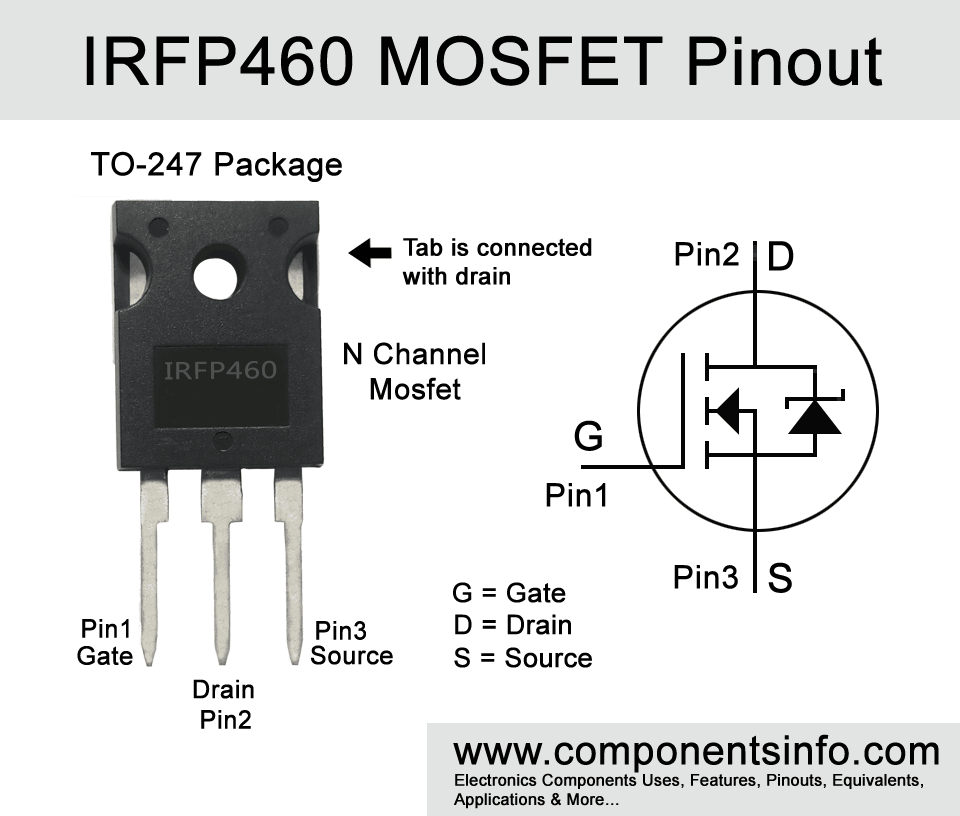

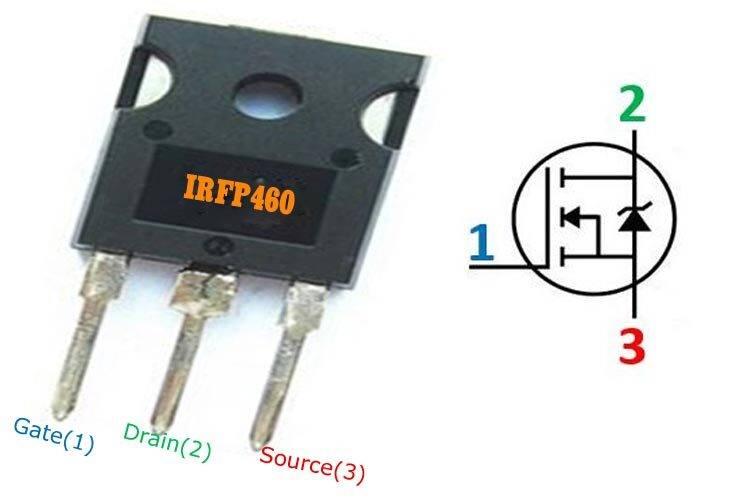

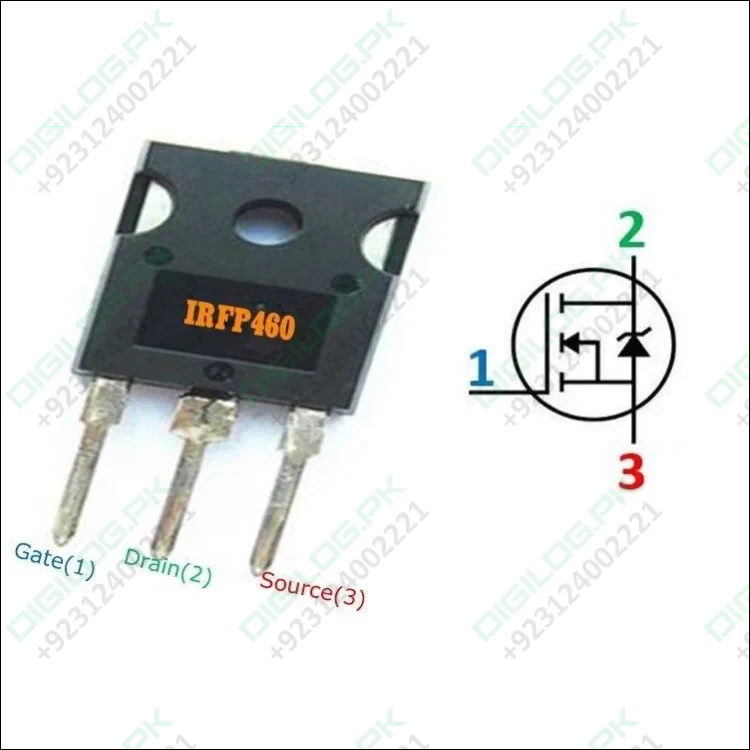

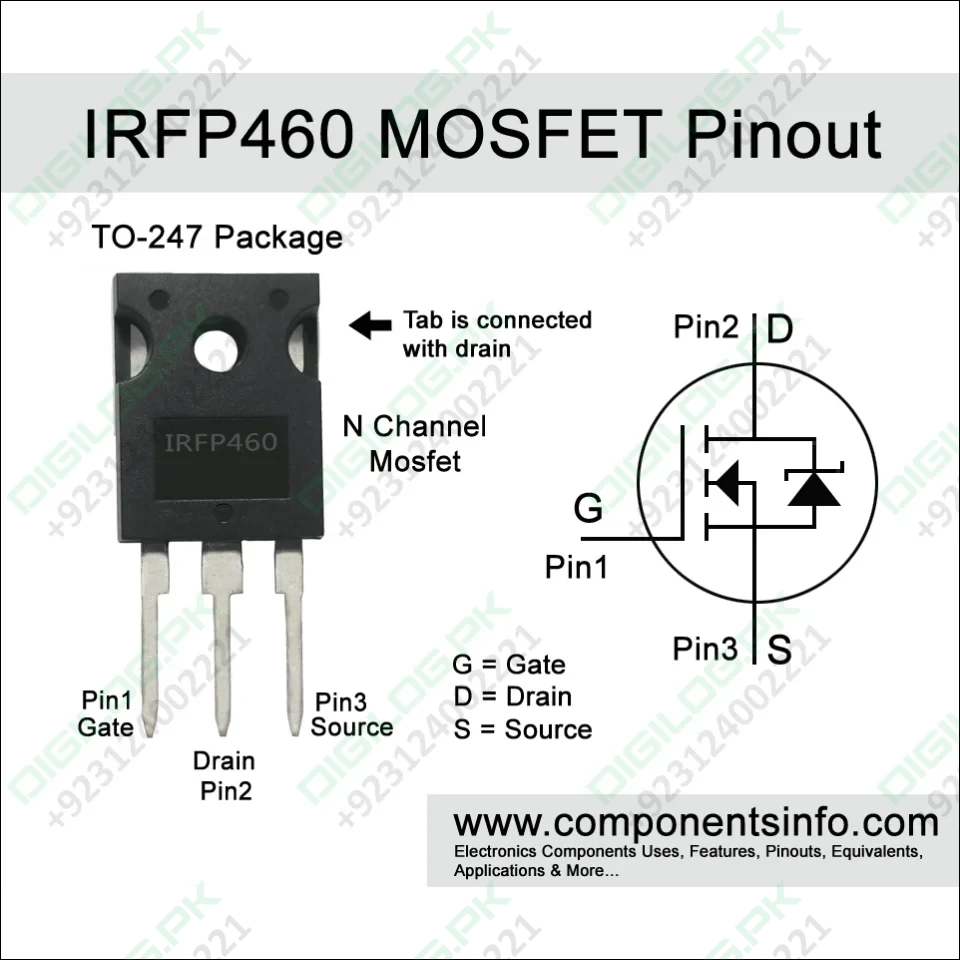

IRFP460 MOSFET Pinout Configuration
Pin Number |
Pin Name |
Pin Description |
1 |
Gate |
The gate terminal controls conduction between the drain and source |
2 |
Drain |
Current ‘input’, current flows into the MOSFET though this terminal |
3 |
Source |
Current ‘output’, usually connected to ground and current flows out of this terminal, gate voltage applied with respect to this terminal |
Features and Specifications
-
N-channel power MOSFET
-
Drain-source breakdown voltage: 500V
-
Continuous drain current: 20A
-
Input capacitance: 4.2nF
-
Gate threshold: 2V to 4V
-
Available in TO-247 package
Note: Complete technical details can be found in the IRFP460 datasheet given at the end of this page.
IRFP460 Equivalent MOSFETs
General Description of IRFP460 MOSFET
The IRFP460 is an N-channel MOSFET manufactured by Vishay. It is designed to have a high breakdown voltage of 500V and a low on-resistance of 0.27Ω at 10V gate voltage. Given the high breakdown voltage, this MOSFET can be used in switching converters with mains voltage input, high voltage amplifiers, and motor drivers.
