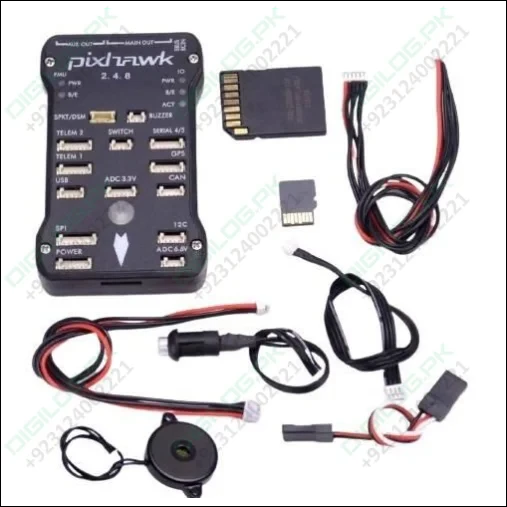

Pixhawk 2.4.8 Flight Controller With 4gb Gb

Pixhawk 2.4.8 Flight Controller With 4gb Gb

Regular price Rs 15,000
Regular price Sale price Rs 15,000
Sale Sold out
Shipping calculated at checkout.

SKU:B817

NOTIFY ME WHEN IN STOCK

Pixhawk 2.4.8 flight controller with 4GB SD card Led switch & buzzer is best Flight Control with amazing features

Specification Pixhawk 2.4.8 Flight Controller with 4GB GB:

  • Provide redundant power input and fault transfer function
  • 14 PWM/ actuator output
  • Bus interface (UART, I2C, SPI, CAN)
  • Automatic and manual mode
  • Color LED lamp
  • Multi tone buzzer interface
  • Micro SD to record flight data
  • Board integrates with PX4FMU+PX4IO Pixhawk is with new 32 bit chip and sensor technology Processor
  • 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit Main frequency
  • 256K, 168MHZ RAM 32 bit STM32 F103 backup co processor
  • Sensor:L3GD20 3 axis digital 16 bit gyroscope LSM303D
  • 3 axis 14 bit accelerometer /magnetometerMPU6000 6 axis accelerometer / magnetometer
  • MS5611 high precision barometer
  • Interface: 5 UART, 1 compatible high voltage, 2 hardware flow control 2 CAN Spectrum DSM/DSM2/DSM-X satellite receiver compatible
  • input Futaba flysky Tranis Frsky etc SBUS compatible input and output PPM signal input RSSI (PWM or voltage)
  • inputI2CSPI3.3 and 6.6VADC
  • input External USB MICRO
  • interface Color:
  • Black Size: 50×81 x 16mm / 2.0×3.2 x 0.6
  • Weight: 48g



Package included:

  • 1 x  2.4.8 Pixhawk Main Controller,
  • 1 x  Safety Switch
  • 1 x  4 GB Memory Card
  • 1 x  Flight Control
  • 1 x  Shell Buzzer

Caution:

  • Storage Area temperature: Don’t put it beside the high temperature condition or the temperature is over 70 ° C.
  • Charging Caution: Don’t over-charge, or over-discharge batteries
  • Keep away from kids that they can not get it.
  • Flammable: Don’t throw it into fire.
  • Don’t throw it into water.
  • For safety, we recommend that you use the official material and accessories.
FAQ

How to use Pixhawk 2.4.8 Flight Controller?

Answer: Read manual carefully or consult on internet.
