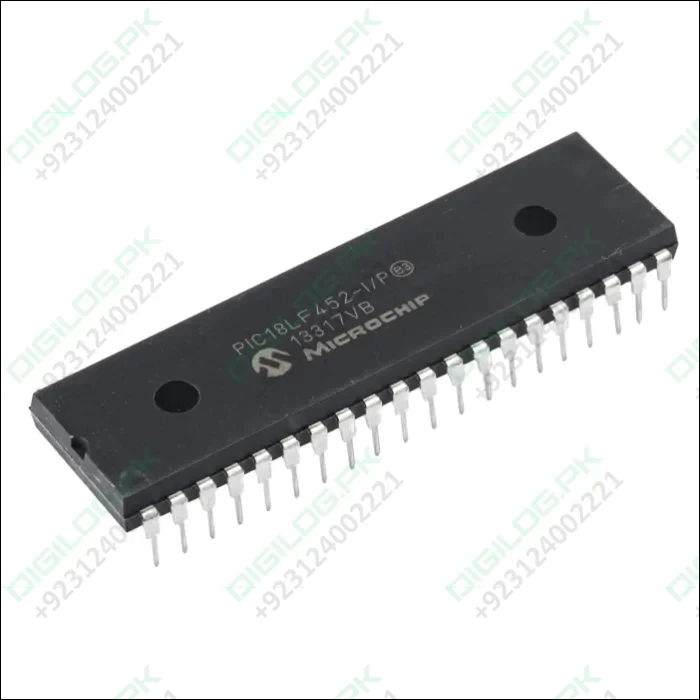

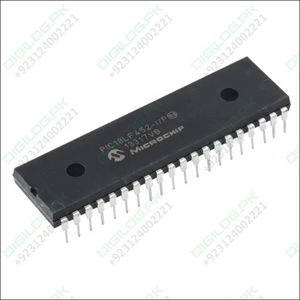

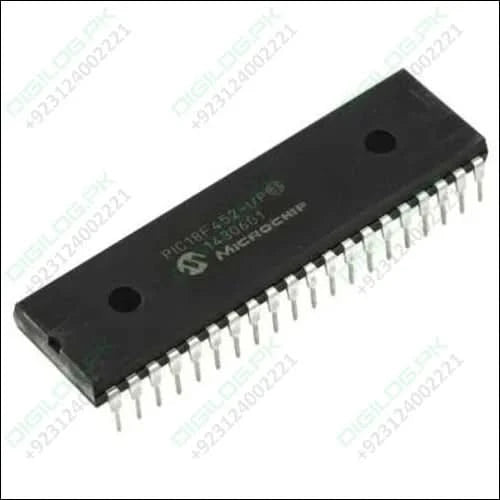

PIC18F452 18f452 452 Microcontroller

PIC18F452 18f452 452 Microcontroller

SKU: B91,L5,Th2,KRT
Rs.3,000
Rs.3,000
Please hurry! Only 987 left in stock
Subtotal: Rs.3,000
10 customers are viewing this product
18F452 is powerful 10 MIPS (100 nanosecond instruction execution) yet easy-to-program (only 77 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into a 40- or 44-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX, PIC16CXX and PIC17CXX devices and thus providing a seamless migration path...
Description
Description
x

18F452 is powerful 10 MIPS (100 nanosecond instruction execution) yet easy-to-program (only 77 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into a 40- or 44-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX, PIC16CXX and PIC17CXX devices and thus providing a seamless migration path of software code to higher levels of hardware integration. The PIC18F452 features a ‘C’ compiler friendly development environment, 256 bytes of EEPROM, Self-programming, an ICD, 2 capture/compare/PWM functions, 8 channels of 10-bit Analog-to-Digital (A/D) converter, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, instrumentation and monitoring, data acquisition, power conditioning, environmental monitoring, telecom and consumer audio/video applications.

  • 2 PWM 10-Bit
  • 40 MHz Max. Speed
  • Self-Programming
Parameter Name Value
Program Memory Type Flash
Program Memory (KB) 32
CPU Speed (MIPS) 10
RAM Bytes 1,536
Data EEPROM (bytes) 256
Digital Communication Peripherals 1-UART, 1-A/E/USART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals 2 CCP
Timers 1 x 8-bit, 3 x 16-bit
ADC 8 ch, 10-bit
Temperature Range (C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 40
