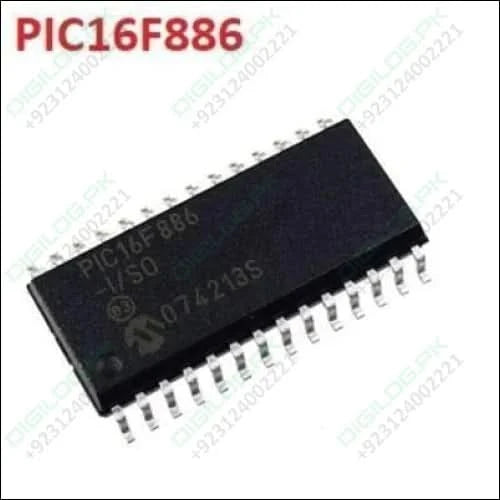

PIC16F886 ISO SOIC28 Microcontroller Legs may be bend a little bit

With the PIC16F886-I/SO microcontroller from Microchip Technology, you can program a circuit to perform tasks that meet your desired specifications. This PIC16 Microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 20 MHz. Its flash program memory is 14KB. This device is based on the PIC core architecture. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. This is an 8-bit processor. Its ADC resolution is 10.

Features Of Microchip Technology PIC16F886 Controller:

• Precision Internal Oscillator
• Power-Saving Sleep mode
• Power-on Reset (POR)
• Selectable Brown-out Reset (BOR) voltage
• Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• In-Circuit Serial Programming™ (ICSP™) via two pins
• In-Circuit Debug (ICD) via two pins
• Self-reprogrammable under software control
• Programmable code protection
• 10-bit 11 channel Analog-to-Digital (A/D) Converter

Specifications Of 28Pin PIC16F886 Enhanced Flash-Based CMOS Microcontroller:

1. Program Memory Type: Flash
2. Program Memory Size (KB): 14KB
3. Speed: 20MHz
4. Number of I/O: 28
5. SRAM (B) : 368
6. Program Memory Size: 14KB
7. EEPROM Size: 256x8
8. Voltage - Supply (Vcc/Vdd): 2V ~ 5.5V
9. Data Converters: A/D 11x10b
10. Timers: 2 x 8-bit, 1 x 16-bit

Datasheet

Package Include:

• 1 x PIC16F886 Microcontroller
