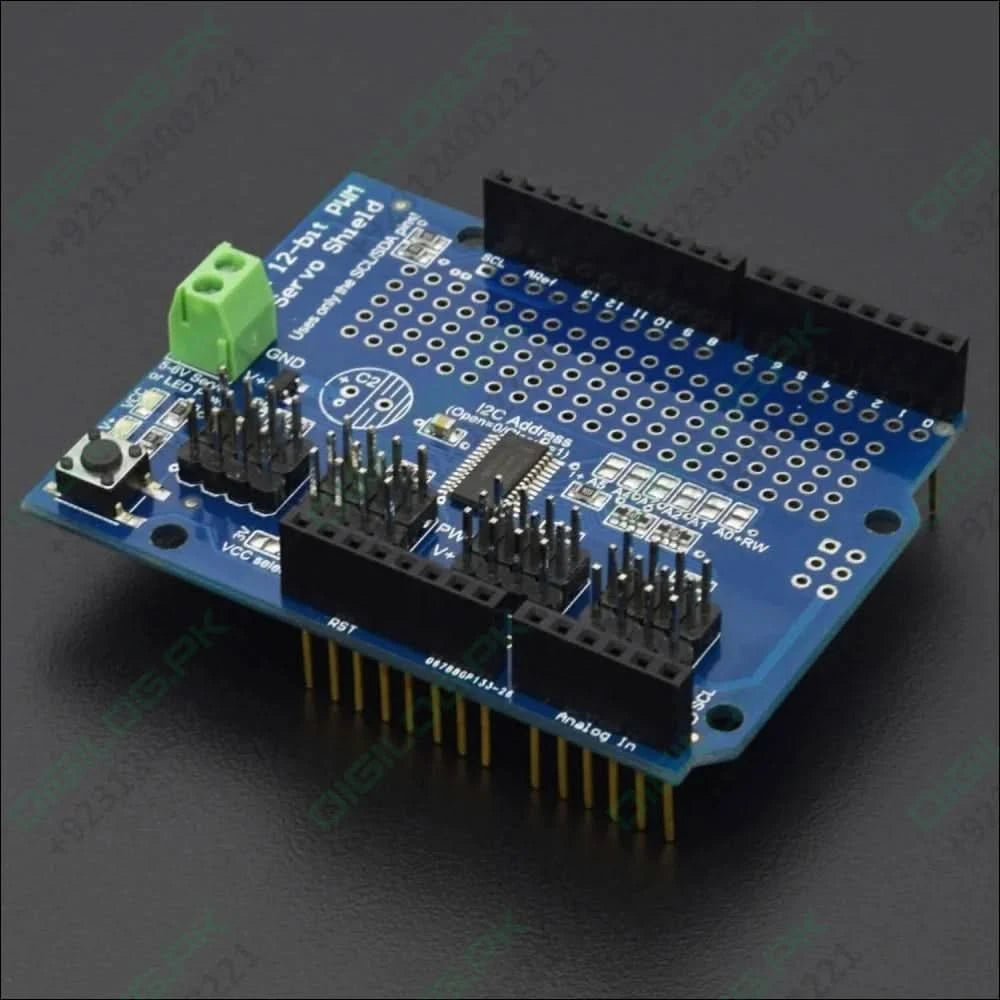

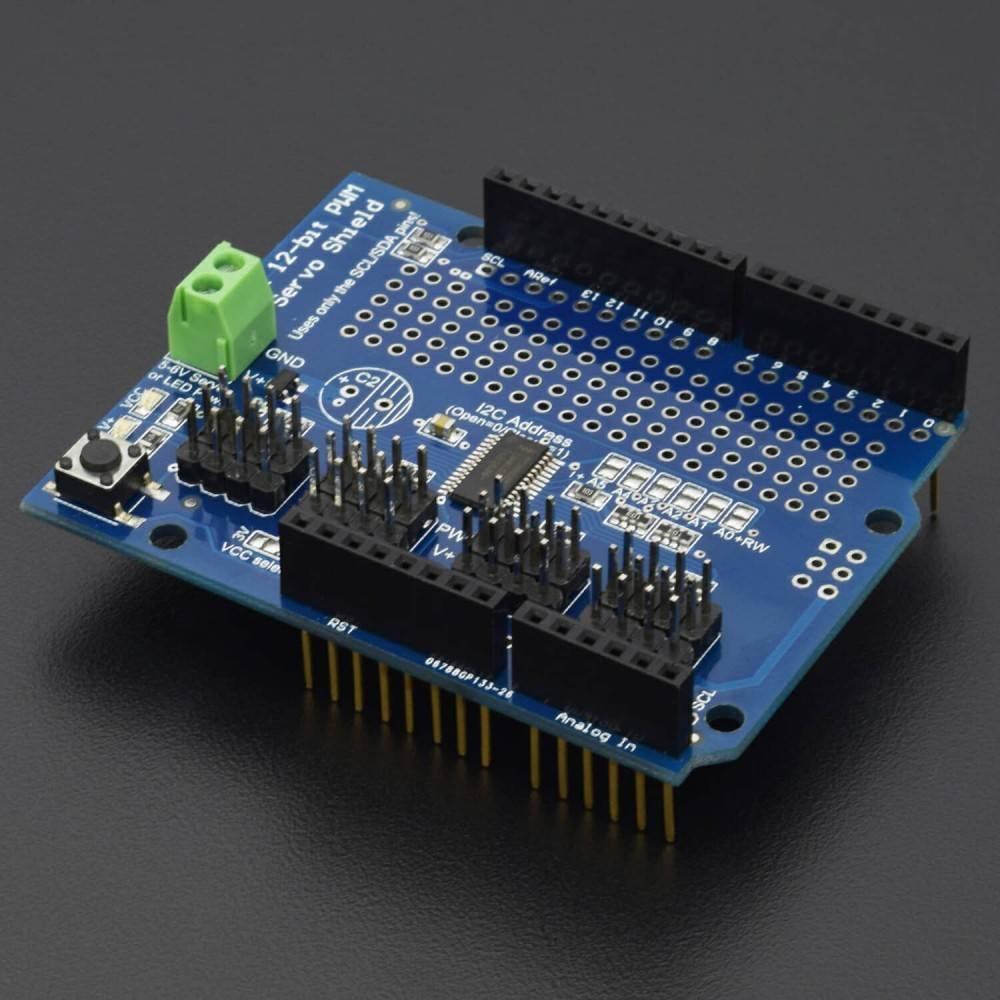

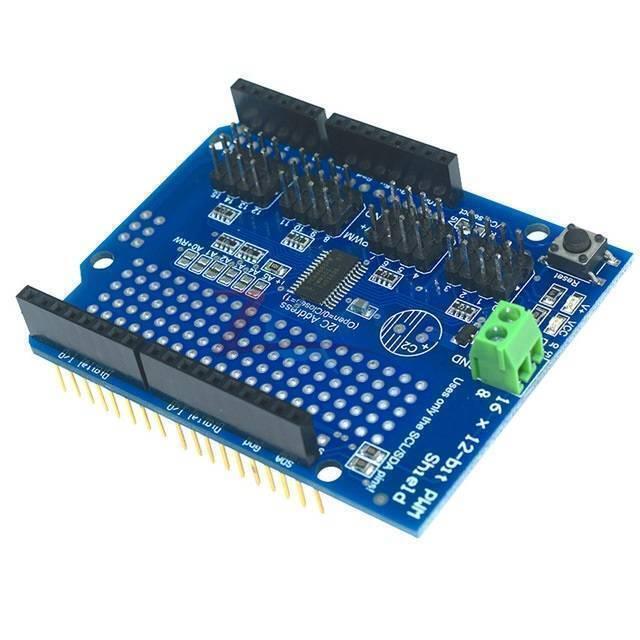

Pca9685 12 Bit 16 Channel Servo Shield In Pakistan

Pca9685 12 Bit 16 Channel Servo Shield In Pakistan

Regular price Rs 1,200
Regular price Sale price Rs 1,200
Sale Sold out
Shipping calculated at checkout.

SKU:dell,B227,IMP10,Th5

NOTIFY ME WHEN IN STOCK

This PCA9685 12 Bit 16 Channel Servo Shield In Pakistanis perfect if you want to build a robot, perhaps a hexapod or a project that requires several components that require movement. It is also ideal in controlling many LEDs with precise PWM signal and perform microprocessor has a limited number of PWM pin. For this applications, the shield of servo-motors with PWM driver is the product you are looking for. Using this shield, 16-pin PWM can be controlled with just 2 pins I2C interface.

Specifications:

  • It is controlled via I2C, with internal clock.
  • It can be controlled by the Arduino 5V 3.3V or offering the safety 6V output (ideal for controlling LED white or blue with + 3.4V)
  • Frequency: 40 to 1000Hz
  • PWM provides 16 channels
  • Supply Voltage: 2.3 V to 5.5 V
  • Temperature: -40 °C to +85 °C

Package includes:

1xPCA9685 12 Bit 16 Channel Servo Shield

Pca9685 12 Bit 16 Channel Servo Shield In Pakistan
