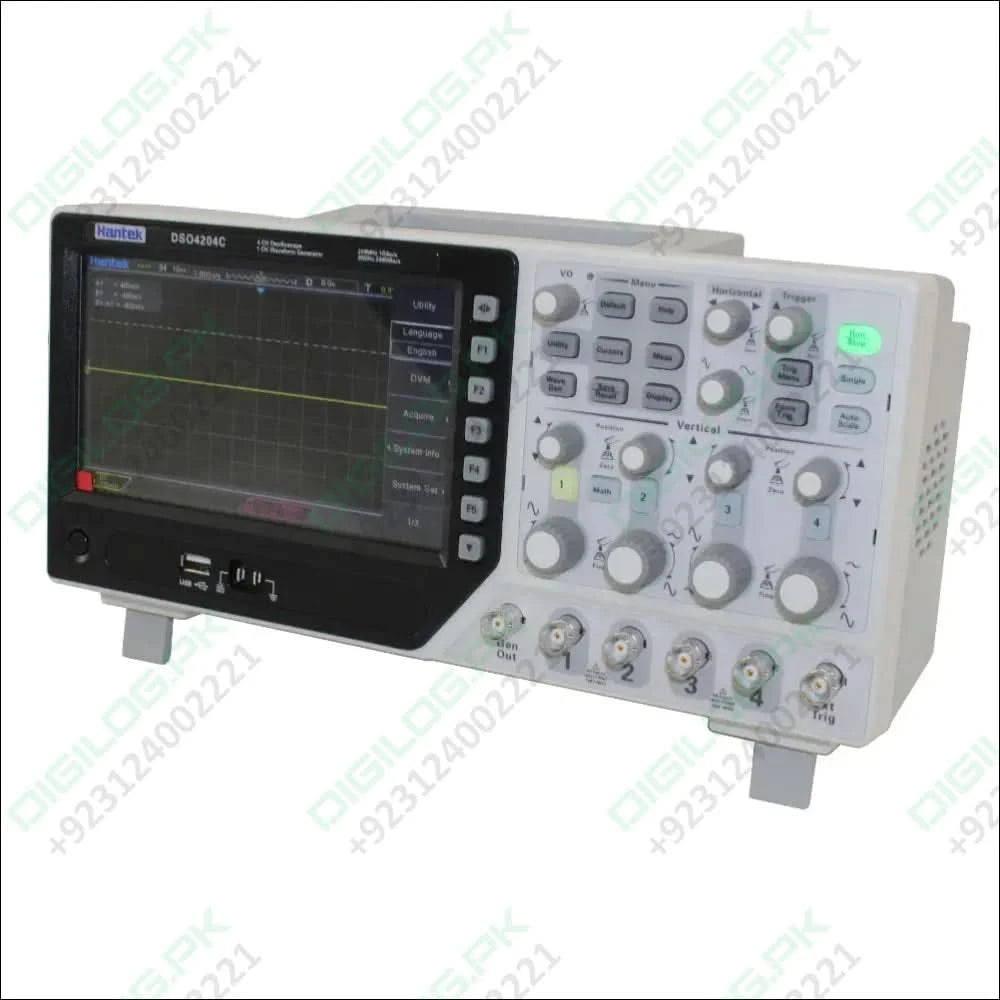

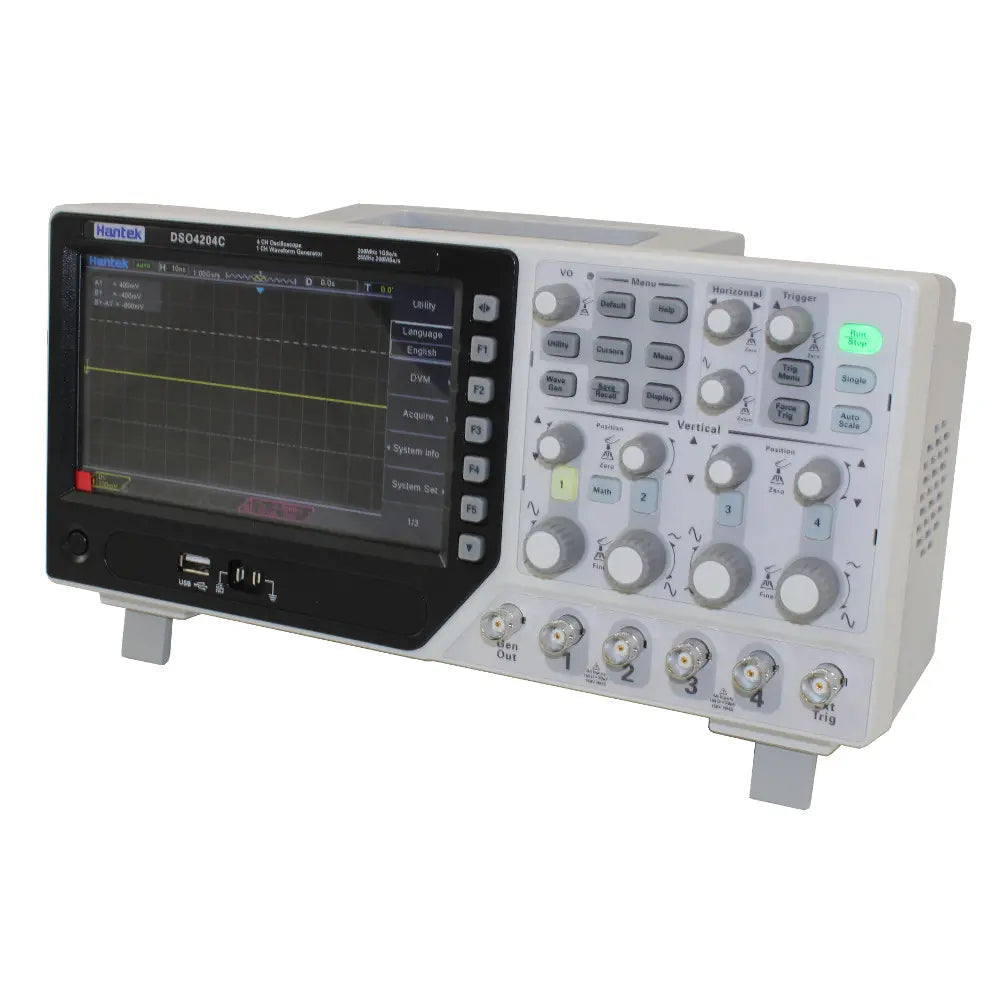

Hantek DSO4204C 200MHz 4CH Digital Oscilloscope and Function Generator

The Hantek DSO4204C is an easy-to-use digital oscilloscope with 200 MHZ bandwidth, a minimum range of 500 μV /div, 1GS/s sample rate.  The DSO4204C Hantek Digital Oscope also comes equipped with a function generator that goes up to 25 MHz.

Hantek DSO4204C Features:

• 4 Channel Oscilloscope with an external trigger, digital volt meter, and auto-ranging 1 channel function generator.
• Over 32 auto-measurement functions.
• Over 14 types of trigger functions, including an edge, overtime, pulse, pattern, and interval.
• Decode Type: I2C, SPI, UART, LIN, CAN.
• Supports a variety of SCPI remote control commands
• USB storage and remote interface
• Options not included (even though custom orders possible) include: RS232, LAN ,HDMI, WIFI, Touch Screen, SD storage

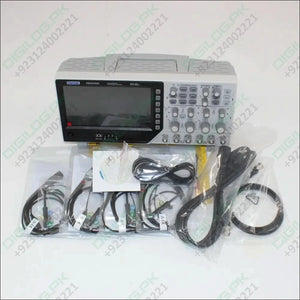

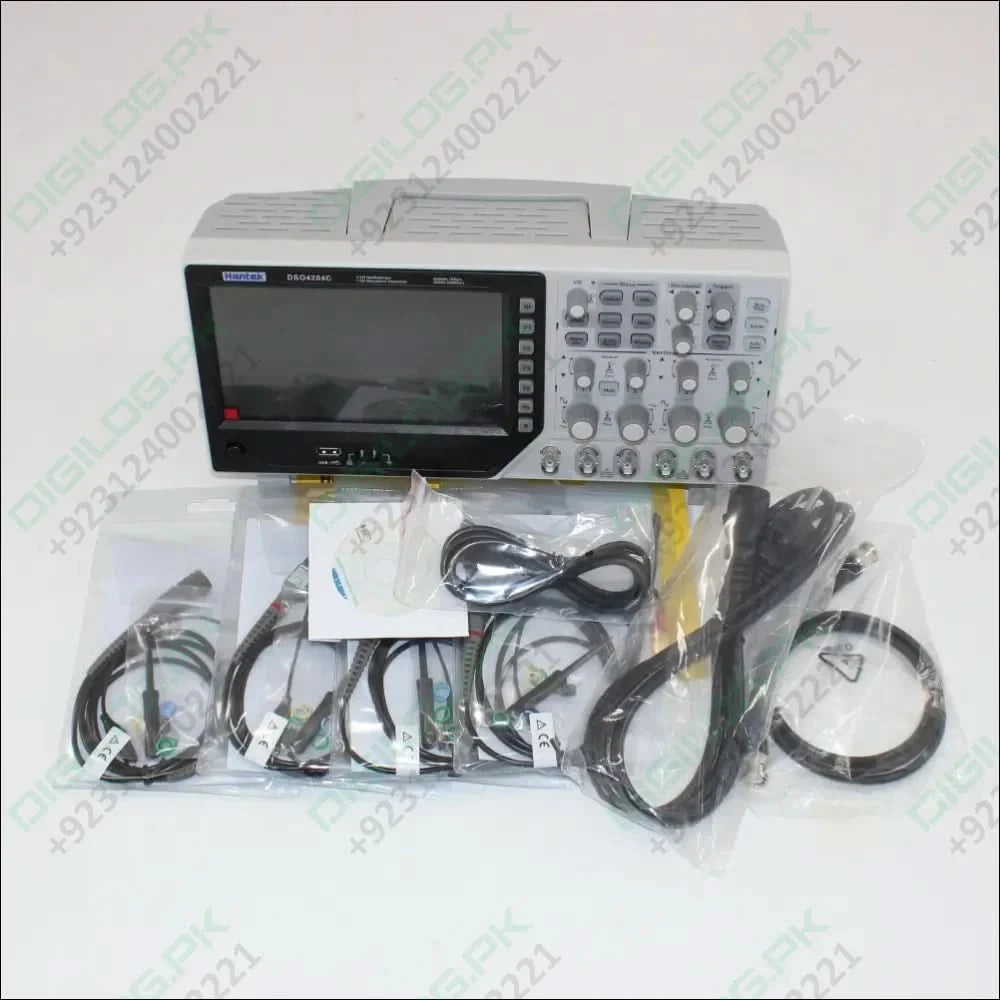

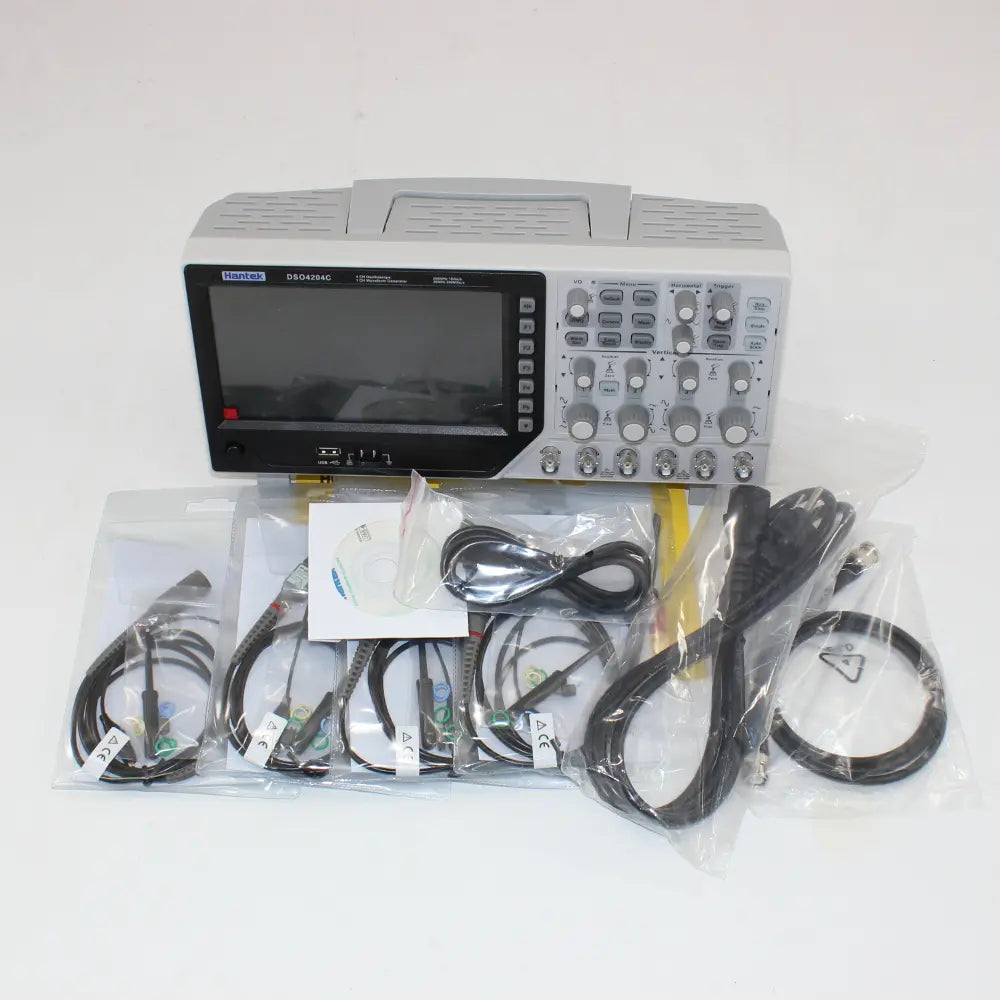

Item Includes: 4 Oscilloscope probes (200 MHz 1x, 10x attenuation, 1MΩ), Installation CD, USB A-B cable, BNC to BNC cable, Power Cord

Hantek DSO4204C Specifications:

• Bandwidth: 200MHz
• Rise Time (BNC, typical):≤1.8ns
• Sample Rate Range:1GS/s
• Channel: 4 Channel+EXT
• Input Coupling: DC,AC or GND
• Input Impedance: 1MΩ±2%,20pF±3 pF
• Probe Attenuation: 1X,10X
• Supported Probe Attenuation Factors: 1X,10X,100X,1000X
• Overvoltage Category: 300V CAT II
• Maximum Input Voltage: 300VRMS (10X)
• Waveform Interpolation: (sin x)/x
• Record Length:Max. 64K samples per single-channel; Max. 32K samples per dual-channel (4K, 32K optional)
• Horizontal Scale (s/div): 2ns/div~100s/div, 1~2~5 sequence
• Sample Rate and Delay Time Accuracy: ±50ppm
• Delta Time Measurement Accuracy (Full Bandwidth):
• Single-shot, Normal mode: ±(1 sample interval+100ppm*reading+0.6ns)
• >16 averages:±(1 sample interval+100ppm*reading + 0.4ns)
• Sample interval = s/div ÷ 200
• AD Converter: 8-bit resolution,each channel sampled simultaneously
• Vertical Scale (Probe 1X): 500μV/div~10V/div at input BNC
• Position Range: 500μV/div~20mV/div, ±400mV; 50mV/div~200mV/div, ±2V; 500mV/div~2V/div, ±40V; 5V/div~10V/div, ±50V
• Selectable Analog Bandwidth Limit: 20MHz (typical)
• Low Frequency Response (-3db): ≤10Hz at BNC
• DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div
• Acquisition Modes:Normal, Peak Detect, Average and HR
• Acquisition Rate (typical): Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement)
• Trigger Mode: Auto and Normal
• Trigger Level: CH1~CH4: ±4 divisions from center of screen; EXT:0~3.3V
• Holdoff Range: 20ns~10s
• Trigger Level Accuracy: CH1~CH4:0.2div*volts/div within ±4 divisions from center of screen; EXT:± (6% of setting + 40mV)
• Trigger Type: Edge,Pulse Width,Video,Slope,Overtime,Window,Pattern,Interval,Under Amp
• Decode Type (Standard): I2C,SPI,UART,LIN,CAN
• Cursors: Voltage difference between cursors: Delta V
• Time difference between cursors: Delta T
• Reciprocal of Delta T in Hertz (1/Delta T)
• Automatic Measurements:Frequency, Period, Average, Pk-Pk, RMS, PeriodRms, Min, Max, RiseTime, FallTime, + Width, - Width, + Duty, - Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, PeriodAvg, FOVShoot, RPREShoot, BWidth, FRR, FFF, FRF, FFR, LRR, LRF, LFR and LFF
• Display Type: 7 inch 64K color TFT 800*480 pixels
• Dimension: 318 x 110 x 150mm(L x W x H)
• Weight: 2900g

Function Generator Mode:

• 25 MHz Sine Wave
• 5 MHz Square, EXP, ARB Waves
• 1 MHz Ramp Wave
• Amplitude 5mV~3.5Vp-p(50Ω)
• Frequency resolution 0.001
• 1Ch waveform output
• 4KSa waveform depth
• 12 bit resolution
• Output impedance: 50 Ω

DSO4204C Users Manual

DSO4204C Support Files

DSO4204C Firmware

Note: Please update to newest firmware if you are experiencing issues.
