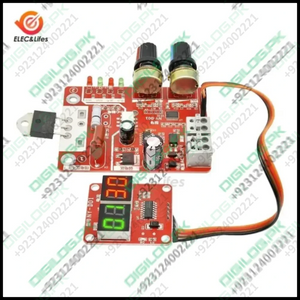

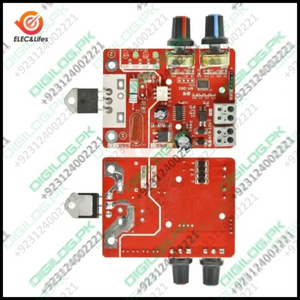

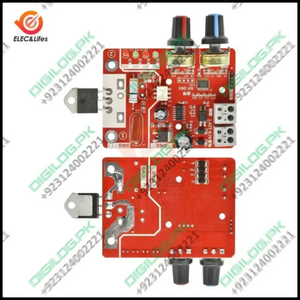

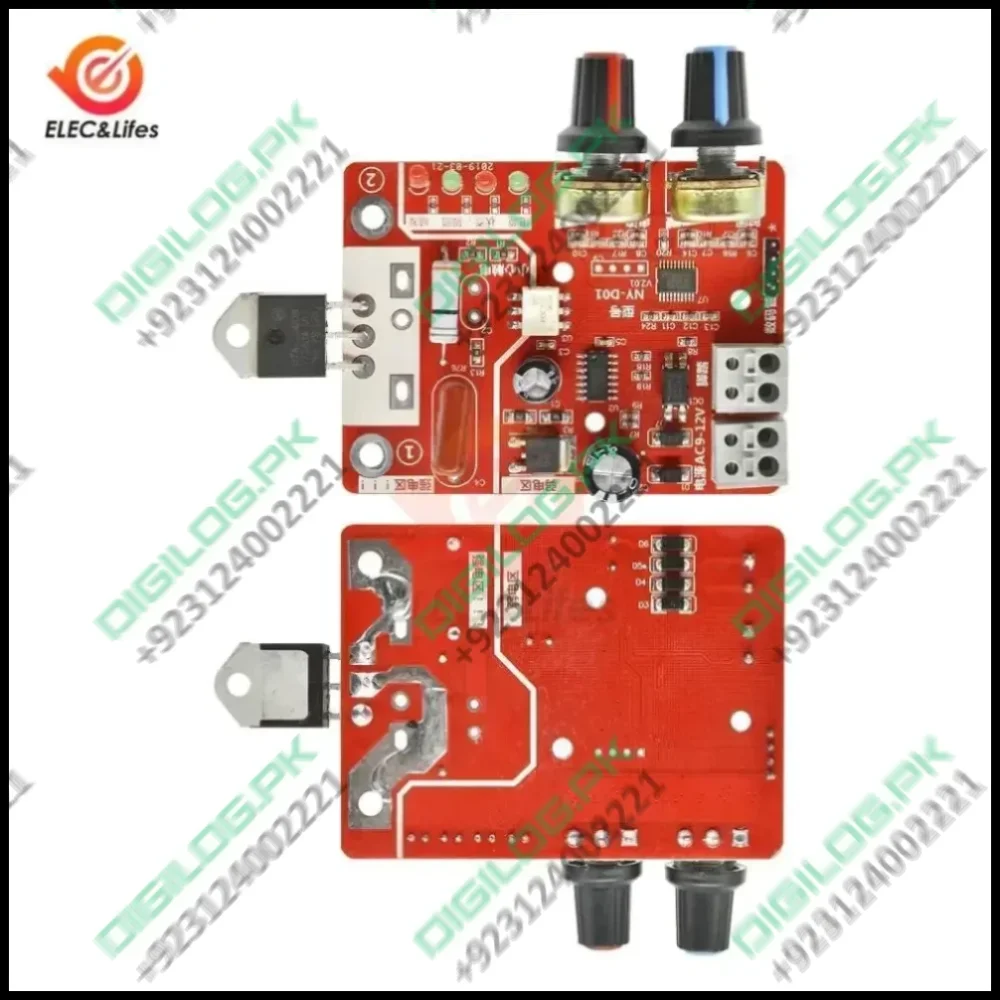

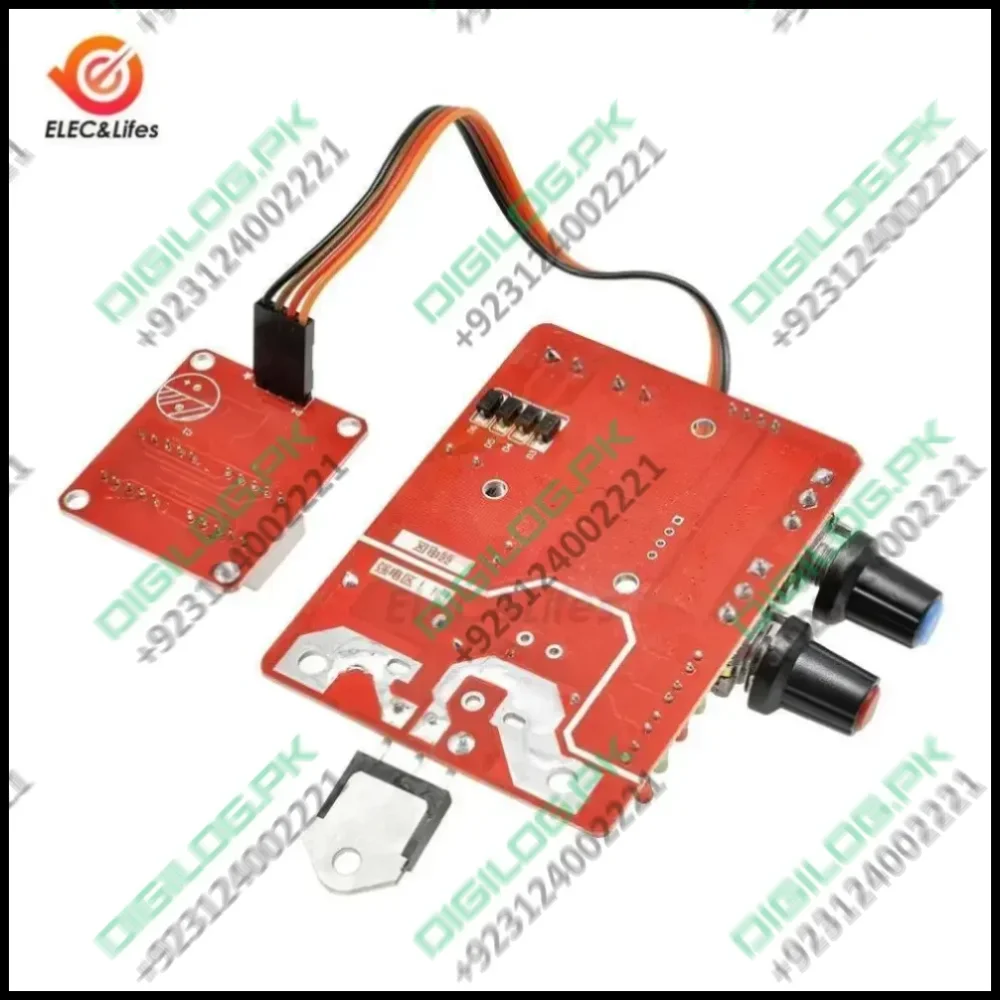

Ny-d01 40a Digital Display Spot Welding Controller Ammeter Spot Welders Control Board Price In Pakistan

Ny-d01 40a Digital Display Spot Welding Controller Ammeter Spot Welders Control Board Price In Pakistan

Regular price Rs 2,700
Regular price Sale price Rs 2,700
Sale Sold out
Shipping calculated at checkout.

SKU:B845,L5,Th2

NOTIFY ME WHEN IN STOCK

Package content:

  • 1 * Main Board
  • 1 * Display Board
  • 1 * Maini Board To Display Cable

Feature Of NY-D01 40A Digital Display Spot Welding Controller Ammeter Spot Welders control Board Price In Pakistan:

The control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding.

The main features of this controller:

1: the use of STM8 industrial microcontroller control center.

2: strong and weak electricity through optocoupler isolation, safe operation.

3: the power line and the foot switch line adopts the screw free fast connection terminal, more convenient and reliable.

4: input time, current using high-precision single potentiometer, to ensure reliable input, convenient

5: on-board power supply, state, foot, trigger indicator, working state clearly visible.

6: the design of reliable zero crossing detection circuit to ensure that the SCR phase shift accuracy.

7: the controller is compatible with 100A scr.

8: digital control interface, you can display the current time and current settings.

9: time input 1-50, unit cycle (1 cycles is 20ms), current input (30-99%)





Ny-d01 40a Digital Display Spot Welding Controller AmmeterNy-d01 40a Digital Display Spot Welding Controller AmmeterNy-d01 40a Digital Display Spot Welding Controller AmmeterNy-d01 40a Digital Display Spot Welding Controller AmmeterNy-d01 40a Digital Display Spot Welding Controller AmmeterNy-d01 40a Digital Display Spot Welding Controller AmmeterNy-d01 40a Digital Display Spot Welding Controller Ammeter
