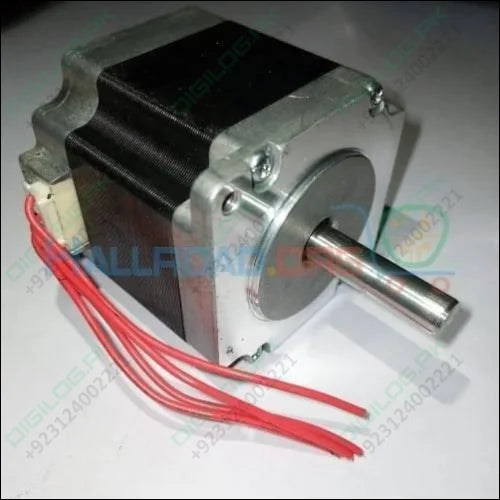

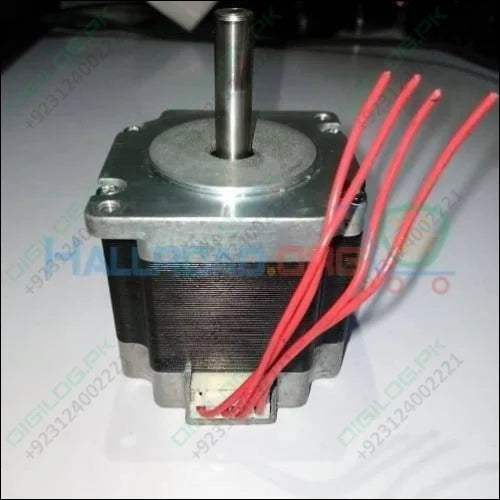

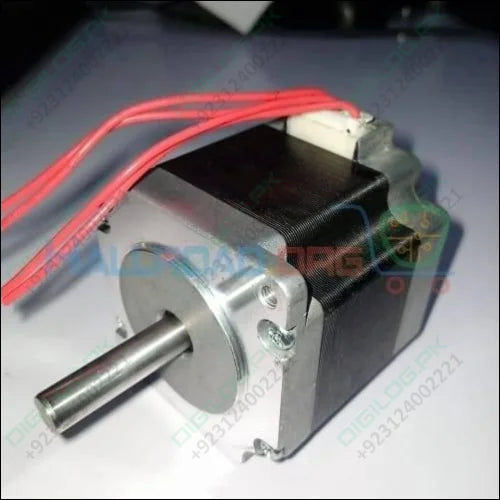

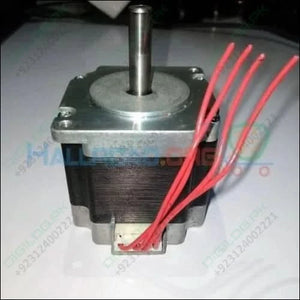

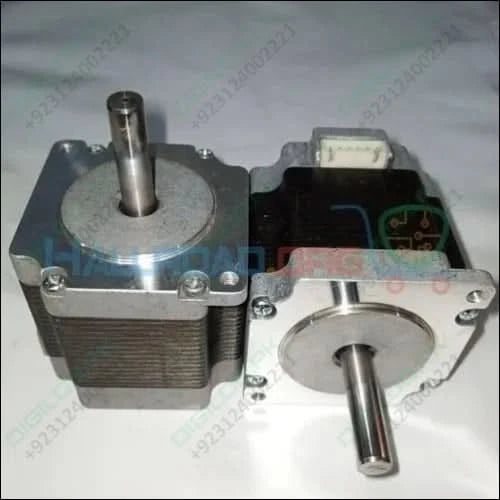

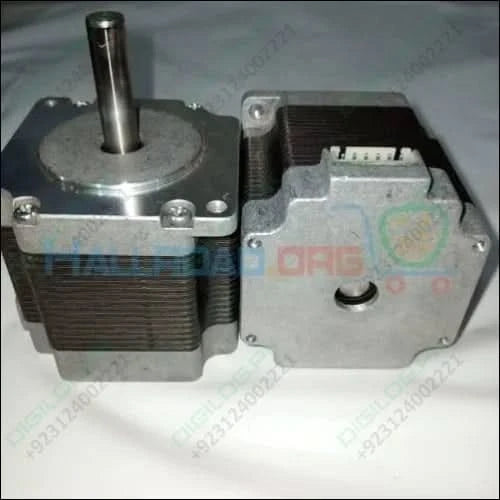

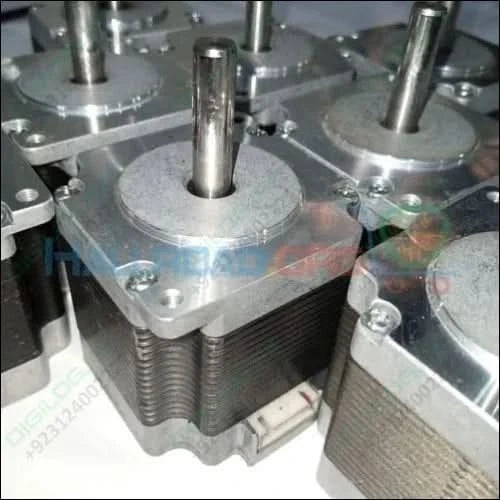

Japanese Nema23 2.2a Stepper Motor Compatible With Tb6560, Drv8825 Torque 9.69 Kg.cm

This is 4 wire NEMA23 Stepper motor which is easily interfaced with With TB6560, Drv8825, And A4988. This 2.2A Stepper motor is very useful in various applications, especially which demands high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema23 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 23, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor).

Features And Specifications Of 2.2A4 Wire Nema23 Stepper Motor:

1. Torque: 13 kg-cm (180oz-in).
2. Step Angle: 1.8°
3. Phase Current: 2.2A
4. Wire: 4
5. Shaft Dia= 8mm
6. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
7. Operating Temperature: -20℃~+70℃
8. Low noise and big torque,
9. This is a great choice if you need a stepper motor.
10. Dimensions: 56 x 56 x 56mm.
11. Weight: 650g.

Package Includes:

• 1x Stepper motor
• 1x Connecting Wire
