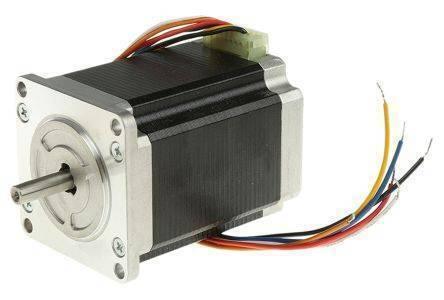

High Torque NEMA 23 Stepper Motor 2.7A 1.8 degrees NEMA23 For CNC 3D printers

High Torque NEMA 23 Stepper Motor is a high torque hybrid bipolar stepping motor with a 3.4×3.4 inch faceplate. High Torque 2.7A Stepper Motor, Hybrid stepper has a combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. This Hybrid Bipolar motor has a step angle of 1.8 deg., this means that it has 200 steps per revolution and for every step, it will cover 1.8°.  This NEMA 23 is a 2-Phase motor with 4 wires. Compatible controllers for this motor are TB6560, TB6600 and 2DM860,

Features Of 4 Wire Bipolar Nema 23 Hybrid Stepper Motor:

• It converts a train of input pulses into a precisely defined increment in the shaft position.
• This is a high-quality motor that can be used for a long time without stuck.
• It has a quite stable performance during work and will not lose a step.
• Low noise and big torque,
• This is a great choice if you need a stepper motor.
• Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications of TB6560 Compatible NEMA23 1.8 Degree 2.7A Stepper Motor:

1. Step Angle: 1.8°
2. Phase Current: 2.7A
3. Phase Resistance: 1.5Ohm
4. Phase Inductance: 2.8mH
5. Holding Torque: 40N.cm
6. Rotor Inertia: 54g.cm⊃2;
7. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
8. Operating Temperature: -20℃~+70℃
9. Insulation Resistance: 100 MΩ Min. , 500VDC
10. Electric Strength: 500VAC for 1minute
11. Radial Clearance: 0.02Max. (450g-Load)
12. Axial Clearance: 0.08Max. (450g-Load)
13. Max. Axial Pressure: 20N

Note:

• This is a Used Product and may be scratches on it.
• Because of its weight, it's advance payment only
• With Pulley Option Not Available Now as shown 2nd To End Images.

Package Includes:

• 1 x High Torque Nema 23 Stepper Motor
