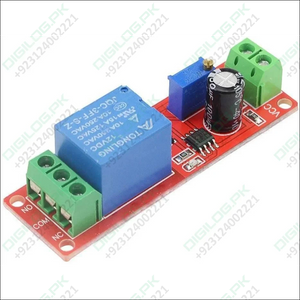

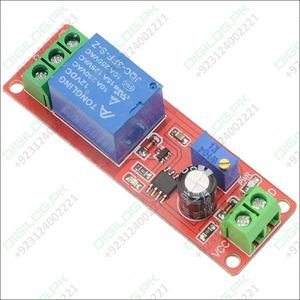

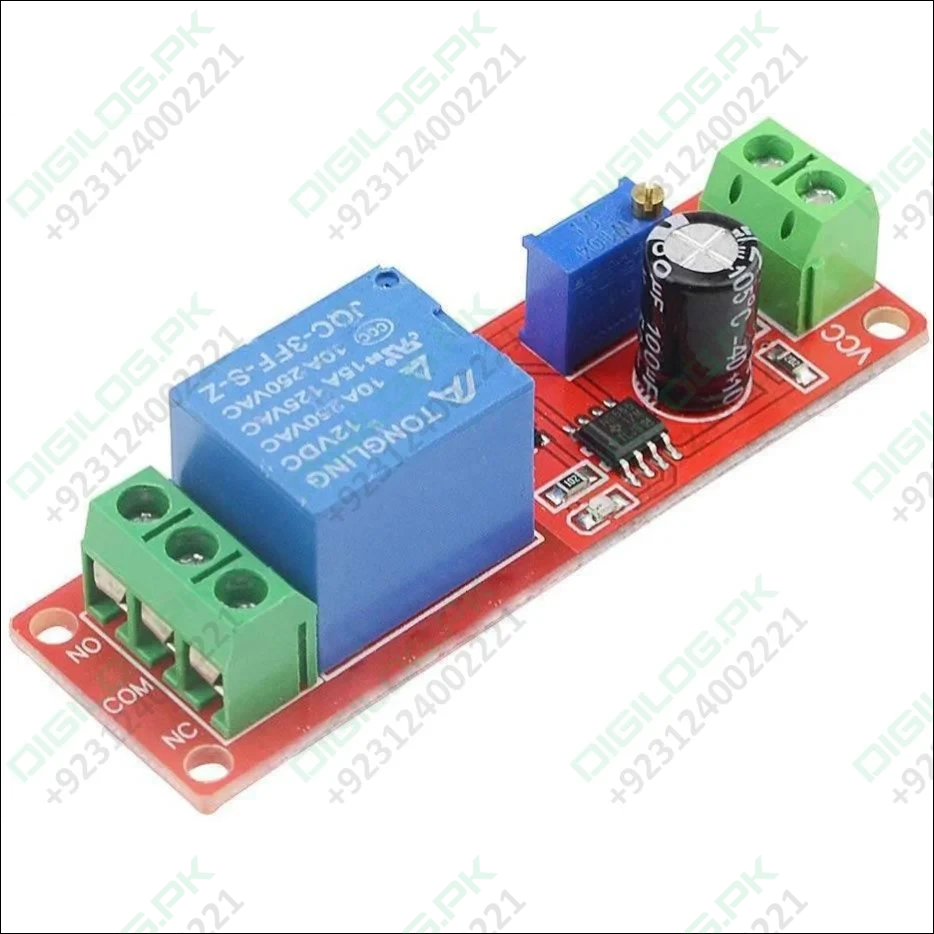

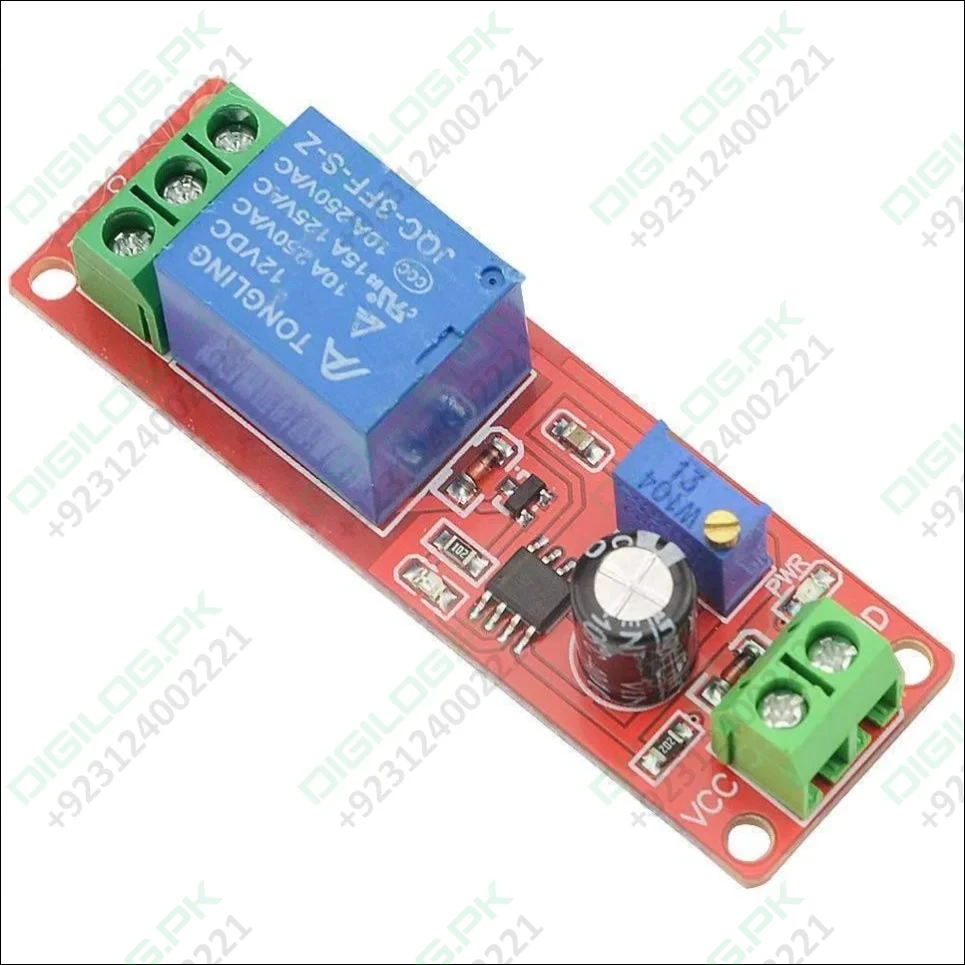

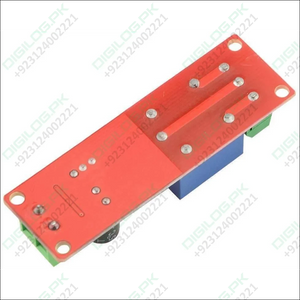

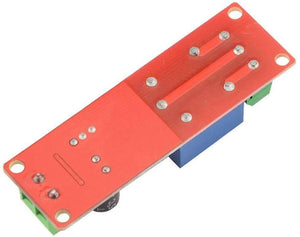

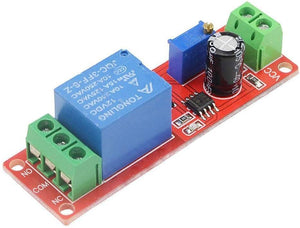

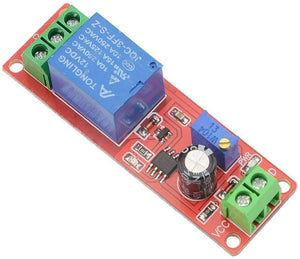

Ne555 Timer Switch Adjustable Module Time Delay Relay Module Dc 12v

The NE555 Timer Switch Adjustable Module Time delay relay Module DC 12V is an electronic circuit that provides a timed output based on the duration of the input signal. The module has the following specifications:

The module uses the NE555 timer IC to provide the timing function, and can be easily adjusted using a potentiometer. The output relay can be used to control a variety of devices, such as lights, motors, and solenoids, based on the selected delay time.

It should be noted that the delay time range is adjustable, and can be set anywhere between the minimum and maximum values mentioned above. The accuracy of the delay time will depend on the stability of the input voltage and the quality of the components used in the circuit.

Specifications:

1. Module-based on: NE555 chip.
2. Delay module delay connect module
3. Control voltage: AC 0~250V/max. 10A, DC
4. 0~30V/max. 10A
5. The operating voltage: 12V DC (otherwise 5V optional)
6. Max. load: 2200W

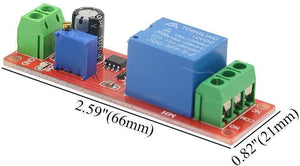

7. Product size: approx.
8. 68*22*18mm/2.67*0.86*0.7"
9. Net weight: approx. 34g
10. Input voltage: DC 12V
11. Output capacity: 10A
12. Adjustable delay time range: 0 to 10 seconds
