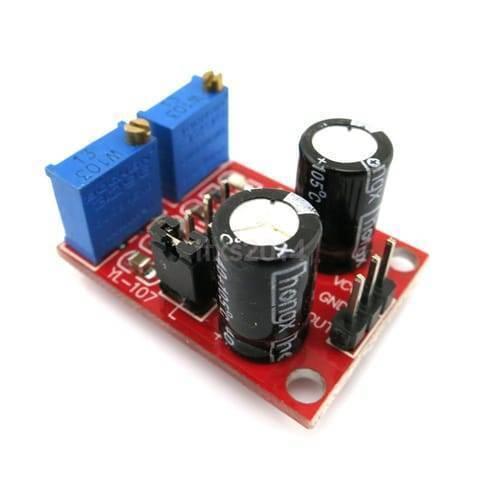

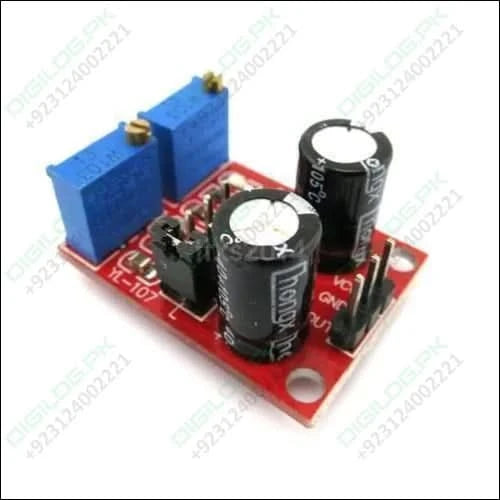

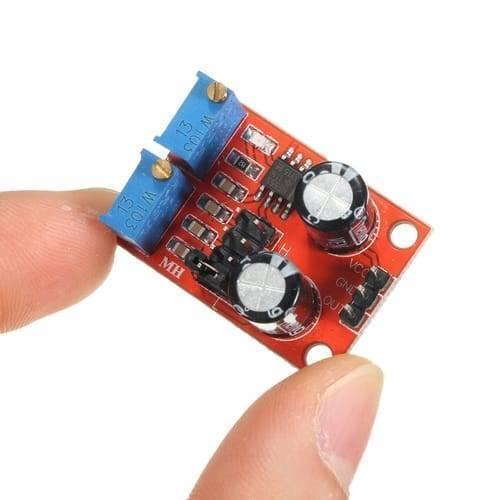

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two capacitors, and a three-pin connector.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red rectangular circuit board with two blue potentiometers, an 8-pin chip, and three output pins.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two black electrolytic capacitors, and pins.

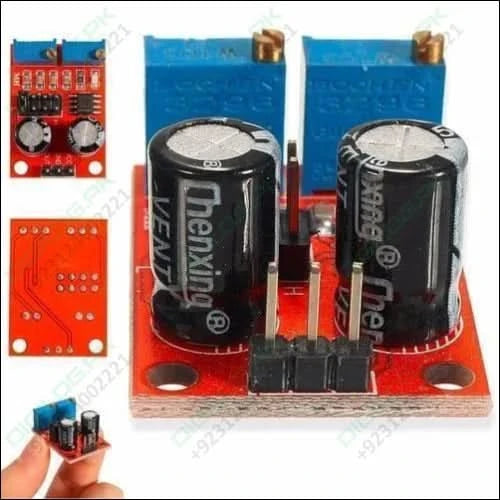

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown from three angles, featuring a red circuit board, two electrolytic capacitors, and two knobs.

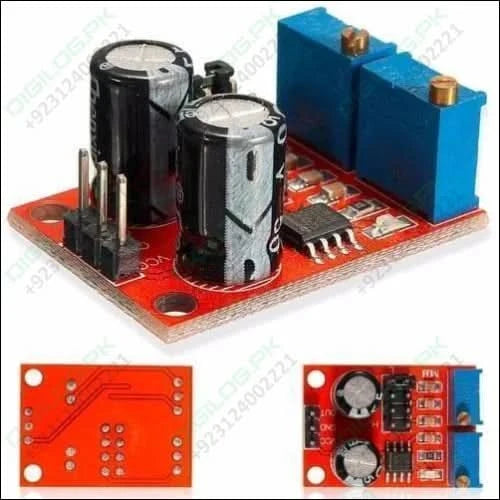

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown in multiple angles, featuring a red circuit board, two blue potentiometers, and two capacitors.

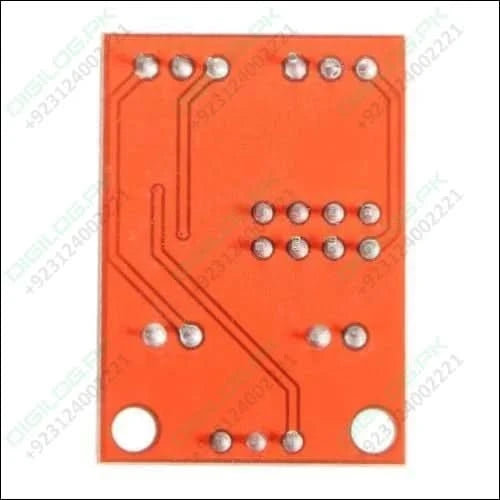

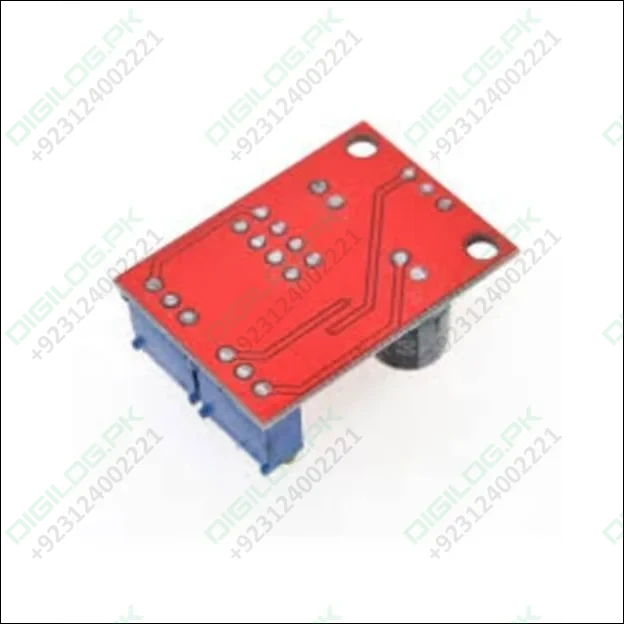

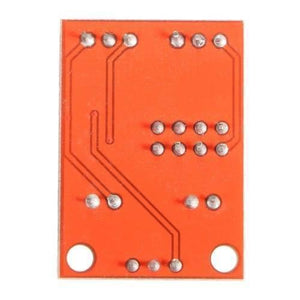

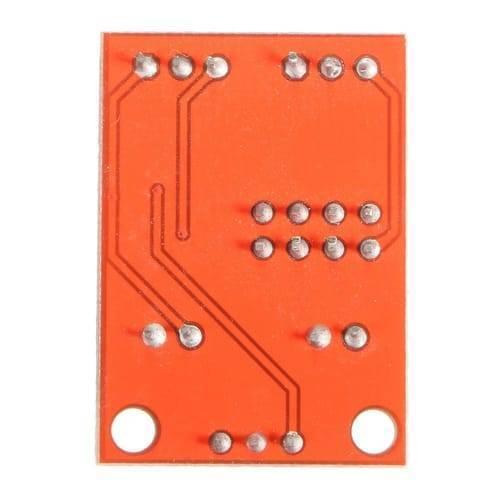

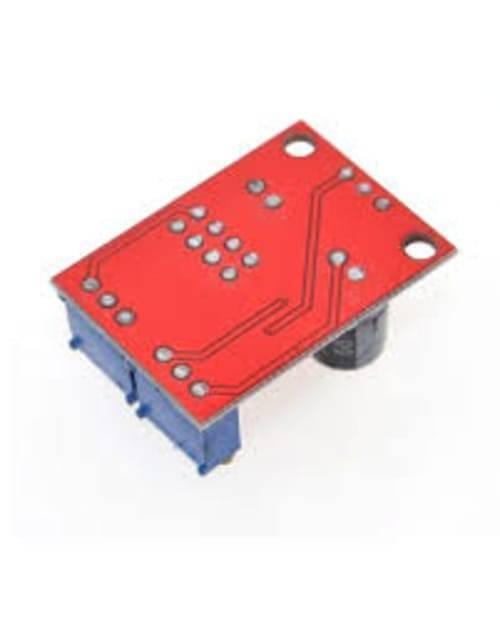

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - the bottom side of the rectangular red printed circuit board.

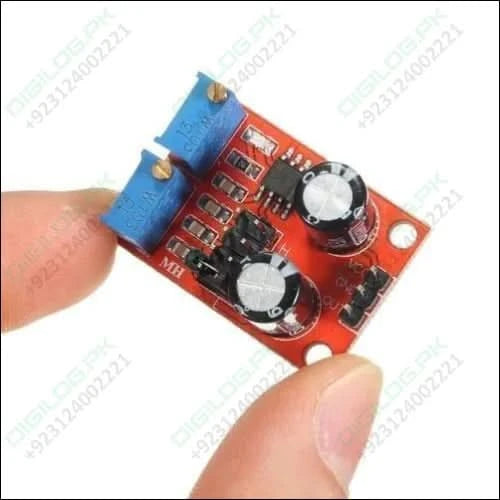

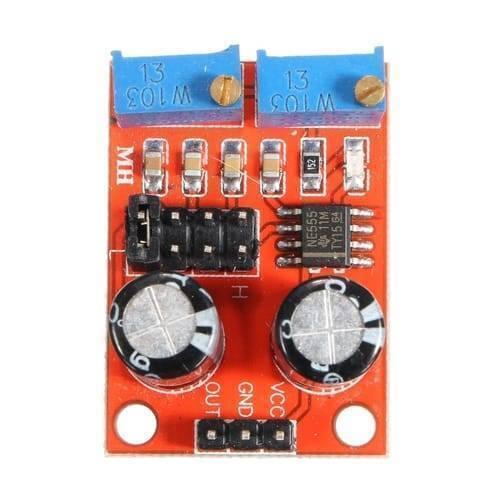

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown from a top-down angle, featuring a red PCB with two blue potentiometers and a black capacitor.

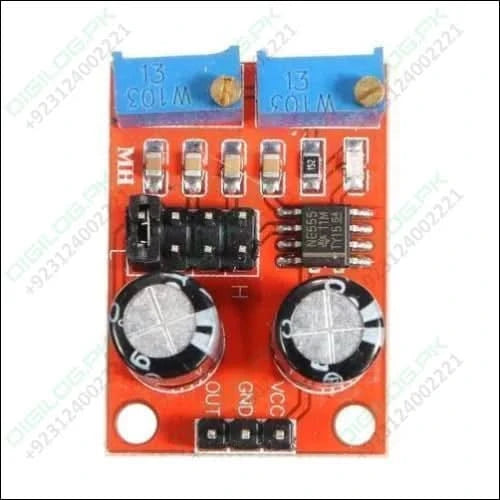

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown as a red circuit board with two blue potentiometers, a jumper, two capacitors, and three pins.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two capacitors, and a three-pin connector.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red rectangular circuit board with two blue potentiometers, an 8-pin chip, and three output pins.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two black electrolytic capacitors, and pins.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown from three angles, featuring a red circuit board, two electrolytic capacitors, and two knobs.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown in multiple angles, featuring a red circuit board, two blue potentiometers, and two capacitors.

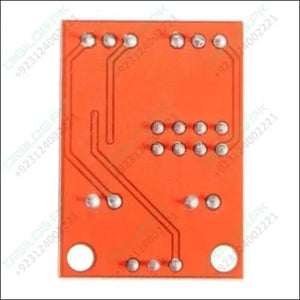

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - the bottom side of the rectangular red printed circuit board.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown from a top-down angle, featuring a red PCB with two blue potentiometers and a black capacitor.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - shown as a red circuit board with two blue potentiometers, a jumper, two capacitors, and three pins.

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Sale price Rs 250
SKU: B133,Krt47,IMP300,Th150,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two capacitors, and a three-pin connector.
+

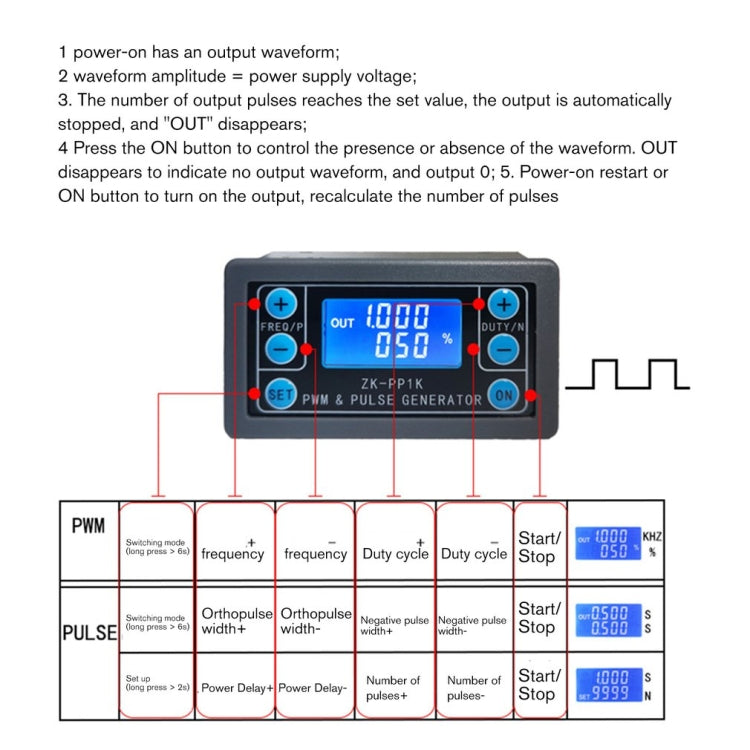

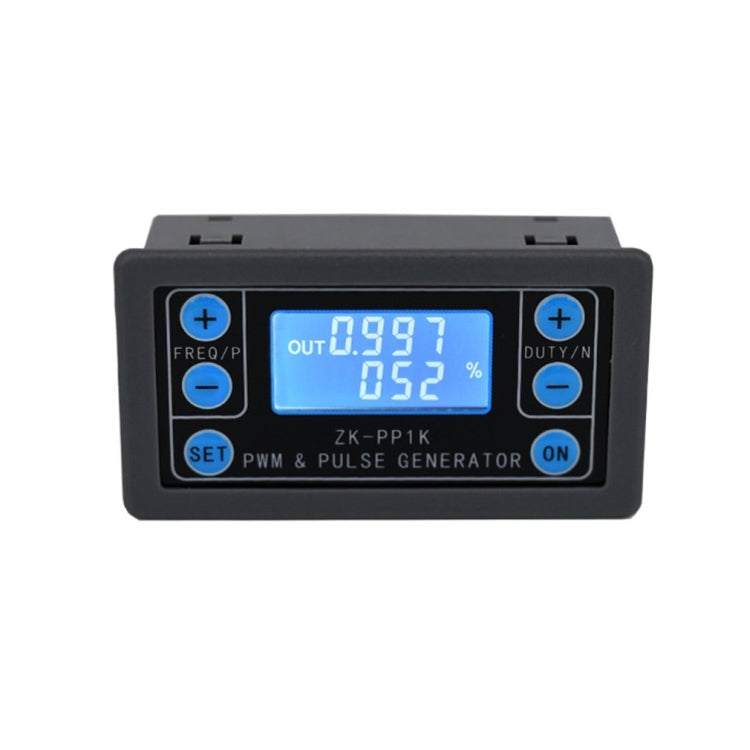

ZK-PP1K PWM Signal Generator Module – Dual Mode, 1Hz–150kHz, LCD Display, Delay, Pulse Width, Frequency & Duty Control, 3.3V–30V - a black rectangular device with a blue LCD screen showing 0.997 and 052%, featuring six buttons and a frame.
+
Arduino 4x4 Keypad Matrix Keypad Membrane Switch - a black square keypad with blue number keys and red letter keys, featuring a ribbon cable and connector.
+

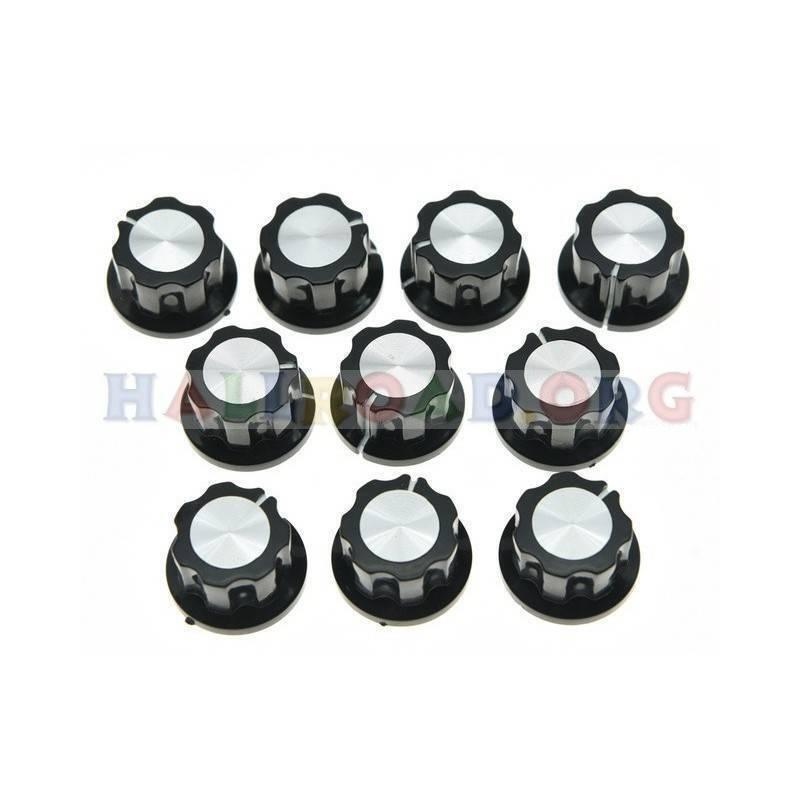

Screw Type Tightening Knob For Potentiometer - a collection of ten black plastic knobs with silver circular tops arranged in three rows.
Screw Type Tightening Knob For Potentiometer - a collection of ten black plastic knobs with silver circular tops arranged in three rows.
This item: NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator -
Sale price Rs 250
ZK-PP1K PWM Signal Generator Module – Dual Mode, 1Hz–150kHz, LCD Display, Delay, Pulse Width, Frequency & Duty Control, 3.3V–30V - a black rectangular device with a blue LCD screen showing 0.997 and 052%, featuring six buttons and a frame.
ZK-PP1K PWM Signal Generator Module – Dual Mode, 1Hz–150kHz, LCD Display, Delay, Pulse Width, Frequency & Duty Control, 3.3V–30V -
Sale price Rs 2,500
Arduino 4x4 Keypad Matrix Keypad Membrane Switch - a black square keypad with blue number keys and red letter keys, featuring a ribbon cable and connector.
Arduino 4x4 Keypad Matrix Keypad Membrane Switch -
Sale price Rs 130
Screw Type Tightening Knob For Potentiometer - a collection of ten black plastic knobs with silver circular tops arranged in three rows.
Screw Type Tightening Knob For Potentiometer -
Sale price Rs 70
Price for all:
Sale total price Rs 2,950

Pickup available at Digilog Electronics

Usually ready in 2 hours

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two capacitors, and a three-pin connector.

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - a red circuit board with two blue potentiometers, two capacitors, and a three-pin connector.
NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
Sale priceRs 250

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator is 5 V square wave signal generator. Wave Signal Generator generates a square wave signal used for experimental development. Also, use to drive a stepper motor for generating a square wave drive signal.
The output duty cycle can fine-tune. Duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency.

Features of NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator:

  1. As a square wave signal generator generates a square wave signal used for experimental development.
  2. Used to drive a stepper motor for generating a square wave drive signal.
  3. Generate an adjustable pulse for MCU.
  4. Generate adjustable pulse, to control circuitry associated.
  5. Size:?31mm x 22mm

Specifications of NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator:

  1. Main chip: NE555
  2. Input Voltage: 5V-15V DC. when the power supply is 5 V, the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
  3. Input current: >=100 MA
  4. Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  5. Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
  6. Output with LED indication(low level, LED will on; high level, LED will off; low frequency, the LED flashes)

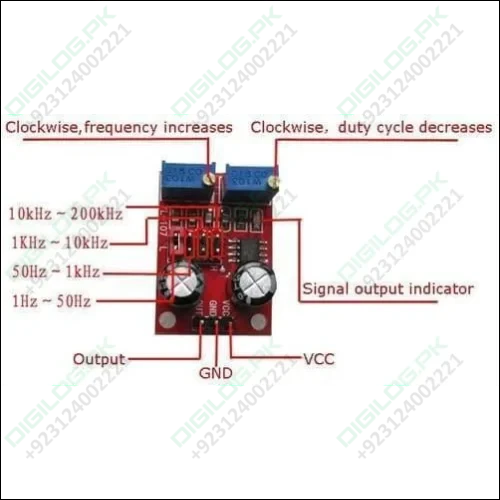

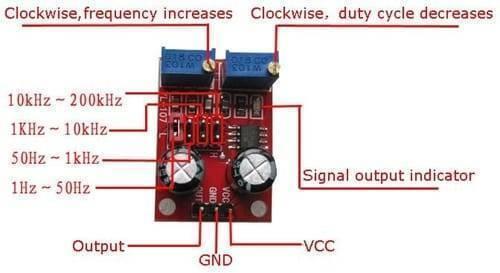

  7. The output frequency range is selectable:
  8. LF file: 1Hz ~ 50Hz
  9. IF file: 50Hz ~ 1kHz
  10. High-frequency file: 1KHz ~ 10kHz
  11. HF file: 10kHz ~ 200kHz
  12. The output duty cycle can fine-tune; duty cycle and frequency is not separately adjustable; adjusting the duty cycle will change the frequency

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal

Image result for NE555 Pulse Frequency Duty Cycle Adjustable Module

Package Includes:

1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
