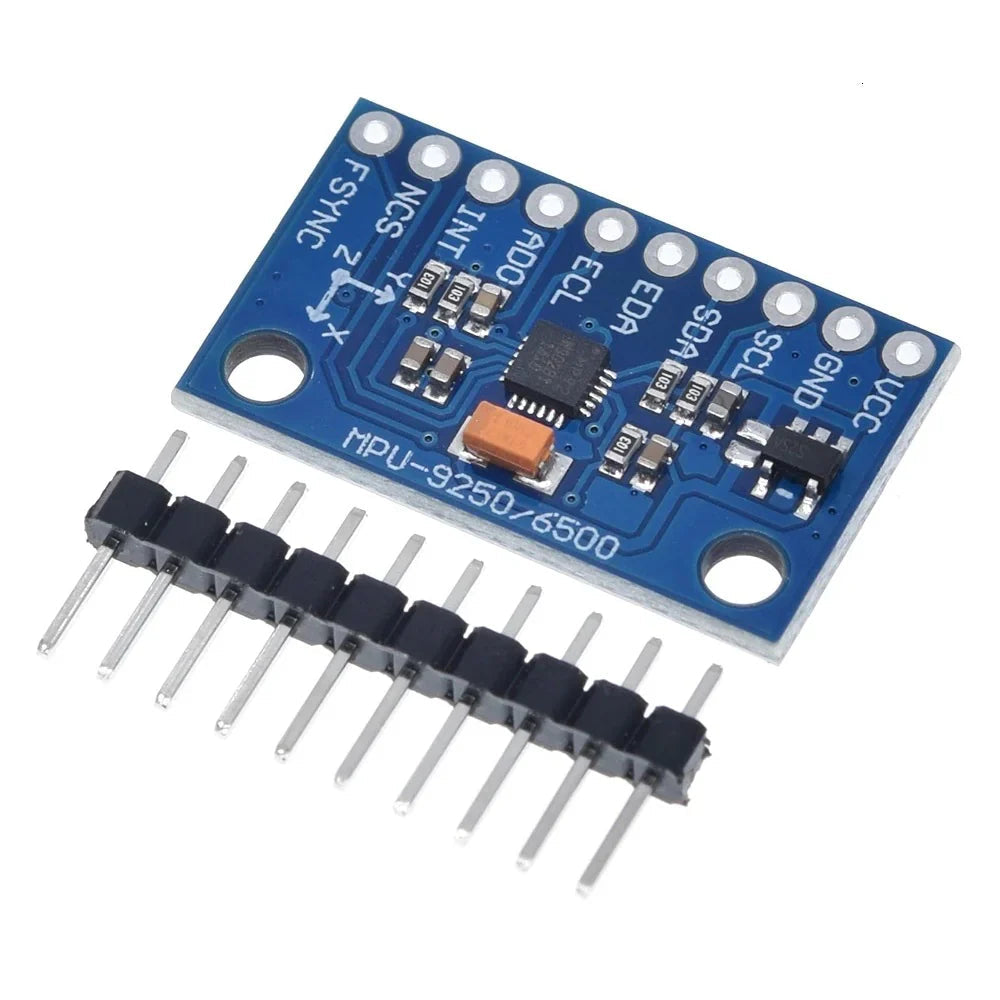

MPU9250 GY-6500 6-AXIS 6DOF Accelerometer, Gyroscope, Digital Motion Processor Sensor Module

The MPU-6500 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMP) all in a small 3x3x0.9mm package. It also features a 4096-byte FIFO that can lower the traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode. With its dedicated I2C sensor bus, the MPU-6500 directly accepts inputs from external I2C devices. MPU-6500, with its 6-axis integration, on-chip DMP, and run-time calibration firmware, enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing optimal motion performance for consumers. MPU-6500 is also designed to interface with multiple non-inertial digital sensors, such as pressure sensors, on its auxiliary I2C port.

Description:

• MPU-6500 module (three-axis gyroscope + three-axis acceleration)
• Module Model: GY-6500
• Use the chip: MPU-6500
• Power supply: 3-5v (internal low voltage regulator)
• Communication: Standard IIC / SPI communication protocol
• Chip built-in 16bit AD converter, 16-bit data output
• Gyro range: ±250 500 1000 2000 °/ s
• Acceleration range: ±2 ±4 ±8 ±16g
• The use of immersion gold PCB, machine welding process to ensure quality
• Pin pitch: 2.54mm
• Module size: 15mm * 25mm

Applications:

1. FPV, RC, and Robots systems
2. GPS navigation systems
3. Impact recognition and logging
4. Gaming and virtual reality input devices
5. Motion-activated functions
6. Intelligent power saving for handheld devices
7. Vibration monitoring and compensation
8. Free-fall detection

Package Includes :

1 x GY-6500 MPU9250/6500 Sensor Module
