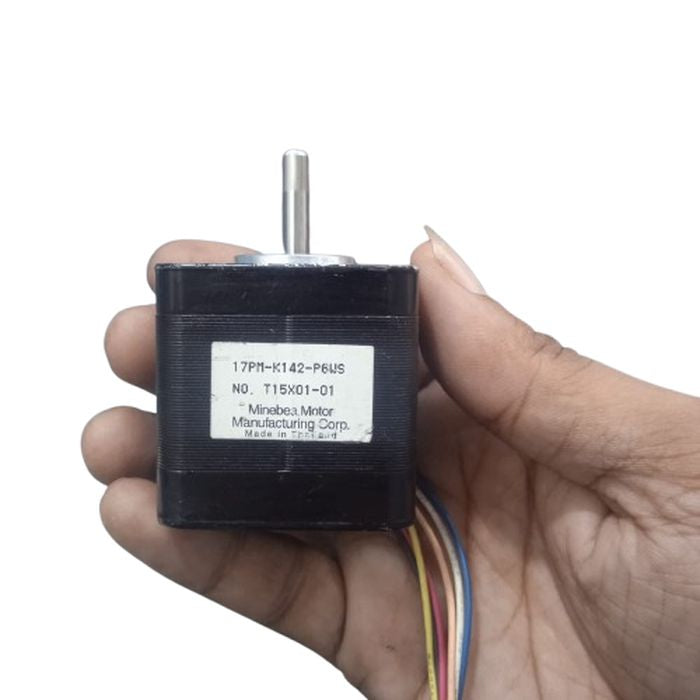

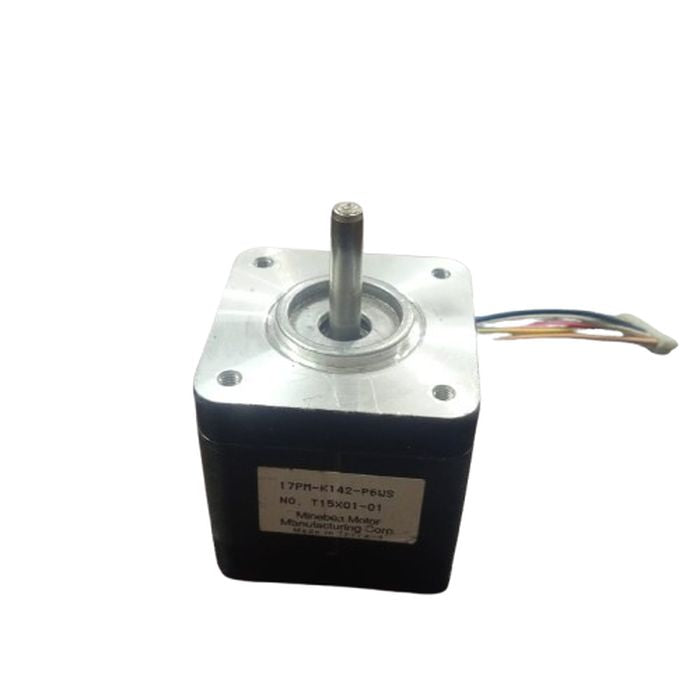

Minebea stepper Motor 17PM-K142-P6WS
Description
Type: Hybrid Stepper Motor
This type of stepper motor combines the features of both permanent magnet and variable reluctance stepper motors, offering better torque and accuracy.
NEMA 17 Frame Size:
- The motor has a frame size that adheres to the NEMA 17 standard, which means its mounting face is approximately 1.7 inches (42mm) square, a common size in 3D printers, CNC machines, and other automation systems.
Step Angle:
- 1.8° per step, meaning the motor rotates 200 steps per full revolution. This is typical for standard stepper motors and provides a balance of torque and precision.
Bipolar Stepper Motor:
- The 4-wire bipolar configuration means it requires a bipolar stepper motor driver for operation. Bipolar motors generally provide better torque compared to unipolar motors, as they utilize the windings more efficiently.
Holding Torque:
- The motor provides a high holding torque, which is crucial for maintaining a fixed position without movement when the motor is powered but not stepping.
Rated Voltage:
- This motor typically operates at a low voltage, around 3-5V, but is driven by current rather than voltage. The exact voltage depends on the driver and the desired current output.
Current per Phase:
- The current rating for each phase can vary, but it's typically in the range of 1.2-2.0 A per phase. This ensures strong torque performance under different load conditions.
Connector:
- The motor is equipped with a 6-wire harness, offering flexible wiring options for driving configurations.
Applications:
- 3D Printers
- CNC Machines
- Robotic Arms
- Industrial Automation
- Precise Positioning Systems
Shaft:
- The motor typically has a single shaft that can be coupled to gears, pulleys, or other mechanical systems for transferring rotational motion.
Key Features:
- High Precision: The motor provides accurate and repeatable positioning, making it suitable for applications requiring precise movement.
- Smooth Operation: With fine control of the stepper motor's position, it ensures smooth and controlled motion.
- Durable Construction: Minebea motors are known for their high build quality and durability, ensuring reliable performance in industrial environments.
The 17PM-K142-P6WS stepper motor from Minebea offers reliable performance, high torque, and precise control, making it a popular choice for a variety of mechanical and automation applications
Package Included:
1x Minebea stepper Motor 17PM-K142-P6WS
