Microchip Pic18f46k22 Microcontroller 18f452 (40-pin Dip) Pic Microcontroller Dip

Microchip Pic18f46k22 Microcontroller 18f452 (40-pin Dip) Pic Microcontroller Dip

Regular price Rs 2,000
Regular price Sale price Rs 2,000
Sale Sold out
Shipping calculated at checkout.

SKU:B90,L50,TH25,nbp

NOTIFY ME WHEN IN STOCK

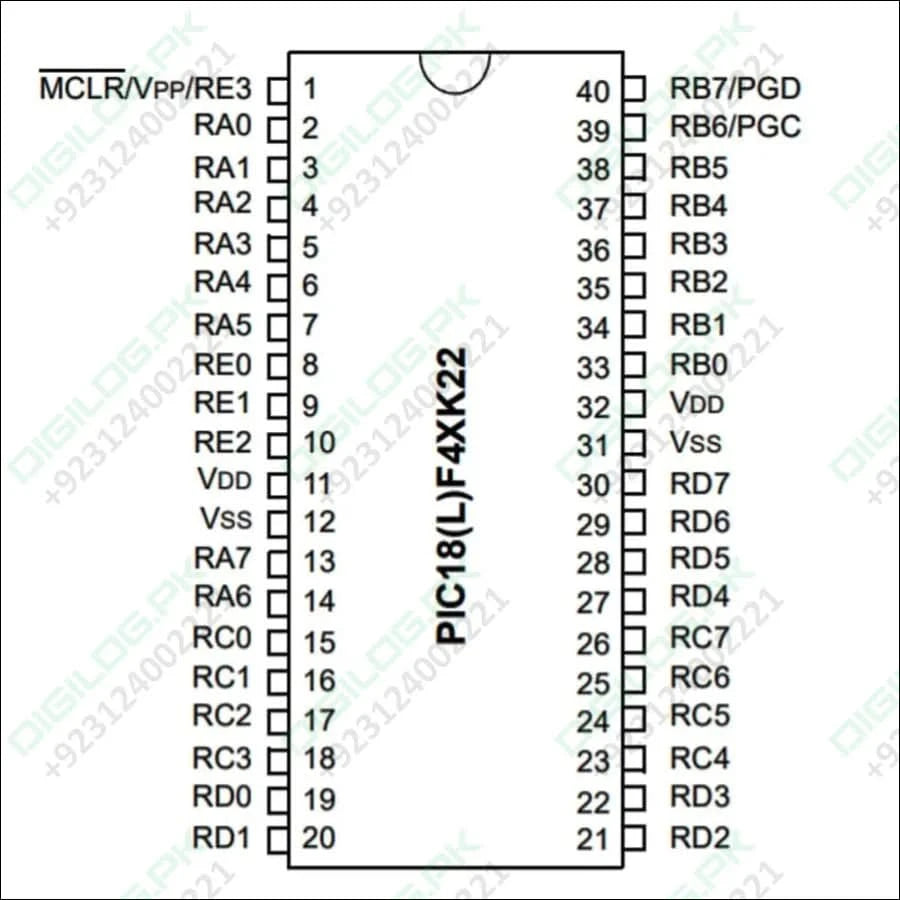

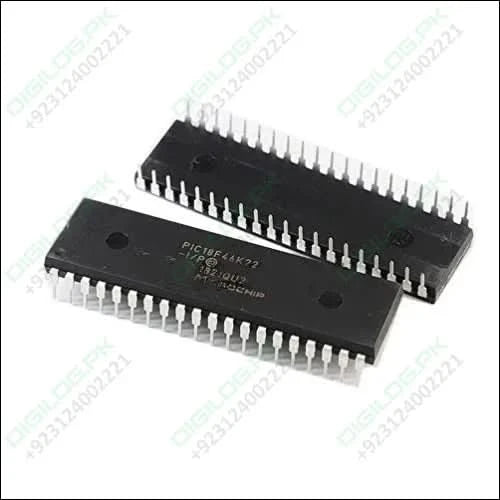

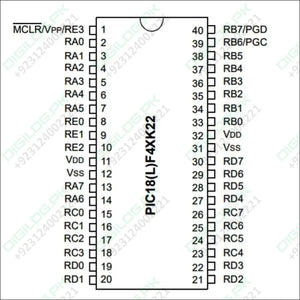

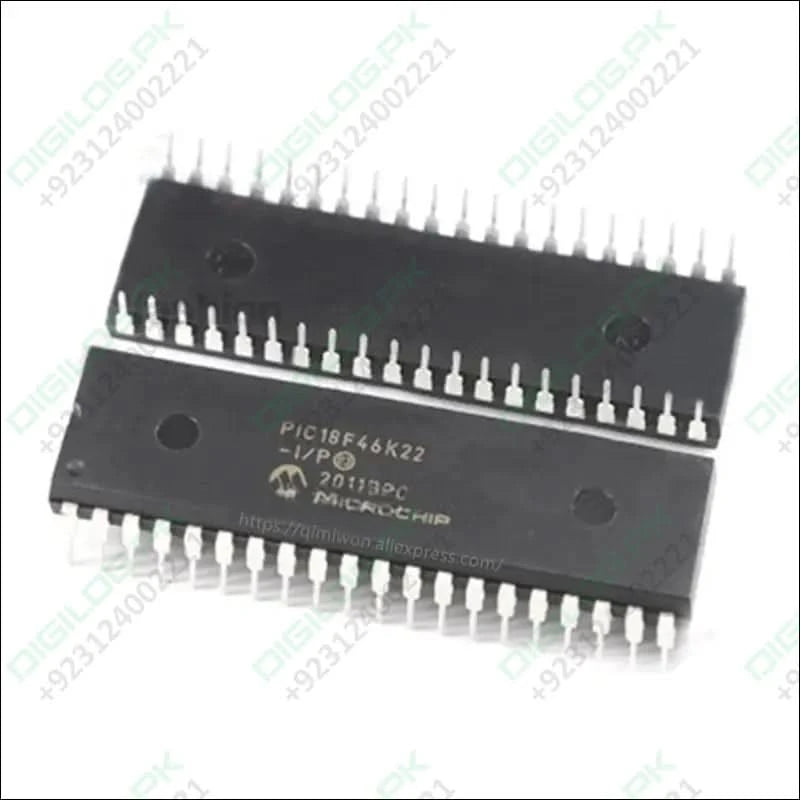

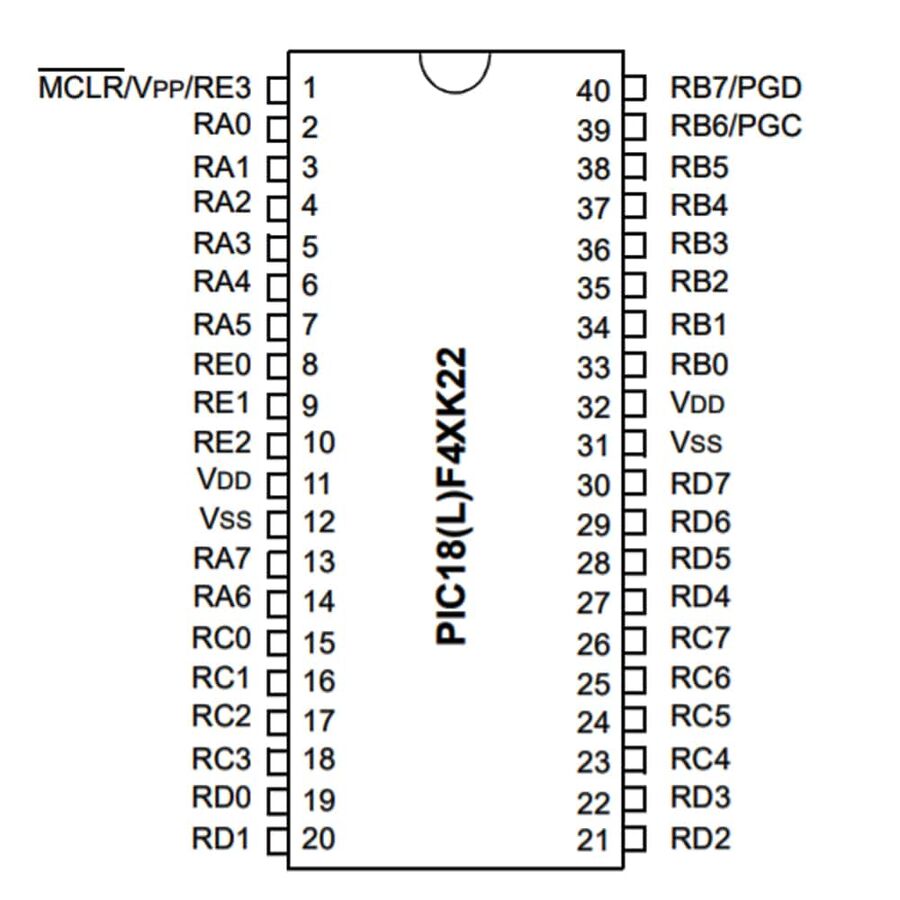

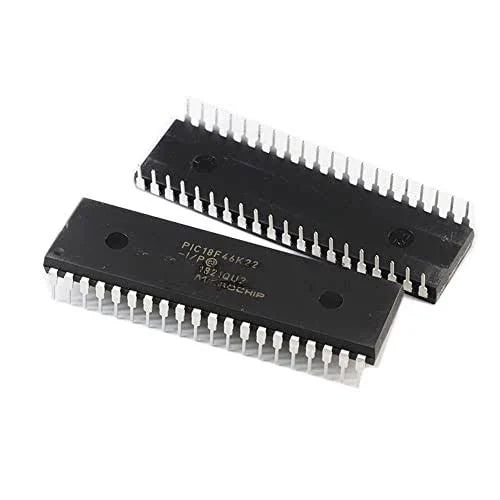

The PIC18F46K22-I/P PIC18F46K22 18F46K22 DIP-40 is a Microcontroller, high computational performance with the addition of high-endurance, flash program memory. On top of these features, introduces design enhancements that make these microcontrollers a logical choice for many high performance and power sensitive applications.

Microchip Pic18f46k22 Microcontroller 18f452 (40-pin Dip)

High-Performance RISC CPU

  • C Compiler optimized architecture/instruction set
  • Data EEPROM to 1024 bytes
  • Linear program memory addressing to 64 Kbytes
  • Linear data memory addressing to 4 Kbytes
  • Up to 16 MIPS operation
  • 16-bit wide instructions, 8-bit wide data path
  • Priority levels for interrupts
  • 31-level, software-accessible hardware stack
  • 8 x 8 Single-Cycle Hardware Multiplier

Extreme Low-Power Management with nanoWatt XLP

  • Sleep mode: 100 nA, typical
  • Watchdog Timer: 500 nA, typical
  • Timer1 Oscillator: 500 nA @ typical 32 kHz Flexible Oscillator Structure
  • Precision 16 MHz internal oscillator block:
    • Factory calibrated to 1%
    • Software selectable frequencies range of 31 kHz to 16 MHz
    • 64 MHz performance available using PLL
    • No external components required
  • Four Crystal modes up to 64 MHz
  • Two external Clock modes up to 64 MHz
  • 4X Phase Lock Loop (PLL)
  • Secondary oscillator using Timer1 @ 32 kHz
  • Fail-Safe Clock Monitor: Allows for safe shutdown if peripheral clock stops
  • Two-Speed Oscillator Start-up

Special Microcontroller Features

  • Full 5.5V operation (PIC18F2XK22/4XK22)
  • Low voltage option available for 1.8V-3.6V operation (PIC18LF2XK22/4XK22)
  • Self-reprogrammable under software control
  • Power-on Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST)
  • Programmable Brown-out Reset (BOR)
  • Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
  • Programmable code protection
  • In-Circuit Serial Programming (ICSP) via two pins
  • In-Circuit Debug via two pins

Analog Features

  • Analog-to-Digital Converter (ADC) module:
    • 10-bit resolution
    • 17 analog input channels (PIC18F/LF2XK22)
    • 28 analog input channels (PIC18F/LF4XK22)
    • Auto acquisition capability
    • Conversion available during Sleep
  • Programmable High/Low Voltage Detection (PLVD) module
  • Charge Time Measurement Unit (CTMU) for mTouch support:
    • Up to 28 channels for button, sensor, or slider input
  • Analog comparator module with:
    • Two rail-to-rail analog comparators
    • Comparator inputs and outputs externally accessible and configurable
  • Voltage reference module with:
    • Programmable On-chip Voltage Reference (CVREF) module (% of VDD)
    • Selectable on-chip fixed voltage reference

Peripheral Features

  • 24/35 I/O pins and 1 input-only pin:
    • High current sink/source 25 mA/25 mA
    • Individually programmable weak pull-ups
    • Individually programmable interrupt-on-pin change
  • Three external interrupt pins
  • Up to seven Timer modules:
    • Up to four 16-bit timers/counters with pre scaler
    • Up to three 8-bit timers/counters
    • Dedicated, low-power Timer1 oscillator
  • Up to two Capture/Compare/PWM (CCP) modules
  • Up to three Enhanced Capture/Compare/PWM (ECCP) modules with:
    • One, two, or four PWM outputs
    • Selectable polarity
    • Programmable dead time
    • Auto-shutdown and Auto-restart
    • PWM output steering control
  • Two Master Synchronous Serial Port (MSSP) modules with two modes of operation:
    • 3-wire SPI (supports all 4 SPI modes)
    • I2C Master and Slave modes (Slave mode with address masking)
  • Two Enhanced Universal Synchronous Asynchronous Receiver Transmitter modules (EUSART):
    • Supports RS-232, RS-485, and LIN 2.0
    • Auto-Baud Detect
    • Auto Wake-up on Start bit

Documents




Useful Links


View full details

Description

The PIC18F46K22-I/P PIC18F46K22 18F46K22 DIP-40 is a Microcontroller, high computational performance with the addition of high-endurance, flash program memory. On top of these features, introduces design enhancements that make these microcontrollers a logical choice for many high performance and power sensitive applications.

Microchip Pic18f46k22 Microcontroller 18f452 (40-pin Dip)

High-Performance RISC CPU

  • C Compiler optimized architecture/instruction set
  • Data EEPROM to 1024 bytes
  • Linear program memory addressing to 64 Kbytes
  • Linear data memory addressing to 4 Kbytes
  • Up to 16 MIPS operation
  • 16-bit wide instructions, 8-bit wide data path
  • Priority levels for interrupts
  • 31-level, software-accessible hardware stack
  • 8 x 8 Single-Cycle Hardware Multiplier

Extreme Low-Power Management with nanoWatt XLP

  • Sleep mode: 100 nA, typical
  • Watchdog Timer: 500 nA, typical
  • Timer1 Oscillator: 500 nA @ typical 32 kHz Flexible Oscillator Structure
  • Precision 16 MHz internal oscillator block:
    • Factory calibrated to 1%
    • Software selectable frequencies range of 31 kHz to 16 MHz
    • 64 MHz performance available using PLL
    • No external components required
  • Four Crystal modes up to 64 MHz
  • Two external Clock modes up to 64 MHz
  • 4X Phase Lock Loop (PLL)
  • Secondary oscillator using Timer1 @ 32 kHz
  • Fail-Safe Clock Monitor: Allows for safe shutdown if peripheral clock stops
  • Two-Speed Oscillator Start-up

Special Microcontroller Features

  • Full 5.5V operation (PIC18F2XK22/4XK22)
  • Low voltage option available for 1.8V-3.6V operation (PIC18LF2XK22/4XK22)
  • Self-reprogrammable under software control
  • Power-on Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST)
  • Programmable Brown-out Reset (BOR)
  • Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
  • Programmable code protection
  • In-Circuit Serial Programming (ICSP) via two pins
  • In-Circuit Debug via two pins

Analog Features

  • Analog-to-Digital Converter (ADC) module:
    • 10-bit resolution
    • 17 analog input channels (PIC18F/LF2XK22)
    • 28 analog input channels (PIC18F/LF4XK22)
    • Auto acquisition capability
    • Conversion available during Sleep
  • Programmable High/Low Voltage Detection (PLVD) module
  • Charge Time Measurement Unit (CTMU) for mTouch support:
    • Up to 28 channels for button, sensor, or slider input
  • Analog comparator module with:
    • Two rail-to-rail analog comparators
    • Comparator inputs and outputs externally accessible and configurable
  • Voltage reference module with:
    • Programmable On-chip Voltage Reference (CVREF) module (% of VDD)
    • Selectable on-chip fixed voltage reference

Peripheral Features

  • 24/35 I/O pins and 1 input-only pin:
    • High current sink/source 25 mA/25 mA
    • Individually programmable weak pull-ups
    • Individually programmable interrupt-on-pin change
  • Three external interrupt pins
  • Up to seven Timer modules:
    • Up to four 16-bit timers/counters with pre scaler
    • Up to three 8-bit timers/counters
    • Dedicated, low-power Timer1 oscillator
  • Up to two Capture/Compare/PWM (CCP) modules
  • Up to three Enhanced Capture/Compare/PWM (ECCP) modules with:
    • One, two, or four PWM outputs
    • Selectable polarity
    • Programmable dead time
    • Auto-shutdown and Auto-restart
    • PWM output steering control
  • Two Master Synchronous Serial Port (MSSP) modules with two modes of operation:
    • 3-wire SPI (supports all 4 SPI modes)
    • I2C Master and Slave modes (Slave mode with address masking)
  • Two Enhanced Universal Synchronous Asynchronous Receiver Transmitter modules (EUSART):
    • Supports RS-232, RS-485, and LIN 2.0
    • Auto-Baud Detect
    • Auto Wake-up on Start bit
