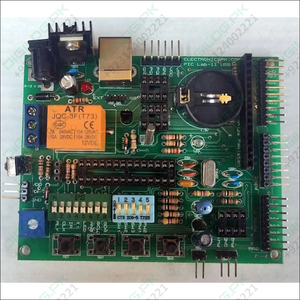

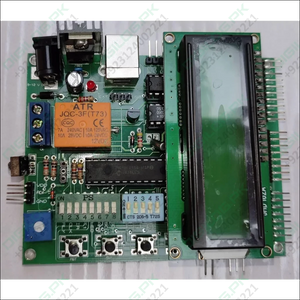

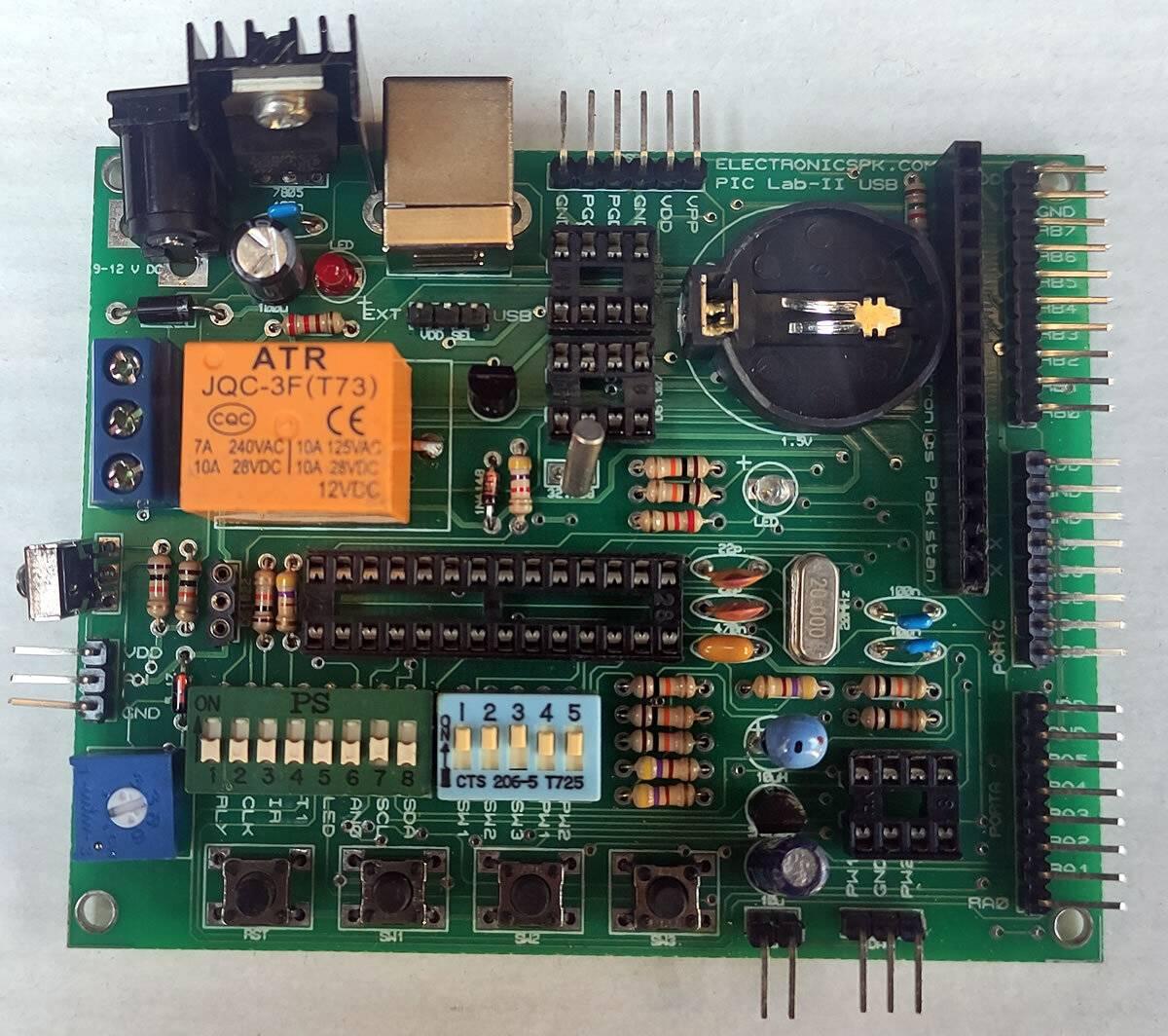

Microchip Pic Lab-ii Development Board 28 Pin Microcontrollers

Microchip Pic Lab-ii Development Board 28 Pin Microcontrollers

Regular price Rs 2,500
Regular price Sale price Rs 2,500
Sale Sold out
Shipping calculated at checkout.

SKU:

NOTIFY ME WHEN IN STOCK



[Download User Manual]

PIC Lab-II is a development and training board for microchip PIC 28 Pin Microcontrollers. The board has a rich collection of commonly used circuits pre-fabricated on the board. These circuits can be connected or disconnected to the respective IO Lines through DIP switches. All IO Lines are accessible through standard headers arranged into PORTS.

Features

  • Supports almost all PIC 28 Pin Microcntrollers including PIC16F876
  • Recommended Microcontroller is PIC18F2550
  • 20 MHz Crystal Oscillator
  • 3 User programmable push buttons
  • 38KHz IR Remote control Sensor
  • One relay (Not optically isolated do not use for mains loads)
  • DS18B20 Digital temperature sensor interface (DS18B20 not included)

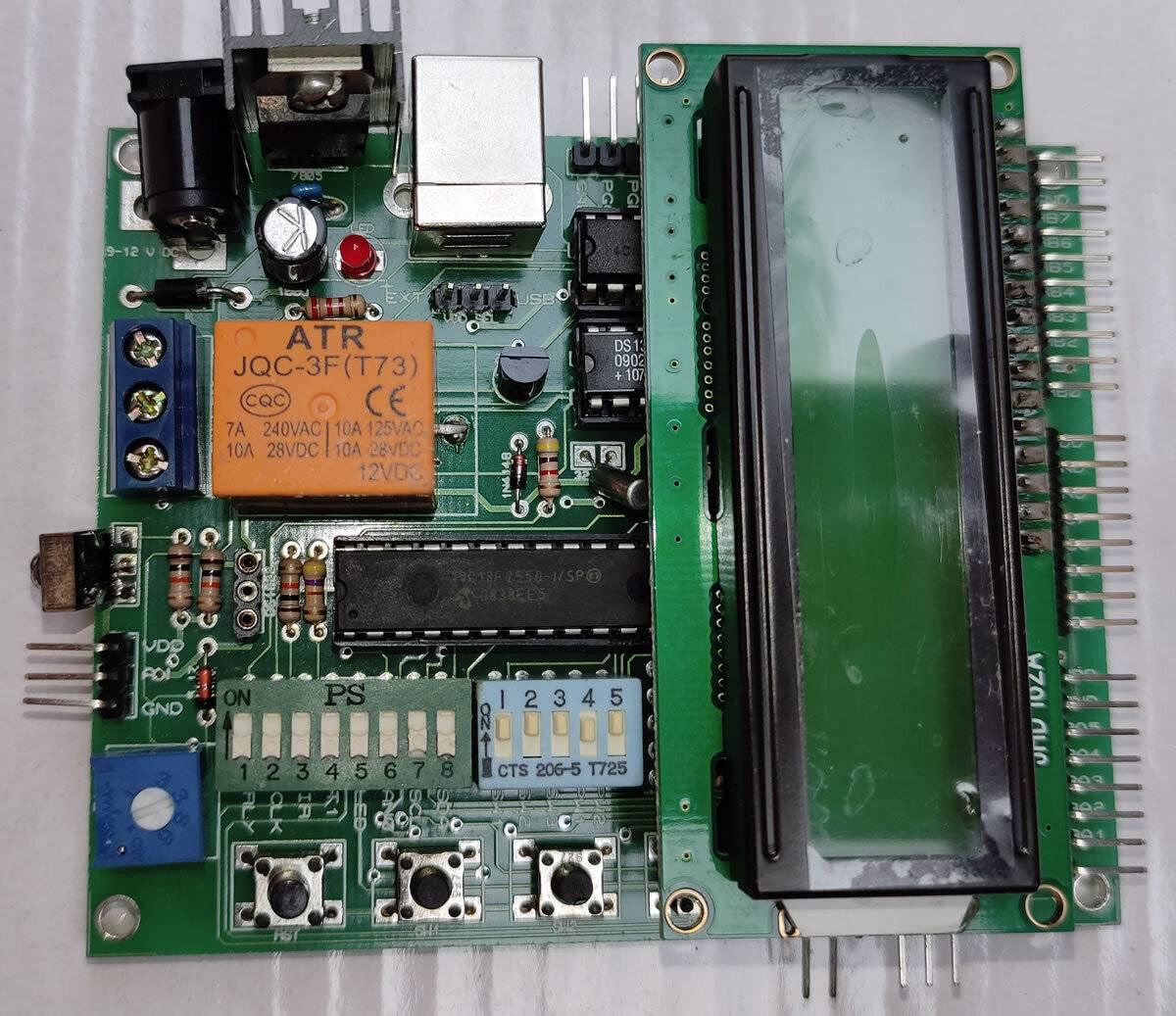

  • HD44780 character LCD interface
  • One potentiometer to act as analog input and also as voltage divider
  • one user programmable LED
  • USB connector to allow Power and USB application development (18F2550 has builtin USB peripheral)
  • I2C EEPROM Socket (24C04 or similar)
  • DS1307 I2C RTC with battery backup
  • Onboard 5V DC Regulator for external DC Supply
  • Jumper to select DC Source.
  • Reset Button
  • ICSP Header (In Circuit Serial programming, PICKit Compatible)
  • Onboard low pass filter for pwm signals and Operational amplifier for low power signals. (This Feature may have some assembly faults)
View full details

Description



[Download User Manual]

PIC Lab-II is a development and training board for microchip PIC 28 Pin Microcontrollers. The board has a rich collection of commonly used circuits pre-fabricated on the board. These circuits can be connected or disconnected to the respective IO Lines through DIP switches. All IO Lines are accessible through standard headers arranged into PORTS.

Features

  • Supports almost all PIC 28 Pin Microcntrollers including PIC16F876
  • Recommended Microcontroller is PIC18F2550
  • 20 MHz Crystal Oscillator
  • 3 User programmable push buttons
  • 38KHz IR Remote control Sensor
  • One relay (Not optically isolated do not use for mains loads)
  • DS18B20 Digital temperature sensor interface (DS18B20 not included)
  • HD44780 character LCD interface
  • One potentiometer to act as analog input and also as voltage divider
  • one user programmable LED
  • USB connector to allow Power and USB application development (18F2550 has builtin USB peripheral)
  • I2C EEPROM Socket (24C04 or similar)
  • DS1307 I2C RTC with battery backup
  • Onboard 5V DC Regulator for external DC Supply
  • Jumper to select DC Source.
  • Reset Button
  • ICSP Header (In Circuit Serial programming, PICKit Compatible)
  • Onboard low pass filter for pwm signals and Operational amplifier for low power signals. (This Feature may have some assembly faults)
