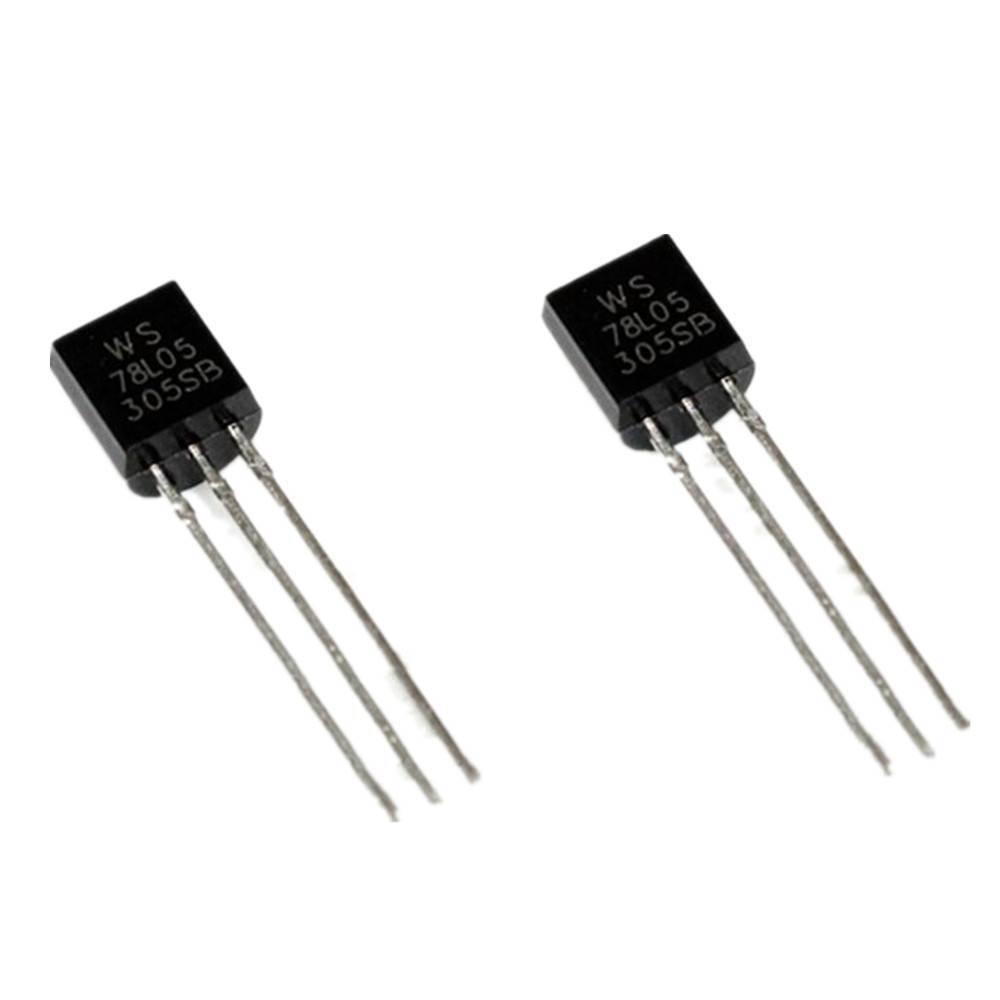

LM78L05 78L05 Voltage Regulator 5V Voltage Regulator TO-92 - two black TO-92 package electronic components with three metal pins each, labeled "WS 78L05 305SB".

LM78L05 78L05 Voltage Regulator 5V Voltage Regulator TO-92

Sale price Rs 20
SKU: B659,L100,Th50
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

LM78L05 78L05 Voltage Regulator 5V Voltage Regulator TO-92 - two black TO-92 package electronic components with three metal pins each, labeled "WS 78L05 305SB".

LM78L05 78L05 Voltage Regulator 5V Voltage Regulator TO-92

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

LM78L05 78L05 Voltage Regulator 5V Voltage Regulator TO-92

78xx (sometimes L78xxLM78xxMC78xx...) is a family of self-contained fixed linear voltage regulator integrated circuits. The 78xx family is commonly used in electronic circuits requiring a regulated power supply due to their ease-of-use and low cost.

The LM78XX series of three terminal positive regulators are available in the TO-92 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
