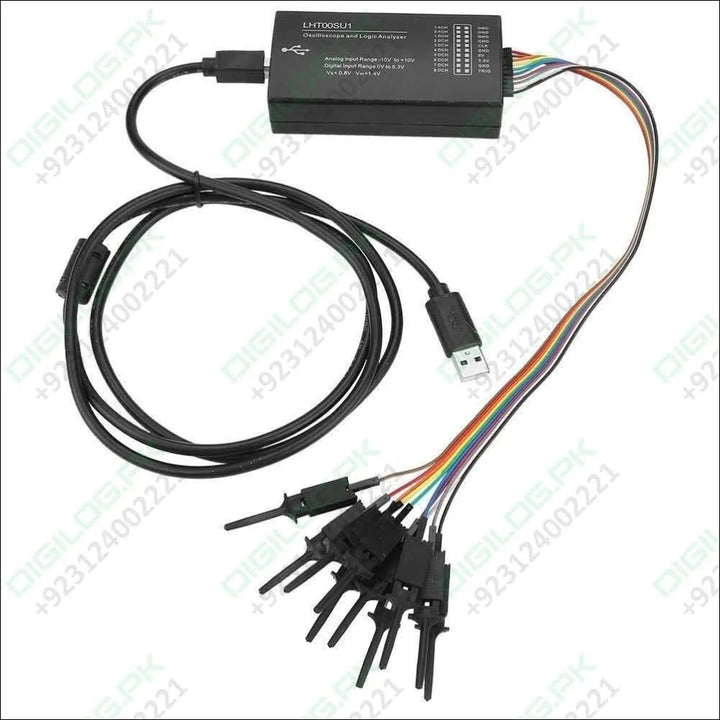

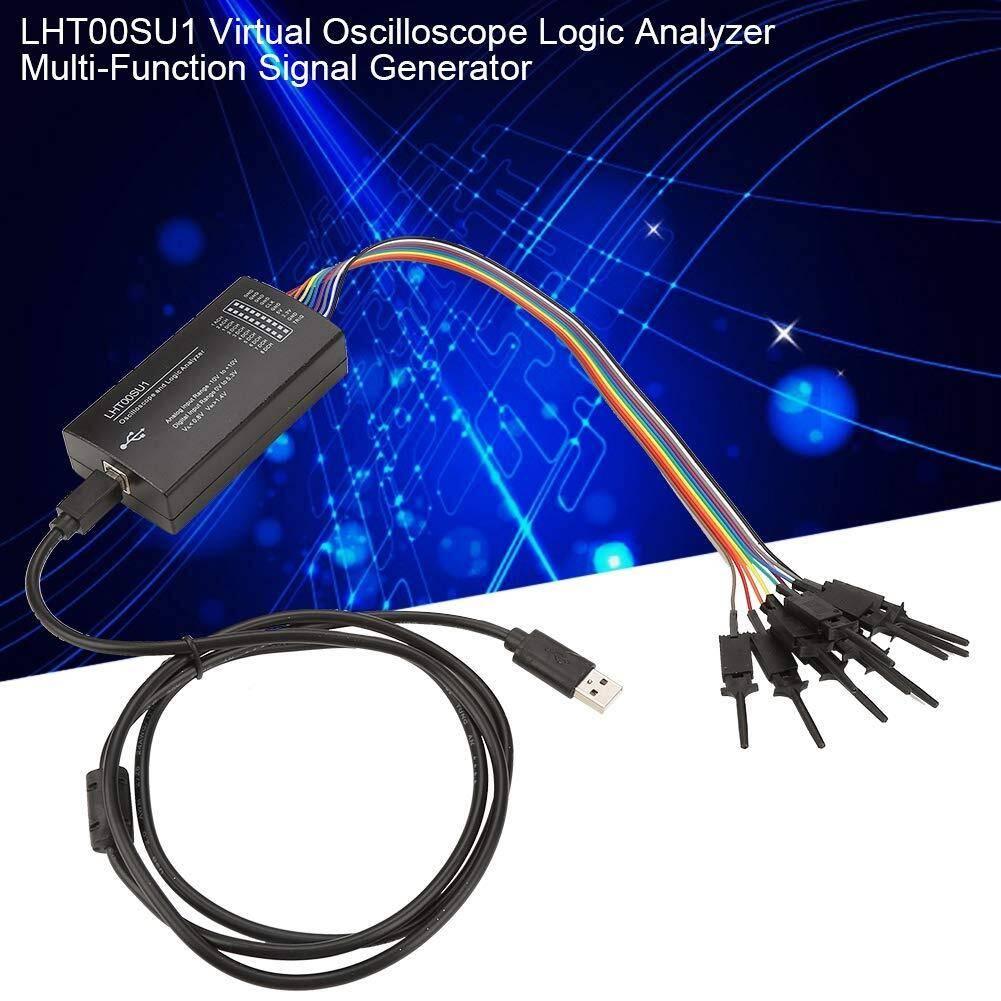

LHT00SU1 Virtual Oscilloscope is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate, with 1 additional analog channel (theoretically 2, but only one of them can be used at a time; 3MHz analog bandwidth).

Since the LHT00SU1 Virtual Oscilloscope is working at the highest sampling rate, the higher of the PC’s USB bandwidth and processor resource requirements, so in order to ensure stable operation, do not connect other USB high-speed devices on PC; do not run other software at the same time of sampling and the output signal program. When USBee software installation process, you will be prompted to install Windows .NET components, be sure to install the .NET components, or the software will not work. First download the online version of the installation, start the installation. When you cannot properly downloaded online installation, it is necessary to go to Microsoft’s official website to download and install the Microsoft .Net Framework 3.5 SP1.exe, in the lower part, download the full version installed on the page, the size is 230MB. When the USBee software is installed successful, USBEE AX connected to the computer, Windows Device Manager will recognize the new hardware, click on automatically install the driver, it will display USBee AX-Pro Test Pod if successful.

USBee Suite Register USBee Suite has many functions, it must be achieved after software registration. Open USBee Suite software, select Register USBee Suite Pro in the drop-down menu of Setup, in the middle of the page that pops up, find the software ID number, enter the registration software to calculate generate the registration number and registered to USBee Suite, you can get a complete USBee Suite Pro features.

Features: –

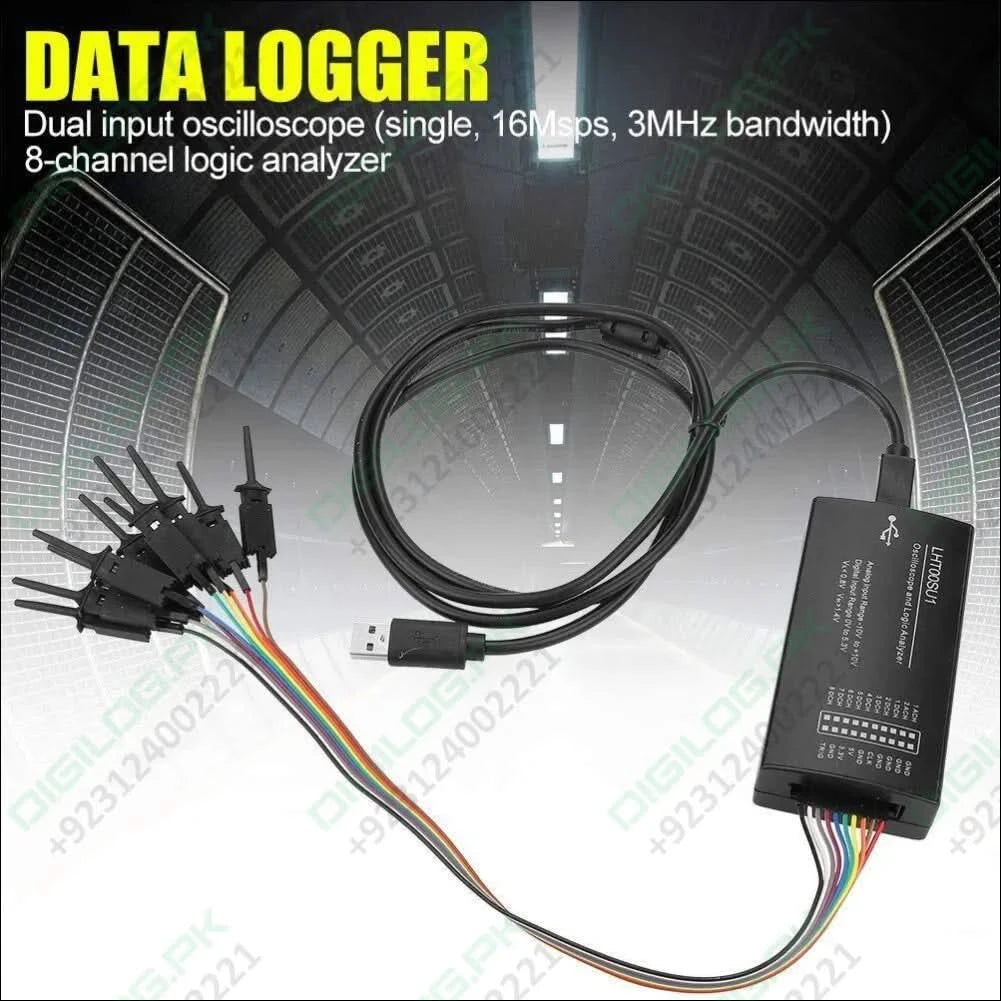

• Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)
• 8-channel logic analyzer
• Data Logger
• Dual channel voltmeter
• Mixed signal oscilloscopes and logic analyzer
• Frequency meter
• Remote controller
• PWM controller
• Frequency generator
• I2C controller
• Pulse / edge counter
• 8 digital channel + 1 analog channel logic analyzer, support for multiple protocols

LHT00SU1 Virtual Oscilloscope Analog parameters

• Number of input channels: 2 channel
• Sampling channel: 1 channel
• The maximum sampling frequency: 16MHz
• The maximum analog bandwidth: 3MHz
• Input voltage range: -10V to + 10V
• Sensitivity: 78mV
• Maximum vertical resolution: 256 level

LHT00SU1 Virtual Oscilloscope Digital parameters

• Number of channels: 8

• Input voltage: 0V-5.3V
• Input Low level: <0.8V
• Input high level: >1.4V
• Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2
• The communication interface parameters: USB parameters: USB2.0 high-speed 480Mbps

LHT00SU1 Virtual Oscilloscope System requirements

• Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)
• Celeron 4 2.0G or Pentium 4 1.8G higher processor
• Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1
• Memory Requirements 128M or more
• Need 2G or more hard disk
• You need to install Framework 3.5 SP1

Note: If your system is WINDOWS XP, please check whether your computer has “.NET 3.5 SP1” this component, if not, go to the Microsoft website to download and install.

Datasheet: –

files.banggood.com/…/988565-instruction.pdf

Package: –

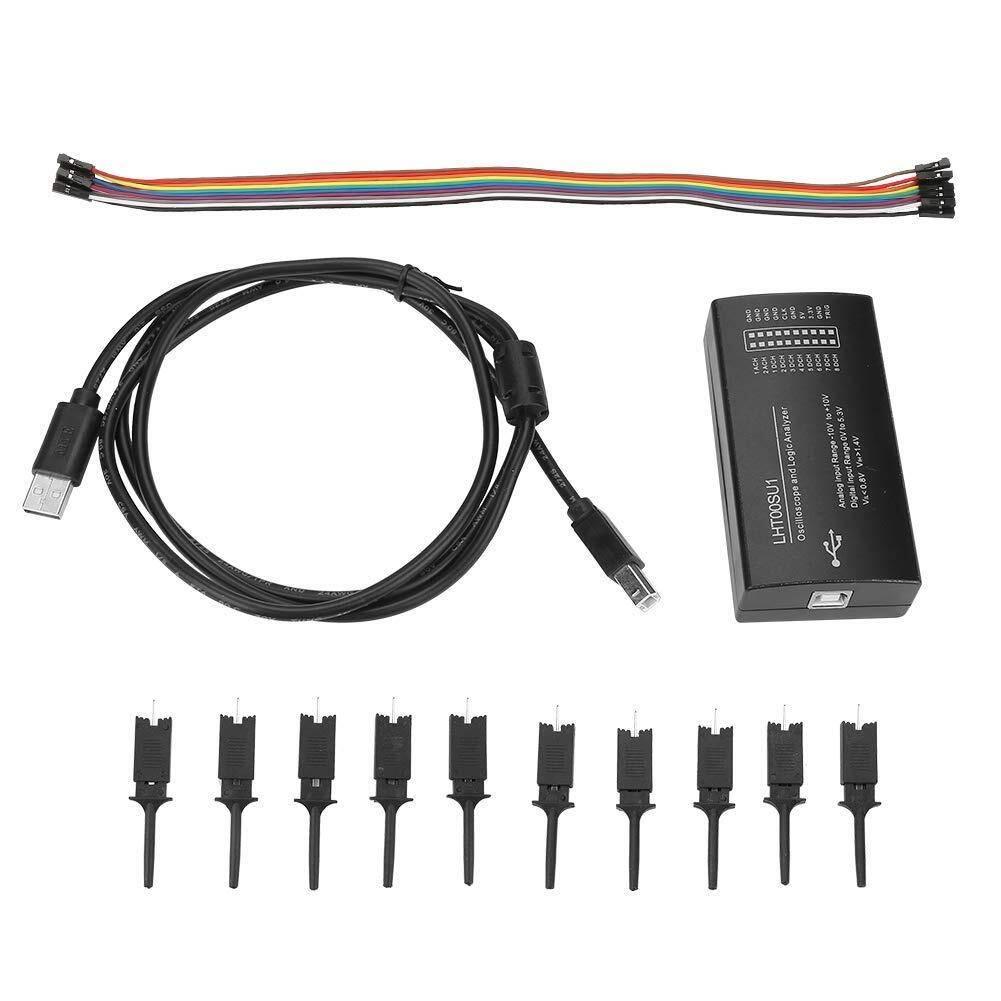

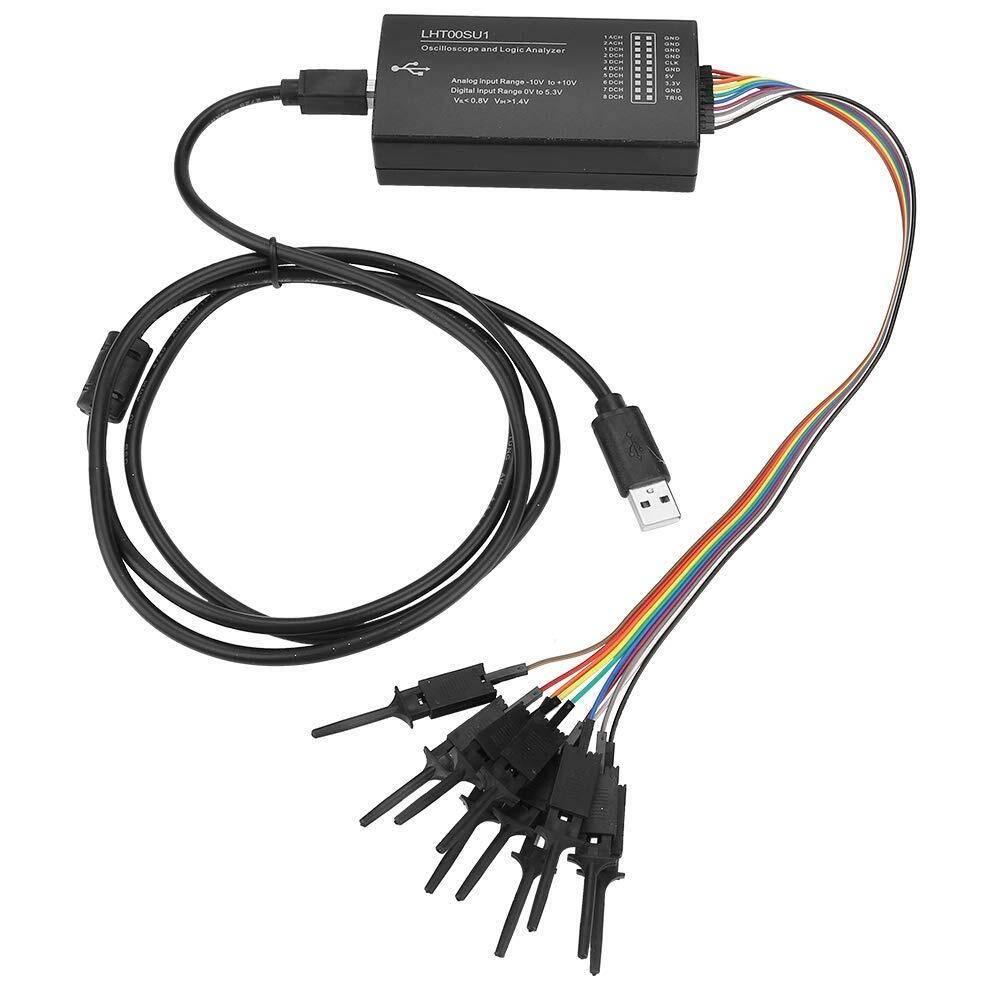

• 1 x Logic Analyzer
• 1x Test clamp (10-pin, 30cm length)
• 1 x USB cable (150cm length)
• 10 x Test clips

Software:
https://www.usbee.com/suite.html
