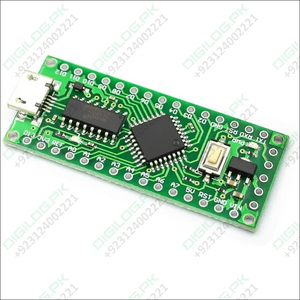

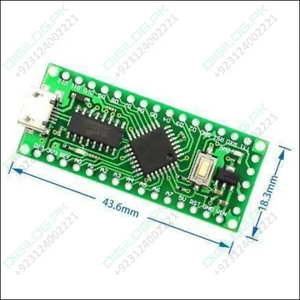

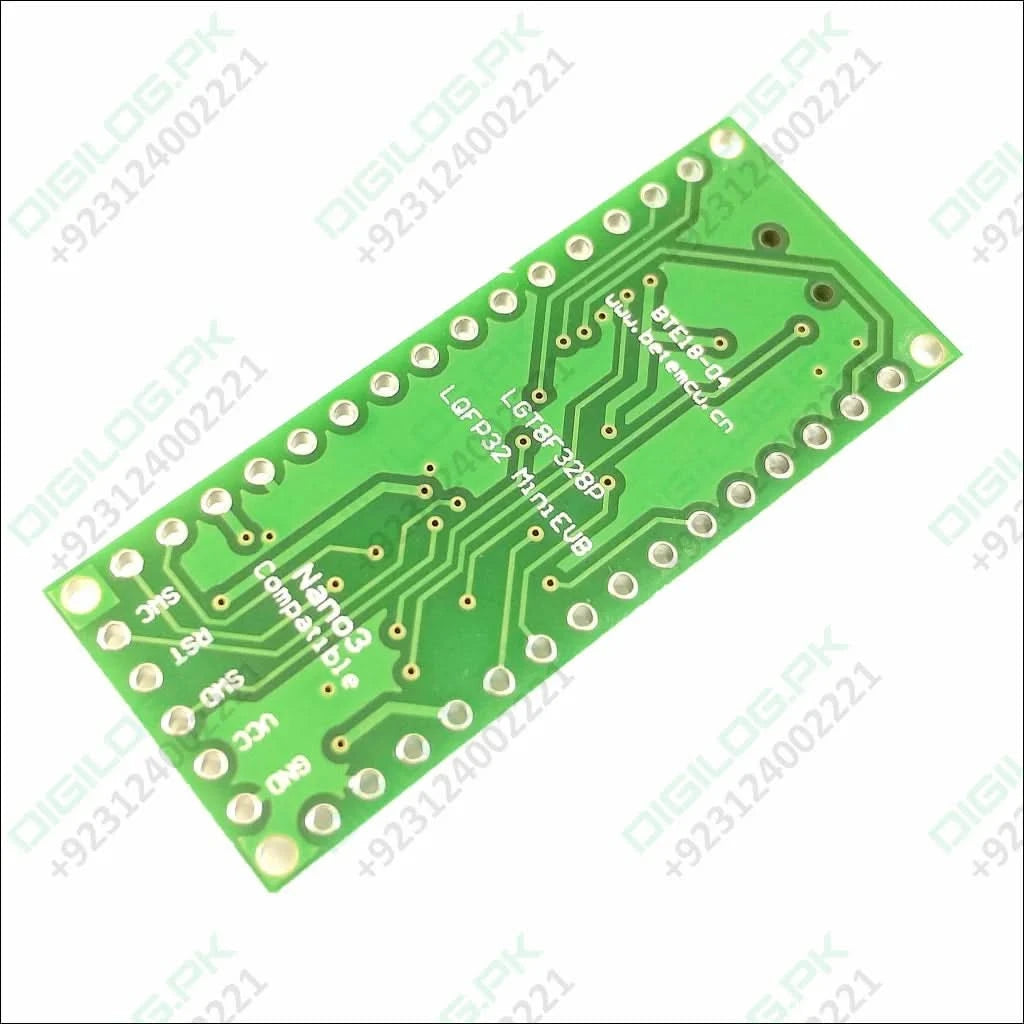

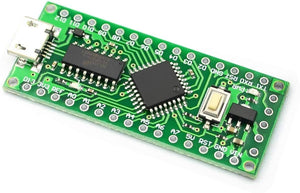

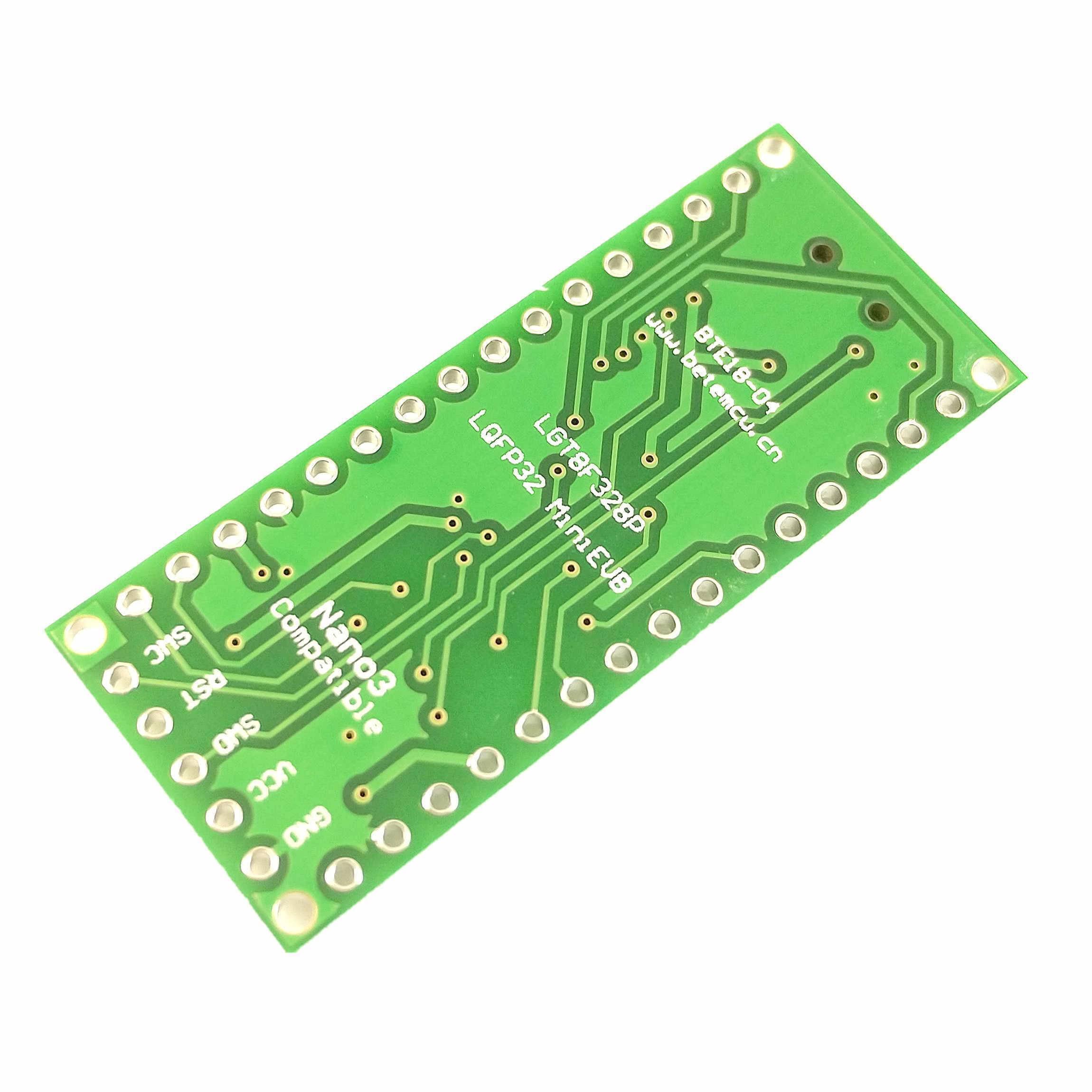

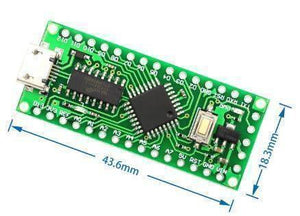

Arduino Nano V3.0 ATMEGA328P Clone LGT8F328P
LGT8F328P-LQFP32 MiniEVB is an Alternative Arduino Nano V3.0 ATMeag328P with serial HT42B534-1 SOP16 USB Driver. It is an improved ATMega328P with this cheap clone Logic Green LGT8F328P
Features:
- 8F328P-U MCU used by the LGT8F328P, is a Atmel MEGA328P compatible chip.
- 8F328D architecture design is relatively new, peripheral functions far stronger than Atmel MEGA328. Especially the program encryption ability is far more than MEGA328.
- 8F328D can use 3V3 and 5V power supply running at 16M frequency, excellent level compatibility.
- Built-in high-precision RC, no external crystal can be stable operation.
- Less And decreases in peripheral instrument parts, Circuit Design Is Simple.
- 12-bit ADC (analog-to-digital conversion)
- On Board DAC
- Owned Inventory the GUID (Unique own ID) Can Be For on used chip solutions Encryption Program.
- A Built-In .internal 1.024V / 2.048V / 4.096V ± 1% Calibratable Source Reference voltage software.
- The PWM pin adapter Number: the D3, the D5, the D6, the D9, the D10, D11.
- MCU LGT8F328P
- FLASH 32Kbytes
- SRAM 2Kbytes
- E2PROM 0K / 1K / 2K / 4K / 8K (FLASH Share)
- PWM 8
- Frequency 16MHz (Maximum 32MHz)
- ADC 6 passageway12 position
- DAC 1passageway8 position
- UART 1
- SPI YES
- TWI (I2C) YES
- GUID YES
- Internal benchmark 1.024V / 2.048V / 4.096V ± 0.5%
- System logic level Factory 3V3 (switch from pad to 5V)
Now we're going to look at the 32MHz Nano-sized drop-in replacement
Buy LGT8F328P-LQFP32 MiniEVB Alternative Arduino Nano V3.0 ATMEGA328P at pakistan's Best Online Shopping store in cheap price.Here you get best LGT8F328P-LQFP32 MiniEVB which replace Replace ATMega328P. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta , Faisalabad and all over Pakistan.
Package Included:
- 1xLGT8F328P-LQFP32 MiniEVB Alternative Arduino Nano V3.0 ATMEGA328P
