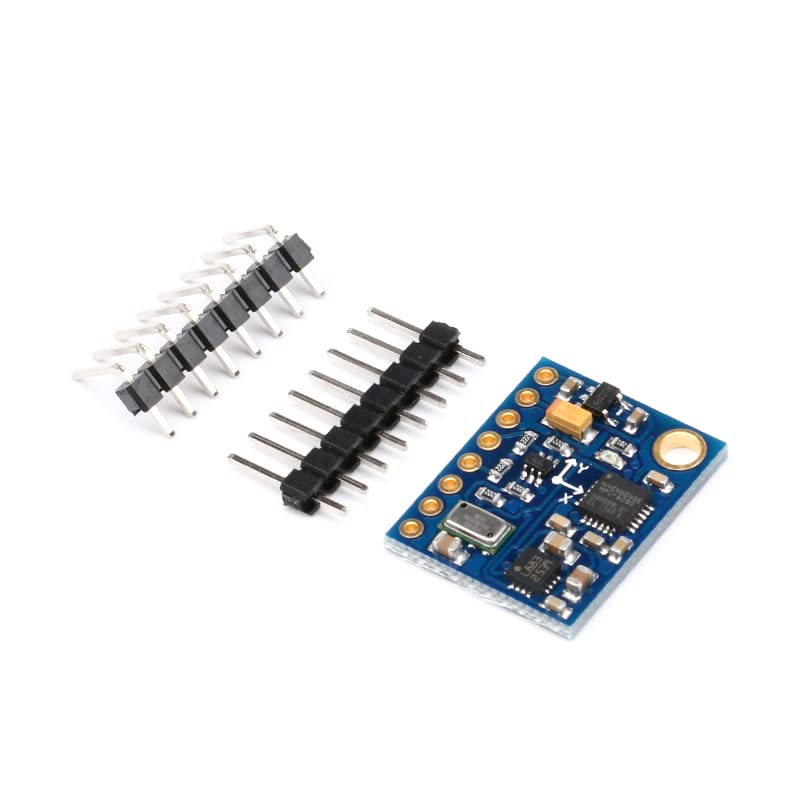

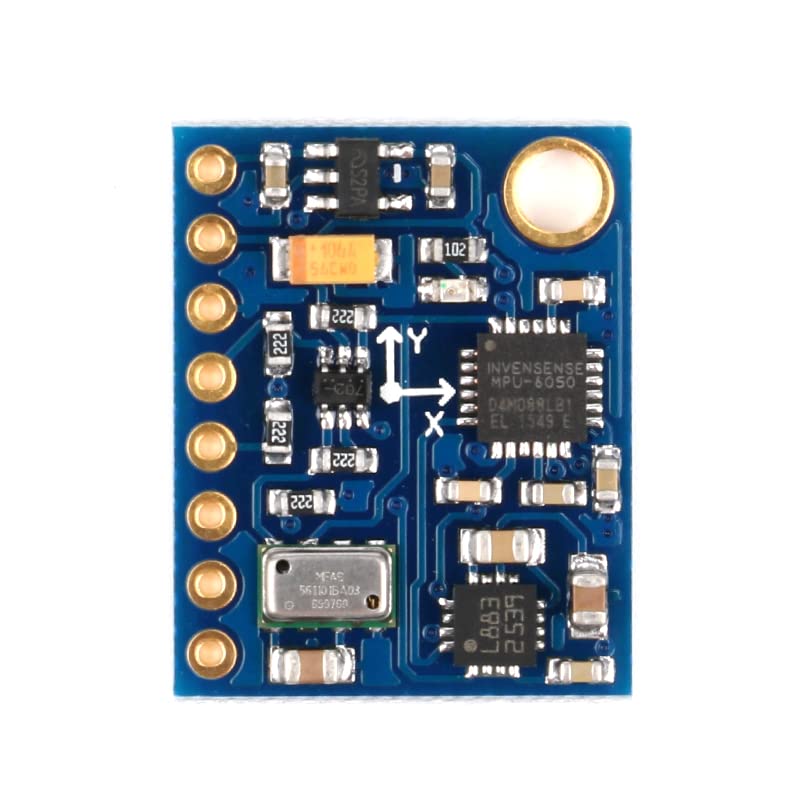

GY-86 10DOF MS5611 HMC5883L MPU6050 Module MWC Flight Control Sensor Module Gyro+Acceleration+Magnetic Field+Air Pressure Sensor Module

The MPU6000 features three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs. For precision tracking of both fast and slow motions, the parts feature a user-programmable gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (DPS) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.
The MS561101BA is a high resolution altimeter sensors with SPI and I2C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients.
The HMC5883L utilizes Anisotropic Magnetoresistive (AMR) technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors’ solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth’s magnetic fields, from milli-gauss to 8 gauss.

• The GY-86 features three 16 bit analog to digital converters (ADCs) for digitizing the gyroscope outputs and three 16 bit ADCs for digitizing the accelerometer outputs. For precision tracking of both fast and slow motions, the parts feature a user programmable gyroscope full scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user programmable accelerometer full scale range of ±2g, ±4g, ±8g, and ±16g.

• DESCRIPTION ：The MS561101BA is a high resolution altimeter sensors with SPI and I2C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients.

• HMC5883L is a surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for applications such as low cost compassing and magnetometry. The HMC5883L includes our state-of-the art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy. The I2C serial bus allows for easy interface.

• Absolute Maximum Ratings ：Stress above those listed as “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these conditions is not implied. Exposure to the absolute maximum ratings conditions for extended periods may affect device reliability

• FACTORY CALIBRATION: Every module is individually factory calibrated at two temperatures and two pressures. As a result, 6 coefficients necessary to compensate for process variations and temperature variations are calculated and stored in the 128-bit PROM of each module. These bits (partitioned into 6 coefficients) must be read by the microcontroller software and used in the program converting D1 and D2 into compensated pressure and temperature values.

This amazing module packs 10 different sensors into one tiny package, making it perfect for all your Arduino projects.

Here's what it can measure:

• Movement: How fast and in what direction you're moving (gyroscope and accelerometer)
• Direction: Where you're facing (magnetometer)
• Altitude: How high up you are (barometer)
• And more!

Whether you're building a drone, a robot, or just want to experiment with electronics, the GY-86 has everything you need.

Order yours today and start building!

Key Features:

• Combines 10 different sensors
• Easy to use with Arduino
• Compact and lightweight
• Affordable price

Benefits:

• Perfect for a wide range of projects
• Saves you time and money
• Helps you learn about electronics
• Encourages creativity and innovation

Specifications:

• Dimensions: 22 x 17 mm
• Power supply: 3-5V
• Interface: I2C
• Sensors: MPU6000 (accelerometer and gyroscope), MS561101BA (barometer), HMC5883L (magnetometer)
