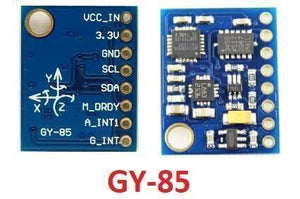

This GY-85 GY85 9DOF IMU Sensor Module called GY-85 that has three-axis gyroscope, triaxial accelerometer and 3-axis magnetic field. A kind of combined sensor which use the IIC communication protocol (fully compatible with 3-5v system, including the LLC circuit). It will help you to build more great related projects.
Â
- Â
DOWNLOAD:
Features:
- I2C communication
- Chip sets: ITG3205 + ADXL345 + HMC5883L
- 3 – 5V compatible
- Size: 2.2cm x 1.7cm(L x W)
- Net Weight:2g
- Schematic
This sensor is made up of the following
- HMC5883L
- 3 axis digital compass from Honeywell
Datasheet
- low power, 3-axis accelerometer with high resolution (13-bit) measurements at up to ± 16 g.
- suited to measures the static acceleration of gravity in tilt-sensing applications
- Suited to measure dynamic acceleration resulting from motion or shock
- high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°
- Datasheet
ADXL345
- groundbreaking triple-axis digital output gyroscope from InvenSense
- user-selectable internal low-pass filter bandwidth
- Fast-Mode I2C (400kHz) interface
- embedded temperature sensor and a 2% accurate internal oscillator
- Datasheet
ITG-3205
- 1 x GY-85 module
- 1 x 8 pin male header
- 1 x 8 pin right angle male header
Package includes:
- 1x  IMU Sensor Module
