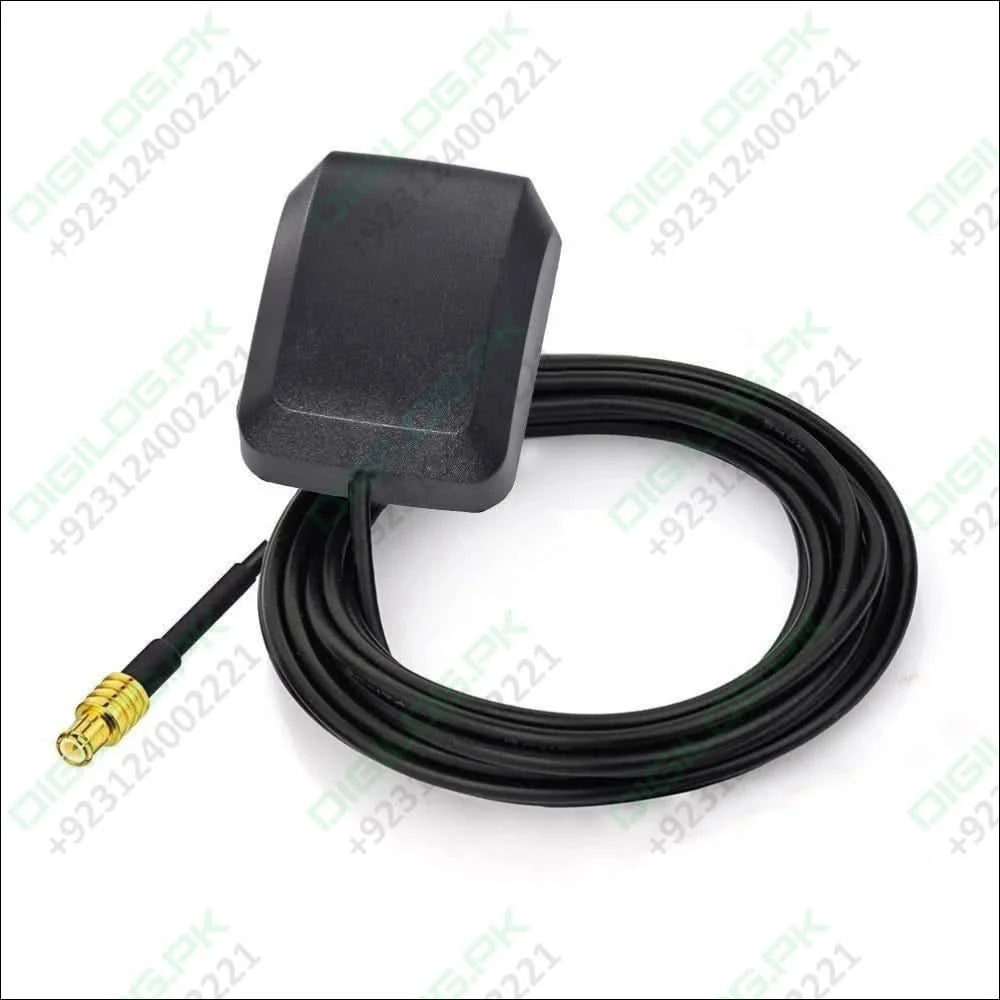

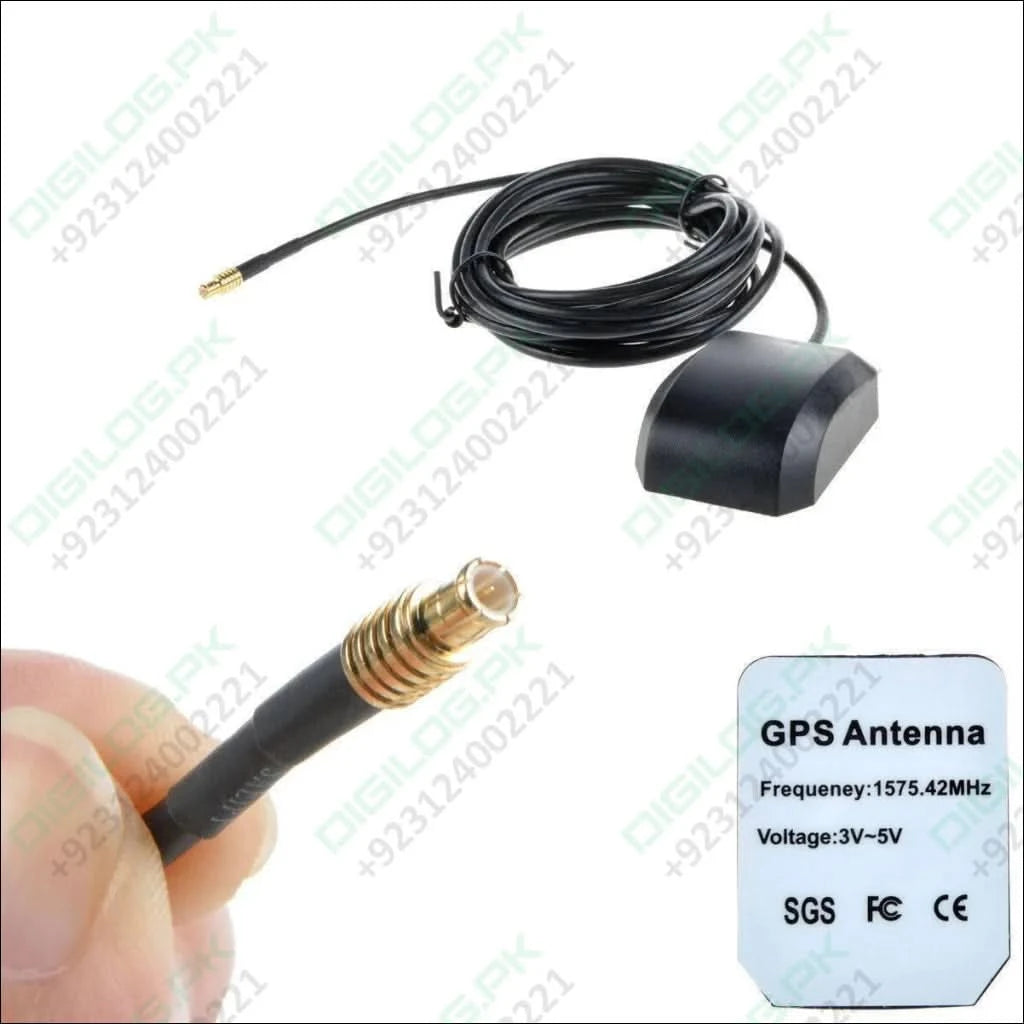

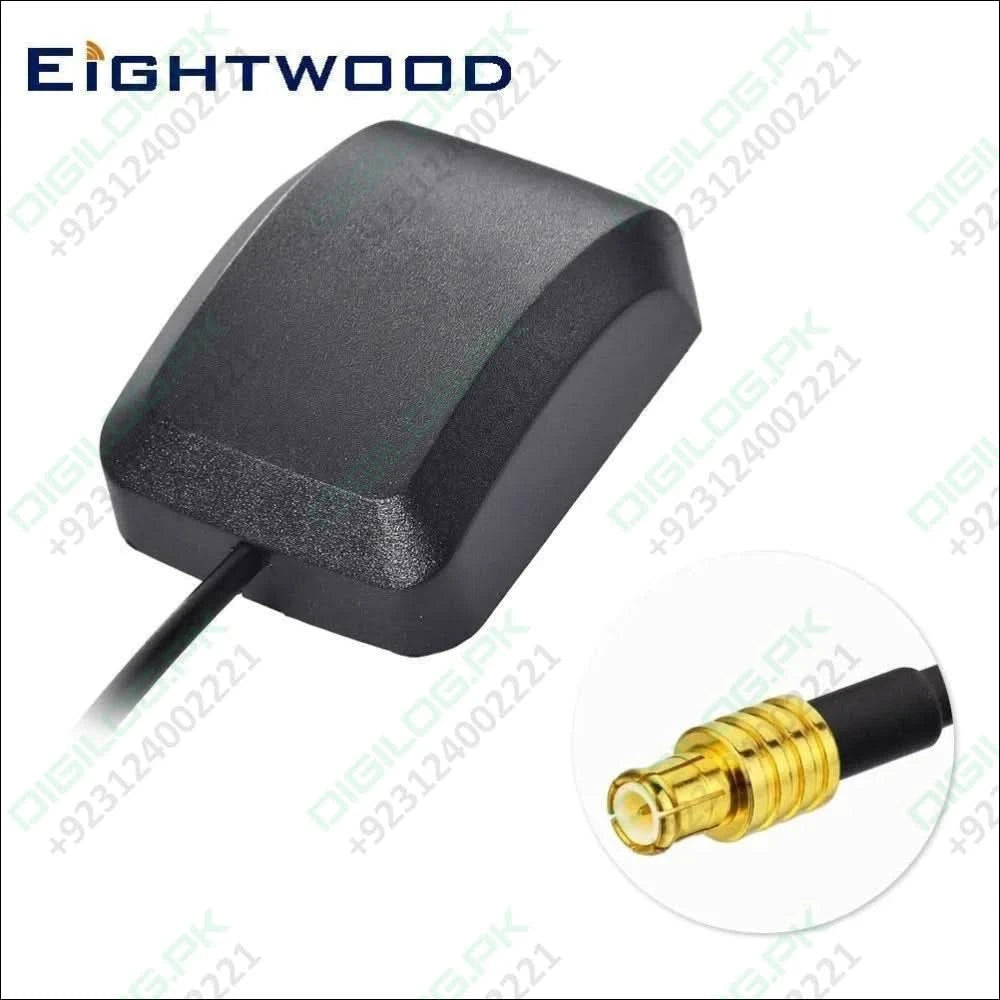

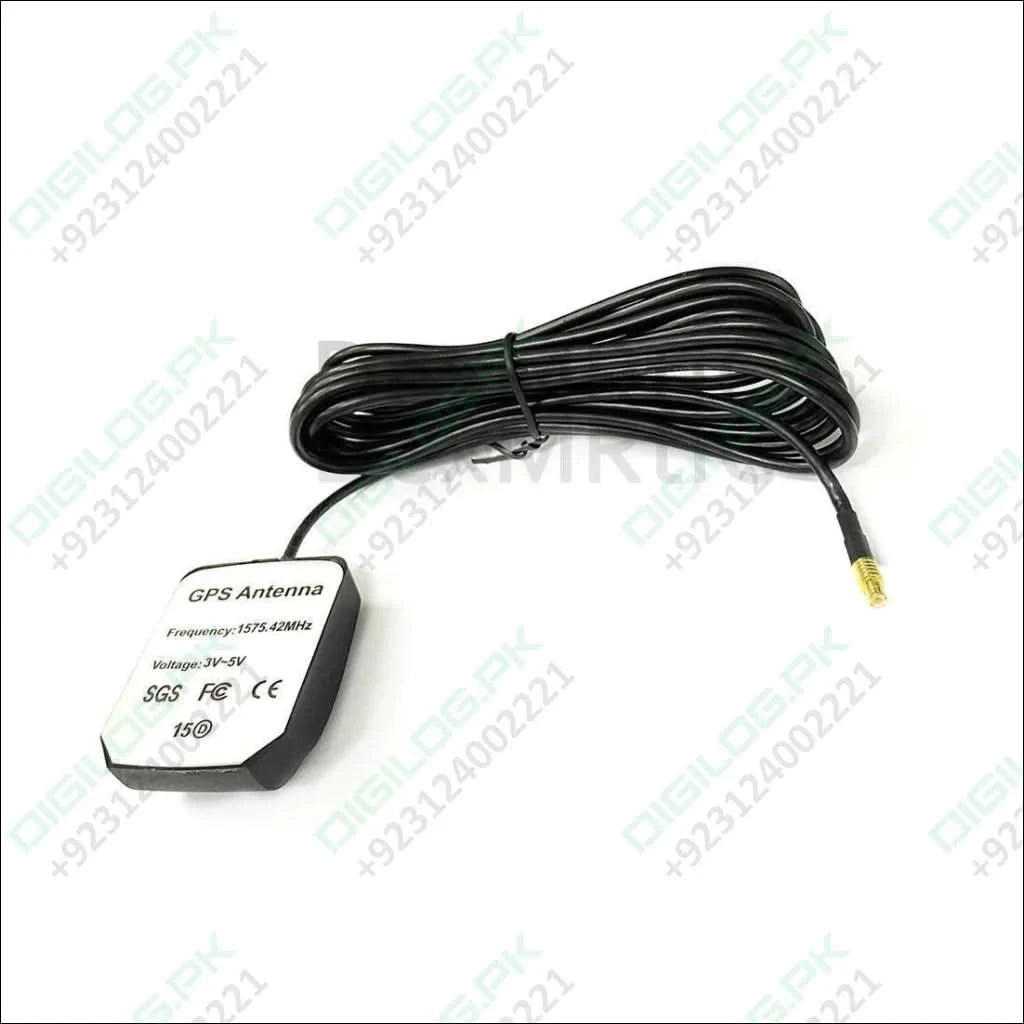

GPS Antenna Active MCX Male Straight Connector with 3M Extension Cable Magnetic Type

GPS Antenna Active MCX Male Straight Connector with 3M Extension Cable Magnetic Type

Regular price Rs 1,000
Regular price Sale price Rs 1,000
Sale Sold out
Shipping calculated at checkout.

SKU:B545 krt134

NOTIFY ME WHEN IN STOCK

This is Active GPS Antenna wioth MCX Male Straight Connector having 3M Extension Cable. Its Magnetic type and can be stick on any matelic place. You can boost yout gps signals with this external active antenna. This GPS antenna draws about 10mA and will give you an additional 28 dB of gain. The antenna is magnetic so it will stick to the top of a car or truck (or any other steel structure)Comes with a standard SMA connector on the end.

Picture 3 of 9

Picture 5 of 9

Features
  • Compatible with GPS devices (PDA/PNA/PPC/Navigator etc.) with a MCX connector for external antennas
  • Built-in GPS signal amplifier to enhance and improve GPS signal reception
  • Optional mounting: removable magnetic mount or fixed adhesive mount (Default: magnetic mount)
  • Optional straight or right angle connector type (Default: straight type)
Specifications

Dieletric Antenna

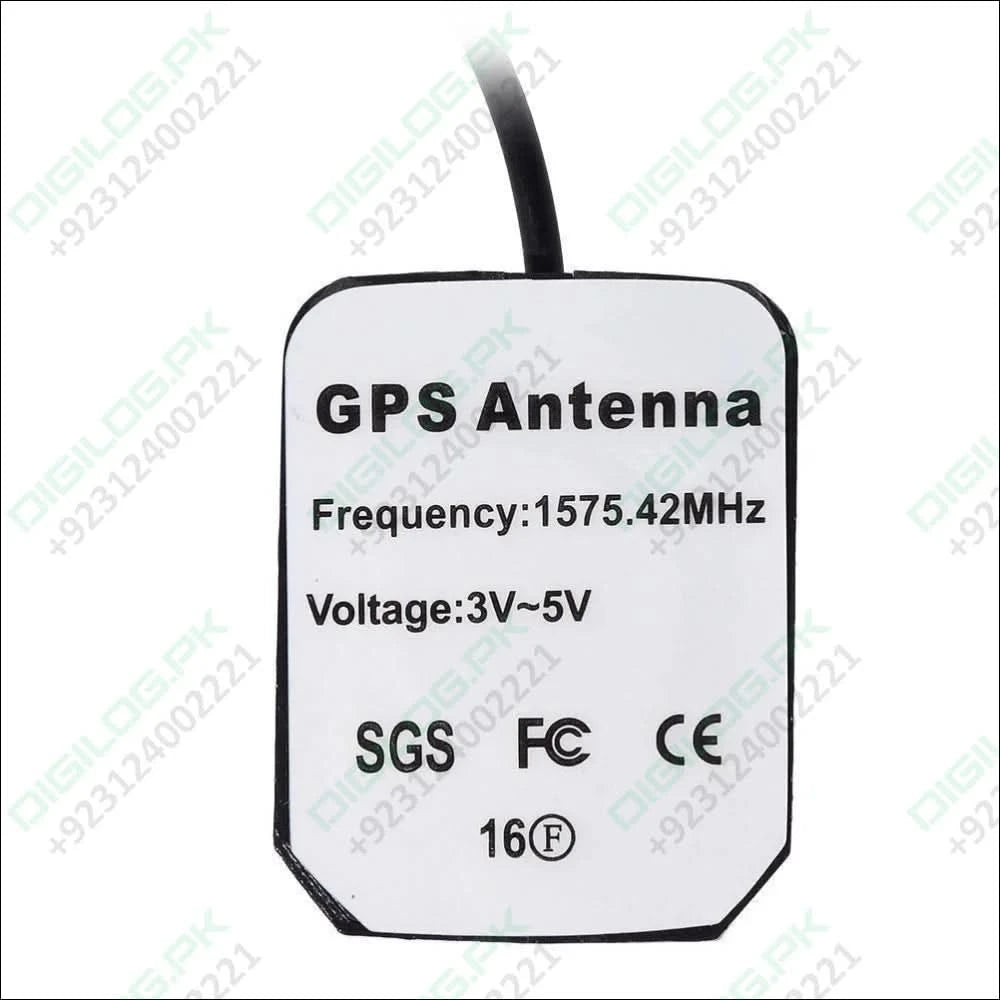

  • Center Frequency: 1575.42MHz±3 MHz
  • V.S.W.R 1.5:1
  • Band Width: CF±5 MHz
  • Impendence: 50 ohm
  • Peak Gain >3dBic Based on 7 x 7cm ground plane
  • Gain Coverage >-4dBic at -90° ~ +90° (over 75% Volume)
  • Polarization: RHCP

LNA/Filter

  • LNA Gain (without cable): 28dB typical
  • Noise Figure 1.5dB
  • Filter Out Band Attenuation: (f0=1575.42 MHZ)
  • 7dB in f0+/-20MHZ
  • 20dB in f0+/-50MHZ
  • 30dB in f0+/-100MHZ
  • V.S.W.R < 2.0
  • DC Voltage 2.2V to 5.0V
  • DC Current < 15mA

Mechanical

  • Weight: <110gram
  • Size: 49 x 39 x 14 mm
  • Cable: RG174 5 meter or other
  • Connector: MCX male straight or right angle
  • Mounting: magnetic or adhesive base
  • Housing color: Black

Environmental

  • Working Temp: -40oC~+85oC
  • Storage Temp: -45oC~+100oC
  • Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis
  • Humidity Humidity: 95%~100% RH
  • Weatherproof: 100% Waterproof

Package Includes:

  • 1x GPS Antenna With MCX Antenna
Compatible GPS Devices:

All GPS receivers/systems with a MCX connector for external antennas.

Examples:

  • Alegro AL73000
  • Altina A600
  • ATTI Shadow Tracker J2 (J2)
  • ATTI Shadow Trackerâ„¢ 2000 (2000)
  • ATTI Shadow Trackerâ„¢ Premier (Premier)
  • Axxion GPS 374
  • Belkin BT GPS
  • Billionton Bluetooth GP-27
  • Billionton BTGPS Bluetooth
  • Billionton CF Global Positioning System
  • Billionton CF GPS CPIT
  • Blaupunkt Lucca 3.3
  • Blaupunkt Lucca 5.2
  • Brunton Atlas GPS
  • Brunton Atlas MNS GPS
  • Cartrek 200/400
  • Cartrek 2000
  • CPIT Bluetooth GPS-Receiver Model: GP-27
  • Emtac BTGPS II Trine Receiver (D1598-8)
  • Emtac CRUX II / GPSJAQ
  • Emtac GPS Antenna GP18-1
  • Emtac S3-BTGPS GPS
  • Emtac Socket BT GPS
  • Emtac Transplant CF Primum GPS Compactflash GPS Card
  • eXpansys iPAQ GPS
  • Falcom 32 Bit RISC core with eCosâ„¢ RTOS F35-XXL-SI ( F35-XXL-SI)
  • Falcom Active GPS antenna FAL-ANT-3-MCX (FAL-ANT-3-MCX
  • Falcom Bluetooth GPS Receiver Navi-XT
  • Falcom GSM/GPRS/GPS &
  • Falcom Integrated Dual Band GSM/GPRS Engine C2D-SI ( C2D-SI)
  • Falcom Integrated Tri Band GSM/GPRS Engine C55 ( C55)
  • Falcom Integrated Tri Band GSM/GPRS Engine C55i (C55i)
  • Falcom Integrated Tri Band GSM/GPRS Engine I56 ( I56)
  • Falcom Integrated Tri Band GSM/GPRS Engine I56i (I56i)
  • Fortuna Bluetooth Global Clip-On GPS
  • Fortuna Bluetooth X-track
  • Fortuna Pocket X-track
  • Fortuna Pocket X-Track CF
  • fTech GPS Antenna MCX FGPANE1M2
  • fTech GPS Antenna MCX FGPANE1M5
  • Garmin Colorado 300
  • Garmin Colorado 400i
  • Garmin Colorado 400t
  • Garmin EMap
  • Garmin GPS 12CX
  • Garmin GPS 12MAP
  • Garmin GPS 12XL
  • Garmin GPS 15
  • Garmin GPS 40
  • Garmin GPS 60
  • Garmin GPS 76
  • Garmin GPSCOM 170
  • Garmin GPSCOM 190
  • Garmin GPSMAP 175
  • Garmin GPSMAP 195
  • Garmin GPSMAP 60
  • Garmin GPSMAP 60C
  • Garmin GPSMAP 60CS
  • Garmin GPSMAP 60CSx
  • Garmin GPSMAP 60Cx
  • Garmin GPSMAP 76
  • Garmin GPSMAP 76C
  • Garmin GPSMAP 76CS
  • Garmin GPSMAP 76CSx
  • Garmin GPSMAP 76Cx
  • Garmin GPSMAP 76S
  • Garmin GPSMAP 96
  • Garmin GPSMAP 96C
  • Garmin iQue 3000
  • Garmin iQue 3200
  • Garmin iQue 3600
  • Garmin iQue 3600a
  • Garmin iQue M3
  • Garmin iQue M4
  • Garmin iQue M5
  • Garmin NavTalk
  • Garmin Nuvi 300
  • Garmin Nuvi 310
  • Garmin Nuvi 350
  • Garmin Nuvi 360
  • Garmin Nuvi 370
  • Garmin Nuvi 5000
  • Garmin Nuvi 650
  • Garmin Nuvi 660
  • Garmin Nuvi 670
  • Garmin Nuvi 680
  • Garmin Nuvi 710
  • Garmin Nuvi 750
  • Garmin Nuvi 760
  • Garmin Nuvi 770
  • Garmin Nuvi 780
  • Garmin Nuvi 850
  • Garmin Nuvi 860
  • Garmin Nuvi 880
  • Garmin Quest
  • Garmin Quest 2
  • Garmin StreetPilot 2610
  • Garmin StreetPilot 2620
  • Garmin StreetPilot 2650
  • Garmin StreetPilot 2660
  • Garmin StreetPilot 2720
  • Garmin StreetPilot 2730
  • Garmin StreetPilot 2820
  • Garmin StreetPilot 7200
  • Garmin StreetPilot 7500
  • Garmin StreetPilot c310
  • Garmin StreetPilot c320
  • Garmin StreetPilot c330
  • Garmin StreetPilot c340
  • Garmin StreetPilot c510
  • Garmin StreetPilot c530
  • Garmin StreetPilot c550
  • Garmin StreetPilot c580
  • Garmin StreetPilot i2
  • Garmin StreetPilot i3
  • Garmin StreetPilot i5
  • Garmin Zumo 400
  • Garmin Zumo 450
  • Garmin Zumo 500
  • Garmin Zumo 550
  • GlobalSat Antenna AT-65-MCX
  • GlobalSat ER-102
  • GNS 5843
  • Goodmans GNAV 10
  • Holux CR100
  • Holux GM 270U
  • Holux GM 271
  • Holux GM 82 Engine Board
  • Holux GM 83 Engine Board
  • Holux GM-100
  • Holux GM-101+
  • Holux GM-250
  • Holux GM-251
  • Holux GM-270 CF
  • Holux GM-270 U
  • Holux GR 231
  • Holux GR 271
  • Holux GR 83
  • Holux GR 86
  • Holux GR-230 Bluetooth Receiver
  • Itrek CF GPS
  • Lenco G256G
  • Lenco NAV-400
  • Lowrance AirMap 500
  • Lowrance AirMap 600C
  • Lowrance iFinder Expedition C
  • Lowrance iFinder Explorer
  • Lowrance iFinder H20
  • Lowrance iFinder H2O C
  • Lowrance iFinder H2O C Plus
  • Lowrance iFinder H2O Plus
  • Lowrance iFinder Hunt
  • Lowrance iFinder Hunt C
  • Lowrance iFinder Hunt Plus
  • Lowrance iFinder Map&Music
  • Lowrance iFinder Map&Music Plus
  • Lowrance iFinder PhD
  • Lowrance iFinder PhD Plus
  • Lowrance iFinder Pro
  • Lowrance iFinder Pro Plus
  • Lowrance iWay 100m
  • Magellan 700
  • Magellan merdian color
  • Magellan Roadmate 300
  • Medion MD95379
  • Medion MD95403
  • Medion MDPNA 300
  • Medion MDPNA 310
  • Motorola Encore GPS
  • Motorola Encore GPS
  • Navigon MN 4 Receiver
  • NAVIGON TriCeiverTMC BT Receiver
  • NavigonGNS MGPS
  • Navman 3000 GPS
  • Navman 3300 GPS
  • Navman 3450 GPS
  • Navman 4100 GPS
  • Navman 4400 GPS
  • Navman 4410 GPS
  • Navman 4420 GPS
  • Navman 4460 GPS
  • Navman 4470 GPS
  • Navman C340
  • Navman C510
  • Navman C530
  • Navman C550
  • Navman iCN 610
  • Navman iCN 620
  • Navman iCN 630
  • Navman iCN 635
  • Navman iCN 650
  • Navman iCN 720
  • Navman iCN 750
  • Nokia GPS LD-1W
  • Pharos Traveler GPS 505
  • Pharos Traveler GPS 525
  • Pharos Traveler GPS 535
  • Pretec Bluetooth GPS
  • PrymeNav
  • Rikaline Active Antenna MCX A-10302
  • Rikaline Active Antenna MCX A-10305
  • Road Angel 2
  • Road Angel Navigator
  • Road Angel Road Angel Compact
  • Route 66 Mobile Britain 2005
  • Route 66 Navigate Britain
  • Royaltek GPS RBT-series with connector
  • Socket Bluetooth GPS
  • Sony BT GPS
  • Sony NV/U2
  • Sony NVX/P1
  • Synergy Systems AR-05B GPS (MCX) Antenna
  • Synergy Systems AR-05C GPS (MCX) Antenna
  • Synergy Systems AR-10S GPS MCX Antenna 1001334
  • SysOnChip (SOC) Bluetooth GPS Plus
  • Tom Tom 510, 520, 520T
  • Tom Tom Go 700, 710, 720, 720T
  • Tom Tom Go 910, 920, 920T
  • Tom Tom ONE
  • Tom Tom One V1 / V2 / XL / XLS
  • Trimble Lassen® iQ module
  • Trimble Lassenâ„¢ LP GPS board
  • Trimble Lassenâ„¢ LP module
  • Trimble Lassenâ„¢ SQ module
  • u-blox GPS Antenna
  • u-blox LEA-LA GPS Receiver Module
  • u-blox TIM-LA GPS Module
  • u-blox TIM-LC GPS Module
  • u-blox TIM-LF GPS Module
  • u-blox TIM-LH SuperSense GPS Module
  • u-blox TIM-LL GPS Module
  • u-blox TIM-LP GPS Module
  • u-blox TIM-LR GPS Module
  • Wayfinder Systems EuroNavigator Start Package
  • Whistler Galileo and all known systems
