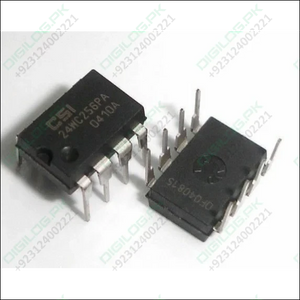

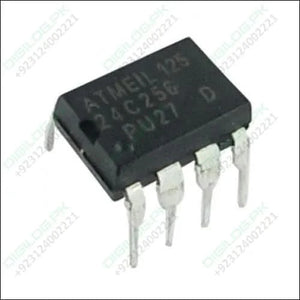

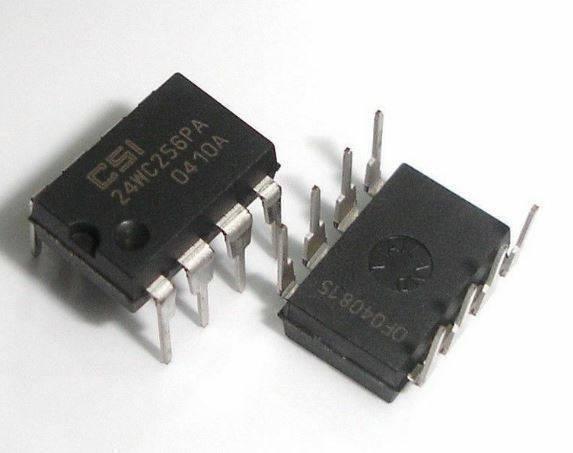

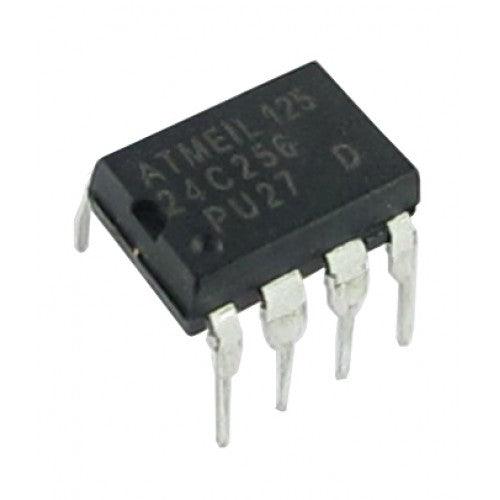

EEPROM chip IC 24c256
SKU:
Dell,B129,TMD10,Th5,KRT,dell
- Rs.150
-
- Rs.150
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
Rs.150
10 customers are viewing this product
Couldn't load pickup availability
EEPROM 24c256 is a 256K-bit Serial CMOS EEPROM. EEPROM 24c256 is internally organized as 32,768 words of 8 bits each. Catalyst’s advanced CMOS technology substantially reduces device power requirements. The 24WC256 features a 64-byte page write buffer. The device operates via the I2 C bus serial interface and is available in 8- pin DIP or...
Description
xEEPROM 24c256 is a 256K-bit Serial CMOS EEPROM. EEPROM 24c256 is internally organized as 32,768 words of 8 bits each. Catalyst’s advanced CMOS technology substantially reduces device power requirements. The 24WC256 features a 64-byte page write buffer. The device operates via the I2 C bus serial interface and is available in 8- pin DIP or 8-pin SOIC packages.EEPROM 24c256 supports the I2C Bus data transmission protocol. This Inter-Integrated Circuit Bus protocol of EEPROM 24c256 defines any device that sends data to the bus to be a transmitter and any device receiving data to be a receiver. The transfer is controlled by the Master device which generates the serial clock and all START and STOP conditions for bus access. The EEPROM 24c256 operates as a Slave device. Both the Master device and Slave device can operate as either transmitter or receiver, but the Master device controls which mode is activated.
Link For DataSheet EEPROM 24c256:
https://www.alldatasheet.com/datasheet-pdf/pdf/57368/CATALYST/CAT24WC256J1TE13.html
EEPROM 24c256 Features:
- 1MHz I2 C bus compatible
- 1.8 to 6 volt operation
- Low power CMOS technology
- 64-byte page write buffer
- Self-timed write cycle with auto-clear
- 100,000 program/erase cycles
- 100 year data retention
- 8-pin DIP or 8-pin SOIC
Package Includes:
- 1 x EEPROM 24c256 IC
