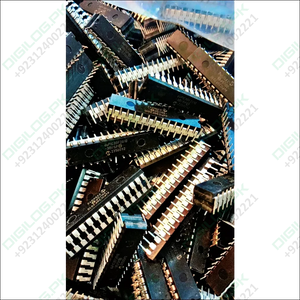

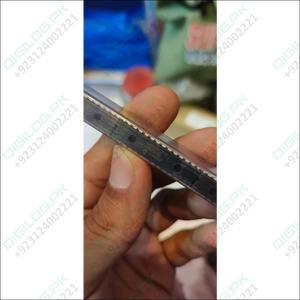

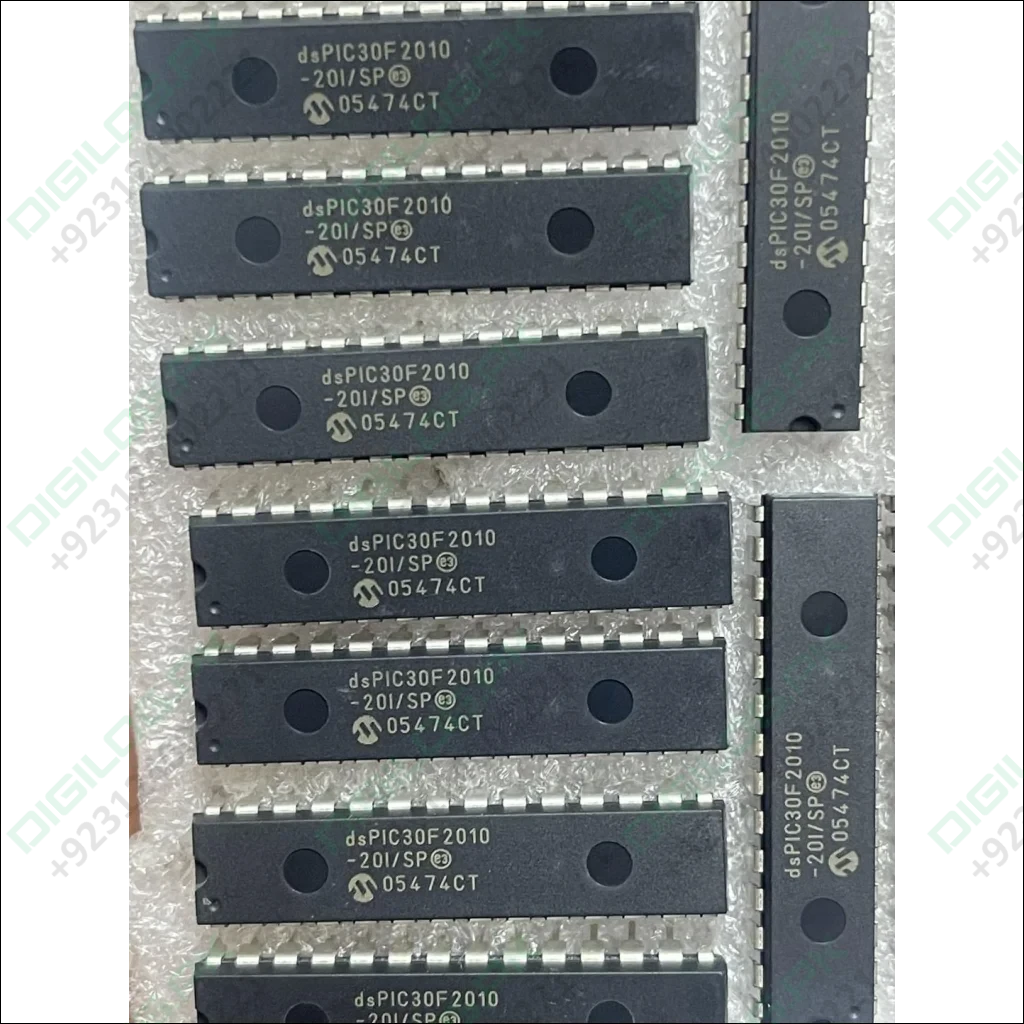

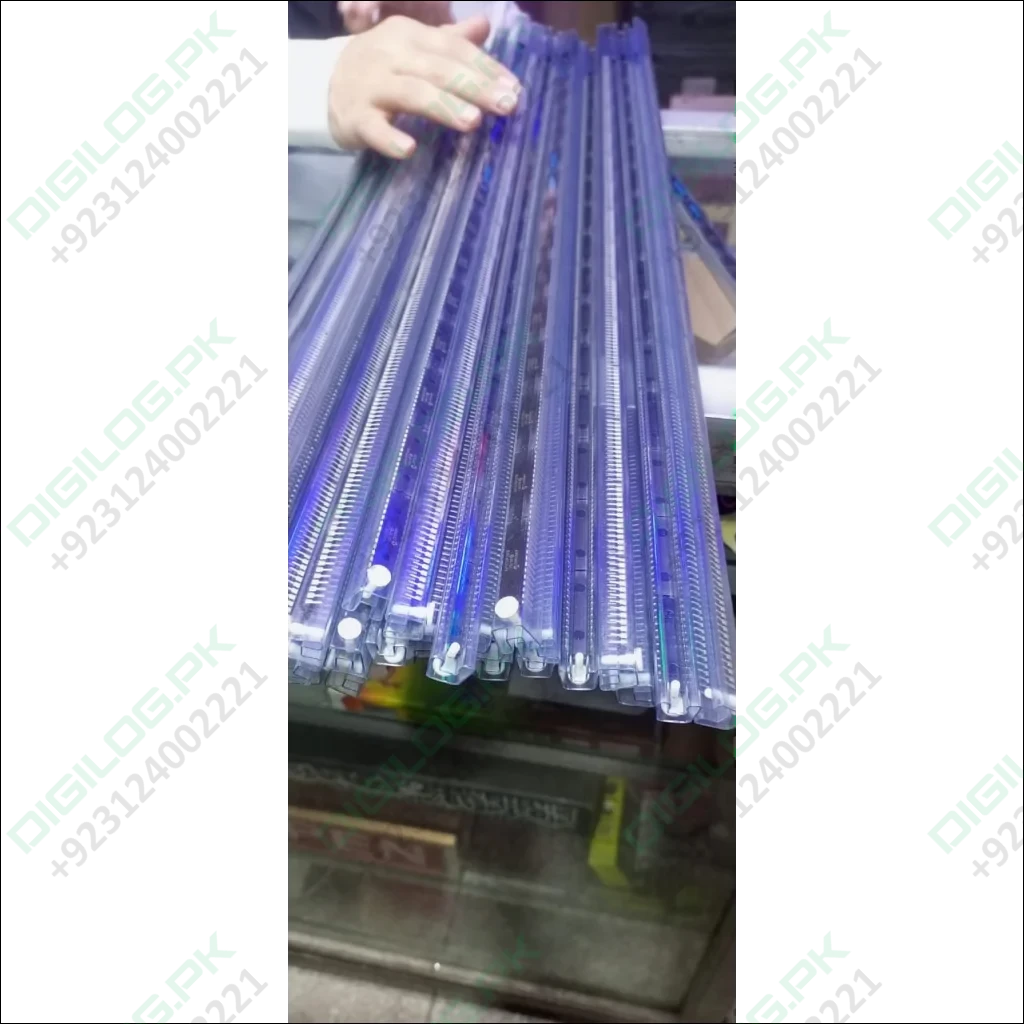

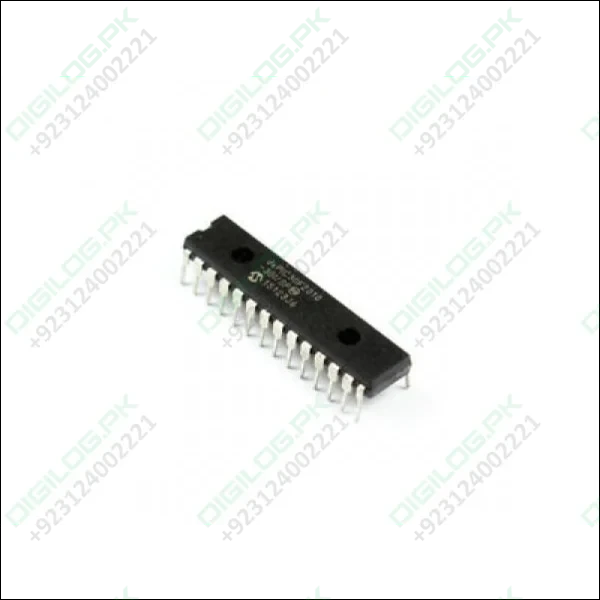

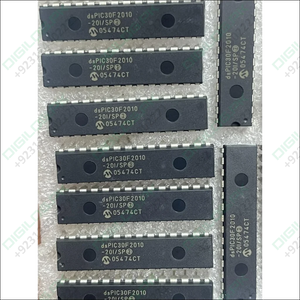

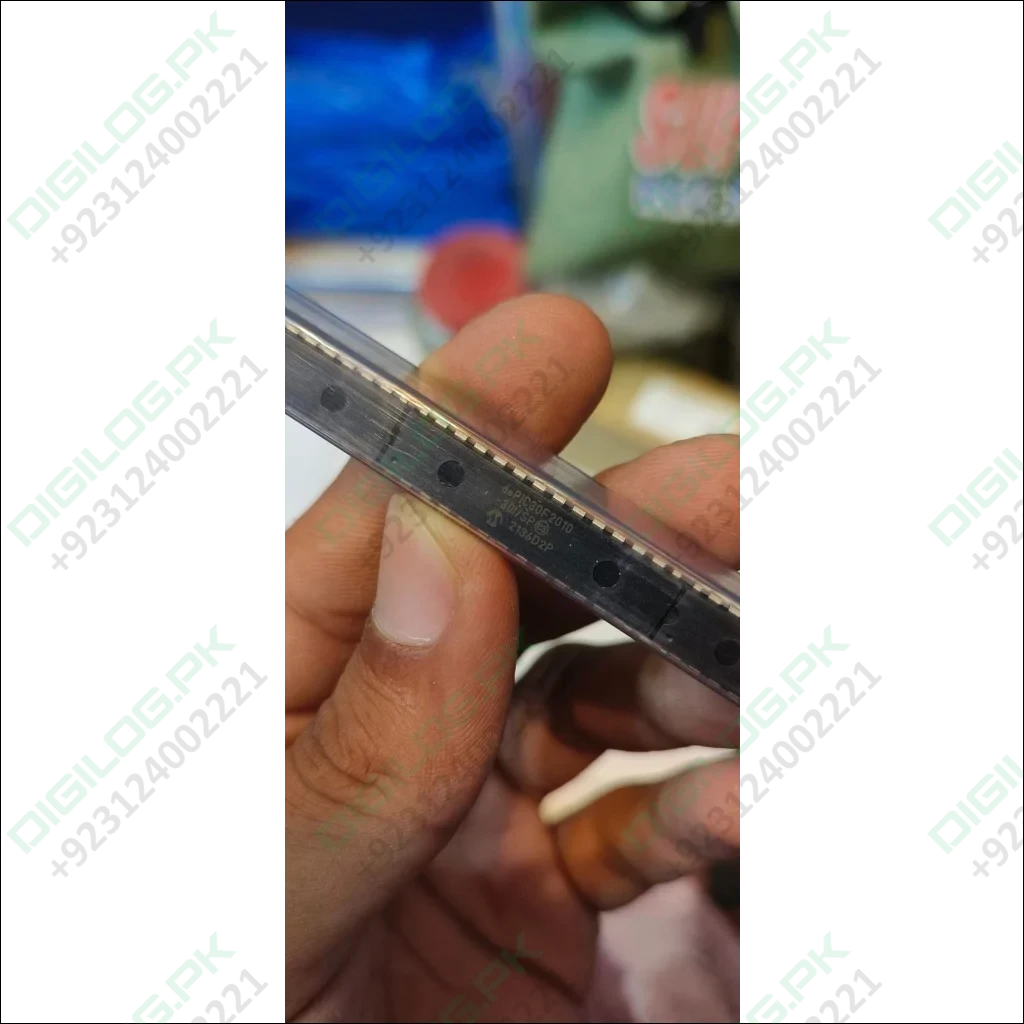

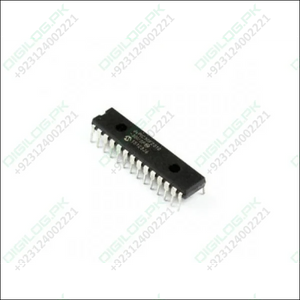

Original Inverter IC DSPIC30F2010 Microcontroller Price in Pakistan

Welcome to Digilog.pk! We’re excited to introduce you to the dsPIC30F2010 Microcontroller, a powerful and versatile device perfect for various applications. Let’s dive into the details and explore how this microcontroller can enhance your projects.

What Is the dsPIC30F2010?

The dsPIC30F2010 is a 16-bit digital signal controller (DSC) designed by Microchip Technology. It combines the features of a microcontroller with the processing capabilities of a digital signal processor (DSP). Here’s what you need to know:

• Modified Harvard Architecture: The dsPIC30F2010 follows a modified Harvard architecture, which allows for efficient execution of instructions.
• High Performance: With a maximum operating frequency of 20 MIPS (million instructions per second), this microcontroller can handle complex tasks.
• Rich Peripheral Set: It features high-current I/O pins, timers, SPI modules, I2C support, UART modules, and more.
• Motor Control PWM Module: Ideal for motor control applications, it offers various output modes and dead-time control.

Key Features and Specifications:

• Instruction Set: 24-bit wide instructions, 16-bit wide data path.
• DSP Engine: Built-in DSP capabilities for math-intensive operations.
• Accumulators: Two 40-bit wide accumulators with optional saturation logic.
• Addressing Modes: Supports modulo and bit-reversed addressing.
• Timers: Pair up 16-bit timers into 32-bit timer modules.
• SPI and I2C: Communication interfaces for connecting to other devices.
• Motor Control PWM: Efficiently control motors with various modes and dead-time control.

Additional Technical Details:

• Modified Harvard Architecture: The dsPIC30F2010 employs a modified Harvard architecture, combining the best of both Harvard and Von Neumann architectures. This design ensures efficient instruction execution and separate program and data memory spaces.
• C Compiler-Optimized Instruction Set: The microcontroller’s instruction set is optimized for efficient compilation using C language, making it developer-friendly.
• DSP Engine: The built-in DSP engine provides hardware support for math-intensive operations, including multiply-accumulate (MAC) instructions.
• Accumulators and Multipliers: The dsPIC30F2010 boasts two 40-bit wide accumulators, allowing for precise arithmetic calculations. Additionally, its 17-bit x 17-bit single-cycle hardware fractional/integer multiplier accelerates DSP tasks.
• Addressing Modes: Choose between modulo and bit-reversed addressing modes to suit your application requirements.
• High-Current I/O Pins: The microcontroller features high-current sink/source I/O pins, capable of handling 25 mA each.
• Timers and Communication Interfaces: Pair up 16-bit timers into 32-bit timer modules for precise timing. Use the 3-wire SPI™ modules (supporting 4 Frame modes) and the I2C™ module (with Multi-Master/Slave mode and 7-bit/10-bit addressing) for seamless communication.
• Motor Control PWM Module: This module offers complementary or independent output modes, edge and center-aligned modes, multiple-duty cycle generators, and dead-time control. It’s perfect for motor control applications.

Why Choose the dsPIC30F2010?

• Versatility: Whether you’re working on robotics, automation, or industrial control, this microcontroller can handle it all.
• Efficiency: Its optimized instruction set ensures efficient execution of code.
• Reliability: Microchip’s reputation for quality ensures a reliable and robust solution.

Applications:

• Motor Control: Drive motors in robotics, drones, or industrial machinery.
• Sensor Interfaces: Read data from sensors and process it in real time.
• Embedded Systems: Create custom controllers for specific tasks.
• Audio Processing: Implement audio filters, equalizers, and effects.

Get Started with the dsPIC30F2010:

1. Hardware Setup: Connect the microcontroller to your development board or custom circuit.
2. Software Development: Use Microchip’s MPLAB X IDE and XC16 compiler to write and compile your code.
3. Explore Examples: Microchip provides code examples and libraries to kick-start your projects.
4. Test and Debug: Use breakpoints and watch variables to ensure correct functionality.
5. Integrate: Incorporate the dsPIC30F2010 into your larger system.

Conclusion:

The dsPIC30F2010 Microcontroller is a versatile and powerful solution for your embedded projects. Whether you’re a hobbyist, student, or professional, its rich feature set and reliability make it an excellent choice. Explore its capabilities and unlock new possibilities today!

Remember, at Digilog.pk, we’re committed to providing high-quality components for your electronic endeavors. Get your dsPIC30F2010
