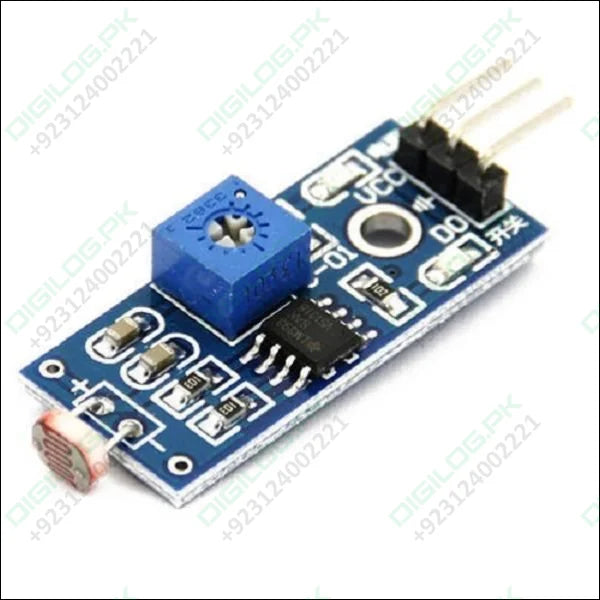

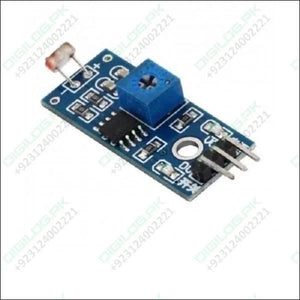

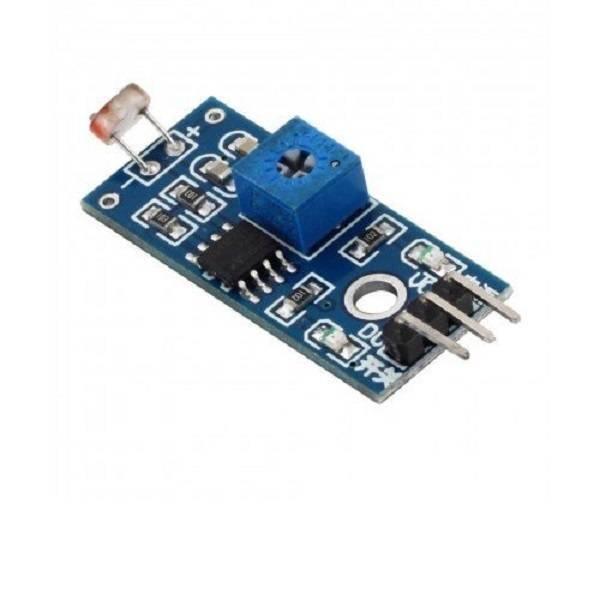

Digital LDR Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, an LM393 chip, and a three-pin header.

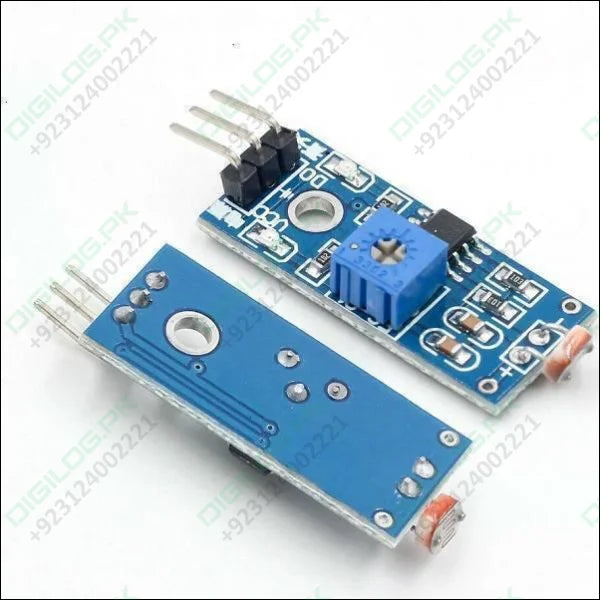

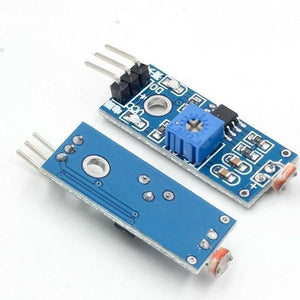

Digital LDR Sensor Module - shown as two blue circuit boards, one displaying the top components including a blue potentiometer and the other showing the back.

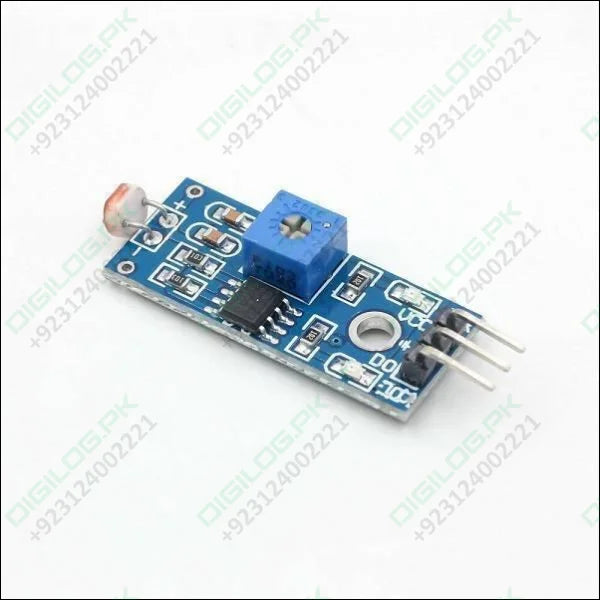

Digital LDR Sensor Module - a blue rectangular circuit board featuring a light-dependent resistor, a blue potentiometer, and a three-pin connector.

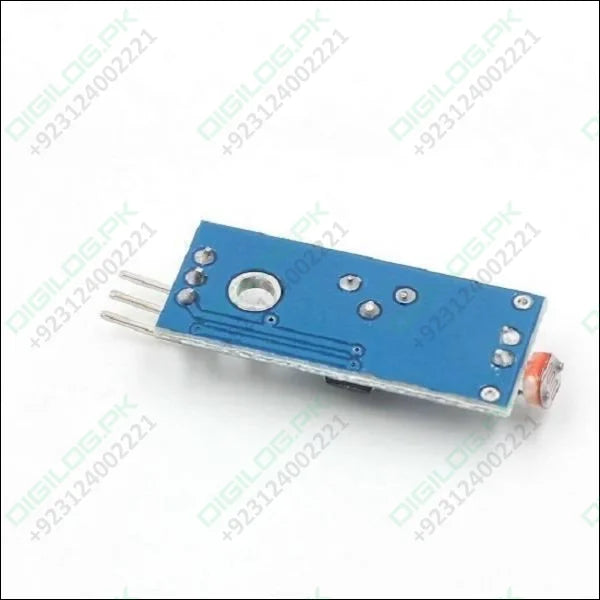

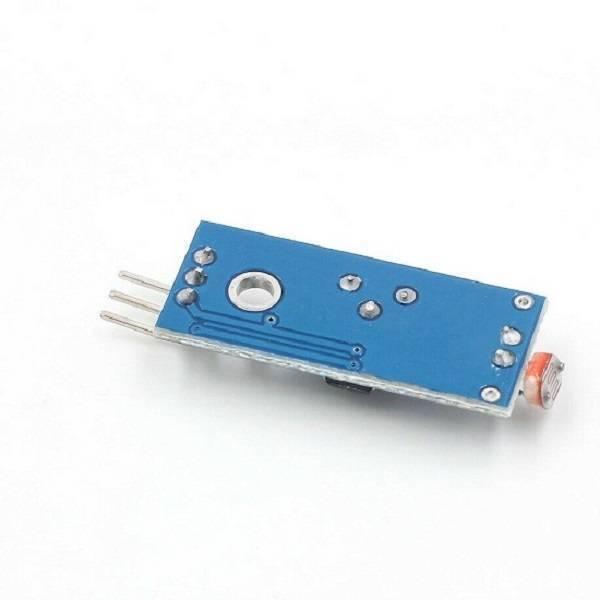

Digital LDR Sensor Module - the blue rectangular circuit board with three metal connection pins on the left and a small LDR sensor on the right.
Digital LDR Sensor Module - a blue potentiometer, a light-dependent resistor, an integrated circuit, and a three-pin connector on a blue circuit board.

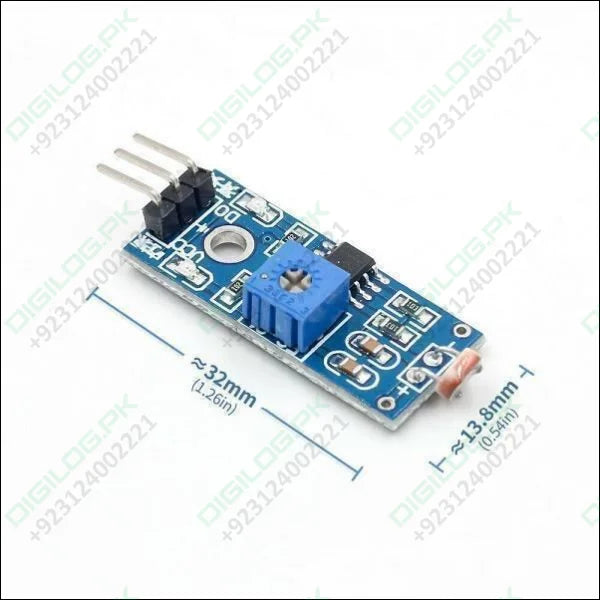

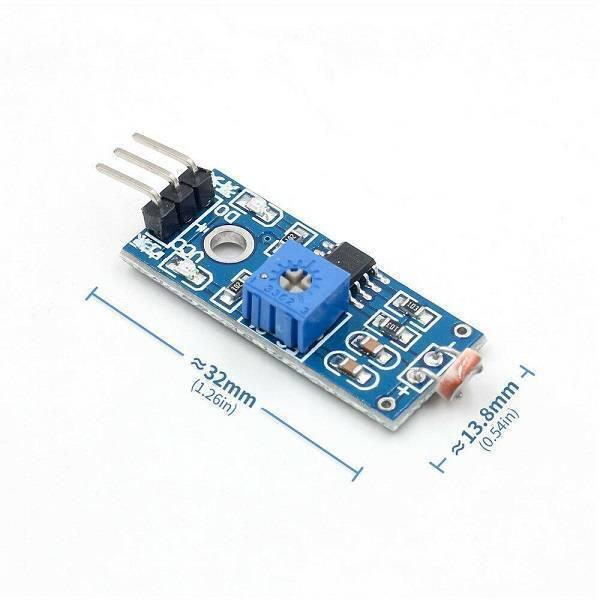

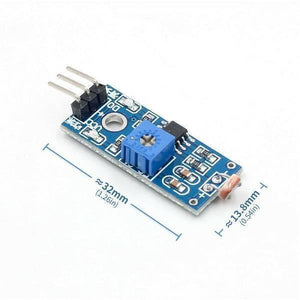

Digital LDR Sensor Module - shown from an angled perspective, featuring a blue circuit board, a potentiometer, three pins, and dimension labels.
Digital LDR Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, an LM393 chip, and a three-pin header.
Digital LDR Sensor Module - shown as two blue circuit boards, one displaying the top components including a blue potentiometer and the other showing the back.
Digital LDR Sensor Module - a blue rectangular circuit board featuring a light-dependent resistor, a blue potentiometer, and a three-pin connector.
Digital LDR Sensor Module - the blue rectangular circuit board with three metal connection pins on the left and a small LDR sensor on the right.
Digital LDR Sensor Module - a blue potentiometer, a light-dependent resistor, an integrated circuit, and a three-pin connector on a blue circuit board.
Digital LDR Sensor Module - shown from an angled perspective, featuring a blue circuit board, a potentiometer, three pins, and dimension labels.

Digital LDR Sensor Module

Sale price Rs 130
SKU: B161,krt173,IMP100,TH50
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

Digital LDR Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, an LM393 chip, and a three-pin header.
+
Laser Diode Module 650nm 5V Laser Light Module KY008 - shown as a close-up of a small black circuit board with a brass laser head and three header pins.
+
Rain Drops Detection Sensor Module In Paksitan - a black rectangular sensing board connected by wires to a blue control board with a potentiometer.
+
5mm Light Dependent Resistor LDR Sensor - a close-up showing the circular component with a serpentine copper-coloured track held between two fingers.
5mm Light Dependent Resistor LDR Sensor - a close-up showing the circular component with a serpentine copper-coloured track held between two fingers.
This item: Digital LDR Sensor Module -
Sale price Rs 130
Laser Diode Module 650nm 5V Laser Light Module KY008 - shown as a close-up of a small black circuit board with a brass laser head and three header pins.
Laser Diode Module 650nm 5V Laser Light Module KY008 -
Sale price Rs 100
Rain Drops Detection Sensor Module In Paksitan - a black rectangular sensing board connected by wires to a blue control board with a potentiometer.
Rain Drops Detection Sensor Module In Paksitan -
Sale price Rs 160
5mm Light Dependent Resistor LDR Sensor - a close-up showing the circular component with a serpentine copper-coloured track held between two fingers.
5mm Light Dependent Resistor LDR Sensor -
Sale price Rs 20
Price for all:
Sale total price Rs 410

Pickup available at Digilog Electronics

Usually ready in 2 hours

Digital LDR Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, an LM393 chip, and a three-pin header.

Digital LDR Sensor Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Digital LDR Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, an LM393 chip, and a three-pin header.
Digital LDR Sensor Module
Sale priceRs 130

The Digital Light Dependent Resistor LDR Sensor Module is used to detect the presence of light / measuring the intensity of light. The output of the LDR module goes high in the presence of light and it becomes low in the absence of light. You can adjust the threshold (sensitivity) of the digital output by tuning the onboard variable resistor (potentiometer). Simple usage as it is the digital output, so you will know is the light present and decide what to do with it.LDR photoresistor sensor module comes with an M3 mounting hole for ease of attaching it to an object. Onboard, it provides an LDR, high sensitivity and commonly being used for light detection.

The LDR lm393 module comes with a power LED and a status LED as an indicator.LDR Module Photosensitive resistor Sensor most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity.

Features and Specifications :

  1. LM393 based design.
  2. It can detect ambient brightness and light intensity.
  3. Adjustable sensitivity (via blue digital potentiometer adjustment).
  4.  Operating Voltages – 0V to 5V, Adjustable trigger level from preset.
  5. LEDs indicating output and power.
  6. Operating Current is 15mA

How it works...?

  1. Module light conditions or light intensity reach the set threshold, DO port output high when the external ambient light intensity exceeds a set threshold and the module's D0 output low when the external ambient light intensity below a set threshold.
  2. Digital output D0 directly connected to the MCU, and detect high or low TTL, thereby detecting ambient light intensity changes.
  3. Digital output module DO  can directly drive the relay module, which can be composed of a photoelectric switch

Pins detail:

VCC ↔ 3.3V to 5V DC.
GND ↔ Ground.
DO ↔ Digital Output.

Package Include:

1x Digital LDR Sensor Module



Buy Digital LDR Photoresistor Sensor Module at online shopping store at cheap price. Here you get the best Analog LDR Sensor also. We deliver in Lahore, Karachi, Peshawar, Islamabad, Faislabad, Multan, Gujranwala, Quetta and all over Pakistan.

LDR Module with Arduino:
