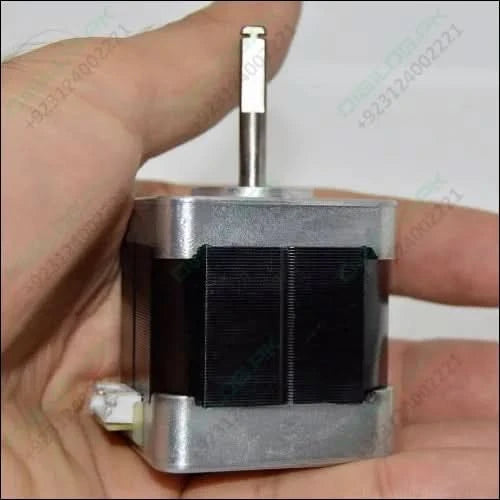

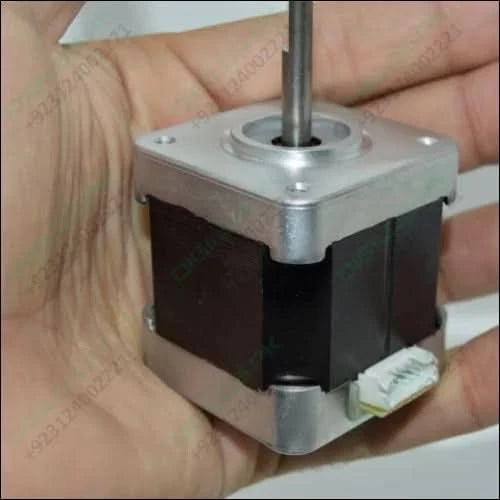

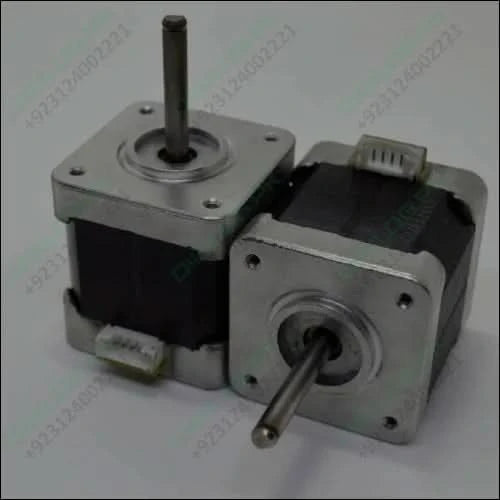

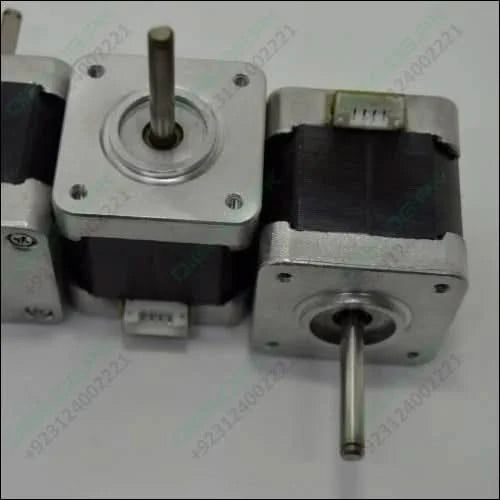

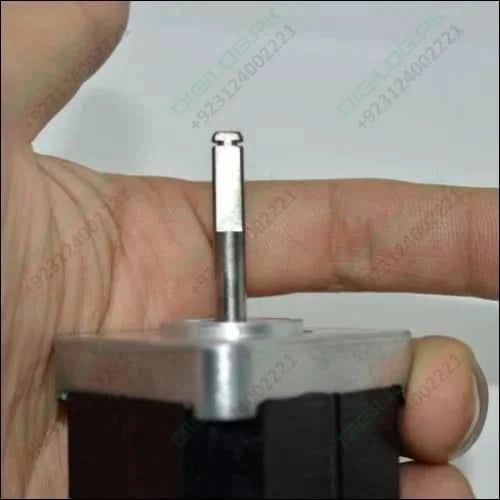

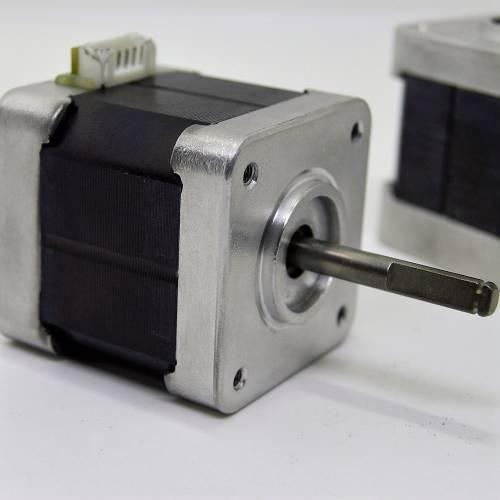

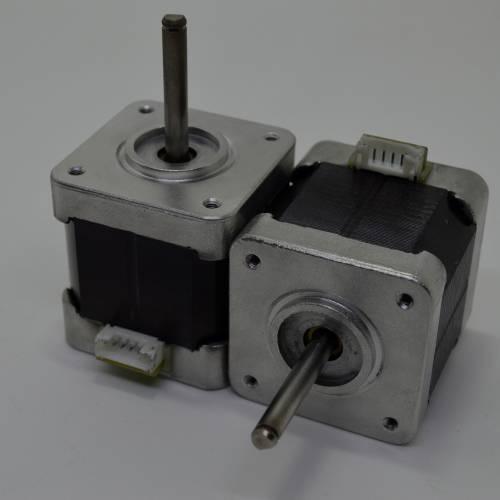

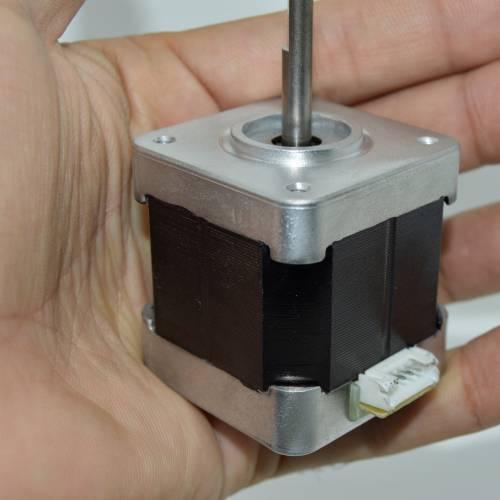

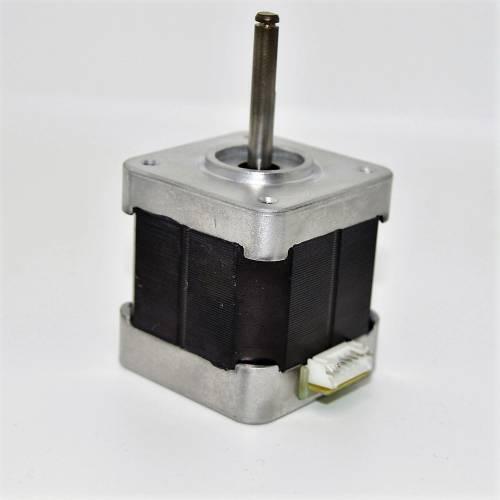

Minebea Japan d Cut Shaft Nema 17 Stepper Motor For 3d Printer Cnc

Minebea Japan d Cut Shaft Nema 17 Stepper Motor For 3d Printer Cnc

Regular price Rs 750
Regular price Sale price Rs 750
Sale Sold out
Shipping calculated at checkout.

SKU:b60/MD100,Th2 krt142

USED Product

Advance Payment Only

NOTIFY ME WHEN IN STOCK

 This D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC is a standard sized stepper motor. Nema17 used in many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of the most parameters for the stepper motor. You can use A4988 or drv8825 driver to run this motor.

Minebea Japan d Cut Shaft Nema 17 Stepper Motor For 3d

Features Of D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC:

  • The Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
  • This is a high-quality motor that can be used for a long time without stuck.
  • It has a quite stable performance during work and will not lose a step.
  • Low noise and big torque, this is a great choice if you need a stepper motor.
  • Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications Of D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC.

  1. Shaft Dia= 5mm
  2. Step Angle: 1.8°
  3. Phase Current: 1A
  4. Phase Resistance: 5.6Ohm
  5. Phase Inductance: 2.8mH
  6. Holding Torque: 35N.cm
  7. Braking Torque: 2N.cm
  8. Rotor Inertia: 54g.cm⊃2;
  9. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
  10. Operating Temperature: -20℃~+70℃
  11. Insulation Resistance: 100 MΩ Min. , 500VDC
  12. Radial Clearance: 0.02Max. (450g-Load)
  13. Axial Clearance: 0.08Max. (450g-Load)
  14. Max. Radial Pressure: 70N (20mm from the flange)
  15. Max. Axial Pressure: 15N


Package Includes:

  • 1X Dual Shaft Stepper motor with its wire.
  • Note:

  • Used Product
  • Advance Payment Only

Minebea Japan d Cut Shaft Nema 17 Stepper Motor For 3d
