CP2112 Debug Board USB to SMBus I2C Communication Module Micro USB2.0 CP2112 Evaluation Debugging Board for USB Dongle
CP2112 Debug Board USB to SMBus I2C Communication Module Micro USB2.0 CP2112 Evaluation Debugging Board for USB Dongle
CP2112 Debug Board USB to SMBus I2C Communication Module Micro USB2.0 CP2112 Evaluation Debugging Board for USB Dongle

CP2112 Debug Board USB to SMBus I2C Communication Module Micro USB2.0 CP2112 Evaluation Debugging Board for USB Dongle Data Recording

Rs 2,500 PKR
SKU: b706
Availability: In Stock In Stock Out of stock
Add to Wishlist
sold in last hours
Description

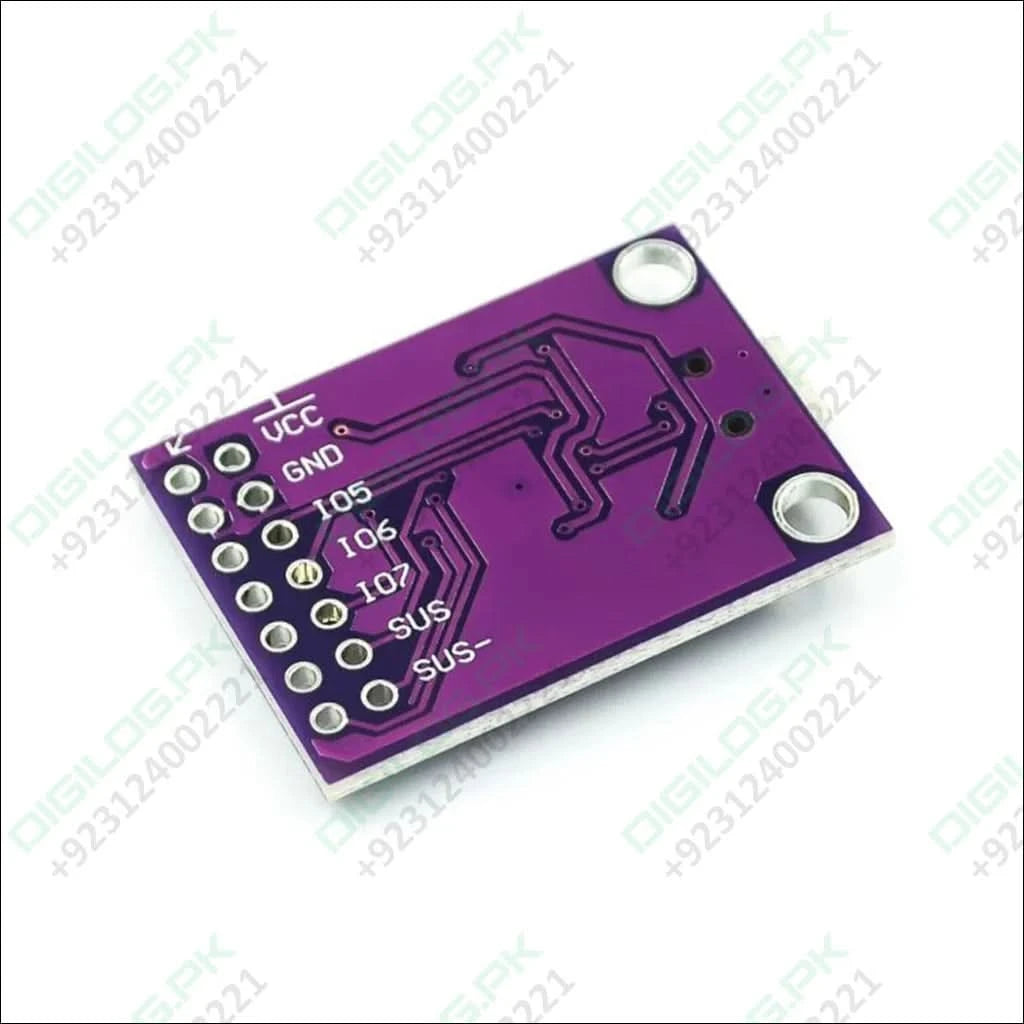

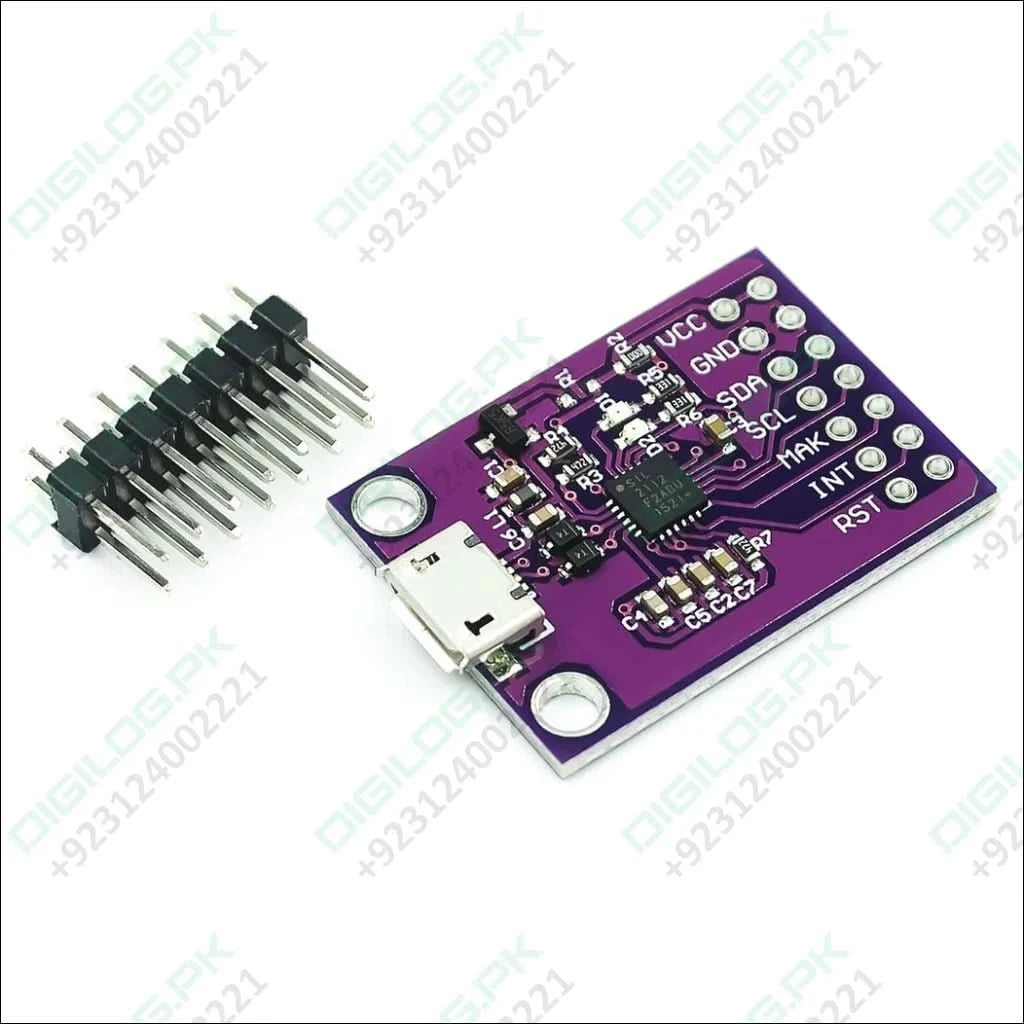

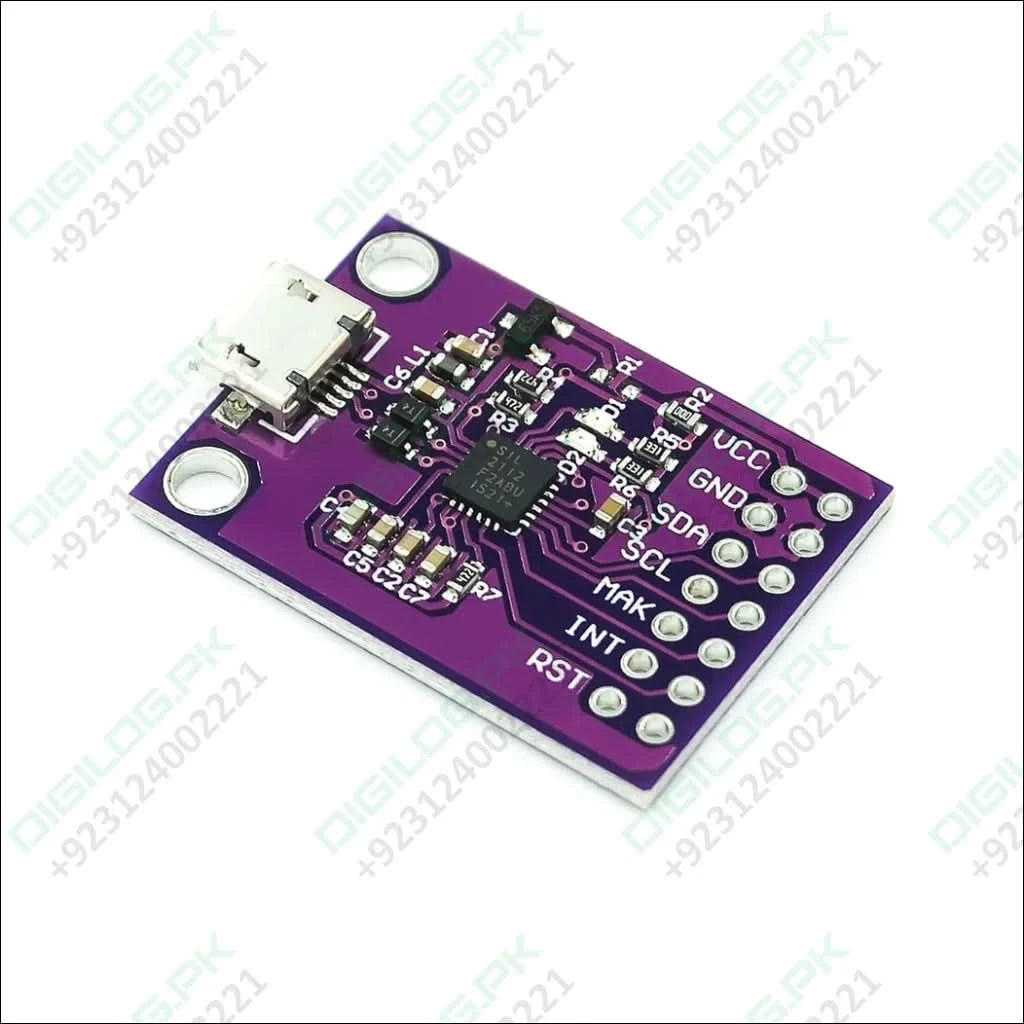

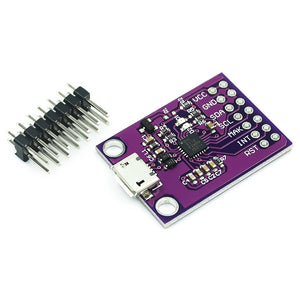

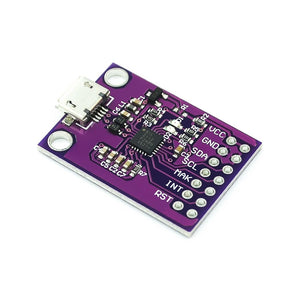

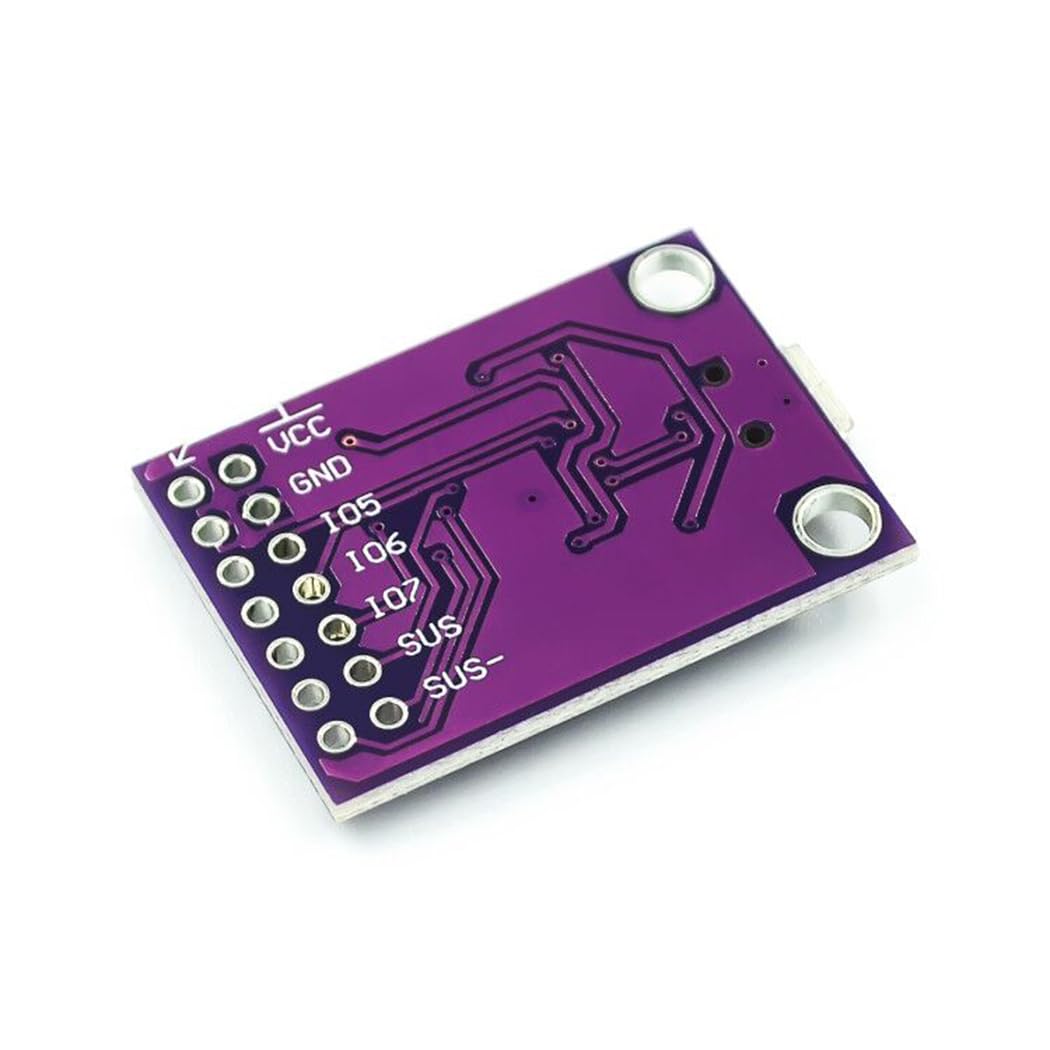

CP2112 USB to SMBus/I2C Communication Bridge Module – Debug Board

The CP2112 USB to SMBus Bridge Controller is a highly integrated, plug-and-play USB-to-I2C module designed for seamless communication between USB hosts and SMBus/I2C slave devices. Ideal for embedded systems development, microcontroller interfacing, and rapid prototyping, it eliminates the need for complex firmware or driver development thanks to its standard HID interface.

Using a simple GUI-based configuration tool, developers can easily set up the CP2112 debug board for applications such as sensor data logging, USB dongles, IoT prototyping, and industrial automation.

Key Features & Technical Specifications:

  • USB 2.0 Full-Speed compliant (12 Mbps)
  • Power supply: USB (4.0V to 5.25V) and device (3.0V to 3.6V)
  • I/O voltage support: 1.8V to VDD
  • Wide operating temperature range: -40°C to +85°C
  • On-chip voltage regulator: 3.45V output
  • Integrated reset circuit
  • 194-byte programmable ROM for custom product information
  • 512-byte SMBus data buffer
  • Configurable 7-bit SMBus/I2C slave address
  • 8 configurable GPIOs (input/output, open-drain or push-pull, or external clock output)
  • Cross-platform support: Windows, macOS, and Linux via HID-to-SMBus API

Example Use Cases:

  • Connecting USB to I2C devices like sensors, EEPROMs, and ADCs
  • Creating custom USB-based data loggers or industrial controllers
  • Integrating I2C devices with PCs for lab testing and diagnostics
  • Developing firmware-free USB dongles for embedded applications

Target Applications: IoT development, data acquisition systems, sensor interfacing, portable controllers, USB gadgets, automation projects, lab testing tools

Package Includes:

  • 1 × CP2112 Debug Board – USB to SMBus/I2C Communication Module
