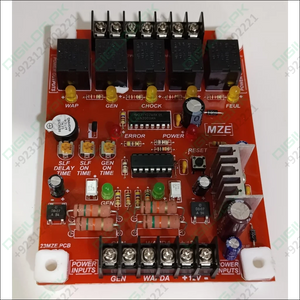

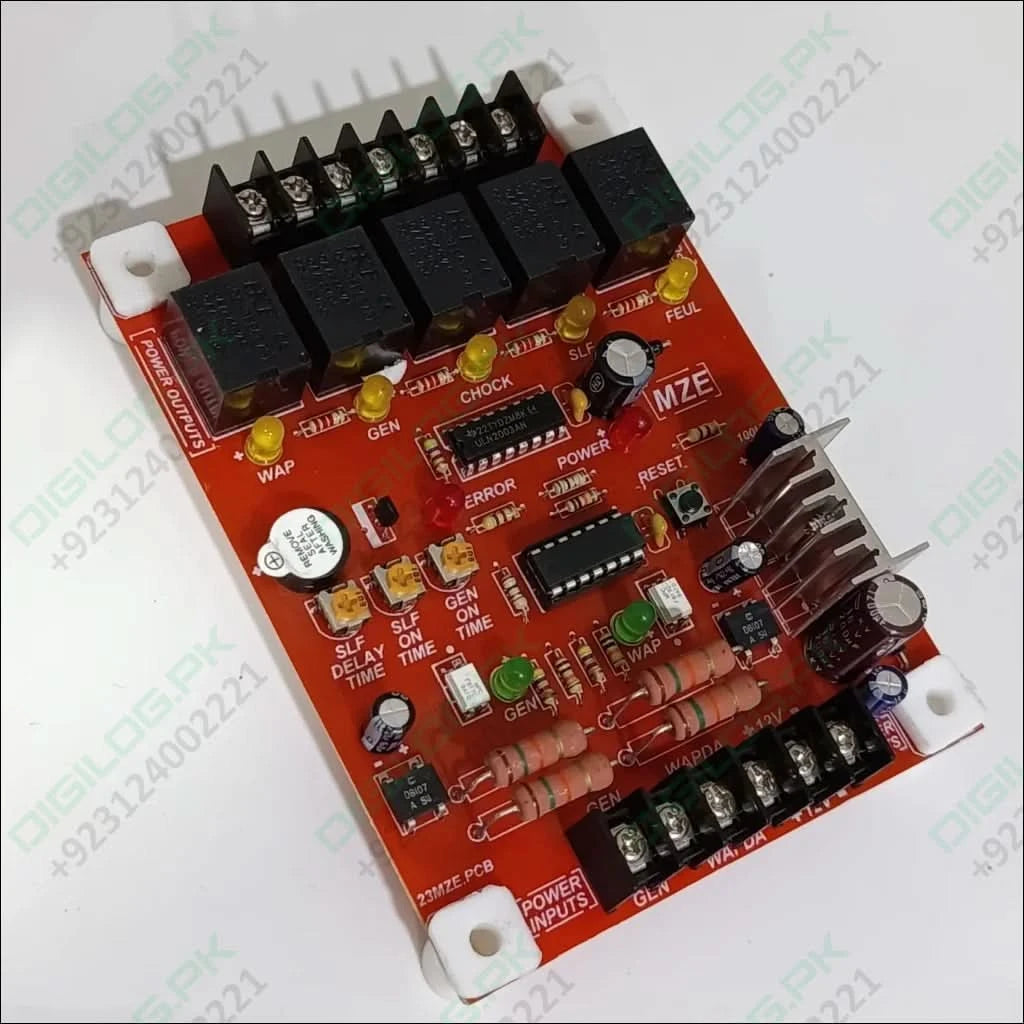

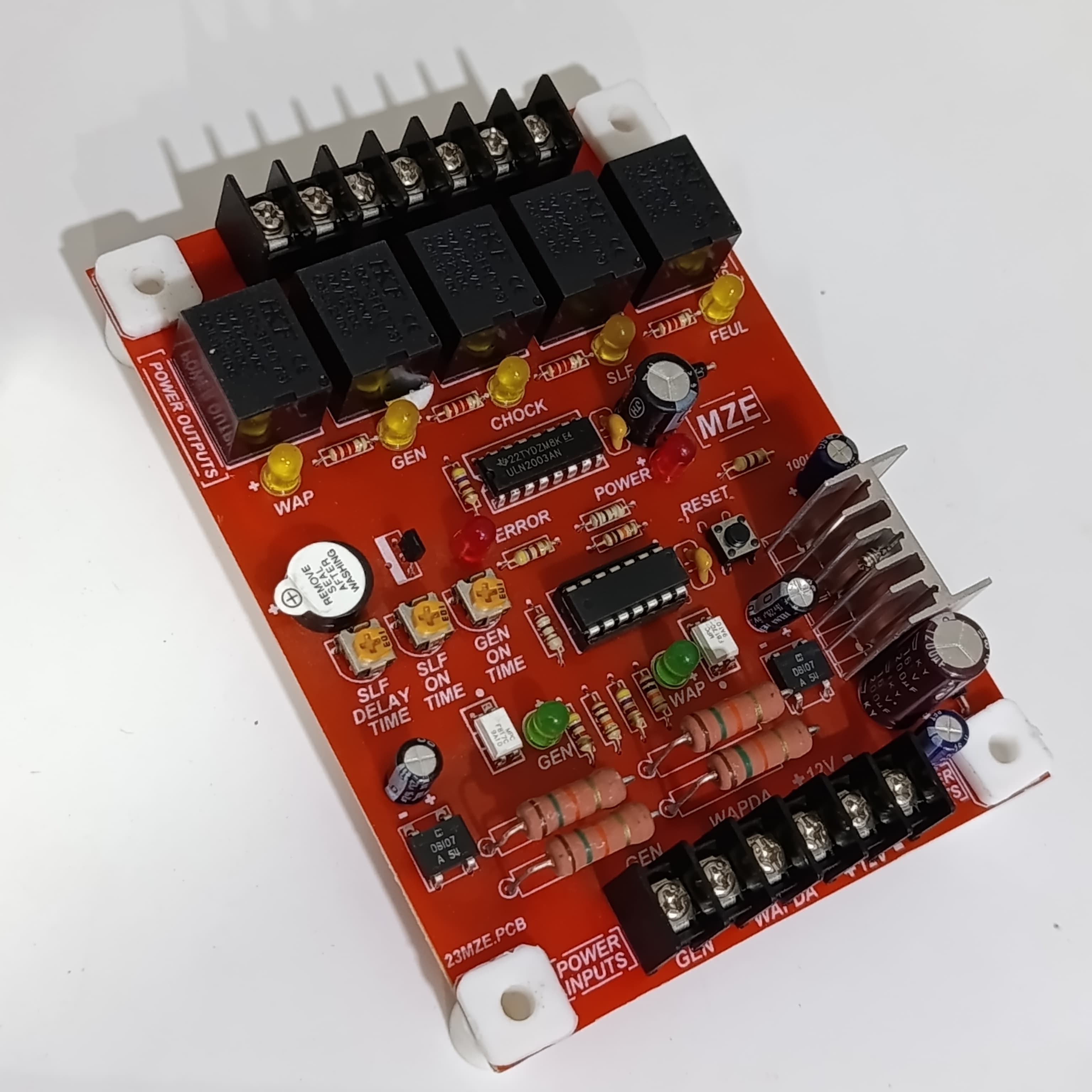

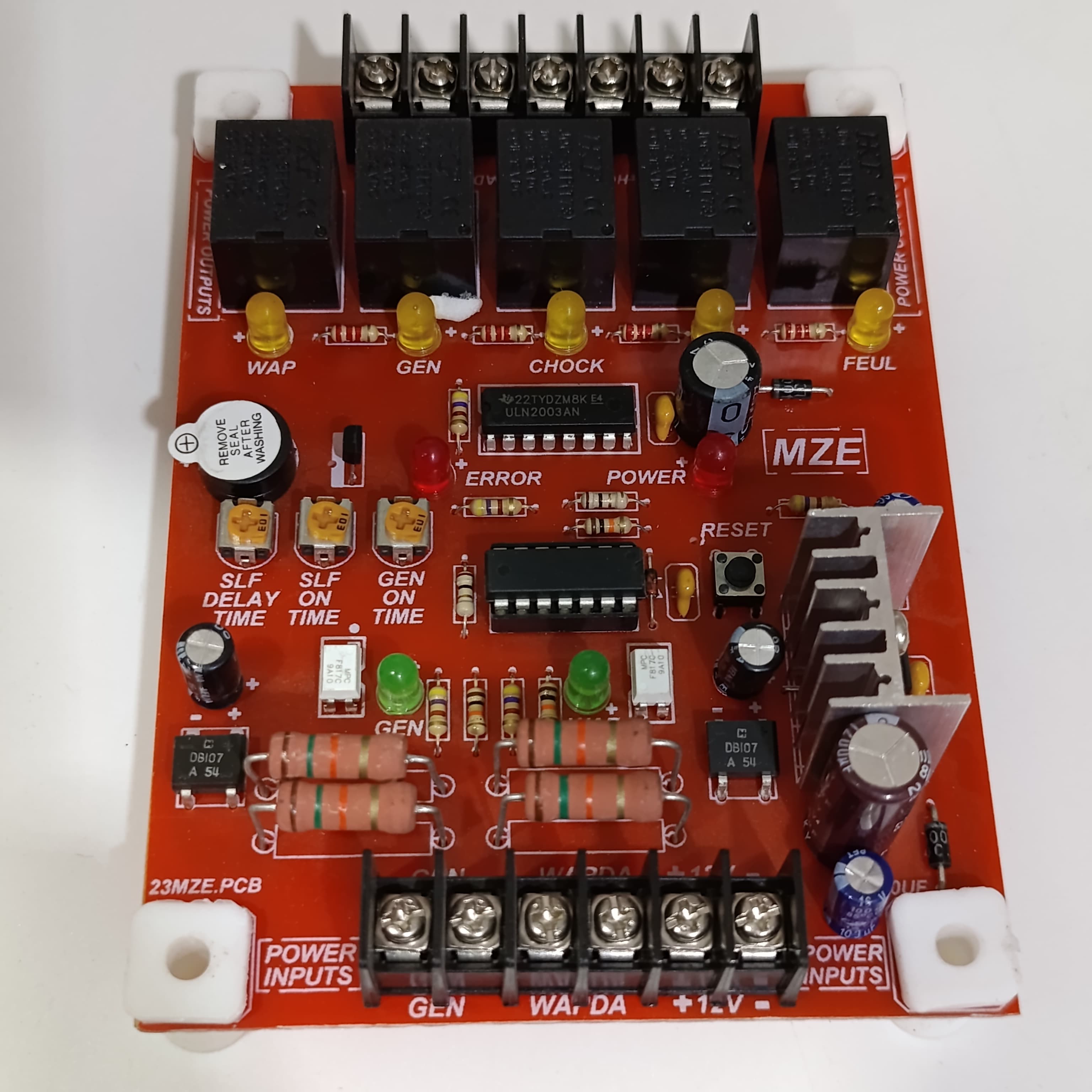

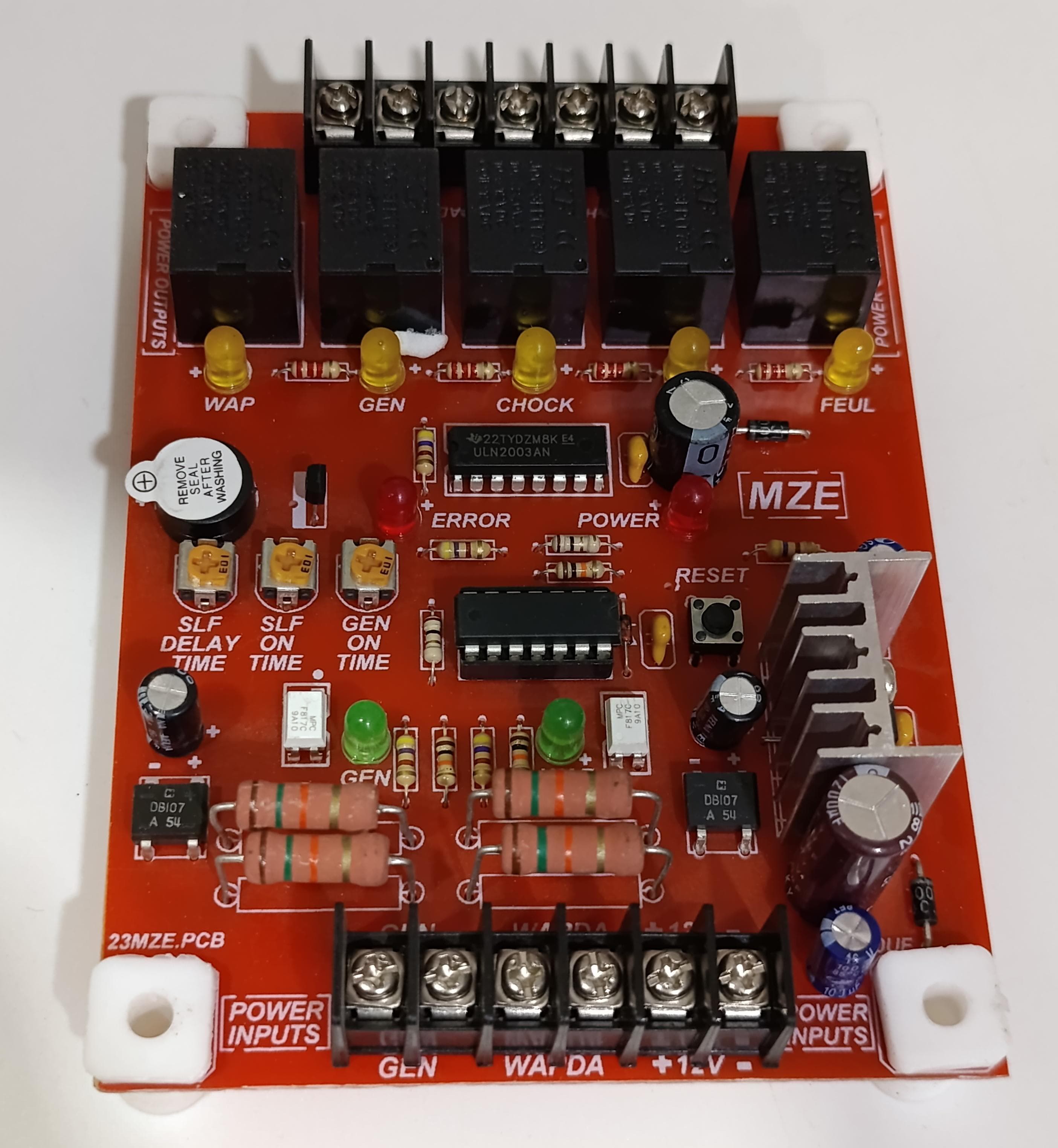

Ats Kit For Generator Only For Generator Professionals

Complete AMF / ATS Function Electronic Card, Starts Generator when utility supply fails and puts a generator on load when power resumes generator turned off and utility supply put on load. with fuel solenoid/choke options and generator cool-down time provision.

Automatic Transfer KIT Switches (ATS) for Generator. This board is an automatic transfer switch which manages between Wapda and generator supply. It will Automatic transfer load to the generator when wapda will off, and automatically turn off the generator and switch to wapda if available

Generator auto start kit with these features.

1. Microprocessor based intelligence.
2. Adjustable self on time.
3. Adjustable Self Off Time
4. Adjustable gen on time(Shifting Time)
5. Fuel relay, With LED
6. Self-relay, With LED
7. Chowk relay, With LED
8. Wapda (Main) relay, With LED
9. Generator relay, With LED
10. Power LED
11. ERROR LED
12. Wapda Input LED
13. Generator Input LED
14. Reset button.
15. High-Quality long-life fiberglass PCB
16. 4 tries.

Dimensions:

   4inch x 5.5inch
