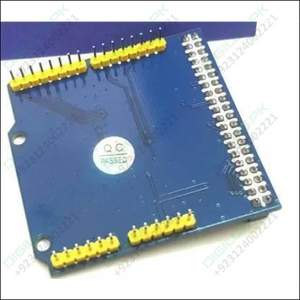

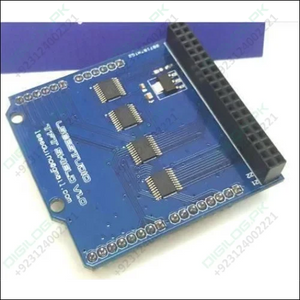

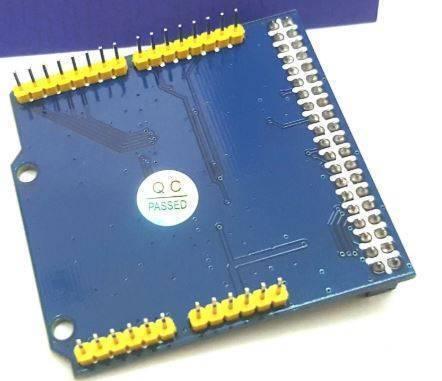

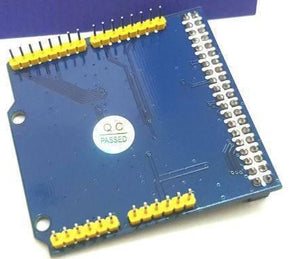

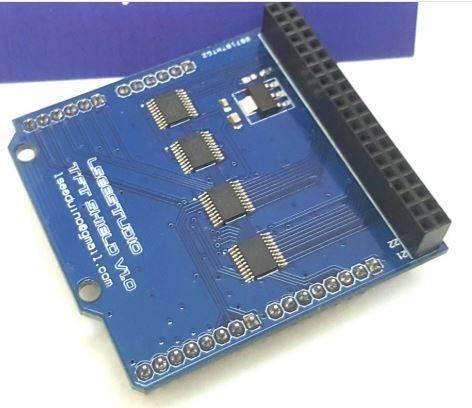

Arduino Uno LCD TFT Shield For 40-pin 8bit TFT LCD
Arduino Uno LCD TFT Shield For 40-Pin 8bit TFT LCD Overview. Arduino Uno LCD TFT Shield for 8-pin 40-bit TFT LCD is used for the purpose of transferring the communication voltage between LCD TFT (3V) and Arduino Uno or Mega2560 (5V), if directly connected LCD to Arduino Uno or Mega2560 will not be used can be used or burnt LCD due to the difference in communication voltage, shield can be used with Arduino Uno or Mega2560 (or similar types of Arduino with foot type) and LCD supports 8bit Data communication standard or parallel both standards 8 / 16bit (does not support the 16 bit standard)
Specifications
- Arduino Uno LCD TFT Shield For 40-Pin 8bit TFT LCD
- Communicatiuon Voltage between LCD TFT and arduino Uno
- Communication Voltage: 3V
- Compatible with Arduino Mega2560
Package Includes:
- 1 x Arduino TFT LCD Shield
UNO.........SHIELD
D0...........DB8 (screen data bus)
D1...........DB9 (screen data bus)
D2...........DB10 (screen data bus)
D3...........DB11 (screen data bus)
D4...........DB12 screen data bus)
D5...........DB13 (screen data bus)
D6...........DB14 (screen data bus)
D7...........DB15 (screen data bus)
D8...........D_CS (resistive touch chip select)
D9...........D_OUT (resistive touch data out)
D10.........SD_CS (SD card chip select)
D11.........SD_DIN (SD card data in)
D12.........SD_OUT (SD card data out)
D13.........SD_SCK (SD card data SCK)
A0...........D_DIN (resistive touch data in)
A1...........D_CLK (resistive touch clk)
A2...........RESET (screen reset)
A3...........LCD_CD (screen chip select)
A4...........WR (screen write strobe)
A1...........RS (screen register select)
D0...........DB8 (screen data bus)
D1...........DB9 (screen data bus)
D2...........DB10 (screen data bus)
D3...........DB11 (screen data bus)
D4...........DB12 screen data bus)
D5...........DB13 (screen data bus)
D6...........DB14 (screen data bus)
D7...........DB15 (screen data bus)
D8...........D_CS (resistive touch chip select)
D9...........D_OUT (resistive touch data out)
D10.........SD_CS (SD card chip select)
D11.........SD_DIN (SD card data in)
D12.........SD_OUT (SD card data out)
D13.........SD_SCK (SD card data SCK)
A0...........D_DIN (resistive touch data in)
A1...........D_CLK (resistive touch clk)
A2...........RESET (screen reset)
A3...........LCD_CD (screen chip select)
A4...........WR (screen write strobe)
A1...........RS (screen register select)
