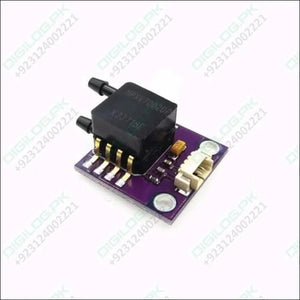

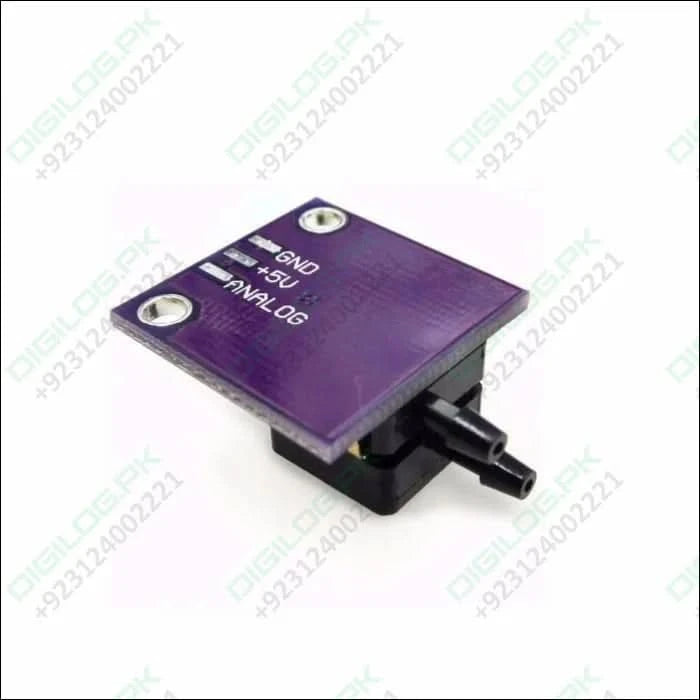

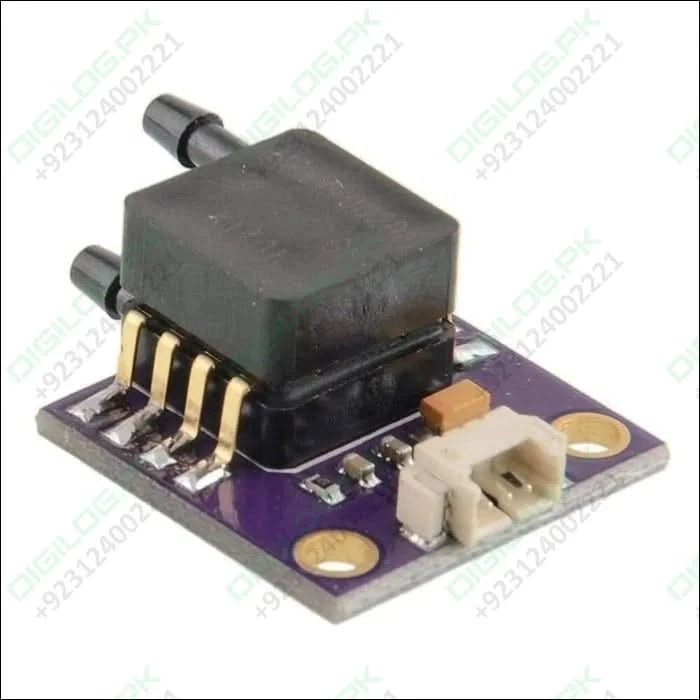

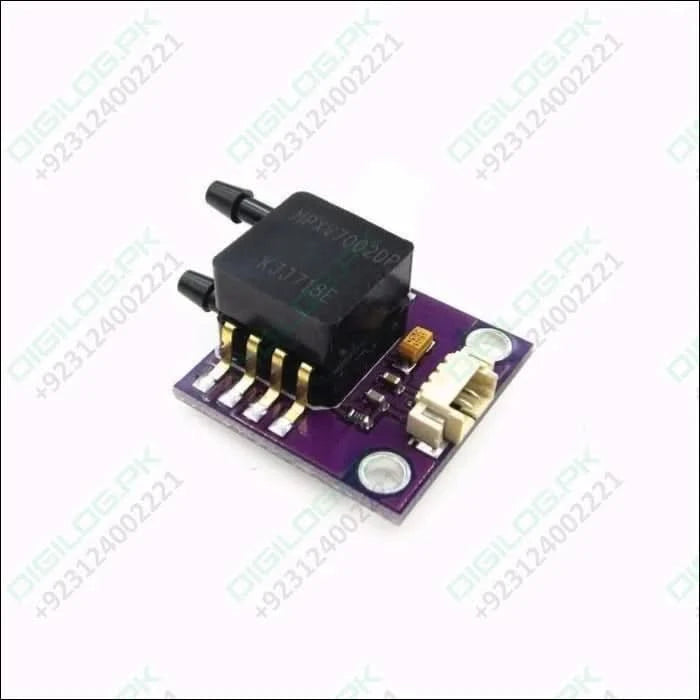

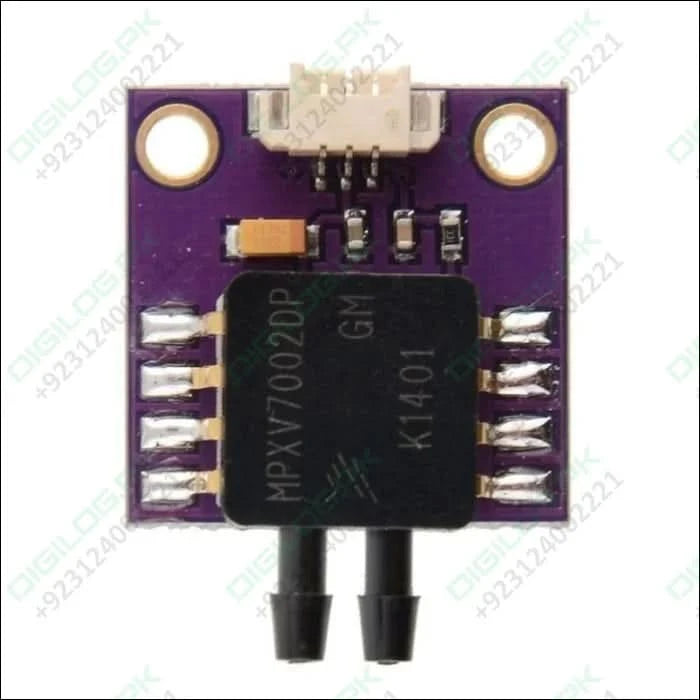

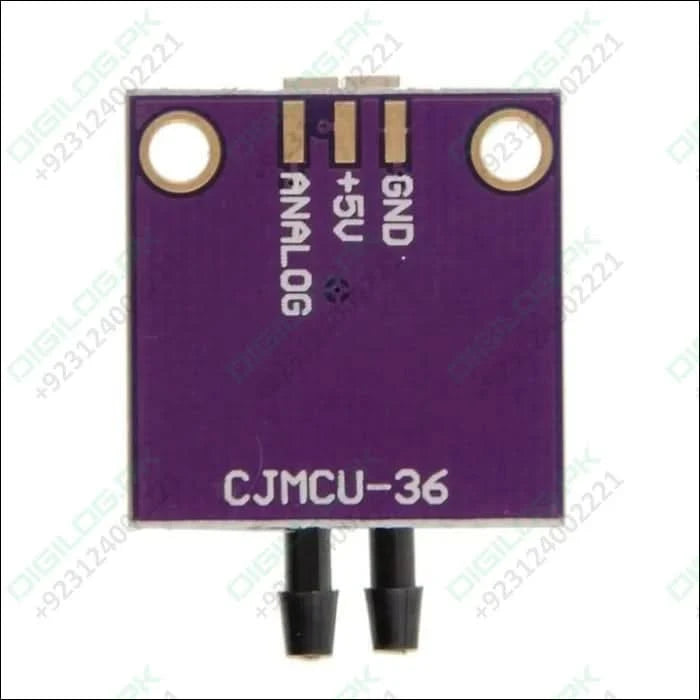

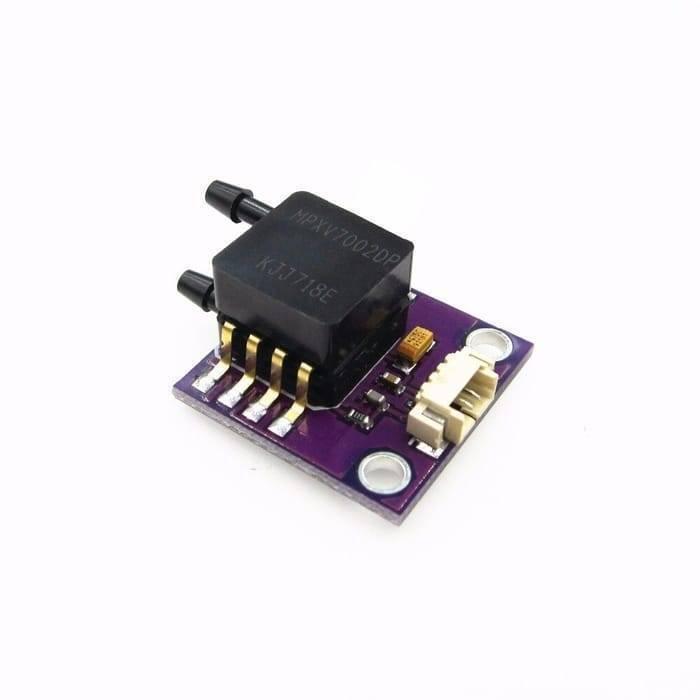

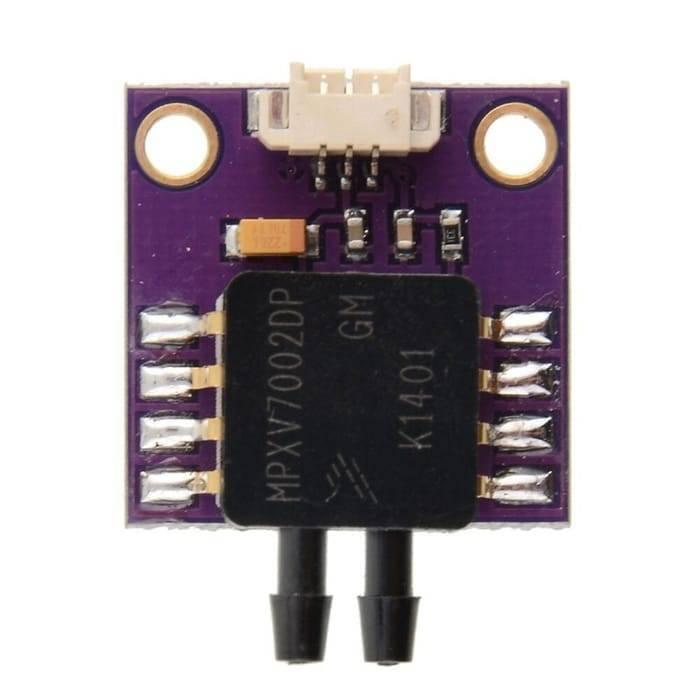

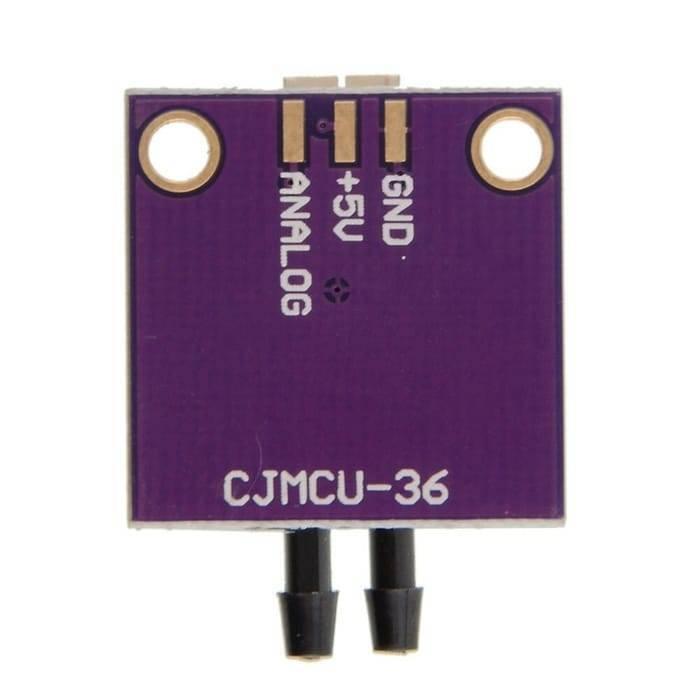

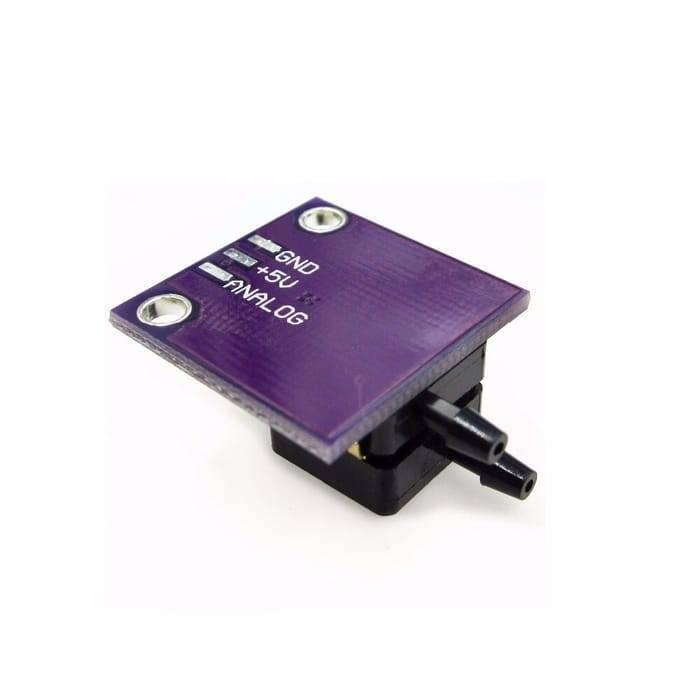

The MPXV7002DP pressure sensor module is a dual-port, integrated silicon pressure sensor in 8 pin SOIC package. This state of the art monolithic silicon pressure sensor is designed for a wide range of applications. This pressure sensor Arduino is particularly suitable for those employing microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate, high-level analogue output signal that is proportional to applied pressure. The MPXV7002 differential pressure sensor is designed to measure positive and negative pressure. In addition, with an offset specifically at 2.5V instead of the conventional 0V, this new series allows to measure pressure up to 7kPa through each port for pressure sensing but also for vacuum sensing. The MPXV7002 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor module designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs.

Features Of Differential Pressure Sensor MPXV7002DP:

• The MPXV7002 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor.
• This single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level analogue output signal that is proportional to the applied pressure.
• Designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs.
• Designed to measure positive and negative pressure, with an offset specifically at 2.5V instead of the conventional 0V.
• This new series allows to measure pressure up to 7kPa through each port for pressure sensing but also for vacuum sensing.
• 2.5% typical error over +10°C to +60°C with auto-zero.
• 6.25% maximum error over +10°C to +60°C without auto zero.
• Ideally suited for microprocessor or microcontroller-based systems.
• Thermoplastic (PPS) surface mount package.
• Temperature-compensated over +10° to +60°C.
• Patented silicon shear stress-strain gauge.

Specifications Of MPXV7002DP Airspeed Sensor Module:

1. Voltage: 4.75 V to 5.25 V
2. Pressure Range: -2 kPa to +2 kPa
3. Maximum current: 10 mA
4. Accuracy: ± 2.5
5. Response Time: 1ms
6. Sensitivity: 1 V / kPa
7. Output: 0.5 to 4.5 V
8. Weight: 0.1 oz, 4 g

Package includes:

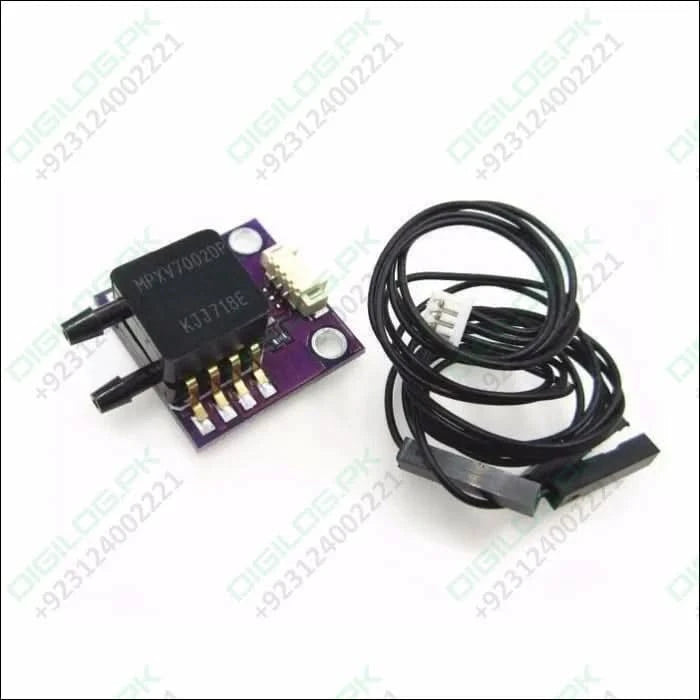

• 1 x Differential Pressure Sensor board
• 1 x Cable
