Description
Online Shopping website for Arduino Leonardo. Here you get Arduino Leonardo in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar and all over pakistan. R3 Development Board Atmega32u.

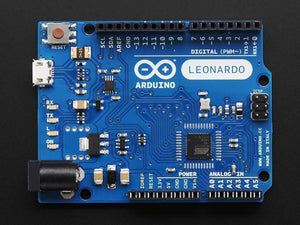

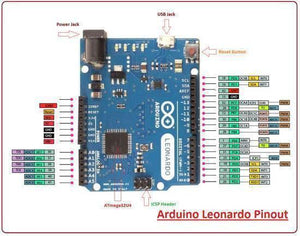

The Arduino Leonardo is a micro-controller board base on the ATmega32u4 (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs); a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything need to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication; eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard; in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board
Specifications Of Arduino Leonardo:
- It’s a 100% Arduino pro micro Compatible Board.
- Chip: ATmega32u4
- Board Mode: LEONARDO R3
- Color: As shown in the pictures
Features Of Arduino Leonardo:
Microcontroller | ATmega32u4 |
Operating Voltage | 5V |
Input Voltage (Recommended) | 7-12V |
Input Voltage (limits) | 6-20V |
Digital I/O Pins | 20 |
PWM Channels | 7 |
Analog Input Channels | 12 |
DC Current per I/O Pin | 40 mA |
DC Current for 3.3V Pin | 50 mA |
Flash Memory | 32 KB (ATmega32u4) of which 4 KB used by bootloader |
SRAM | 2.5 KB (ATmega32u4) |
EEPROM | 1 KB (ATmega32u4) |
Clock Speed | 16 MHz |
Lenght | 68.6 mm |
Width | 53.3 mm |
Weight | 20 g |
Package Includes :
1 x Arduino Leonardo R3 Board.
