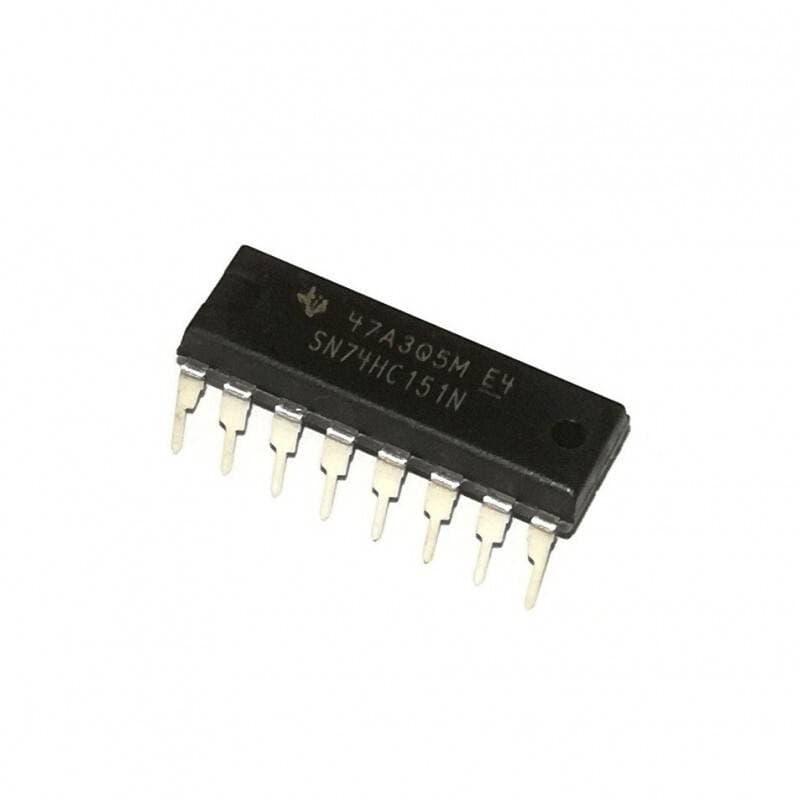

74151 Ic

74151 Ic

Regular price Rs 90
Regular price Sale price Rs 90
Sale Sold out
Shipping calculated at checkout.

SKU:b599

NOTIFY ME WHEN IN STOCK

This Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three-bit binary code at the Select inputs. Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at the high level, disables all data inputs and forces the Y output to the low state and the W output to the high state. The Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. RoboticsBD



Features:

  1. Advanced oxide-isolated, ion-implanted Schottky TTL process

  2. Switching performance is guaranteed over full temperature and VCC supply range

  3. Pin and functional compatible with LS family counterpart

  4. Improved output transient handling capability

  5. Selects one-of-eight data lines

  6. Performs parallel-to-serial conversion

  7. Permits multiplexing from N lines to one lines

  8. Also for use as Boolean function generator

View full details

Description

This Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three-bit binary code at the Select inputs. Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at the high level, disables all data inputs and forces the Y output to the low state and the W output to the high state. The Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. RoboticsBD



Features:

  1. Advanced oxide-isolated, ion-implanted Schottky TTL process

  2. Switching performance is guaranteed over full temperature and VCC supply range

  3. Pin and functional compatible with LS family counterpart

  4. Improved output transient handling capability

  5. Selects one-of-eight data lines

  6. Performs parallel-to-serial conversion

  7. Permits multiplexing from N lines to one lines

  8. Also for use as Boolean function generator
