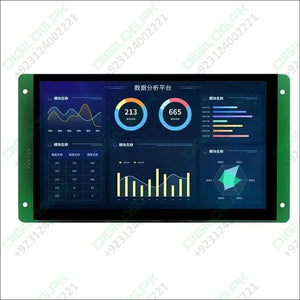

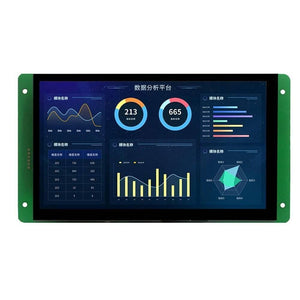

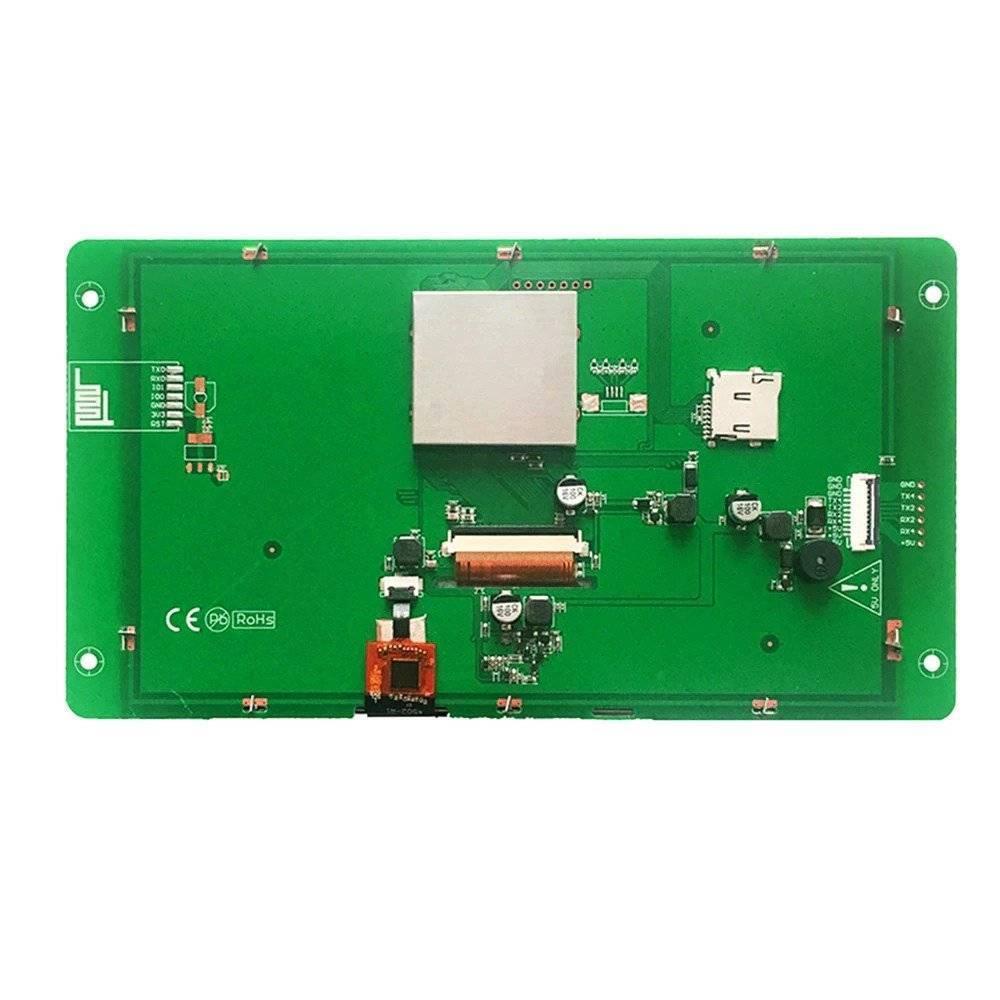

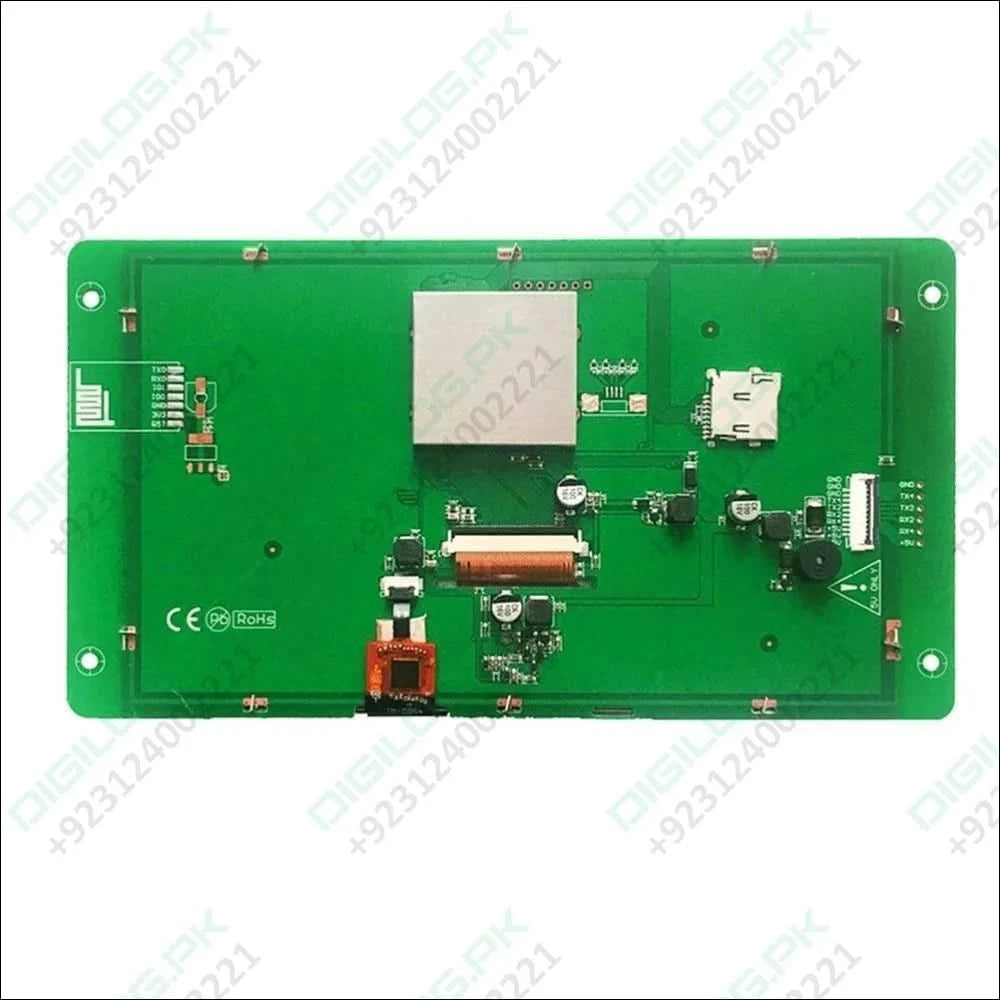

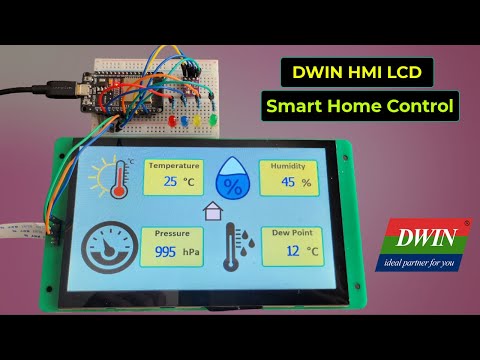

Dwin 7inch Lcd Display Capacitive Touchscreen Dmg80480c070_03wtc

Dwin 7inch Lcd Display Capacitive Touchscreen Dmg80480c070_03wtc

Regular price Rs 14,000
Regular price Rs 10,500 Sale price Rs 14,000
Sale Sold out
Shipping calculated at checkout.

SKU:B214,krt212

NOTIFY ME WHEN IN STOCK

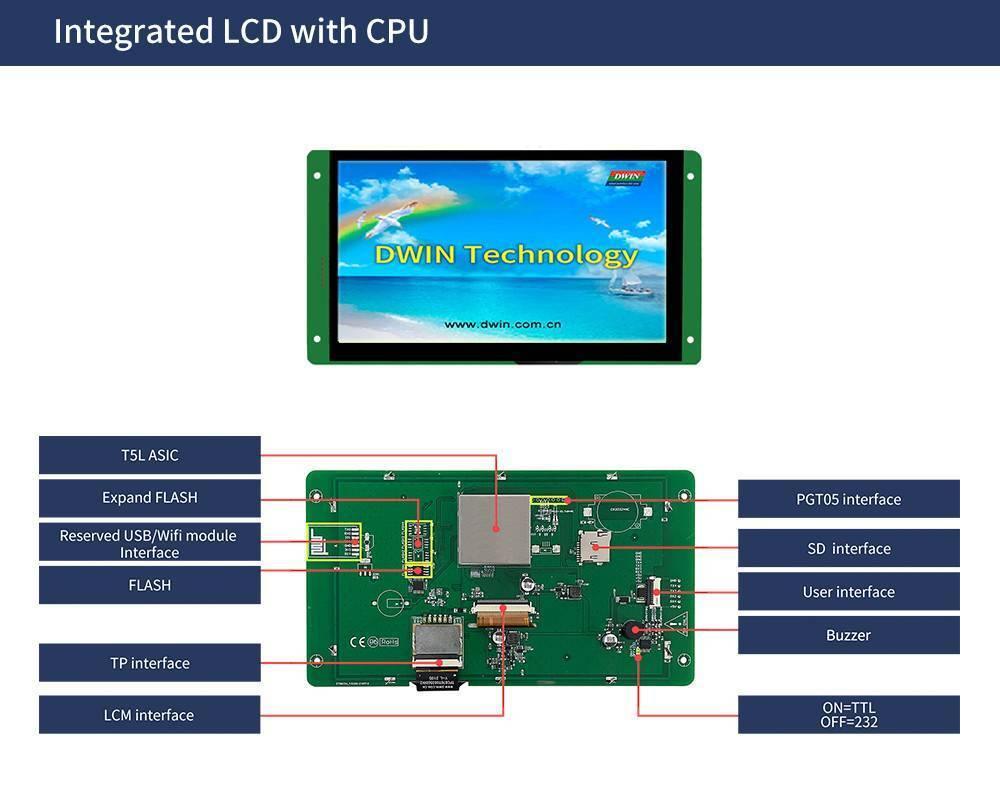

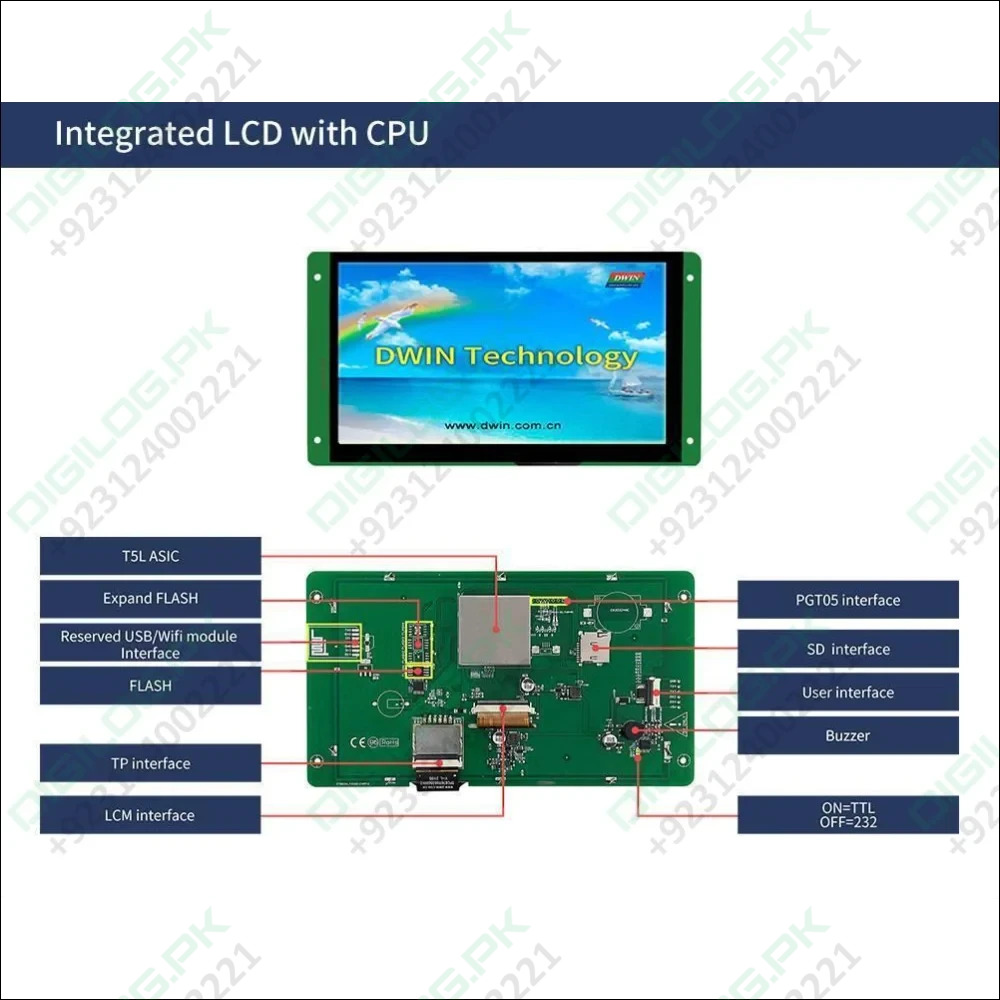

ASIC Information

T5L1 ASIC T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor  Flash on the chip, 512KBytes used to store the user database. Rewrite  cycle: over 100,000 times

Display

Color 16.7M(16777216) colors
LCD Type TN, TFT LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)
Display Area(A.A) 154.1mm (W) ×85.9mm (H)
Resolution 800x480Pixel
Backlight LED
Brightness DMG80480C070_03WTR:250nit
DMG80480C070_03WN:300nit
DMG80480C070_03WTC: 270nit

Voltage & Current

Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC = +5V, Backlight on,500mA
VCC = +5V, Backlight off,150mA

Reliability Test

Working Temperature 20℃~70℃ (5V @ 60% RH)
Storage Temperature -30~80℃
Working Humidity 10%~90%RH, typical value of 60% RH

Interface

LCM interface FPC50_0.5mm, RGB interface
RTP interface FPC4_1.0mm
CTP interface COB structure, IIC interface
Baudrate 3150~3225600bps, typical value of 115200bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3V
Output 0, Iout =-1mA;0~0.3V
Input Voltage
(RXD)
Input 1, Iin = 1mA, 2.4~5.0V
Input 0, Iin = -1mA, 0~0.5V
User Interface 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Peripheral

DMG80480C070_03WN  Buzzer
DMG80480C070_03WTR   Resistive touch screen, Buzzer
DMG80480C070_03WTC  Capacitance touch screen, Buzzer, RTC(Not welded)



Package Include:

1 x 7 Inch LCD Display Touchscreen DMG80480C070_03WTC Capacitive touch screen (Commercial grade)

Data sheet






DMG80480C070_03WTC

View full details

Description

ASIC Information

T5L1 ASIC T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor  Flash on the chip, 512KBytes used to store the user database. Rewrite  cycle: over 100,000 times

Display

Color 16.7M(16777216) colors
LCD Type TN, TFT LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)
Display Area(A.A) 154.1mm (W) ×85.9mm (H)
Resolution 800x480Pixel
Backlight LED
Brightness DMG80480C070_03WTR:250nit
DMG80480C070_03WN:300nit
DMG80480C070_03WTC: 270nit

Voltage & Current

Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC = +5V, Backlight on,500mA
VCC = +5V, Backlight off,150mA

Reliability Test

Working Temperature 20℃~70℃ (5V @ 60% RH)
Storage Temperature -30~80℃
Working Humidity 10%~90%RH, typical value of 60% RH

Interface

LCM interface FPC50_0.5mm, RGB interface
RTP interface FPC4_1.0mm
CTP interface COB structure, IIC interface
Baudrate 3150~3225600bps, typical value of 115200bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3V
Output 0, Iout =-1mA;0~0.3V
Input Voltage
(RXD)
Input 1, Iin = 1mA, 2.4~5.0V
Input 0, Iin = -1mA, 0~0.5V
User Interface 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Peripheral

DMG80480C070_03WN  Buzzer
DMG80480C070_03WTR   Resistive touch screen, Buzzer
DMG80480C070_03WTC  Capacitance touch screen, Buzzer, RTC(Not welded)



Package Include:

1 x 7 Inch LCD Display Touchscreen DMG80480C070_03WTC Capacitive touch screen (Commercial grade)

Data sheet






DMG80480C070_03WTC
