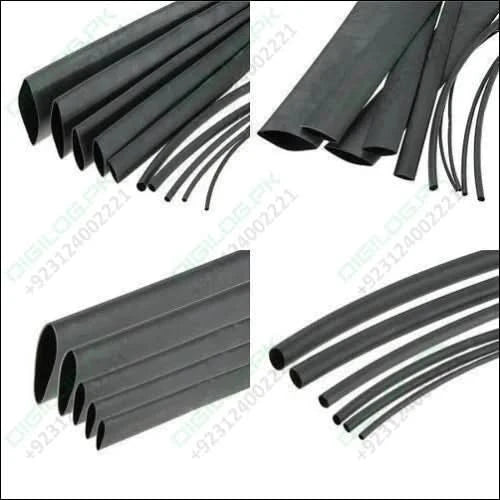

1 Meter 5mm Heat Shrink Sleeve in Pakistan

Heat Shrink Tubing & Sleeve is a 3:1 flexible tubing offering the advantages of integral, adhesive-lined construction. Although Heat Shrink Tubing & Sleeve is made from flexible polyethene with an internal layer of special thermoplastic adhesive. The heat-shrinkable outer wall is selectively cross-link while maintaining the high flow and excellent adhesion of the inner sealant liner.

When heated in excess of 121 deg C (250 deg F), the tubing rapidly shrinks to a skintight fit, forcing the melted adhesive lining to flow and cover the substrate. The adhesive forms a flexible bond with a wide variety of rubbers, plastics, and metals.

In addition upon cooling, the adhesive solidifies, forming a permanent, non-drying, flexible and water-resistant barrier. Adhesive reflow will occur at temperatures above 80 deg C.

Features of 1 Meter 5mm Heat Shrink Sleeve :

• 3:1 shrinkage ratio, suitable for irregular shape insulation and sealing.
• Medium wall thickness, while maintaining flexibility, enhanced mechanical protection strength.
• The adhesive layer can be bonded to plastic, rubber and also metal.
• The initial contraction temperature is 70 C, and the total shrinkage temperature is 125 C.
• Hence the melting temperature of the inner layer: 70 C -100 C;
• The range of working temperature: -45 C ~ 145 C

Specifications Of Heat Shrink Tubing & Sleeve:

1. Colour: Black
2. Material: Polyethylene
3. Shrink Ratio: 3:1
4. Temp: -45C up to +145C
5. Longitudinal Shrinkage (Lengthwise): Less than 8 %, Insulating Voltage
6. Capability: 600 volts
7. Adhesive Adheres to Most plastics, metals, rubber, Continuous Operating

Package Includes:

• 1 x Heat Shrink Tubing & Sleeve
