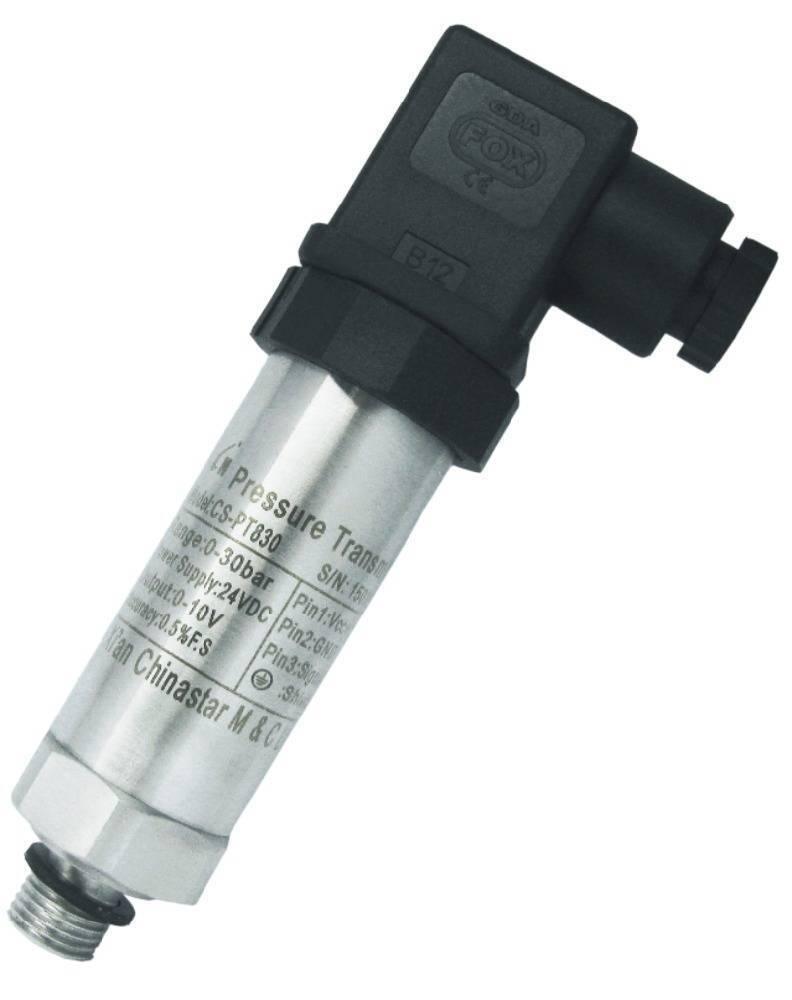

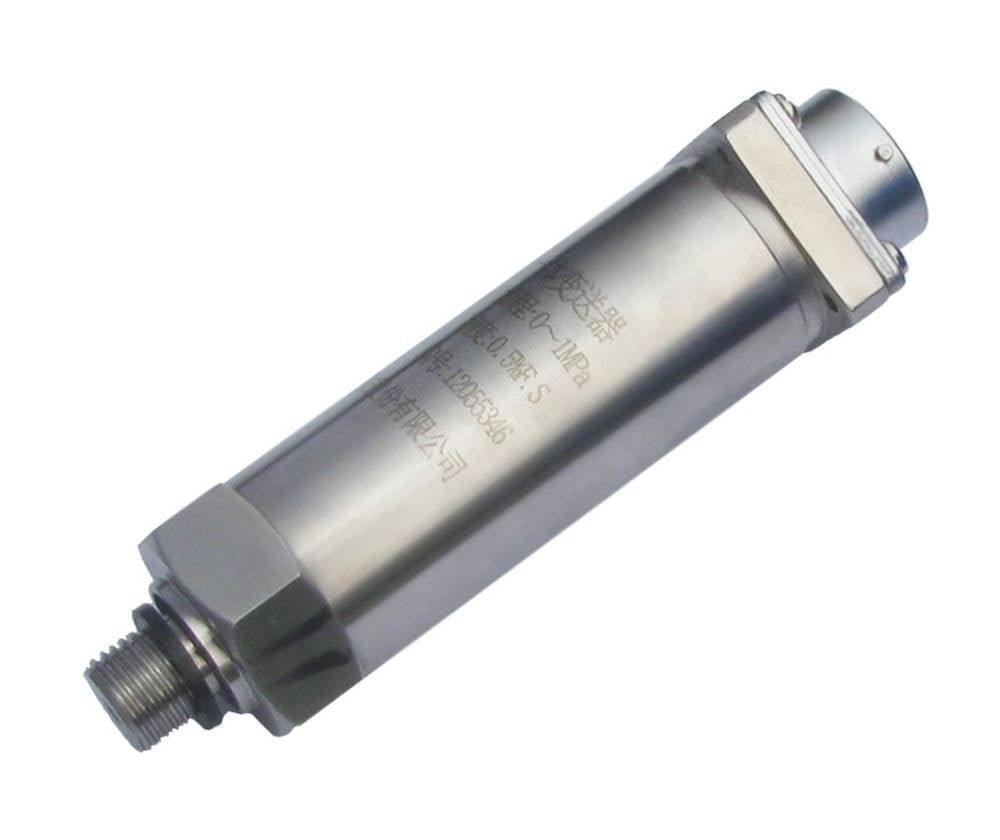

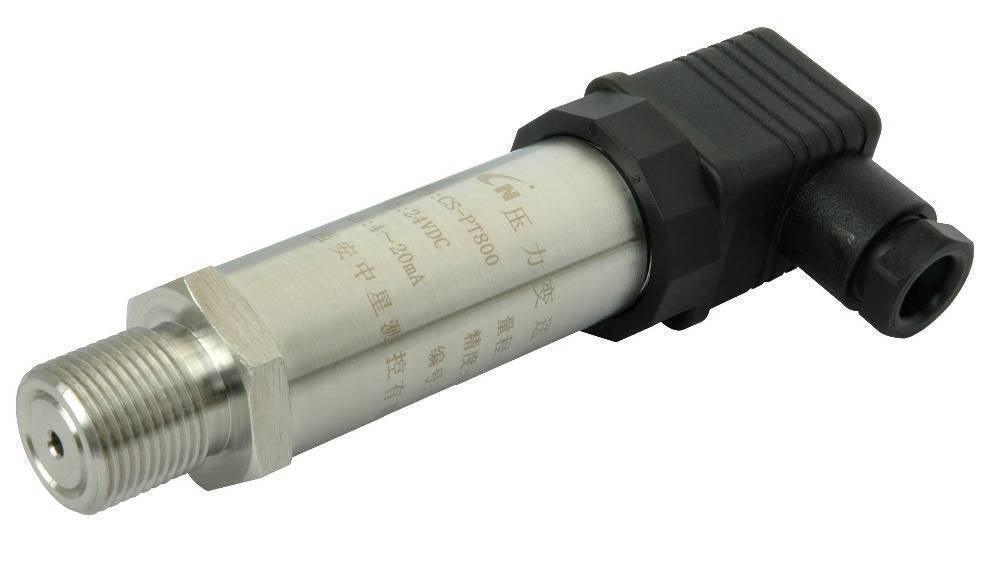

The GPT230 Hydraulic Pressure Sensor is a reliable and accurate tool for measuring pressure in demanding environments. This high-performance sensor offers precise readings, wide compatibility, and durable construction, making it ideal for various industrial applications.

Key Features:

• High Accuracy: GPT230 Hydraulic Measures pressure with ±0.5%FS accuracy.
• Wide Pressure Range: Measures up to 400 bar (6000 psi).
• Durable Construction: Built to withstand harsh conditions and provide long-lasting performance.
• Versatile Compatibility: Compatible with various systems and applications.
• Easy Integration: Simple installation and configuration.

Specifications:

• Pressure Range: 0-200 kPa to 60 MPa
• Accuracy: ±0.5%FS (typical), ±1.0%FS (maximum)
• Long-Term Stability: 0.5%FS/year (typical), 1.0%FS/year (maximum)
• Temperature Coefficient: ±0.05%FS/°C (typical), ±0.1%FS/°C (maximum)
• Operating Temperature: -40°C to 100°C
• Output Signal: 4-20mA
• Power Supply: 10-30VDC, 5V (ratio)

Order Now:

Upgrade your pressure measurement capabilities with the GPT230 Hydraulic Pressure Sensor. Experience the accuracy, reliability, and versatility of this essential tool.
