Name: 4 Pin 2 Positions On Off Dpst Rocker Power Switch Button
Brand: China
SKU: B825,krt165,L10,TH5,L
Price: 60.0 PKR
Availability: InStock

Home ALL Products

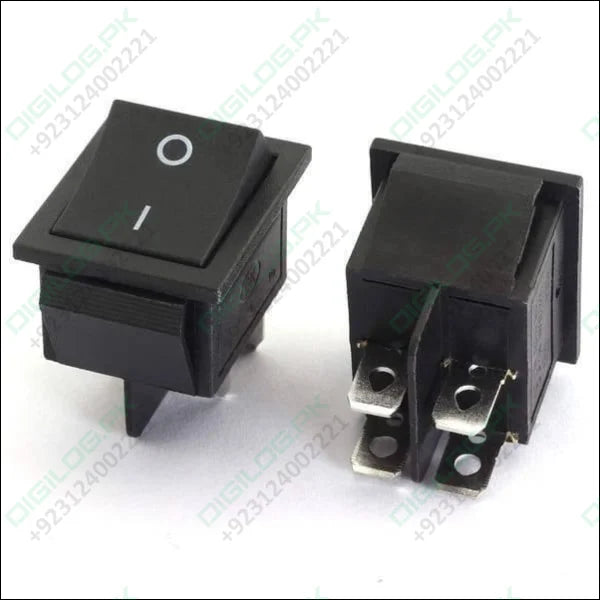

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button - shown as two black rectangular rocker switches, one displaying the top and one showing four pins.

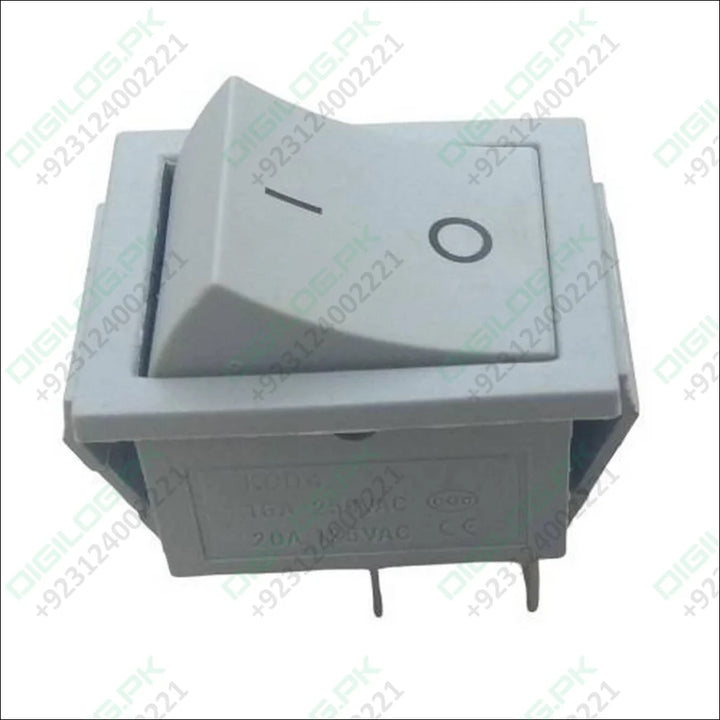

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button - a grey rectangular rocker switch with a toggle marked with a dash and a circle symbol.

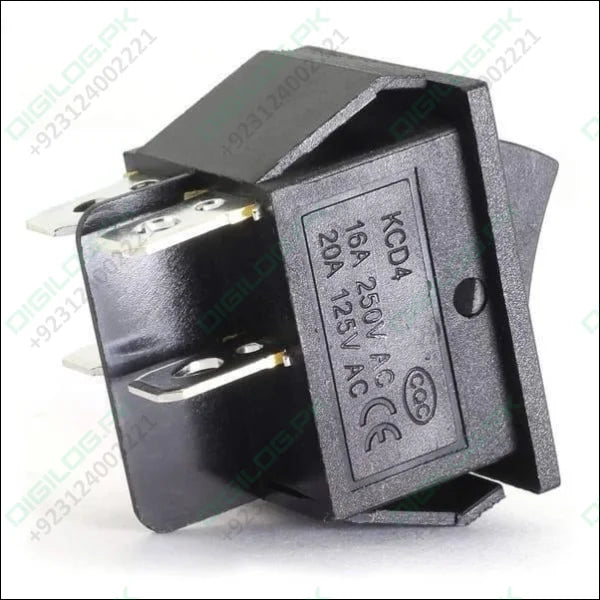

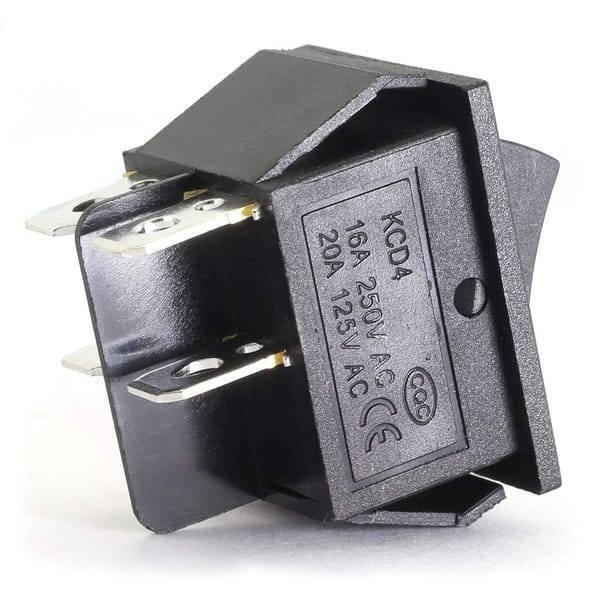

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button - a black rectangular switch with four metal connector pins and printed technical specifications.

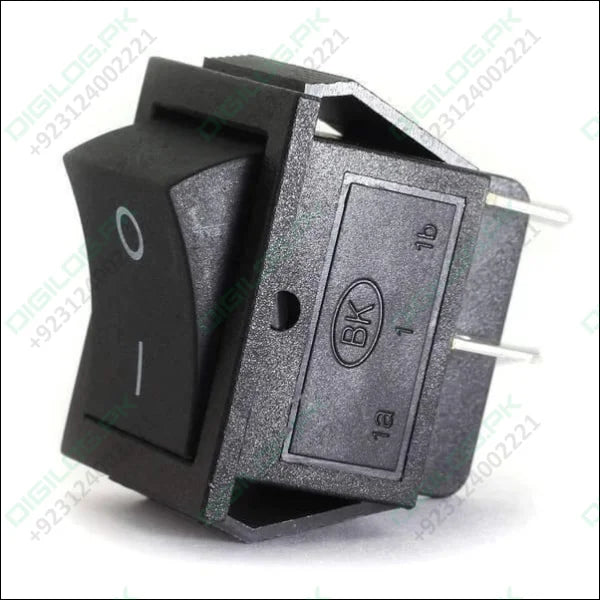

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button - a black rectangular rocker switch with an on-off symbol and two visible metal pins.

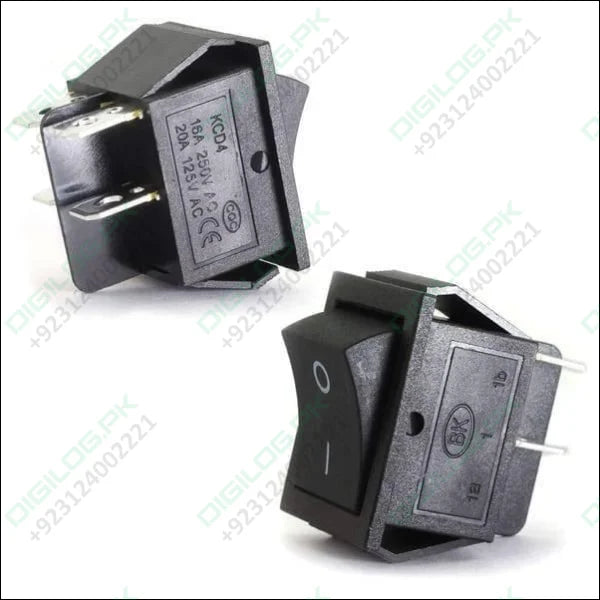

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button - shown as two black rectangular switches with four metal terminals and O/I markings.

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button

Rs 60

SKU: B825,krt165,L10,TH5,L

Pickup available at Digilog Electronics

Usually ready in 2 hours

4 Pin 2 Positions On Off Dpst Rocker Power Switch Button

Rs 60

The 4 Pin 2 Position Rocker Power Switch Button is a high-quality component designed to provide a reliable and convenient way to control your electrical devices. This durable switch features a compact size and easy installation, making it suitable for a variety of applications.

Key Features:

Durable Construction: 4 Pin 2 Position Built to last with a sturdy and reliable design.
Easy Installation: Simple and straightforward installation process.
Compact Size: Ideal for various applications and spaces.
Clear Labeling: Clear "ON" and "OFF" markings for easy operation.
High Current Rating: Handles up to 16A 250V AC or 20A 125V AC loads.

Specifications:

Size: 30.9 x 25.5mm
Cut-Size: 28 x 22mm
Voltage and Current: 16A 250V AC / 20A 125V AC
Operating Temperature: 85 Degrees
Positions: ON/OFF
Color: Black Button
Terminals: 4-Pin copper contact

Order Now:

Upgrade your electrical devices with our 4 Pin 2 Position Rocker Power Switch Button. Experience the reliability and convenience it brings to your projects.
