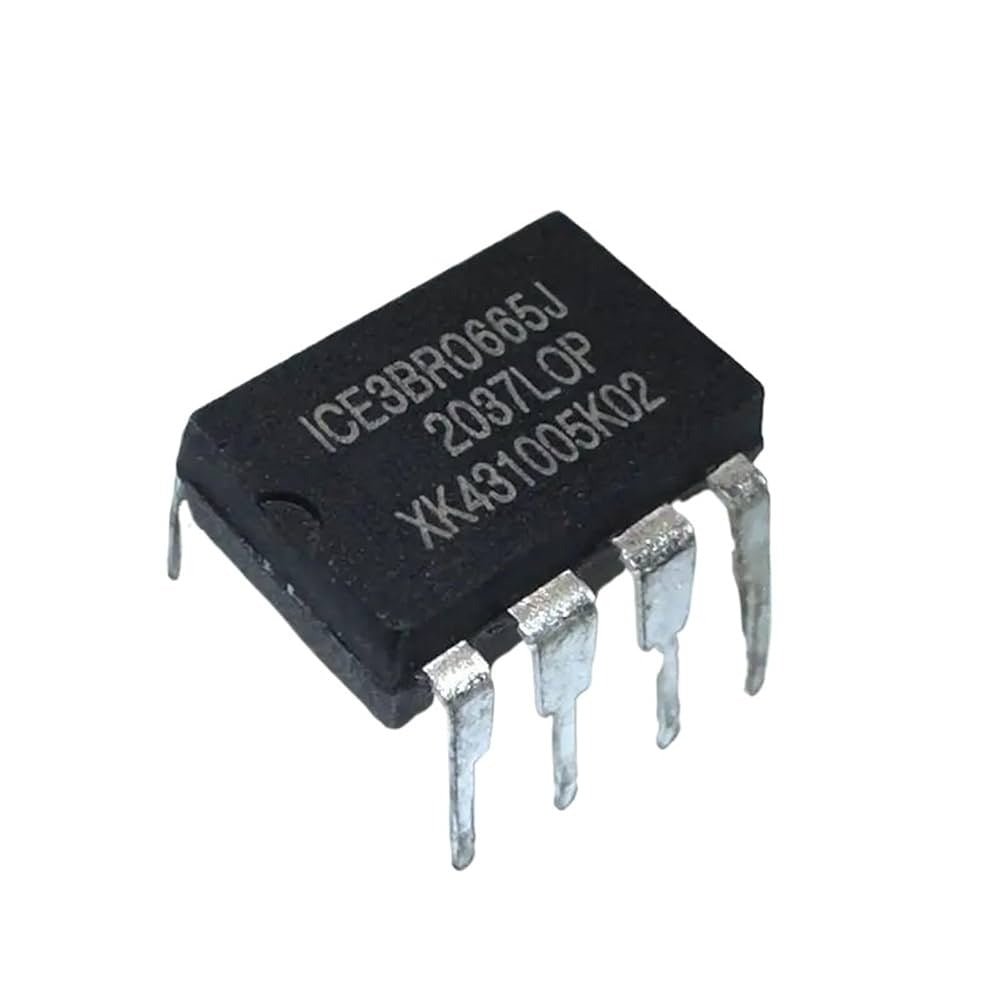

High-performance SMPS current-mode controller with integrated 650 V CoolMOS® and startup cell. Ideal for low power offline switch-mode power supply designs requiring low standby power, overcurrent protection, soft start, and jittered switching for EMI reduction. The ICE3BR0665J (CoolSET®-F3R) from Infineon is a fixed-frequency current mode controller tailored for offline SMPS (switched mode power supplies). It integrates a 650 V avalanche-rugged CoolMOS® transistor and startup cell into a DIP-8 package, reducing external component count while offering robust protection and efficiency features.
Key Features
-
Integrated 650 V CoolMOS® switch device
-
Fixed switching frequency: ~65 kHz
-
Active Burst Mode: ultra low standby power (typically < 50 mW)
-
Auto restart protection: overload, short circuit, overtemperature, overvoltage
-
Built-in soft start & blanking window with option to extend blanking period
-
External auto-restart enable pin for added control
-
Frequency jitter and soft gate driving to reduce EMI
-
Max duty cycle: ~75 %
-
Low tolerance current limit (±5 %)
-
RoHS compliant, lead-free plating
Key Specifications
| Parameter | Value / Range |
|---|---|
| Part Number | ICE3BR0665J / 3BR0665J |
| Application | Off-line SMPS current mode controller |
| Max Voltage (VDS) | 650 V |
| Switching Frequency | 65 kHz (fixed) |
| Max Output Power | ~41 W (in typical designs) |
| Package | DIP-8 (PG-DIP-8) |
| Protection Features | Overload, OVP, overtemperature, auto-restart, current limiting |
| Standby Power | < 50 mW (typical in burst mode) |
| Duty Cycle | Up to ~75 % |
| Operating Temperature | –40 °C to +105 °C (TA) |
