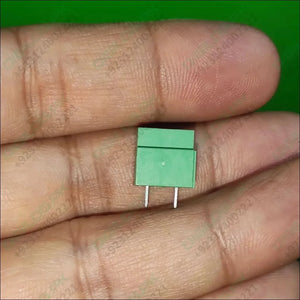

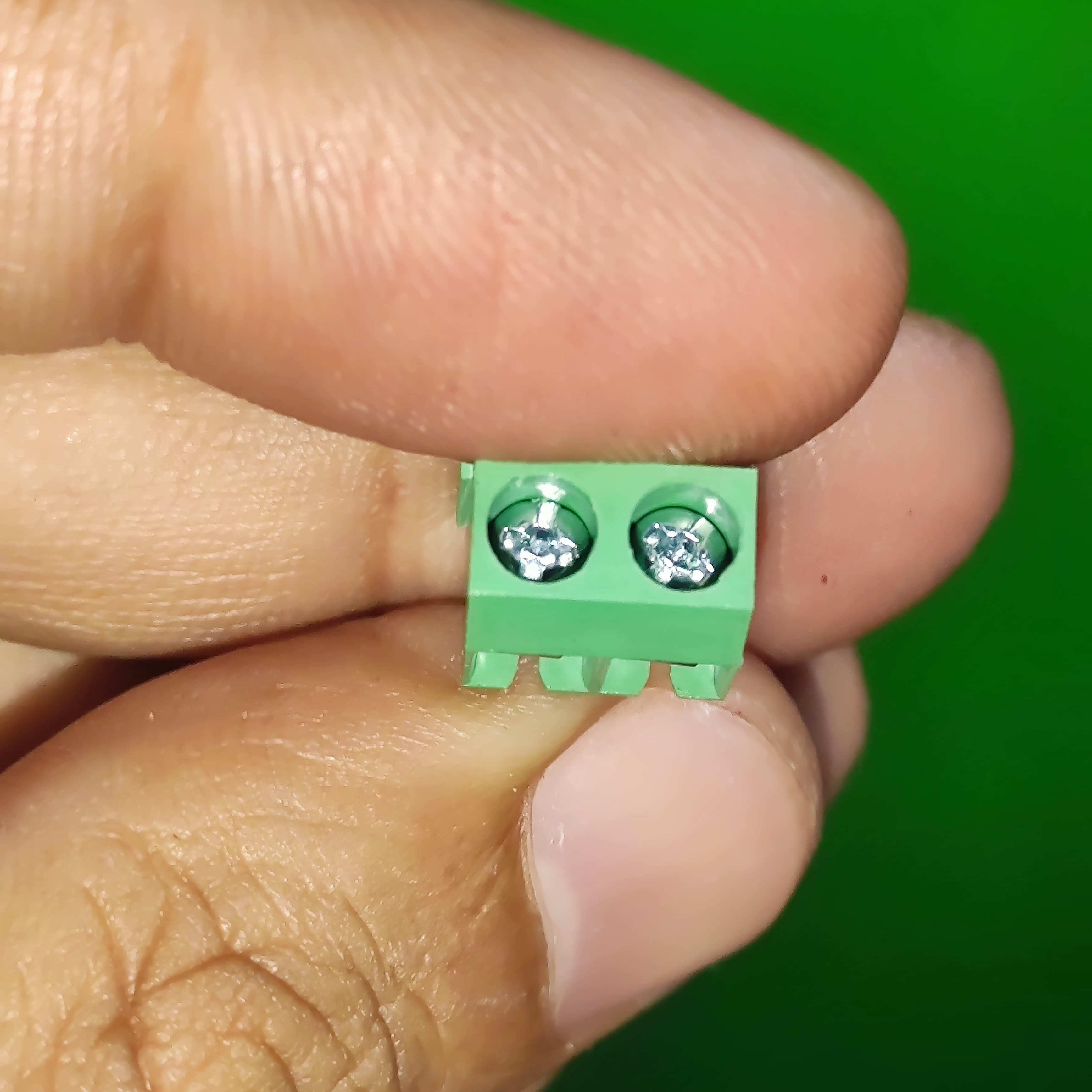

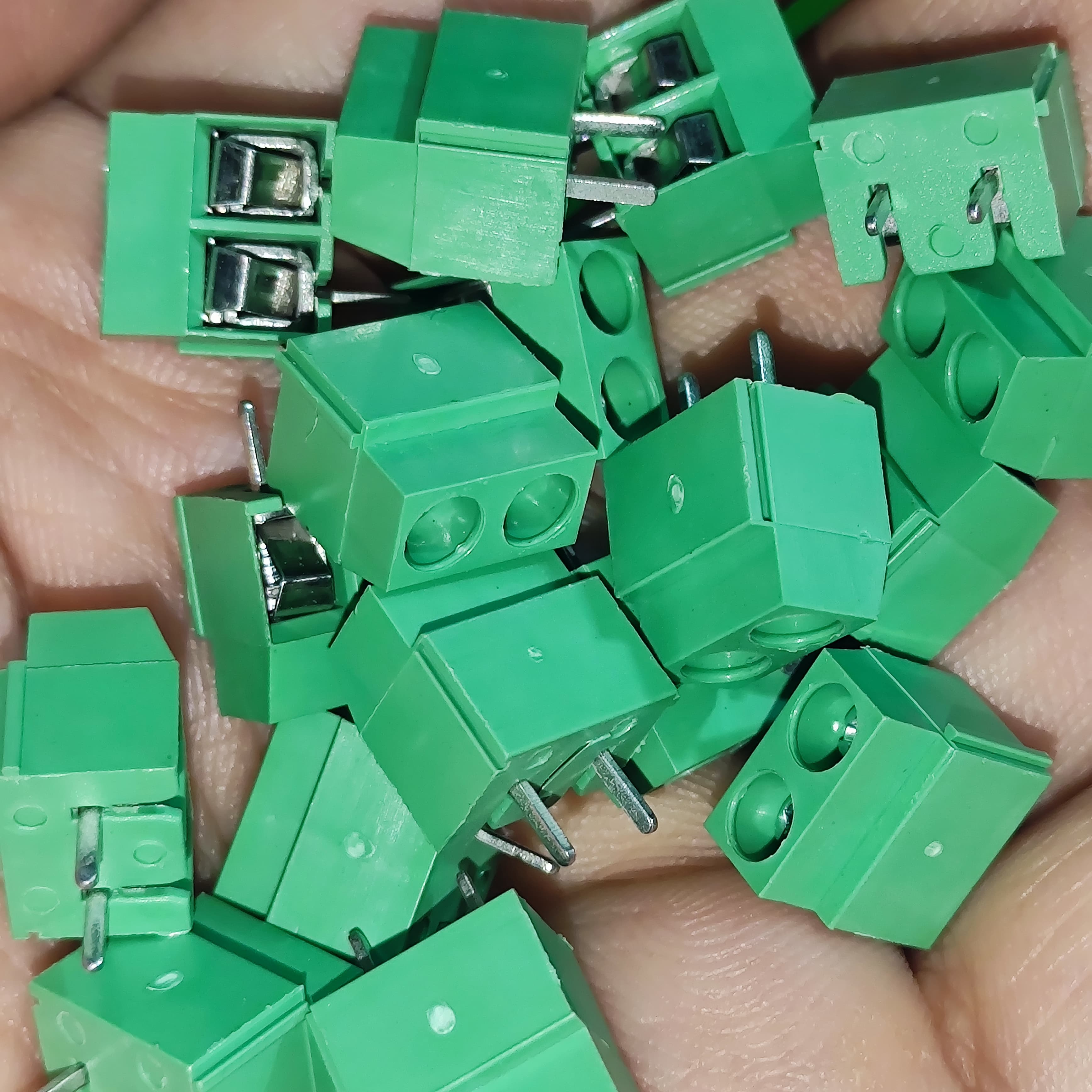

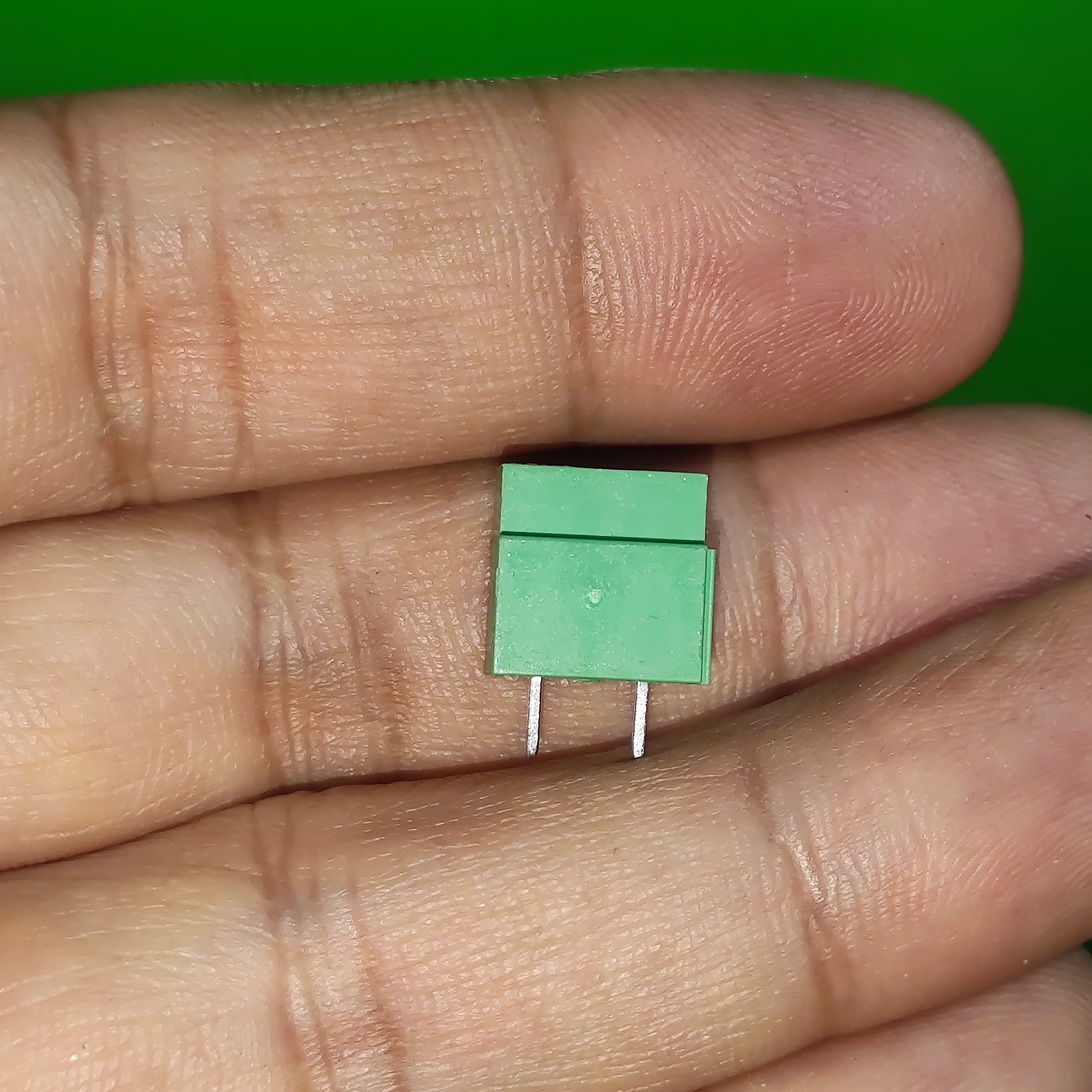

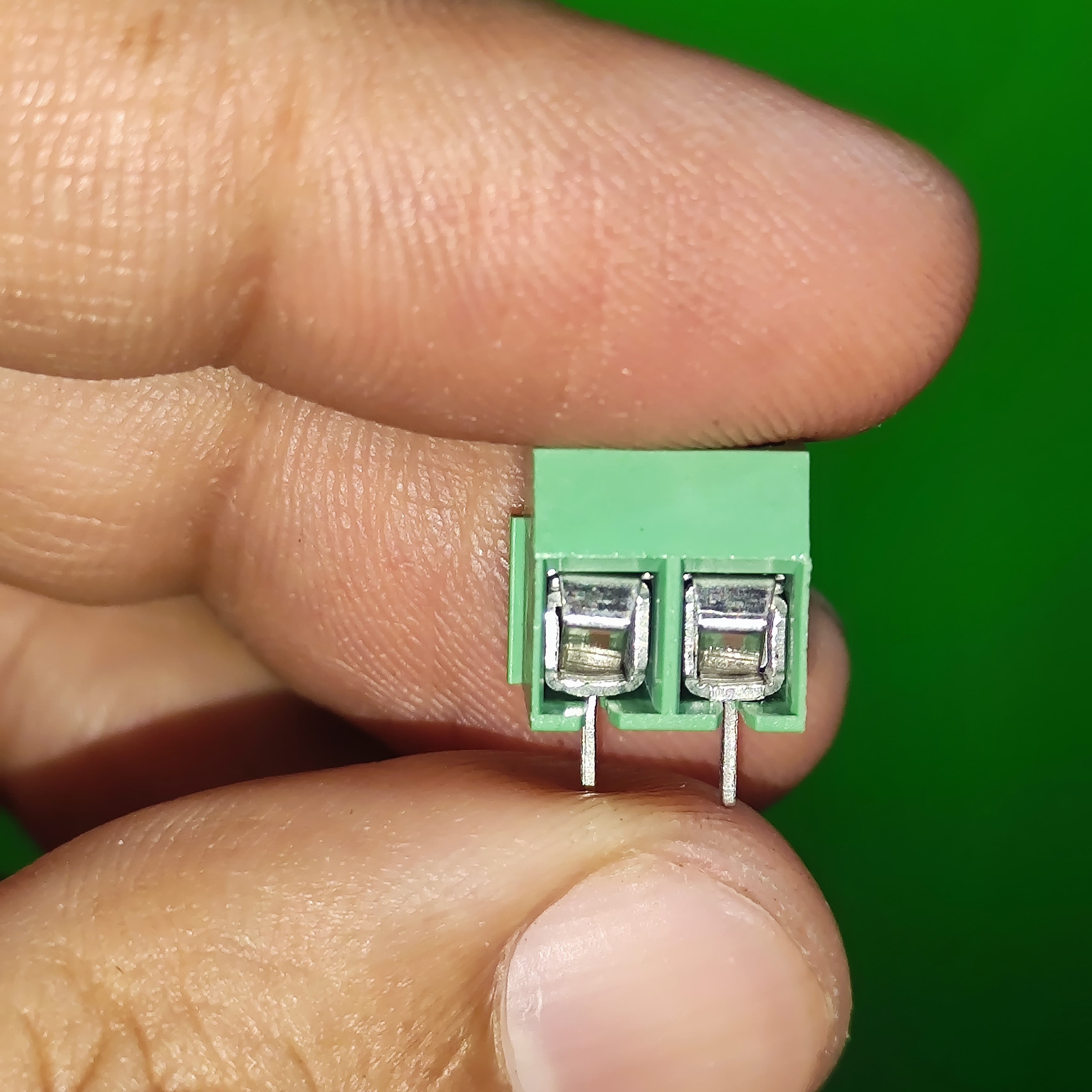

2 Pin Screw Block Terminal Connector

2 Pin Screw Block Terminal Connector

SKU:B94

Regular price Rs.20
Regular price Sale price Rs.20
Sale Sold out
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

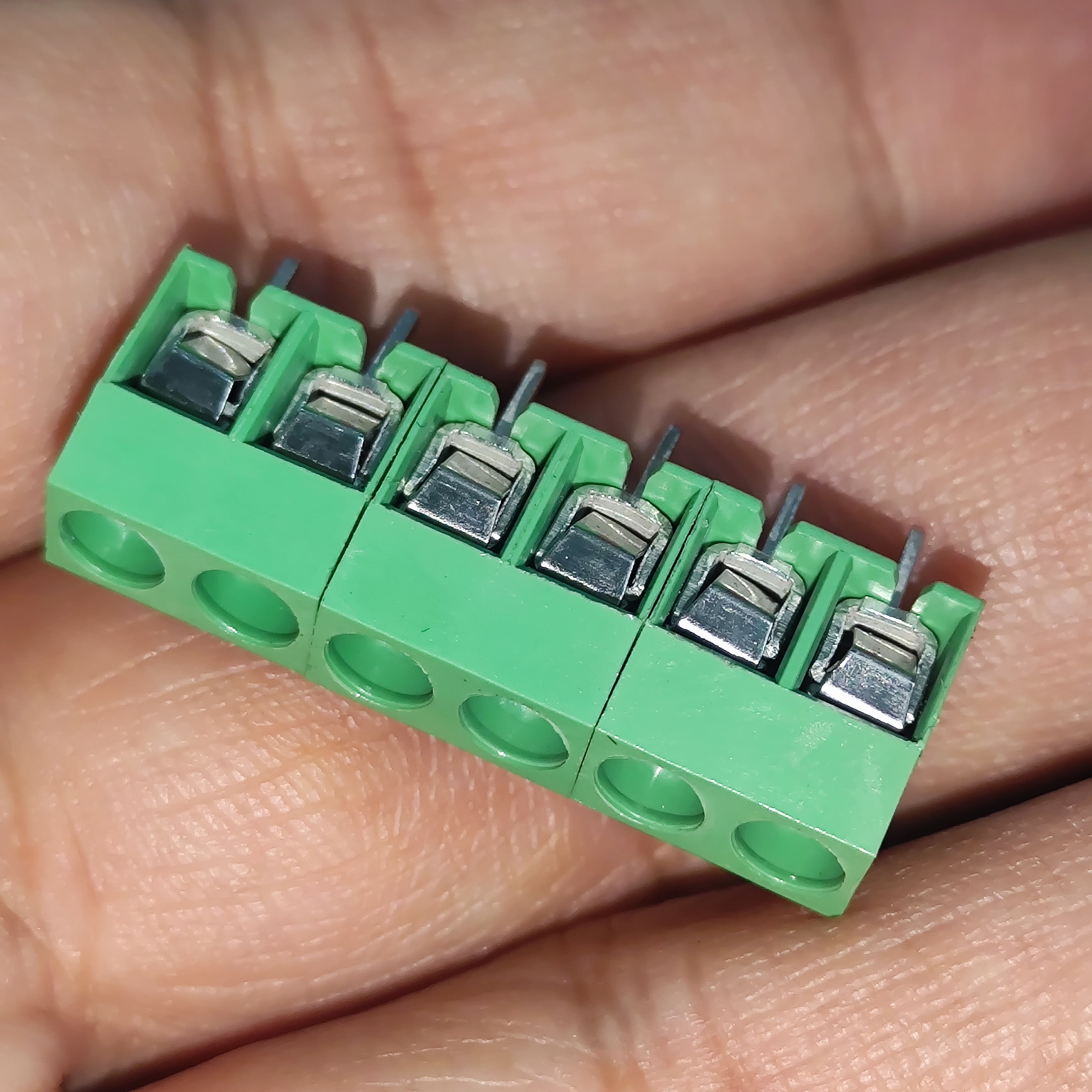

These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

General specifications

Wire gauge:    22-14 AWG
Current rating:    16 A1
Voltage rating:    250 V1
Contact resistance:    20 mΩ
Wire strip length:    5 mm
Terminal type:    screw
Orientation:    side entry

View full details

Description

These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

General specifications

Wire gauge:    22-14 AWG
Current rating:    16 A1
Voltage rating:    250 V1
Contact resistance:    20 mΩ
Wire strip length:    5 mm
Terminal type:    screw
Orientation:    side entry
