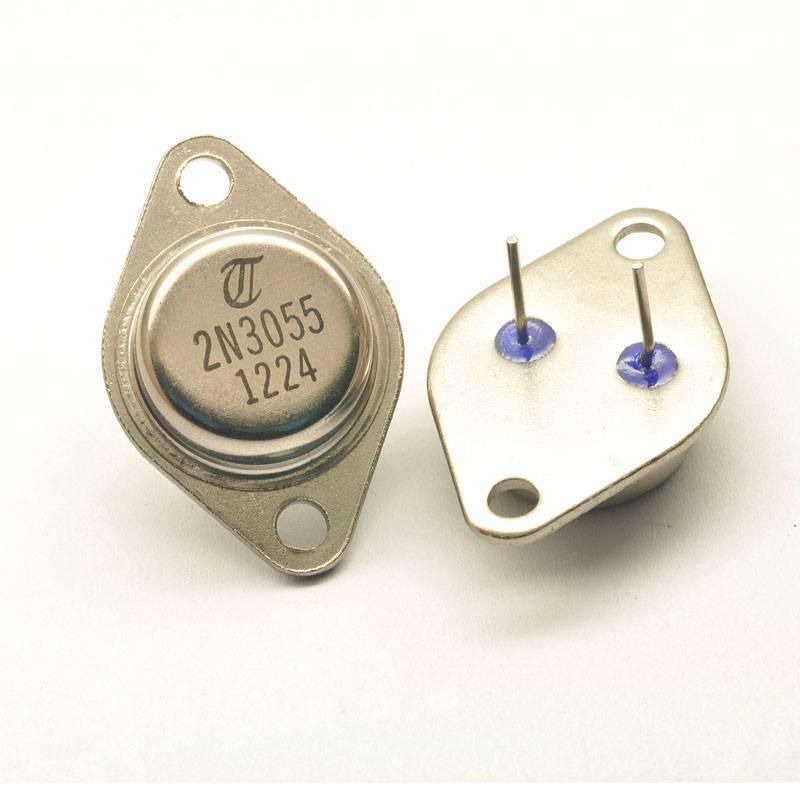

2N3055 Transistor - shown as two silver-colored metal components, one displaying the text "2N3055 1224" and the other showing two pins on the underside.
2N3055 Transistor - the bottom view pinout configuration with base, emitter, and collector labels alongside its electronic circuit symbol.

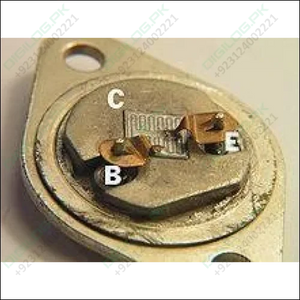

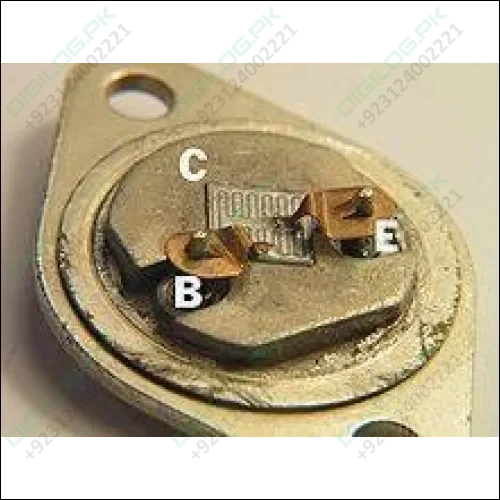

2N3055 Transistor - a close-up view of the internal silicon die and wire bond connections labeled B, C, and E inside a metal TO-3 package.
2N3055 Transistor - shown as two silver-colored metal components, one displaying the text "2N3055 1224" and the other showing two pins on the underside.
2N3055 Transistor - the bottom view pinout configuration with base, emitter, and collector labels alongside its electronic circuit symbol.
2N3055 Transistor - a close-up view of the internal silicon die and wire bond connections labeled B, C, and E inside a metal TO-3 package.

2N3055 Transistor

Sale price Rs 160
SKU: B817,L4,Th2
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

2N3055 Transistor - shown as two silver-colored metal components, one displaying the text "2N3055 1224" and the other showing two pins on the underside.

2N3055 Transistor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
2N3055 Transistor - shown as two silver-colored metal components, one displaying the text "2N3055 1224" and the other showing two pins on the underside.
2N3055 Transistor
Sale priceRs 160

2N3055: The Workhorse of Power Transistors

The 2N3055 is a popular and versatile NPN power transistor known for its ability to handle high currents and voltages. It's a reliable component commonly used in various electronic circuits, from audio amplifiers to motor control systems.

Key Features:

  • High Power Dissipation: Can handle significant power output, making it suitable for demanding applications.
  • High Current Capability: Capable of handling large currents, making it ideal for driving motors, solenoids, and other high-current devices.
  • Wide Operating Voltage Range: Can operate with a wide range of supply voltages.
  • General-Purpose NPN Transistor: Versatile for various electronic circuits and applications.
  • TO-220 Package: Popular and easily mountable package.

Applications:

  • Audio Amplifiers: Used in the output stages of audio amplifiers for power amplification.
  • Motor Control: Drives motors, solenoids, and other electromechanical devices.
  • Power Supplies: Used in power supply circuits for voltage regulation and control.
  • Switching Circuits: Employed as switches to control the flow of current.
  • General-Purpose Electronics: Can be found in a wide range of electronic devices and circuits.

Specifications:

  • Collector-Emitter Voltage (VCE): 60V
  • Collector Current (IC): 15A
  • Base Current (IB): 3A
  • Power Dissipation (PD): 115W
  • Current Gain (hFE): 20-70
  • Junction Temperature (TJ): 200°C

Order Your 2N3055 Transistors Today!

Enhance your electronics projects with the reliable and powerful 2N3055 transistor. Order yours now and enjoy fast shipping and excellent customer service.
