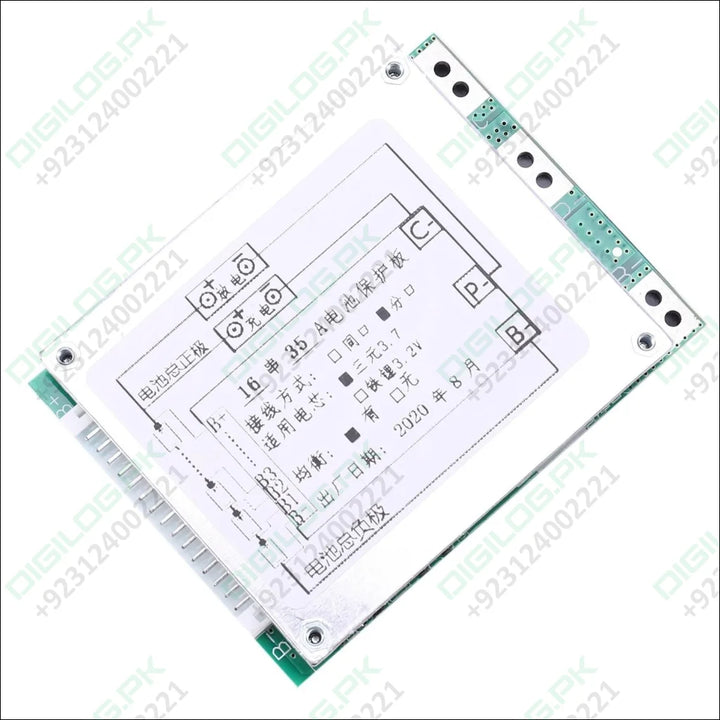

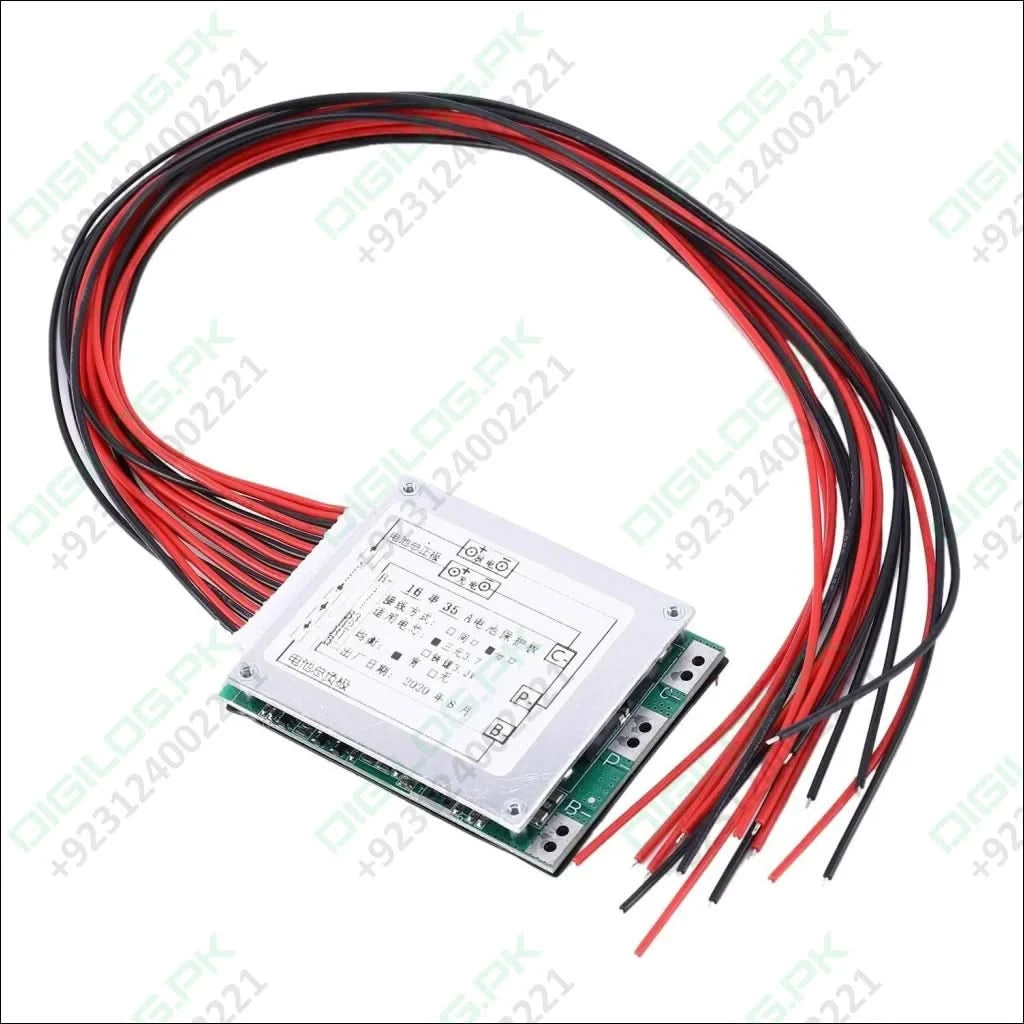

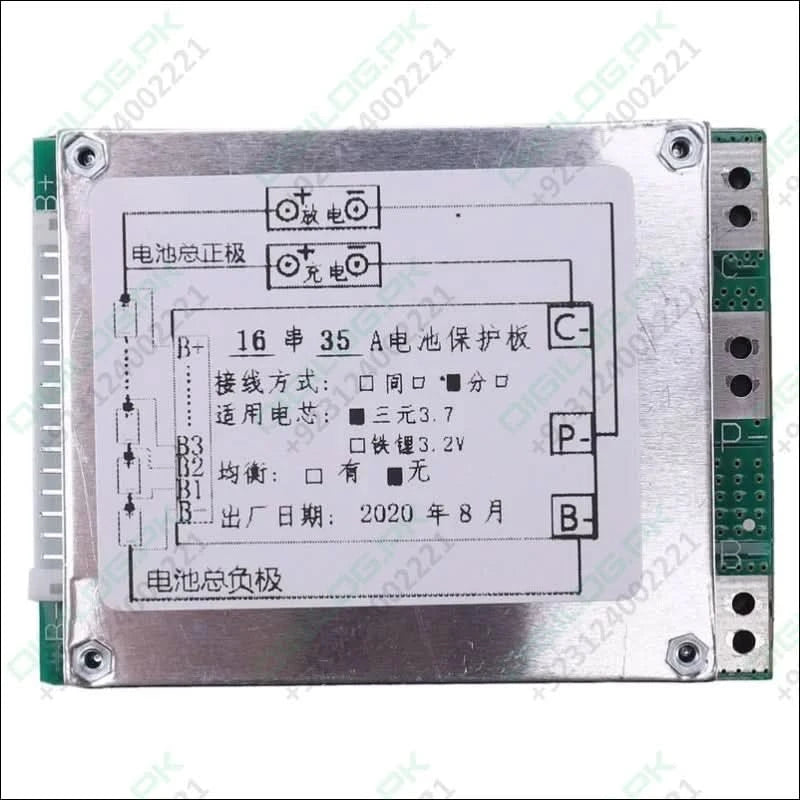

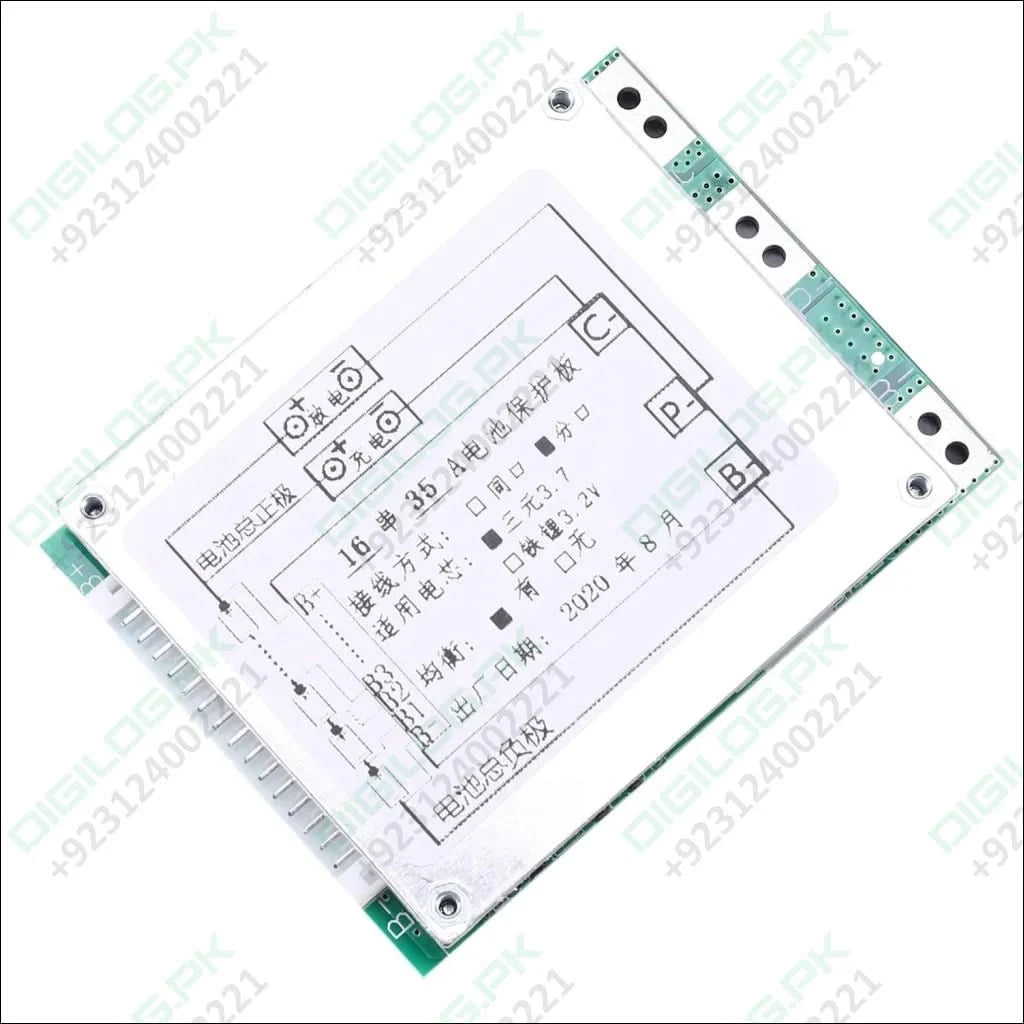

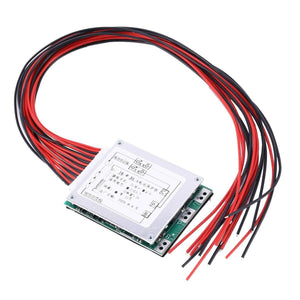

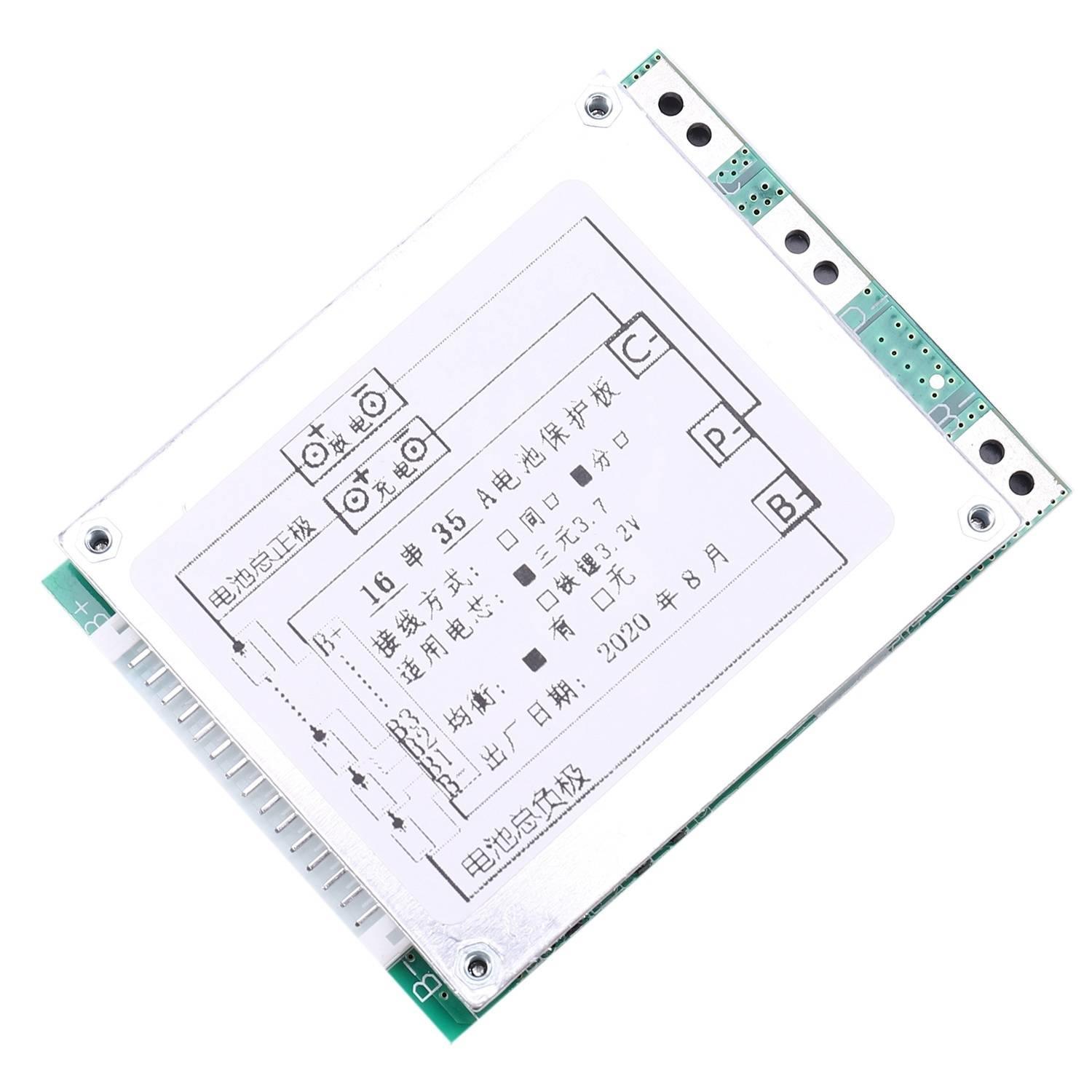

16S 60V 35A Li-Ion Lithium 18650 BMS Protection Board

Rs 4,500 PKR
SKU: B774,KRT201
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

Lithium 18650 BMS Protection Board .16 string 60V lithium protection board. Split port 35A, 4-16 string universal, can be directly downgraded. Scope of application: 18650 special lithium protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium protection board, tricycle protection board, backup lithium protection board.

Li-ion Battery Protection Balancing Board 16S 60V 35A with Split Port for  Smart Robot | 16S BMS

Specification of Lithium 18650 BMS Protection Board :

  • With balanced protection board
  • Continuous Discharge Current: 35A
  • Instantaneous discharge current:100A
  • Charg voltage: 7V
  • Maximum charg current: 20A
  • Overcharge detection voltage: 4.28±0.05V
  • Overcharge protection delay: 100ms
  • Overcharge release voltage: 4.08±0.05V
  • balance detection voltage: 4.2±0.025V
  • balance release voltage: 4.2±0.05V
  • balance current: 45±5A
  • Overdischarge detection voltage: 2.55±0.08V
  • Overdischarge detection delay: 50ms
  • Overdischarge release voltage: 3.0±0.1V
  • Overcurrent detection voltage: 150mV
  • Overcurrent detection delay: 15ms
  • Overcurrent protection current: 120±20A
  • Overcurrent protection release condition: disconnect load
  • Short circuit protection condition: external load short circuit
  • Short circuit detection delay: 200uS
  • Short circuit protection release condition: disconnect load
  • Temperature protection: /
  • Main circuit conduction internal resistance: ≤15m ohm
  • Working current: ≤60uA
  • Sleep current (when the is over-discharged): ≤10uA
  • Temperature range: -30/+80 Celsius
  • Colour:Silver + Green
  • Material:Metal +
  • Size:69x51.5x10mm

Package Contents:

  • 1x Li-ion Protection Board

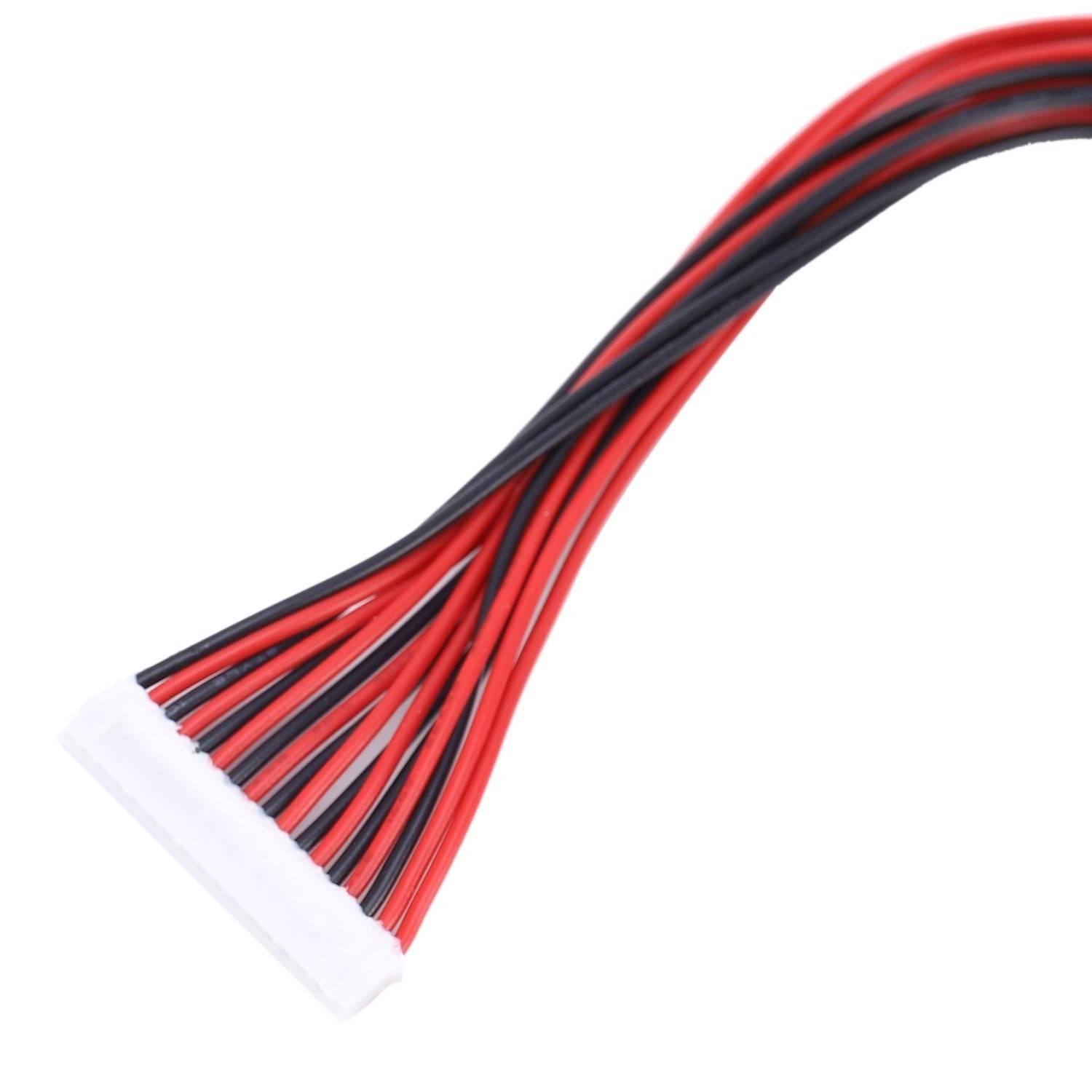

  • 1x Terminal Cable
