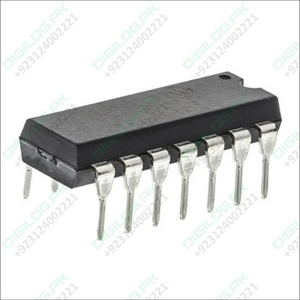

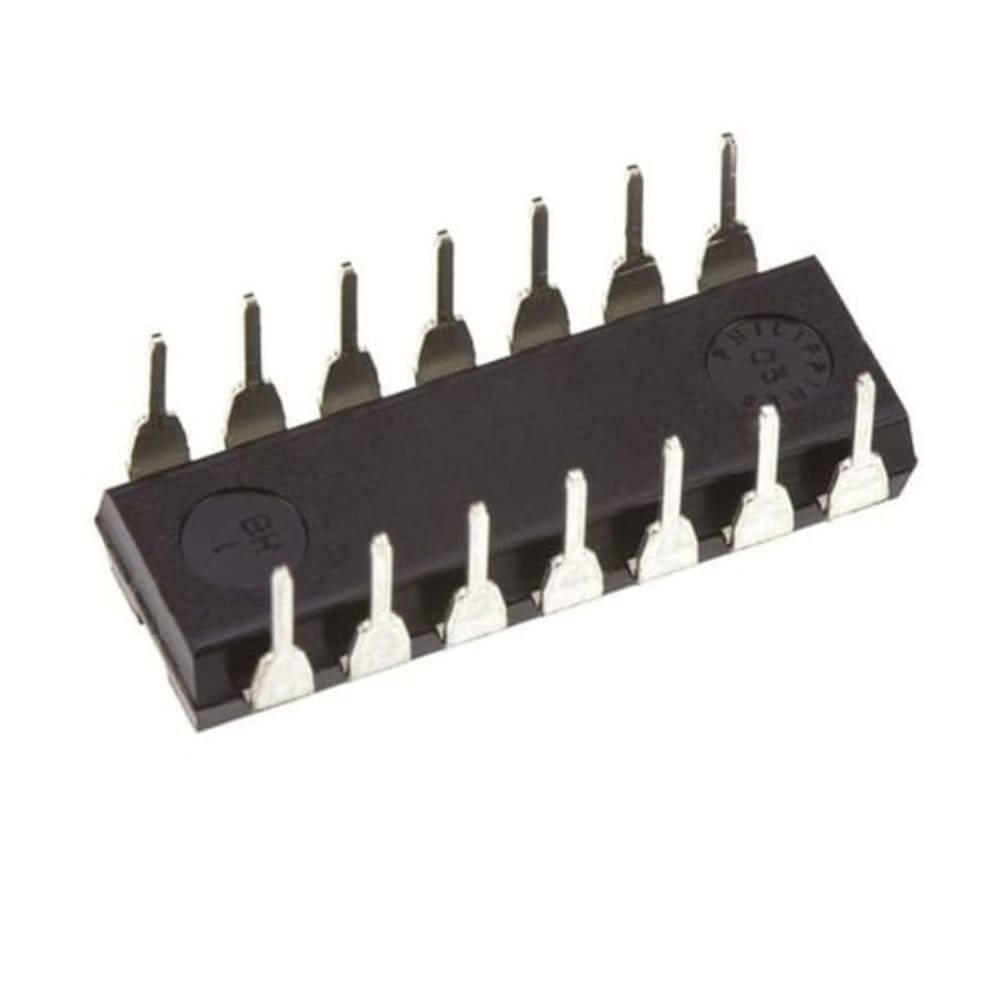

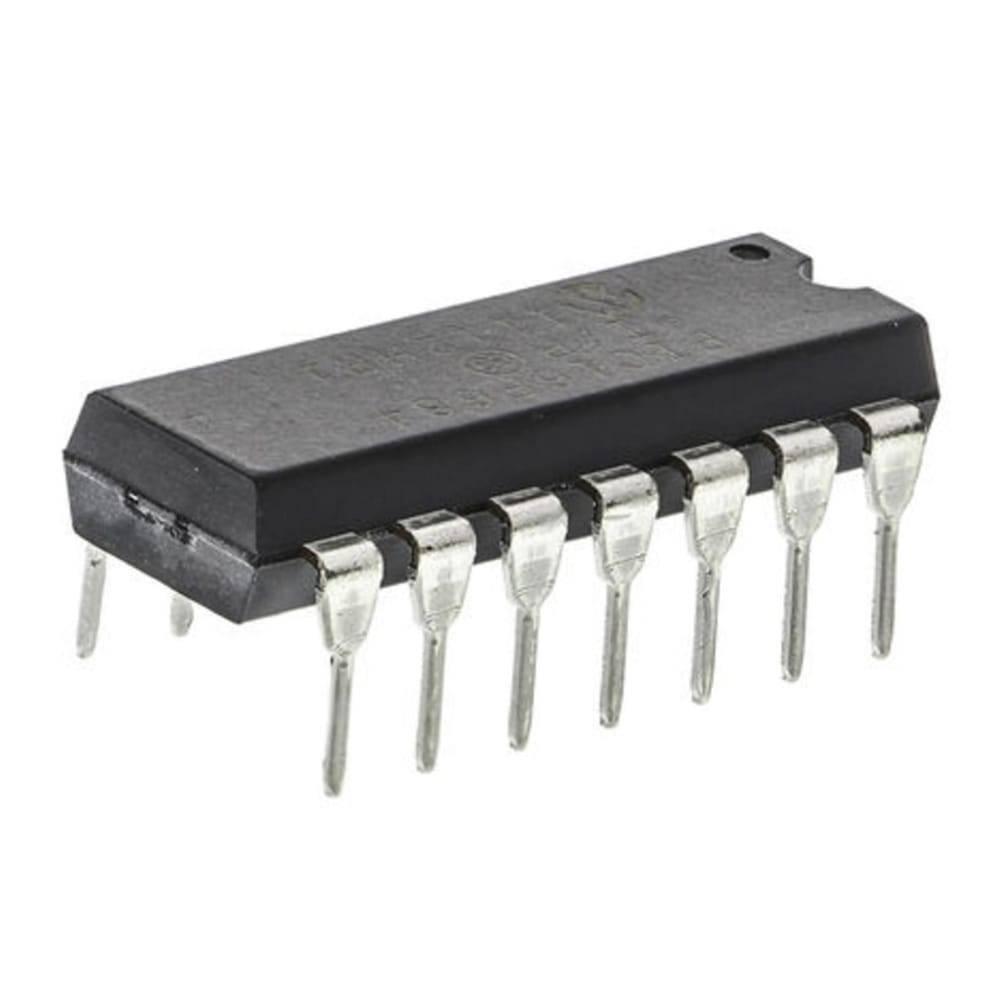

Microchip 14 Pin Flash 8 Bit Microcontroller Pic16f684

Microchip 14 pin Flash 8 Bit Microcontroller PIC16F684 is an 8-bit microcontroller. Microchip 14 pin Flash 8 Bit Microcontroller PIC16F684, 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space-efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F684 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and Data EEPROM of 256 bytes. Onboard is a configurable oscillator factory calibrated to ±1% accuracy.

We have also PIC16F676 Microcontroller, PIC16F676 28 Pin Microcontroller, PIC18F2550 USB Microcontroller etc.

Features & Specifications of Microchip 14 pin Flash 8 Bit Microcontroller PIC16F684:

• Factory calibrated to ±1%, typical
• Software selectable frequency range of
• 8 MHz to 125 kHz
• Software tunable
• Two-Speed Start-up mode
• Crystal fails to detect for critical applications
• Clock mode switching during operation for power savings
• Software Selectable 31 kHz Internal Oscillator
• Power-Saving Sleep mode
• Wide operating voltage range (2.0V-5.5V)
• Industrial and Extended Temperature range
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR) with software control option
• Enhanced low-current Watchdog Timer (WDT) with an on-chip oscillator (software selectable nominal 268 seconds with full Prescaler) with Software Enables
• Multiplexed Master Clear with pull-up/input pin
• Programmable code protection
• 100,000 write Flash endurance
• 1,000,000 write EEPROM endurance
• Flash/Data EEPROM retention: > 40 years

Package Includes:

1 x Microchip 14 pin Flash 8 Bit Microcontroller PIC16F684
