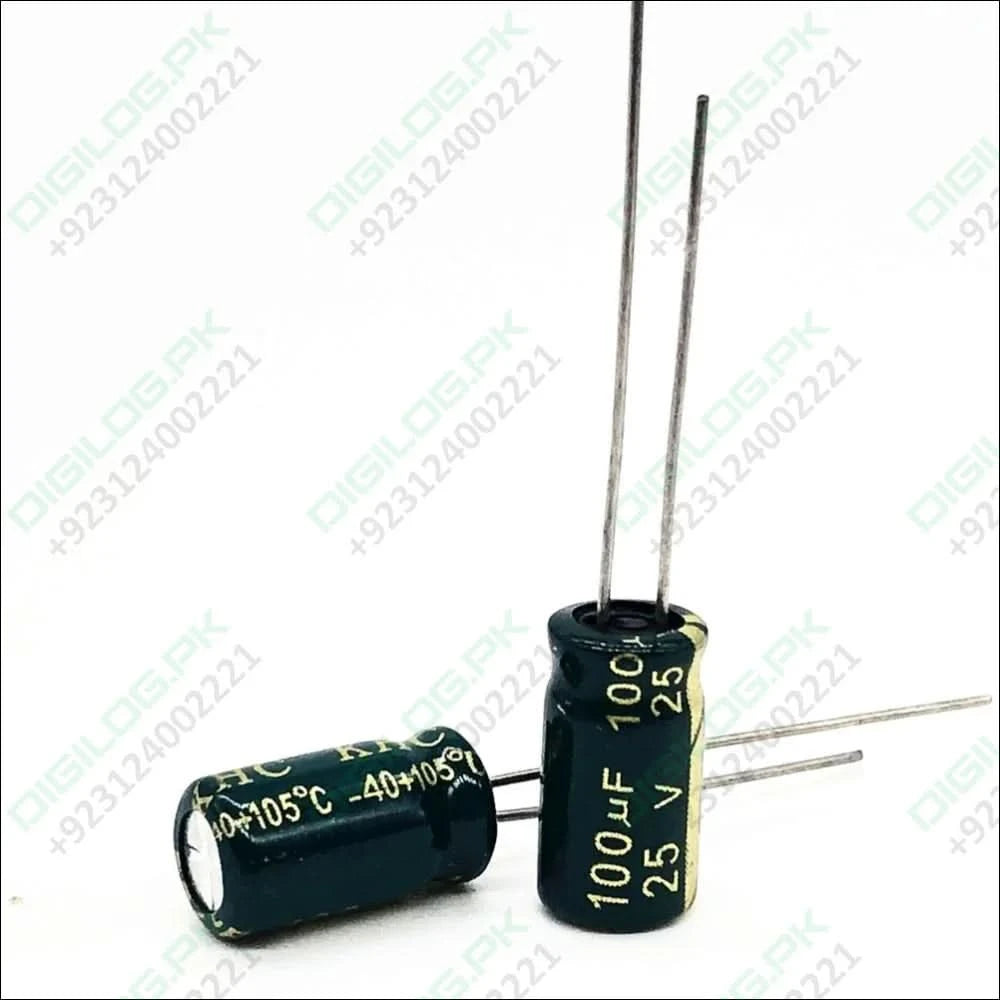

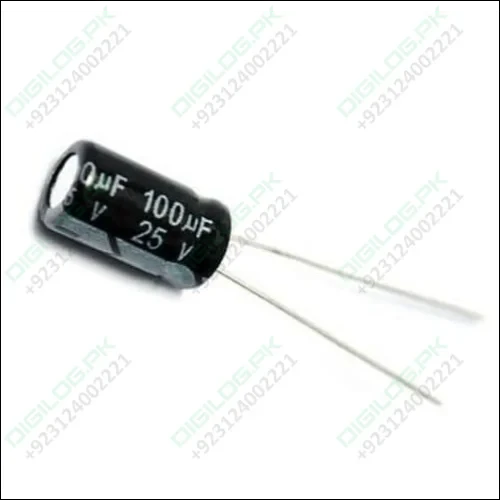

Aluminium 100uf 25v Electrolytic Polar Capacitor
Aluminium 100uf 25v Electrolytic Polar Capacitor

100uf 25v Electrolytic Polar Capacitor in Pakistan

Rs 5 PKR
SKU: b430,L500,Th250,KRT
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

Aluminium 100uF 25V Electrolytic Polar Capacitor is general-purpose and filter capacitor. Aluminium 100uF 25V Electrolytic Polar Capacitor, whose anode electrode (+) is made of a pure aluminium foil with an etched surface. The aluminium forms a very thin insulating layer of aluminium oxide by anodization that acts as the dielectric of the capacitor. A non-solid electrolyte covers the rough surface of the oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor. A second aluminium foil called “cathode foil” contacts the electrolyte and serves as the electrical connection to the negative terminal of the capacitor.

Features:

  • 105°C General purpose radial electrolytic capacitors.
  • Ideal for use in power supply smoothing.
  • High-Quality and Longlife Electrolytic Capacitors.
  • Low Leakage Current.
  • Wide Operating Temperature Range.
  • Great transient/surge suppressor capacitors.
  • Attach one between the power and ground of your project to ensure smooth power delivery.

Specifications of Aluminium 100uF 25V Electrolytic Polar Capacitor:

  1. RoHS Compliant
  2. Accuracy: ±20%
  3. Wide Operating Temperature Range: -55...105°C
  4. Dimensions: Body Height – 11mm, Body Diameter – 5mm
  5. Pin Spacing: 2mm
  6. Terminal: Radial

Image result for 100uF 25V

Package Includes:

1 x Aluminium 25V Electrolytic Polar Capacitor
