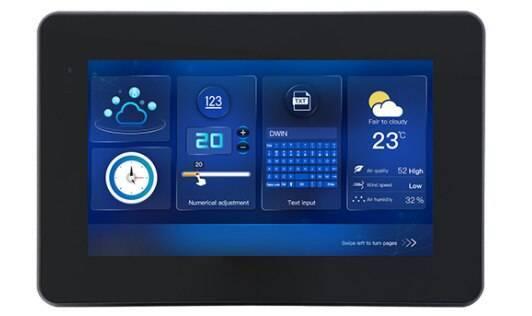

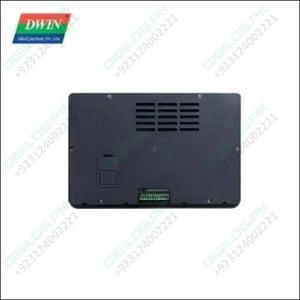

10.1 Inch HMI Modbus TFT LCM DMG10600T101-A5WTR (Industrial Grade)
DWIN 1024*600, Industrial UART LCD touch screen
Features:

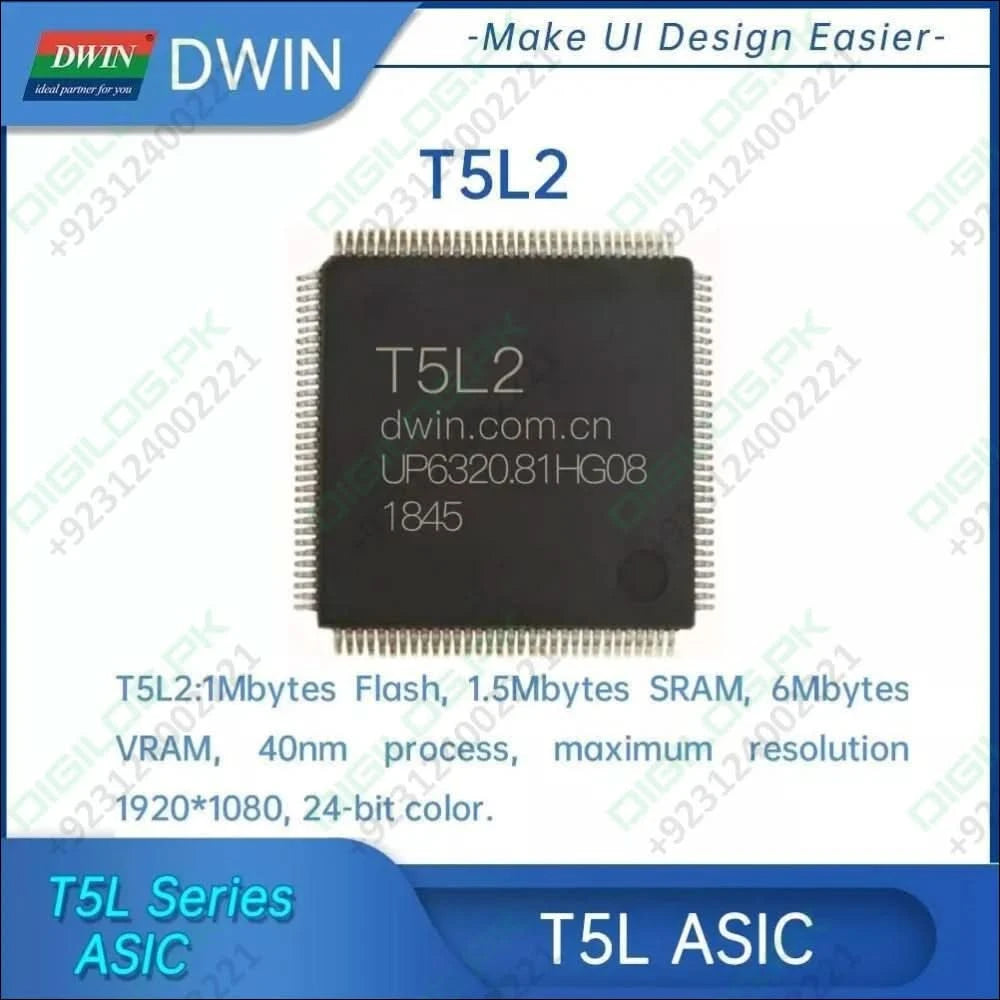

● Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*600 Pixel;
● 72 Hours Aging Test, With conformal Coating,IP65 Protective Level;
● Capacitive touch screen;
● RS232 and RS485 Interface,8PIN 3.81 Socket;
● Widely used with different kinds of PLC;
● Adopt DWIN V7.624 DGUS tool;
● Dual Development System: DGUS II/ TA(Instruction set);
● IPS View Angle: 85°/85°/85°/85° (L/R/U/D) ;
● Independent GUI and OS CPU.OS CPU can be development by DWIN OS and KeilC.
ASIC Information

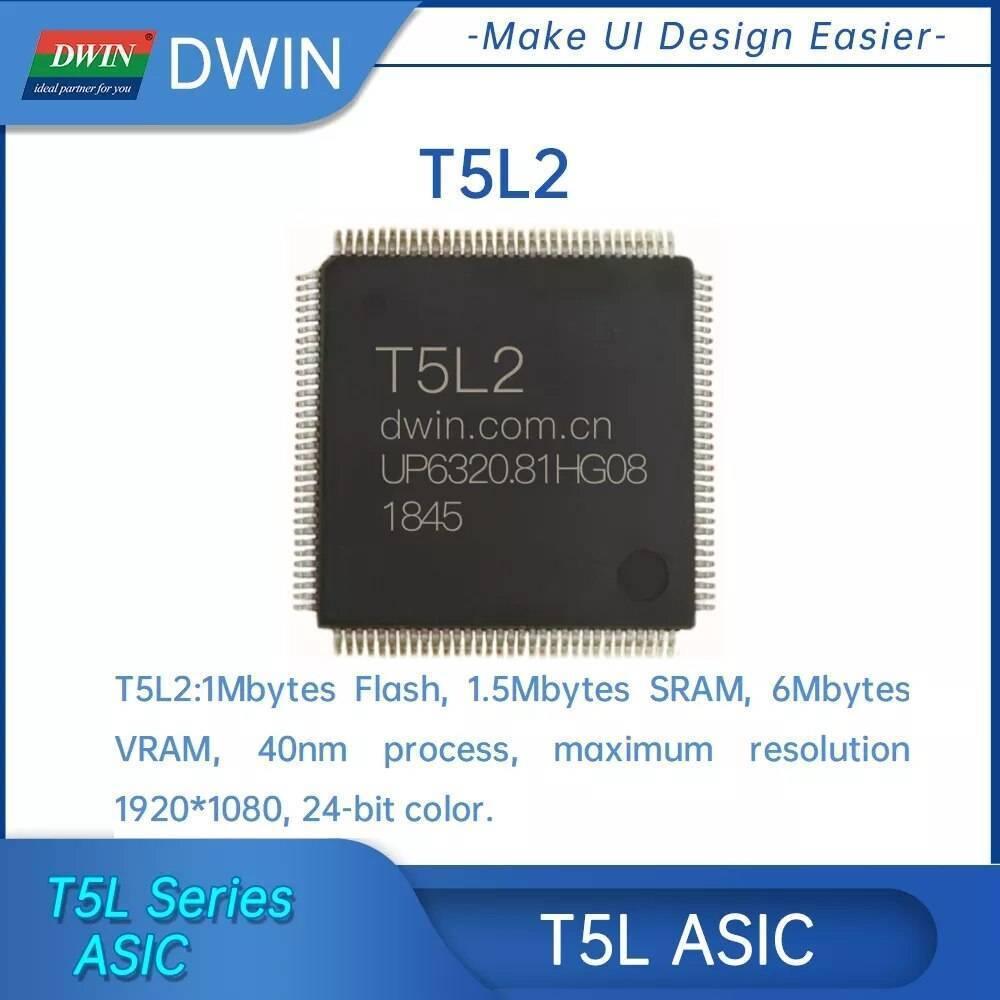

| T5L2 ASIC | Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display
| Color | 16.7M（16777216） colors |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85°(L/R/U/D) |
| View Area（V.A） | 222.70mm (W) ×125.30mm (H) |
| Resolution | 1024*600 |
| Backlight | LED |
| Brightness | 250nit |
Touch parameters
| Type | CTP (Capacitive touch panel) |
| Structure | G+G structure with surface cover of Asahi tempered glass |
| Touch Mode | Support point touch and drag |
| Surface Hardness | 6H |
| Light Transmittance | Over 90% |
| Life | Over 1,000,000 times and depending on the working environment |
Voltage & Current
| Power Voltage | 6~36V |
| Operation Current | VCC = +12V, Backlight on,380mA |
| VCC = +12V, Backlight off,120mA |
Reliability Test
| Working Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Working Humidity | 10%~90%RH |

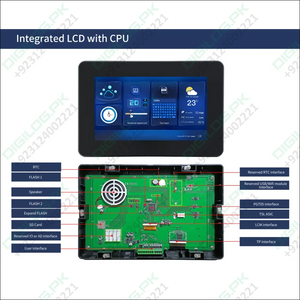

Interface
| LCM interface | FPC50_0.5mm, RGB interface |
| CTP interface | COB structure, IIC interface |
| Baudrate for serial port 2,5 | 3150~3225600bps, typical value of 115200bps |
| Output Voltage | Output 1, -5.0~3.0 V |
| Output 0, 3.0~5.0 V | |
| Input Voltage （RXD） |
Input 1， -15.0~-5.0V |
| Input 0， 5.0~15.0 V | |
| Baudrate of Serial port 4 | 3150~921600bps, typical value of 115200bps |
| Output Voltage | Output 1,2.5~5.0 V |
| Output 0,-0.5~-2.5 V | |
| Input 1,0~2.5 V | |
| Input 0, -2.5~-0.2 V | |
| Interface | UART2: RS232 UART4: RS485（Only available after OS configuration) UART5: RS232（Only available after OS configuration) CAN*1 |
| User Interface | 8Pin_3.81mm socket and 4Pin_3.81mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Speaker | Onboard speaker. Power: <2.5W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mbit/s |

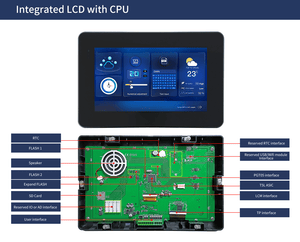

| Reserved module interface |
Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Peripheral
| DMG10600T101-A5WTC | Capacitive touch screen, Speaker, RTC interface,Reserved IO/AD Interface |
